Orbik LVR24

Orbik LVR24

• Suitable for a wide range of single or multiple LED modules (arrays).

• Output Voltage range 3V – 80V DC.

• Constant power output.

• Supplied as standard with a 240V AC hold off relay.

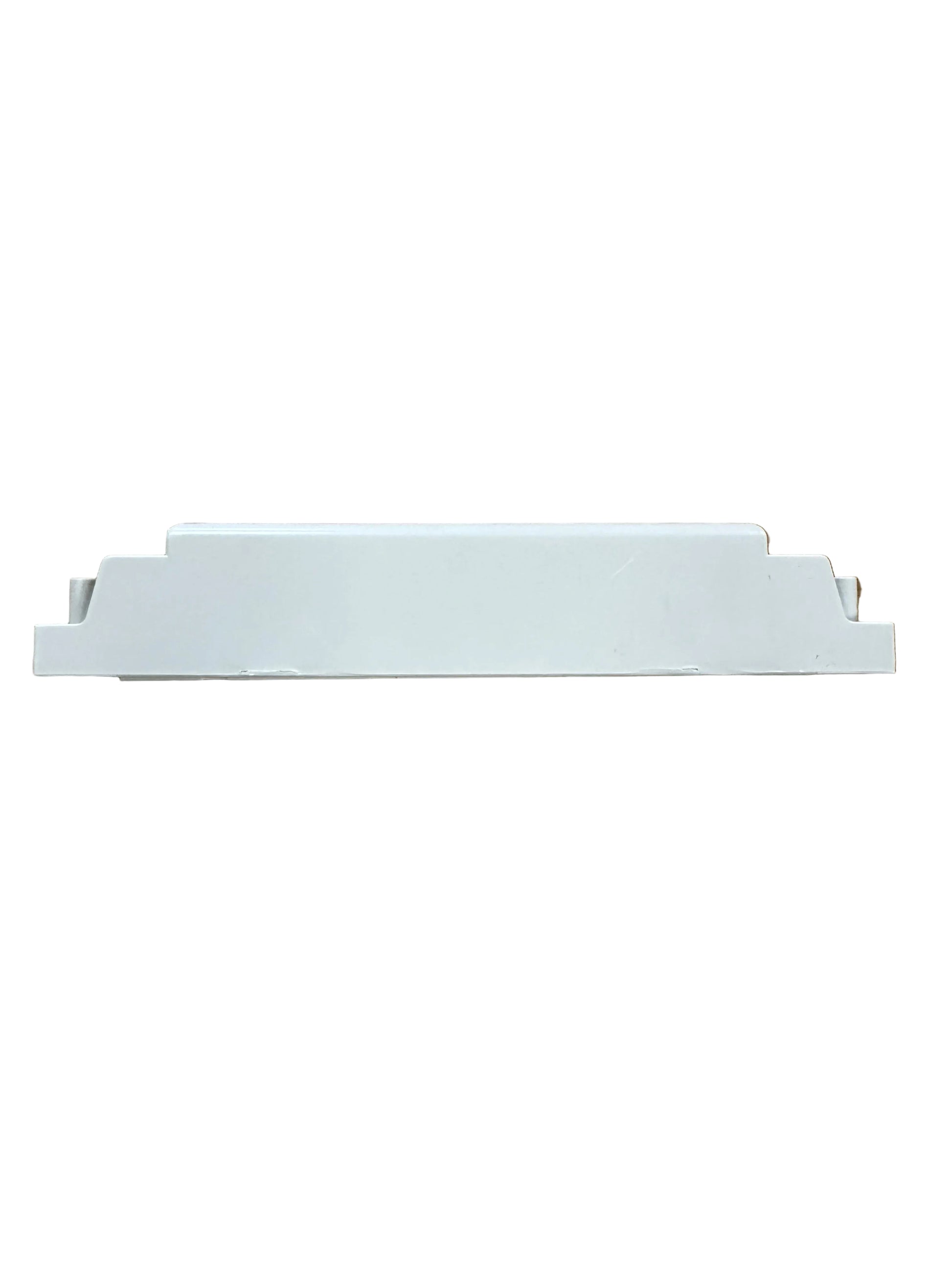

• IP20 polycarbonate housing.

• Class 2 protection.

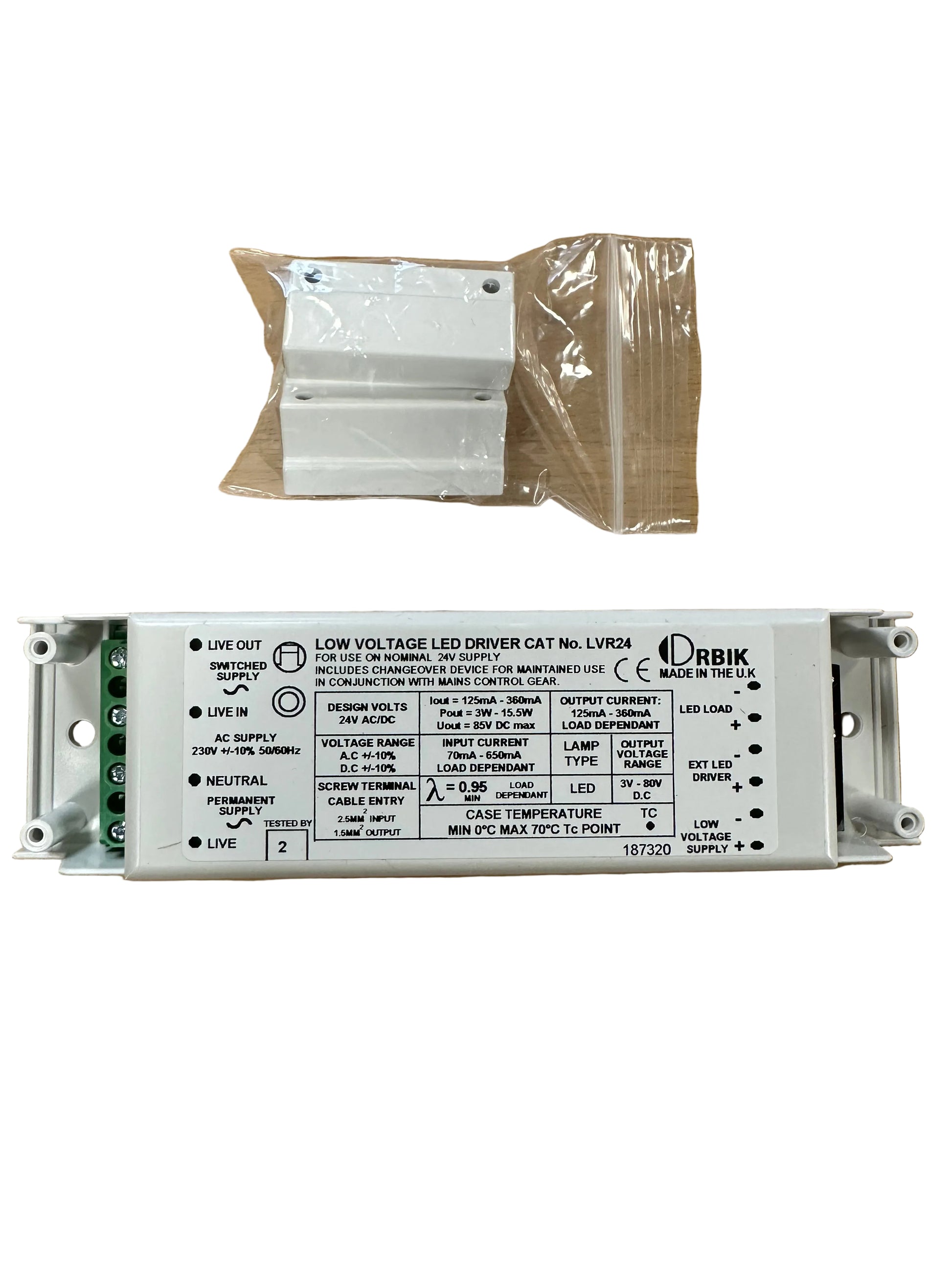

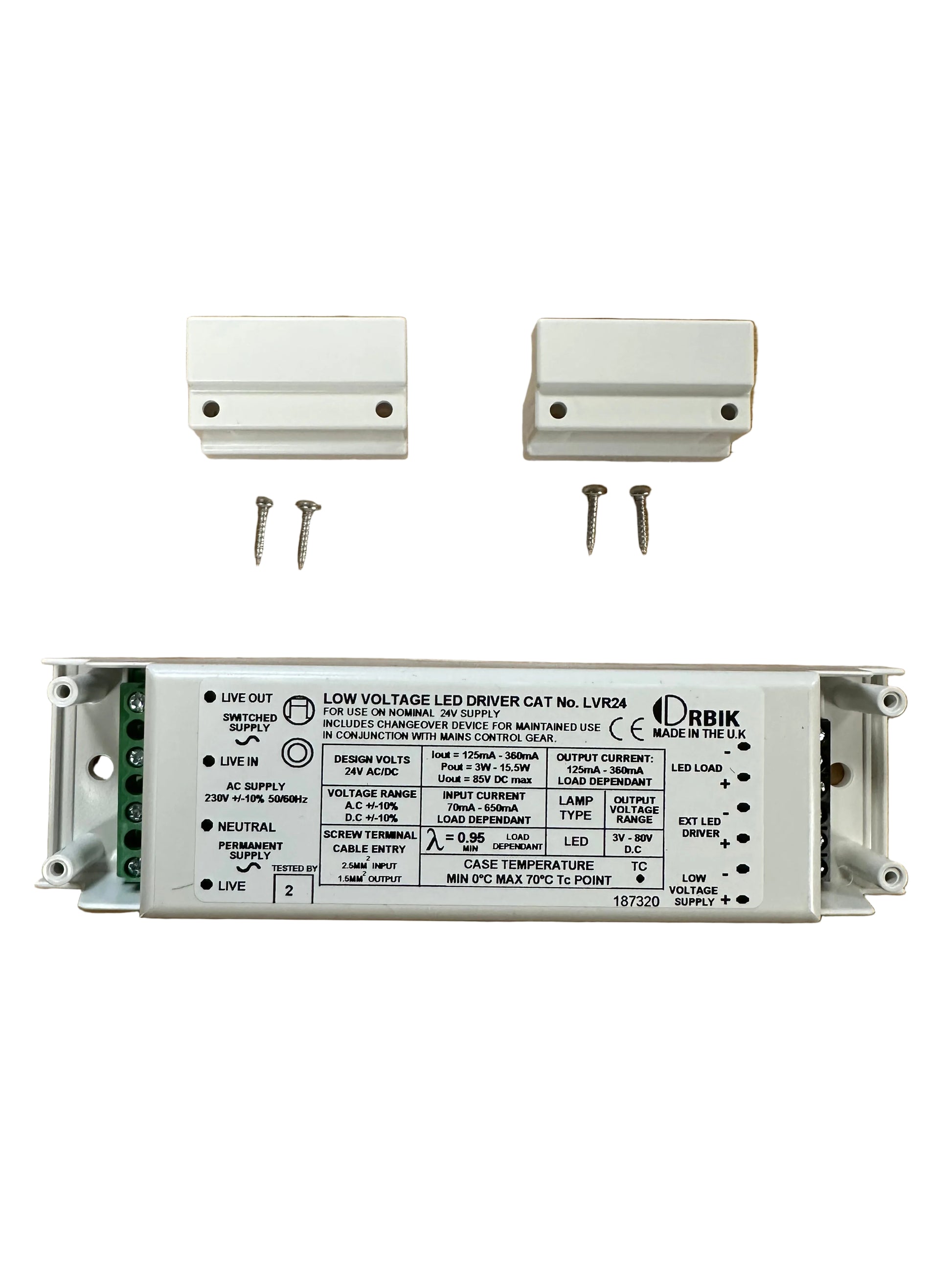

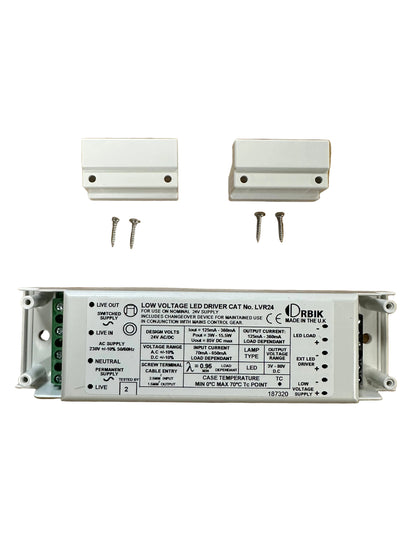

• Supplied with strain relief cable clamps.

• Low Voltage Input Supply: 24V AC/DC. AC ± 10%. DC ± 10%

• Input Current (Load Dependant): 70mA – 520mA

• Input Power (Load Dependant): 1.75W – 12W

• Power Factor λ: >0.95 (load dependent)

• Hold-Off Relay Supply: 240V AC 50/60Hz

• Output Voltage Range (DC): 3V – 80V

• Enclosure: White polycarbonate

• Wire Size: 1.5mm²
