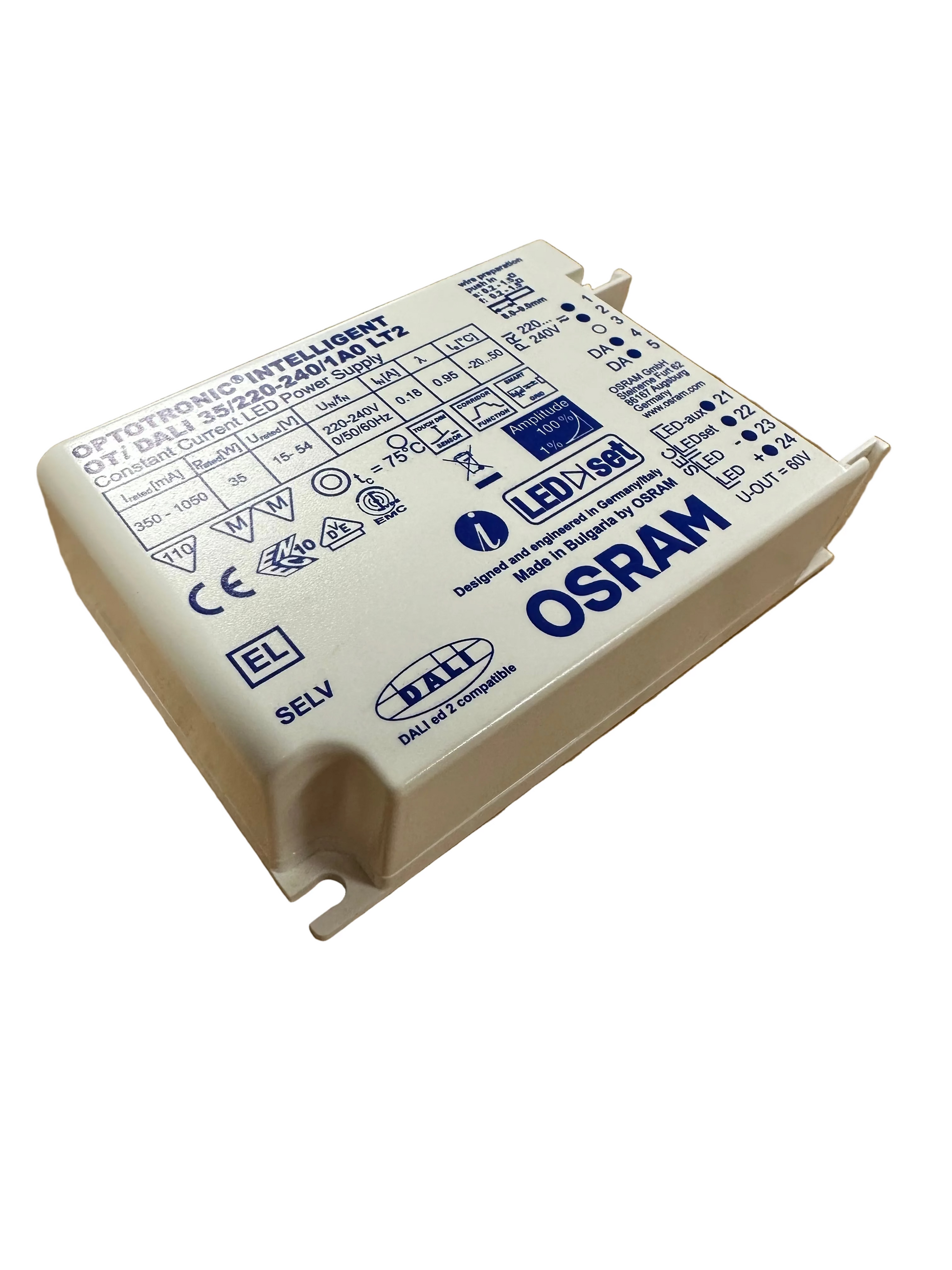

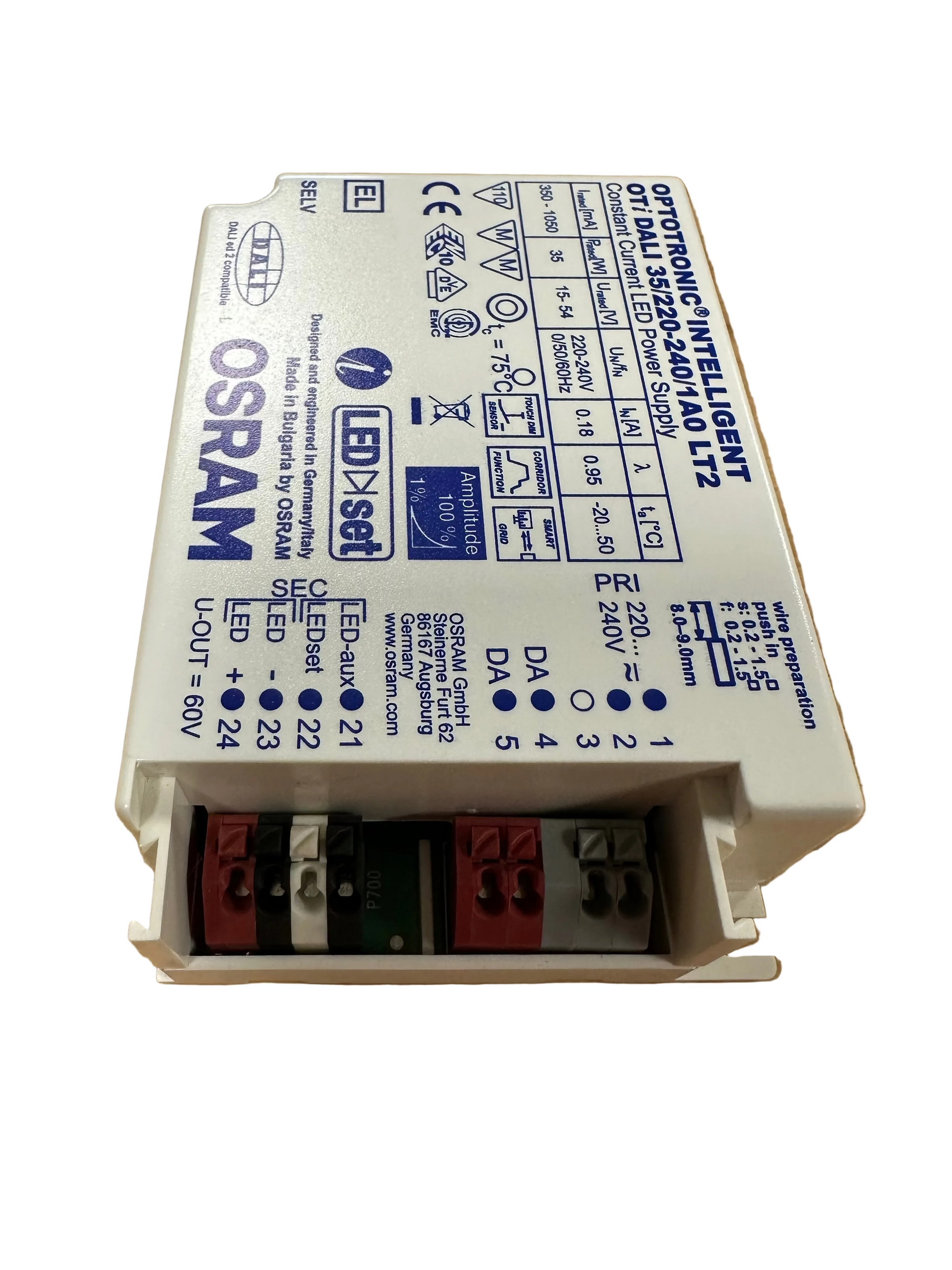

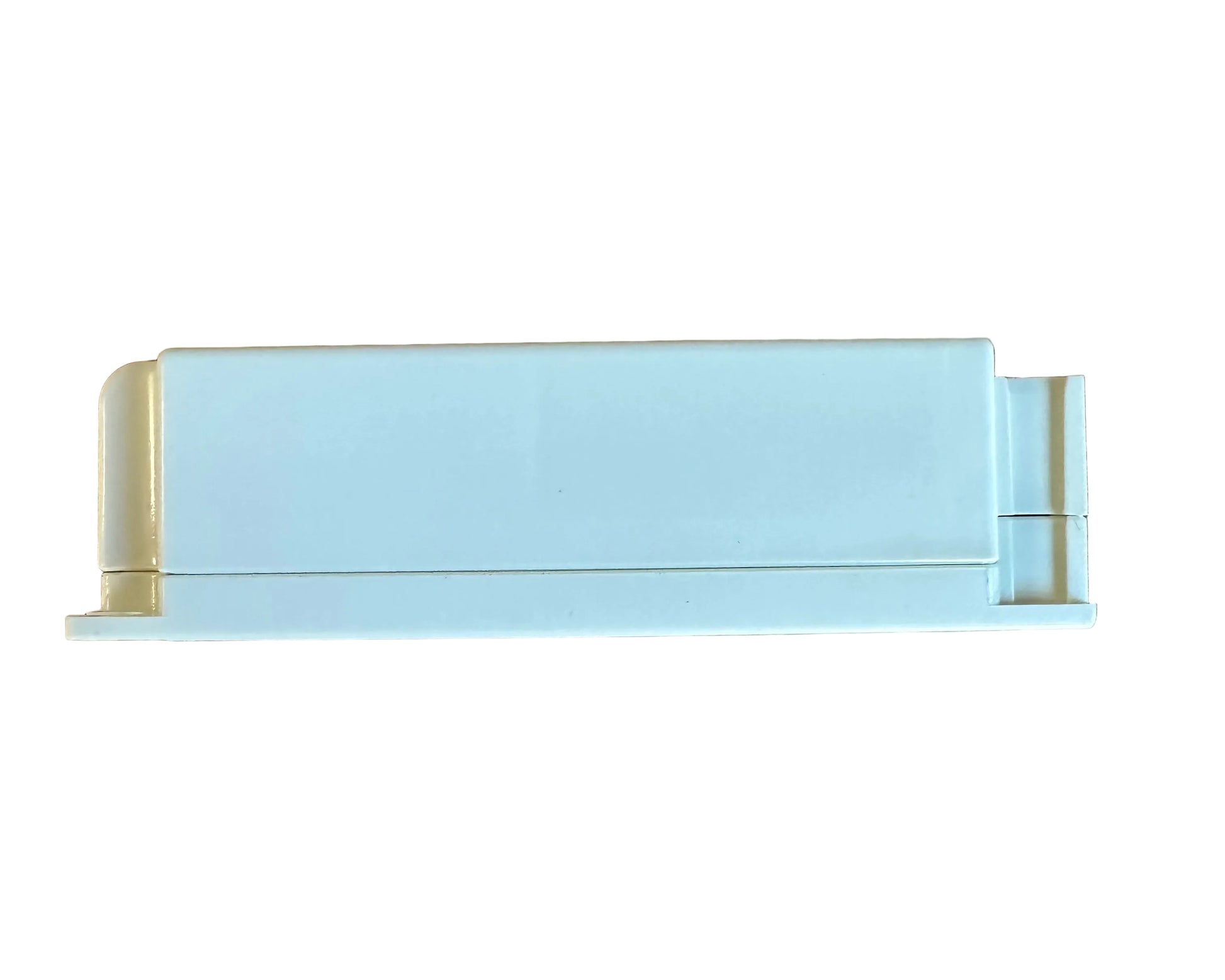

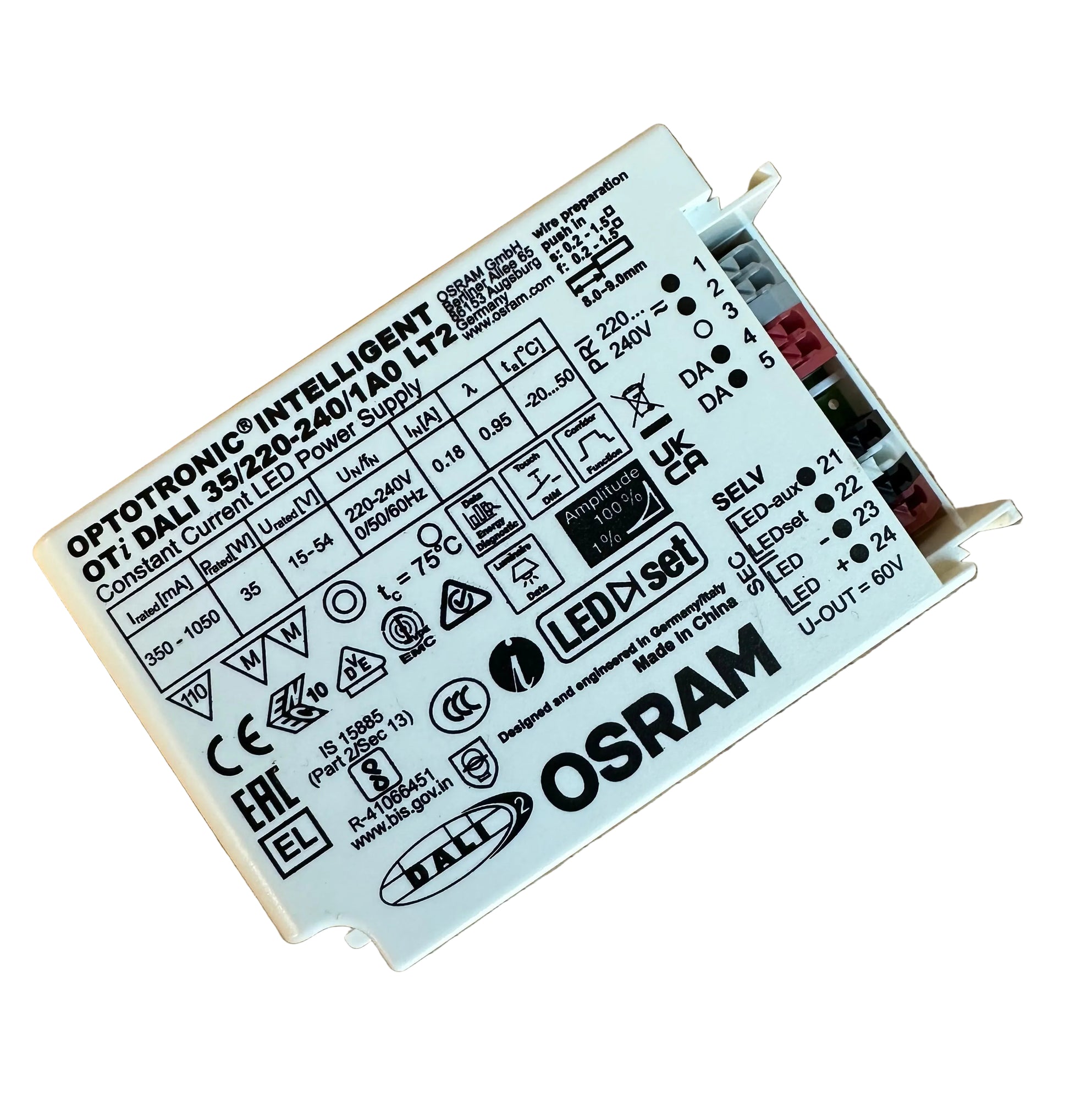

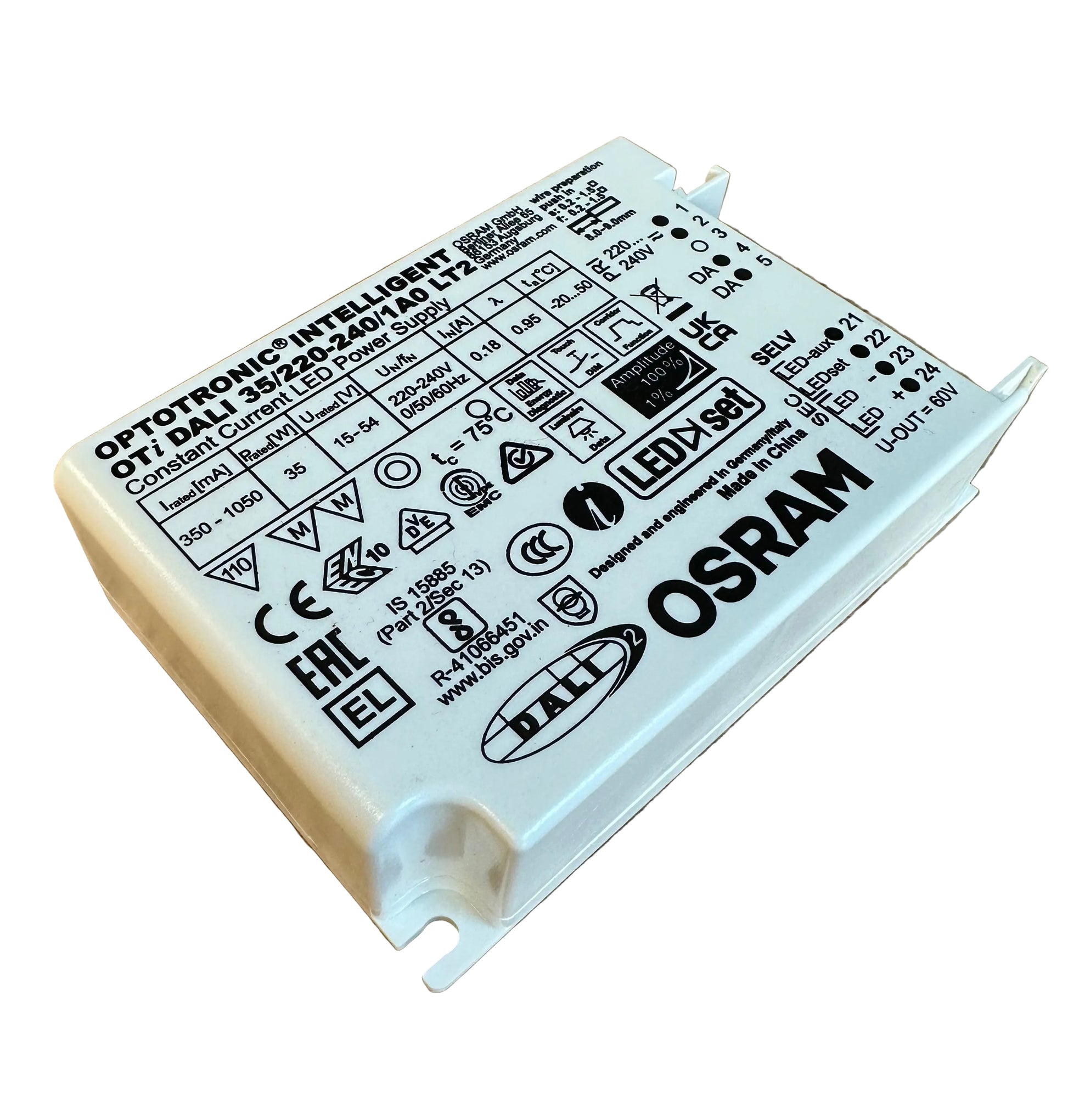

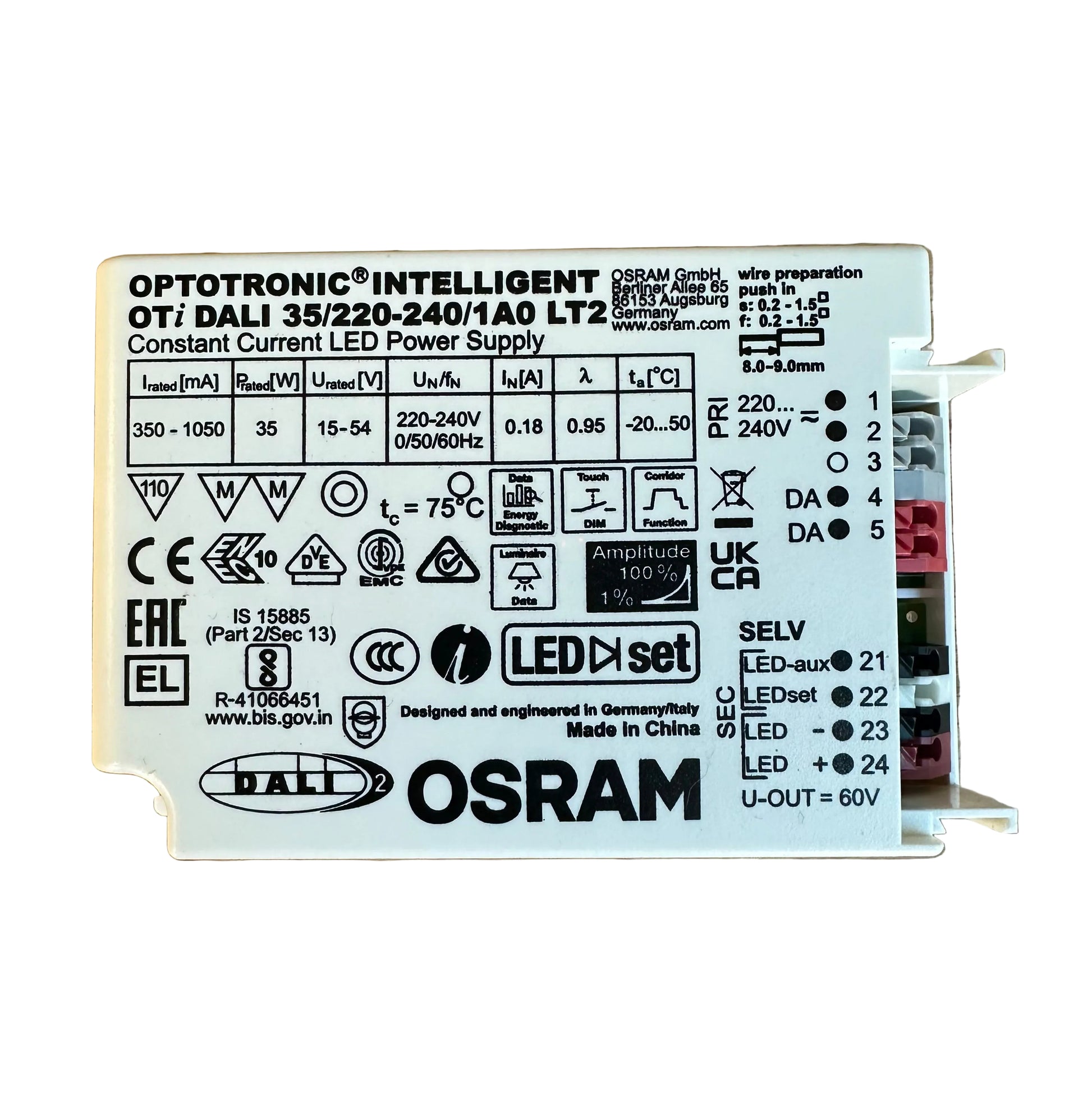

Osram OTI DALI 35/220-240/1A0 LT2

Product family benefits

• Versatile DALI window driver due to flexible output characteristic
• Very high efficiency
• Protection of the system thanks to thermal management and Smart Control
• High-quality dimming of 1…100 % by amplitude dimming
• Maximum Wattage 35W
• 350-1050mA
• Forward Voltage 15-54V
• Dimensions 103 X 67 X 29.5

Versatile scope of application due to OSRAM DALI Technology:

• Easy to use in corridors and restrooms because of three-level Corridor function
• Touch DIM application: easy to control via pushbutton or sensor
• Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
• Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
• Feedback of power consumption and operating hours (Fit for SMART GRID)
• Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Areas of application

• Installation in emergency lighting system according to IEC 61347-2-13, appendix J
• Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
• Suitable for indoor SELV installations
• Suitable for luminaires of protection classes I and II
• Suitable for downlights, spotlights and LED panels
• Installation via Cable Clamp Kit possible (depending on version of product)
