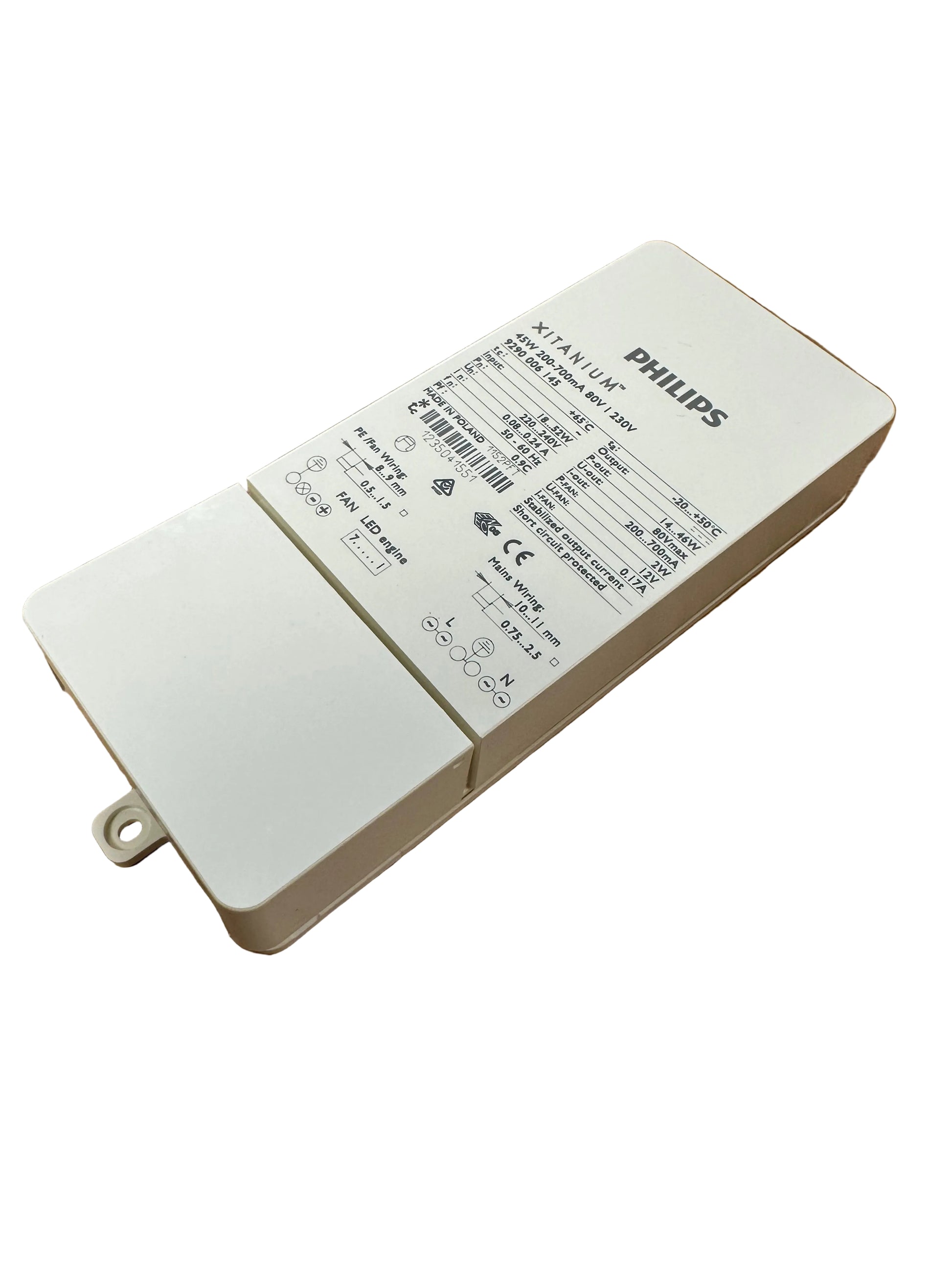

Philips 929000614503 Xitanium 45W 200-700mA 80V I 230V

Philips 929000614503 Xitanium 45W 200-700mA 80V I 230V

The Fortimo and Xitanium electronic LED drivers are specially designed to operate LED solutions for general lighting applications. This Xitanium LED driver versions is 45W / 80V fixed-output. The high output voltage (up to 80V) and adjustable output current (200 to 700mA) enable operation of many LEDs (high light output) and flexibility in LED fixture designThe output current can be set by placing a resistor on your LED PCB (Level 2 board) This housing is independent mounting. This 45W version features a 12V output to
operate active cooling fan or decorative LED light effects.

• 12V output Yes
• Ripple current 20 %
• Efficiency Range 80-90 %
• Output Power Range 14-45 W
• Power Factor (100% load) 0.9 (min)
• Input Power max 46 W
• Output Voltage Range 20-80 V
• Output Current Range (mA) 200-700
• Total Harmonic Distortion IEC 20 (max) %
• Inrush Current Peak 48 (max) A Output Current
• Tolerance-5 (min), 5 (max) %
• Type of Dimming None
• Input Voltage Range (AC) 220-240 V
• Max drivers on MCB(16A type-B)
• Dimensions. 220mm L 83mm W 35mm H
