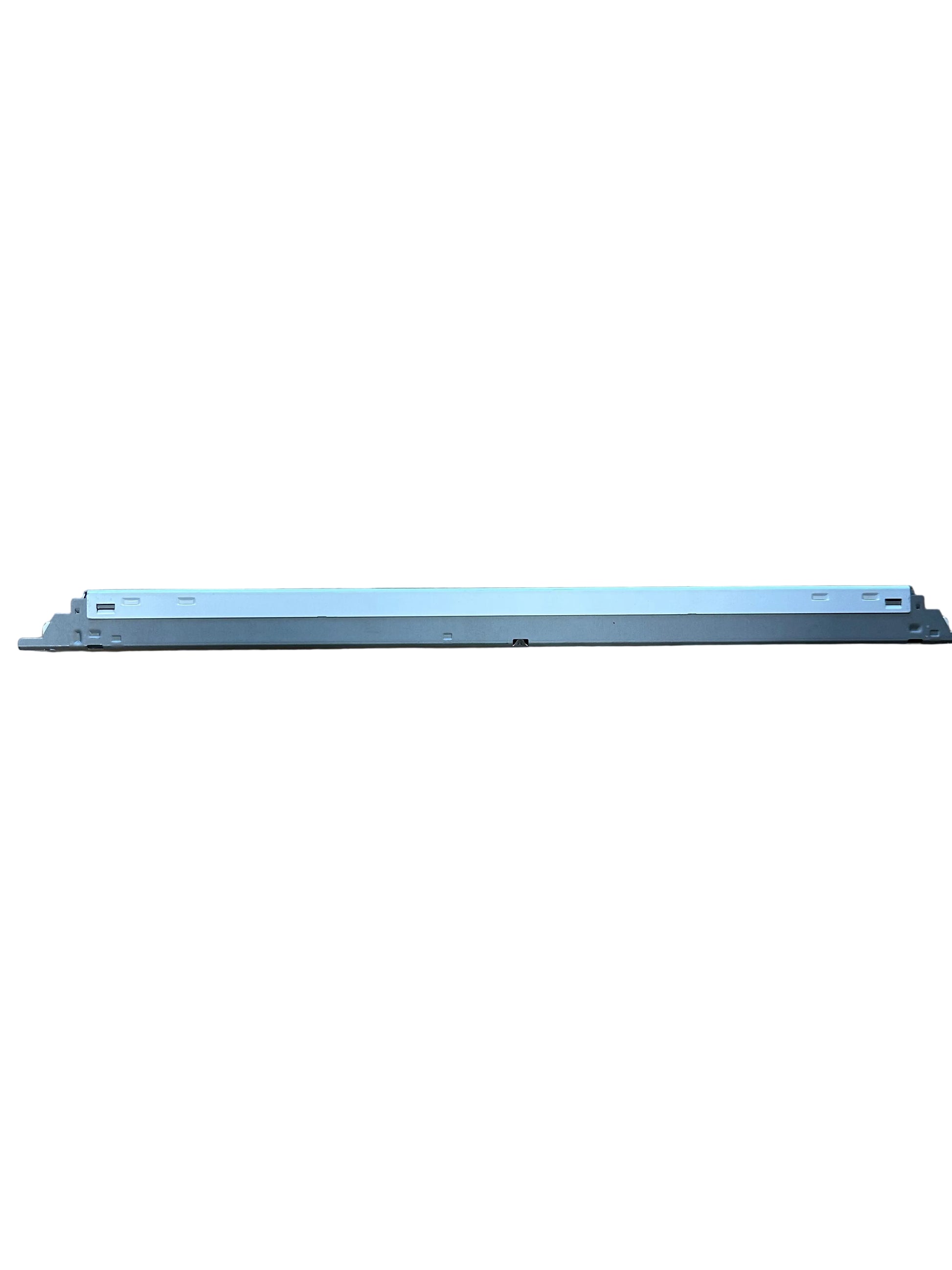

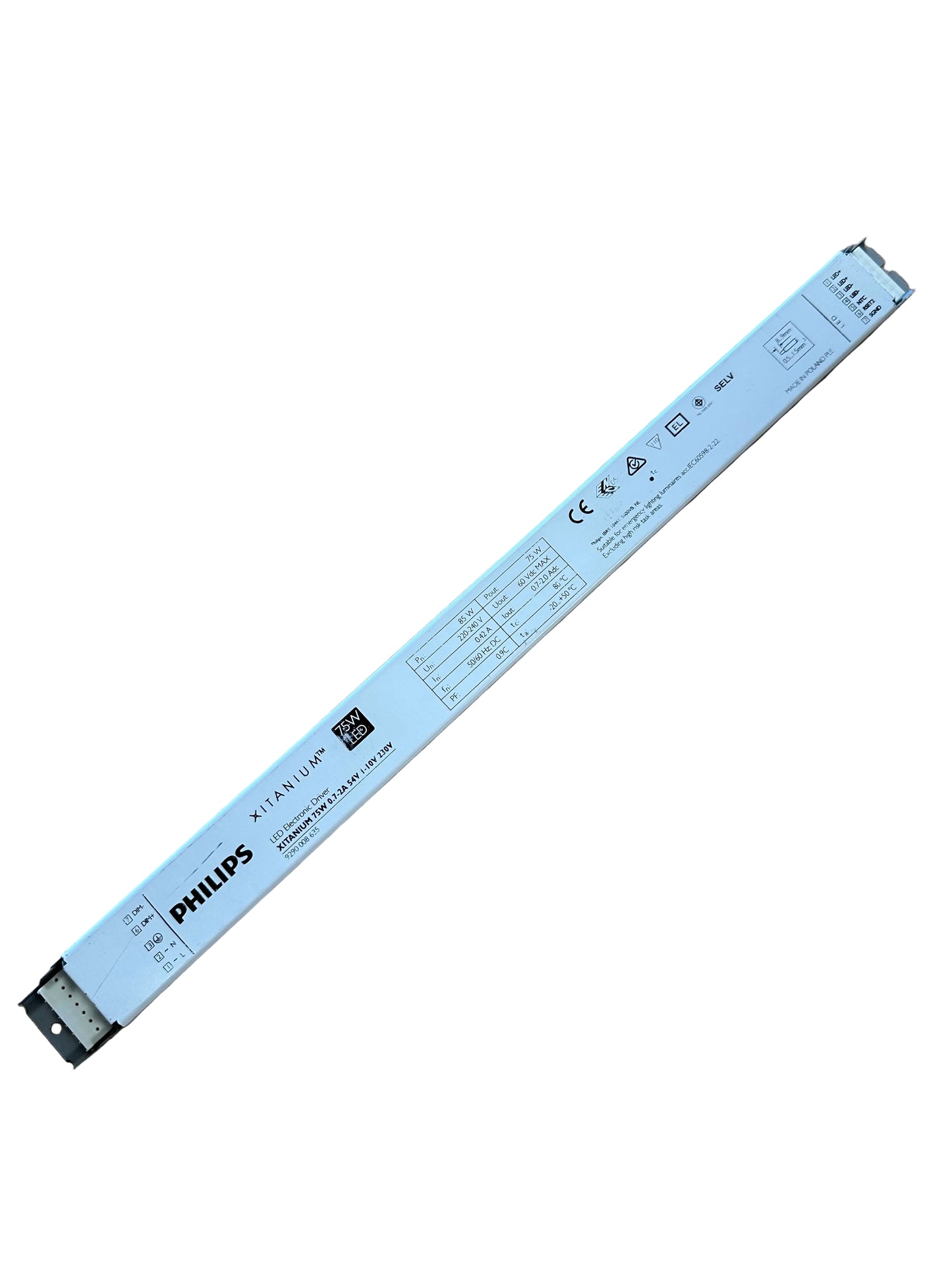

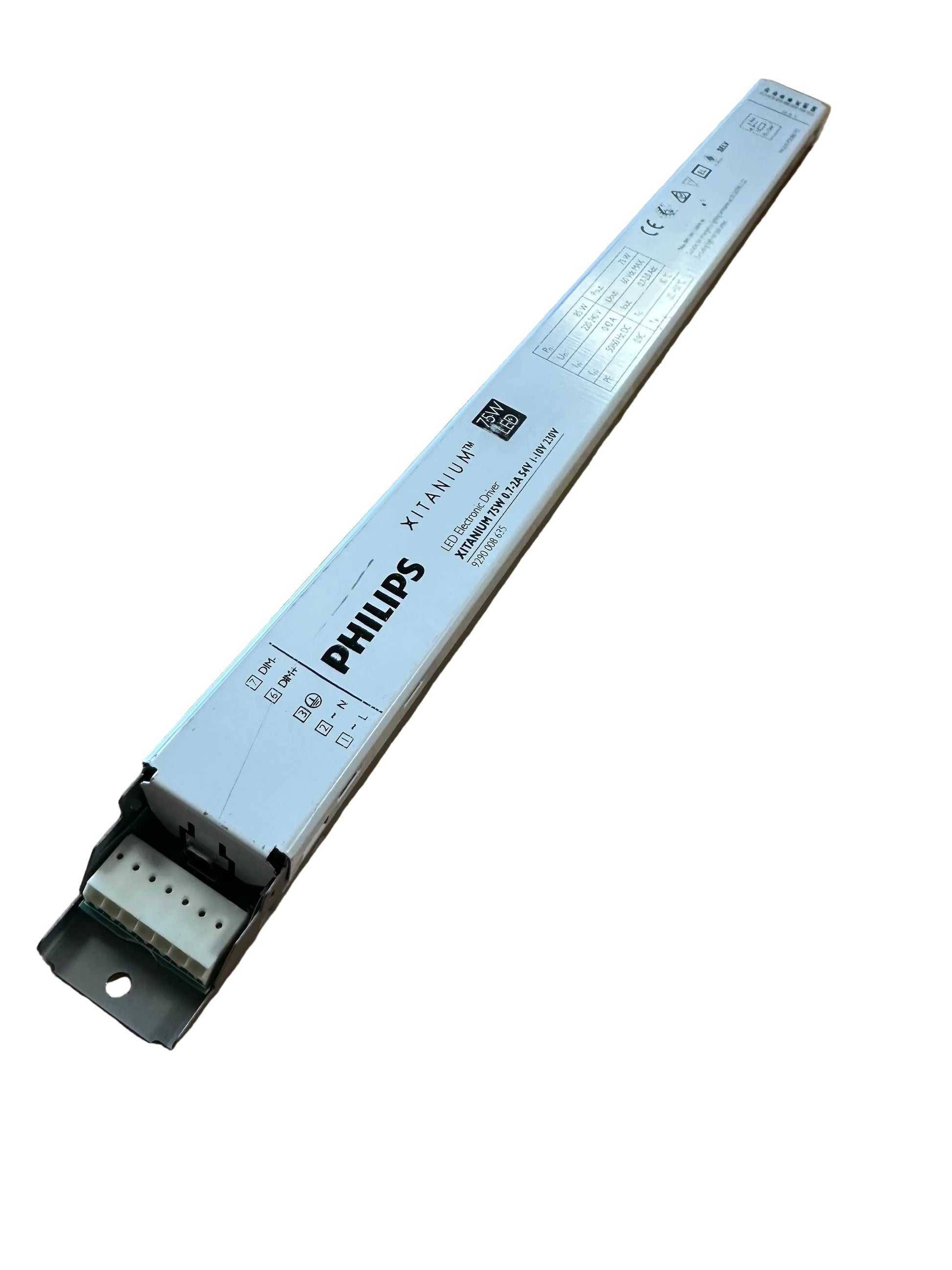

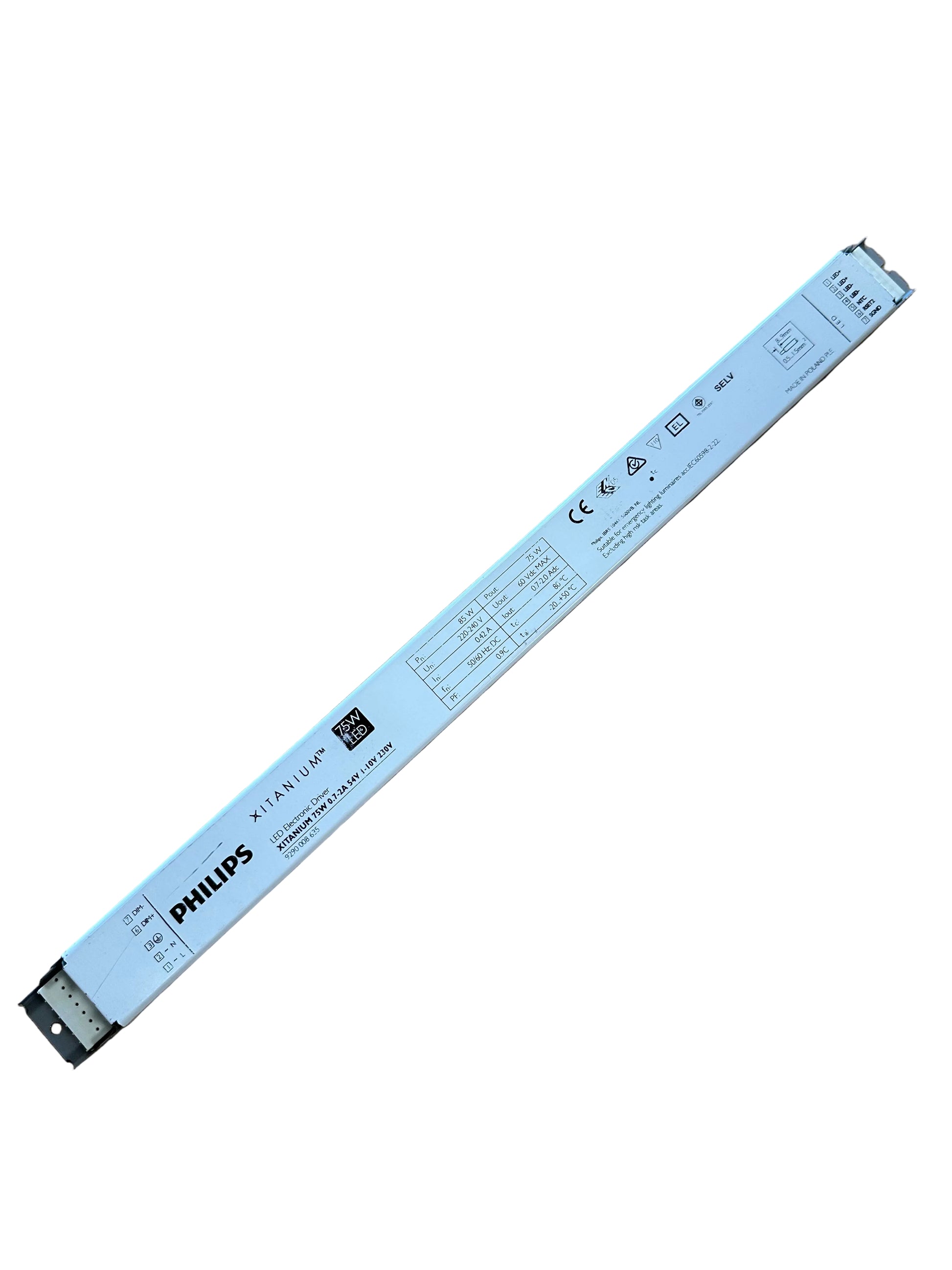

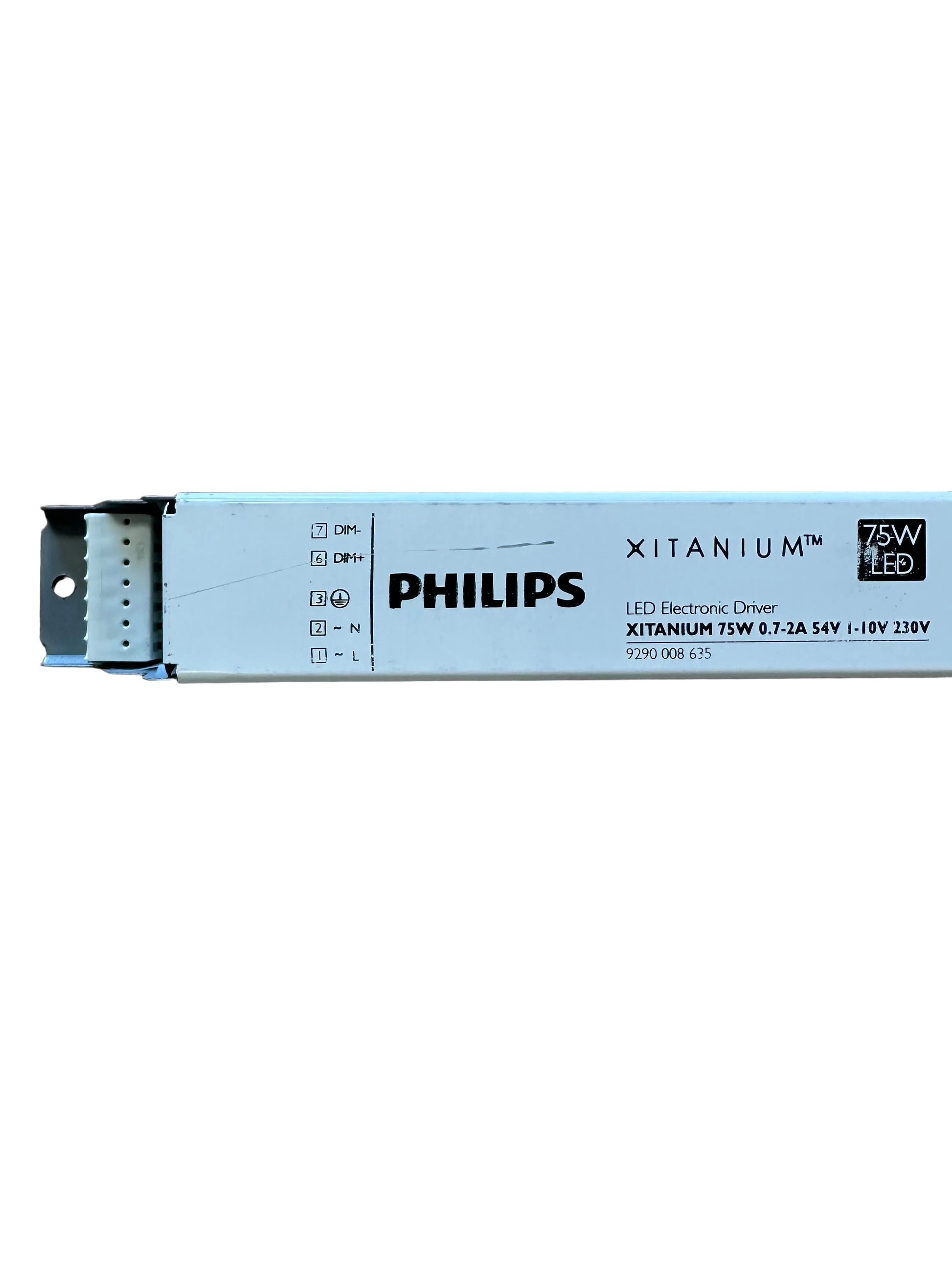

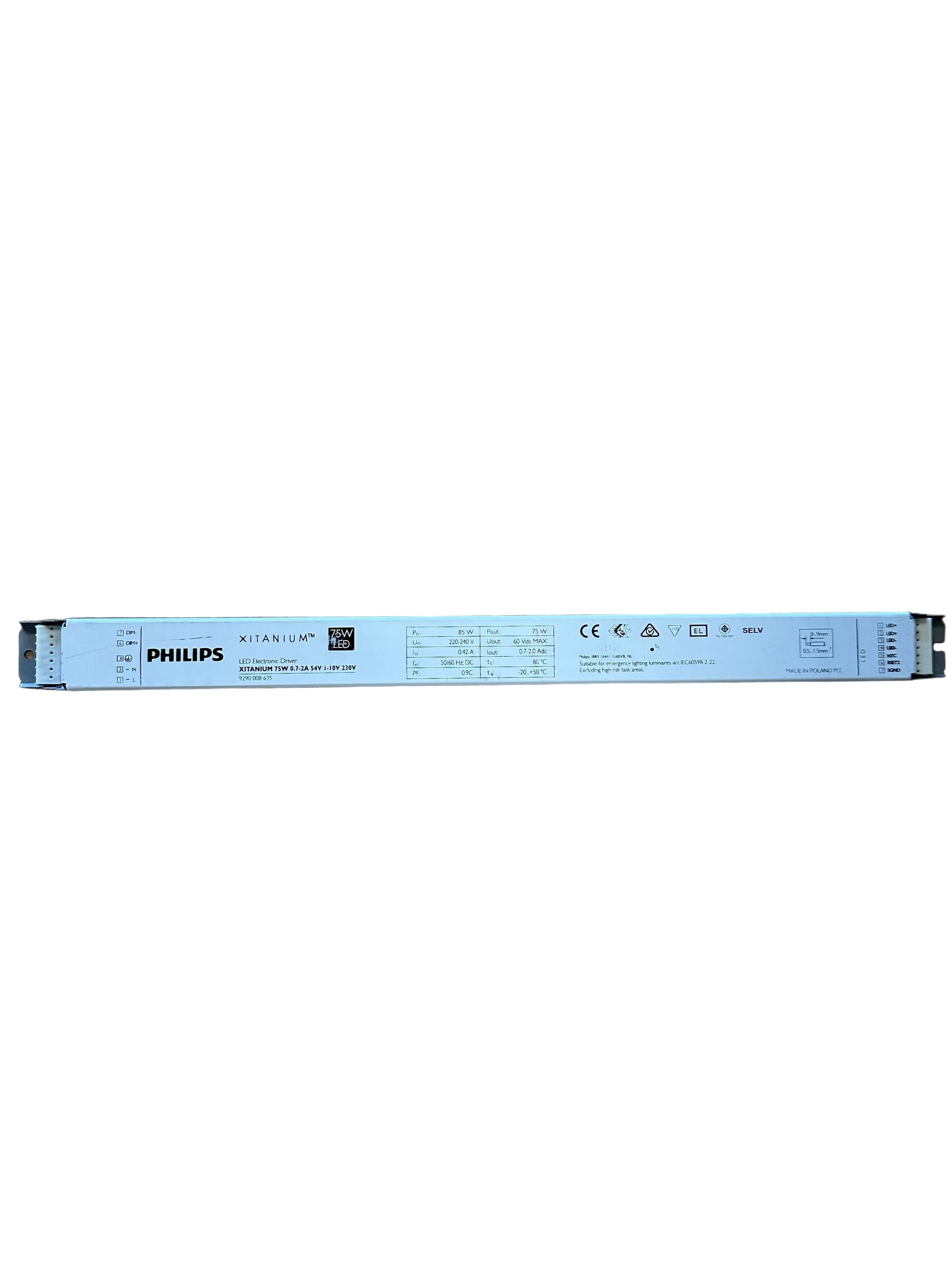

Philips 9290008635 Xitanium 75W 0.7-2A 54V 1-10V 230V

Philips 929000863503 Xitanium 75W 0.7-2A 54V 1-10V 230V

Xitanium LED drivers are designed to operate LED solutions for general lighting applications such as linear lighting, as well as downlighting and spot/accent lighting.

High reliability underpinned by 5 year warranty, enhanced by specific features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation.

In the coming years LEDs will continue to increase in efficiency, creating generation and complexity challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand. And the adjustable output current also enables operation of various LED PCB solutions from different manufacturers.

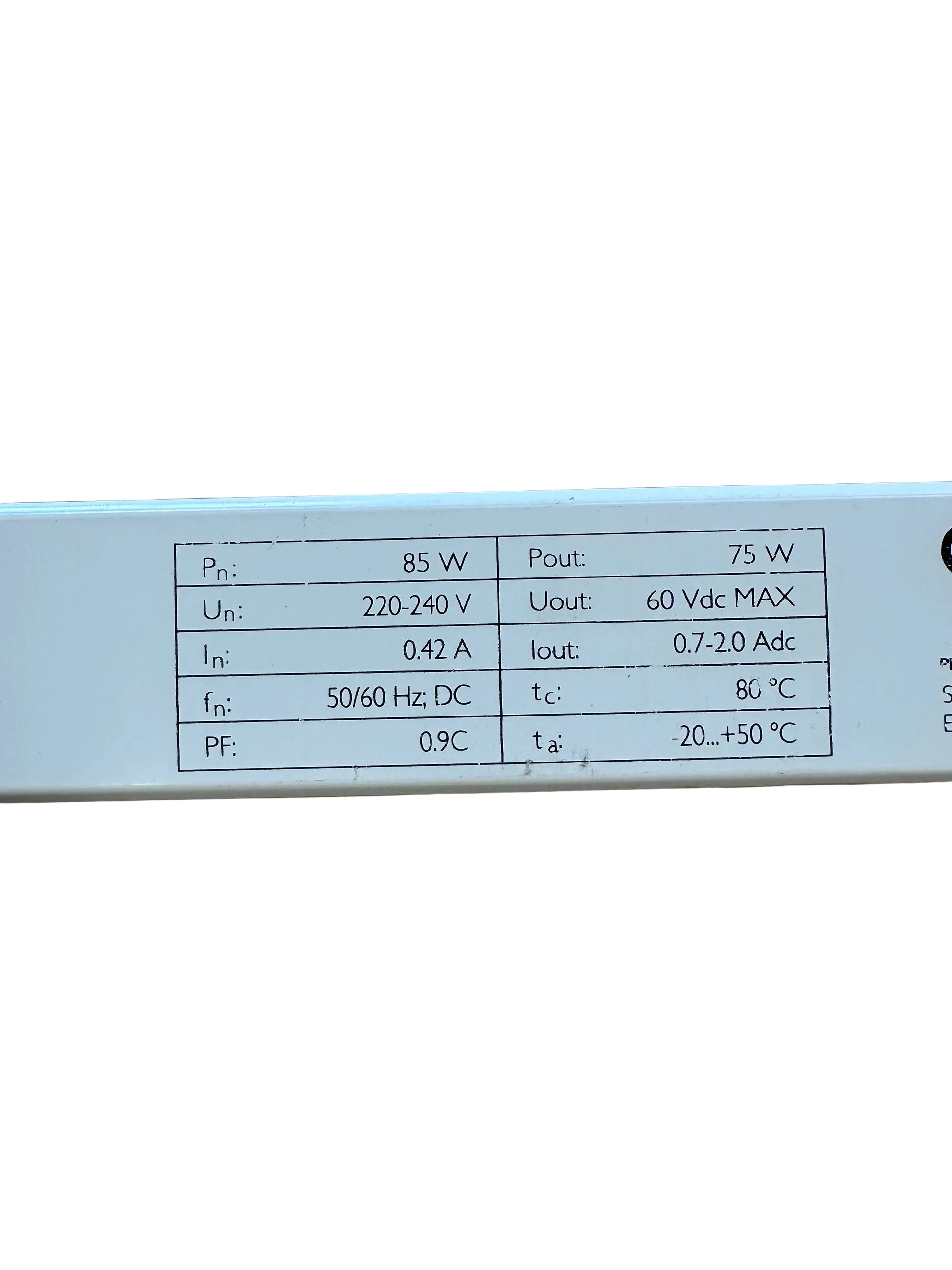

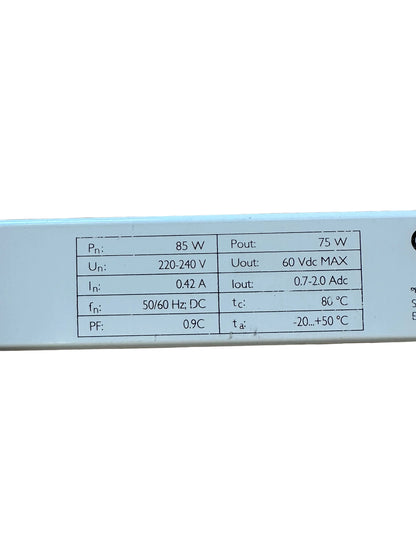

929000863503 Electrical input data

• Rated input voltage range 220…240 Vac Performance range
• Rated input voltage 230 Vac
• Rated input frequency range 50…60 Hz Performance range
• Rated input current 0.37 A @ max output power @ rated input voltage
• Rated input power 85 W @ rated output power @ rated input voltage
• Power factor 0.9 @ rated output power @ rated input voltage
• Total harmonic distortion 20 % @ rated output power @ rated input voltage
• Efficiency 88 % @ rated output power @ rated input voltage @ max Iout
• Rated input voltage DC range 186…250 Vdc Performance range
• Input voltage AC range 198…264 Vac Operational range
• Input frequency AC range 47.5…63 Hz Operational range
• Input voltage DC range 168…275 Vdc Operational range

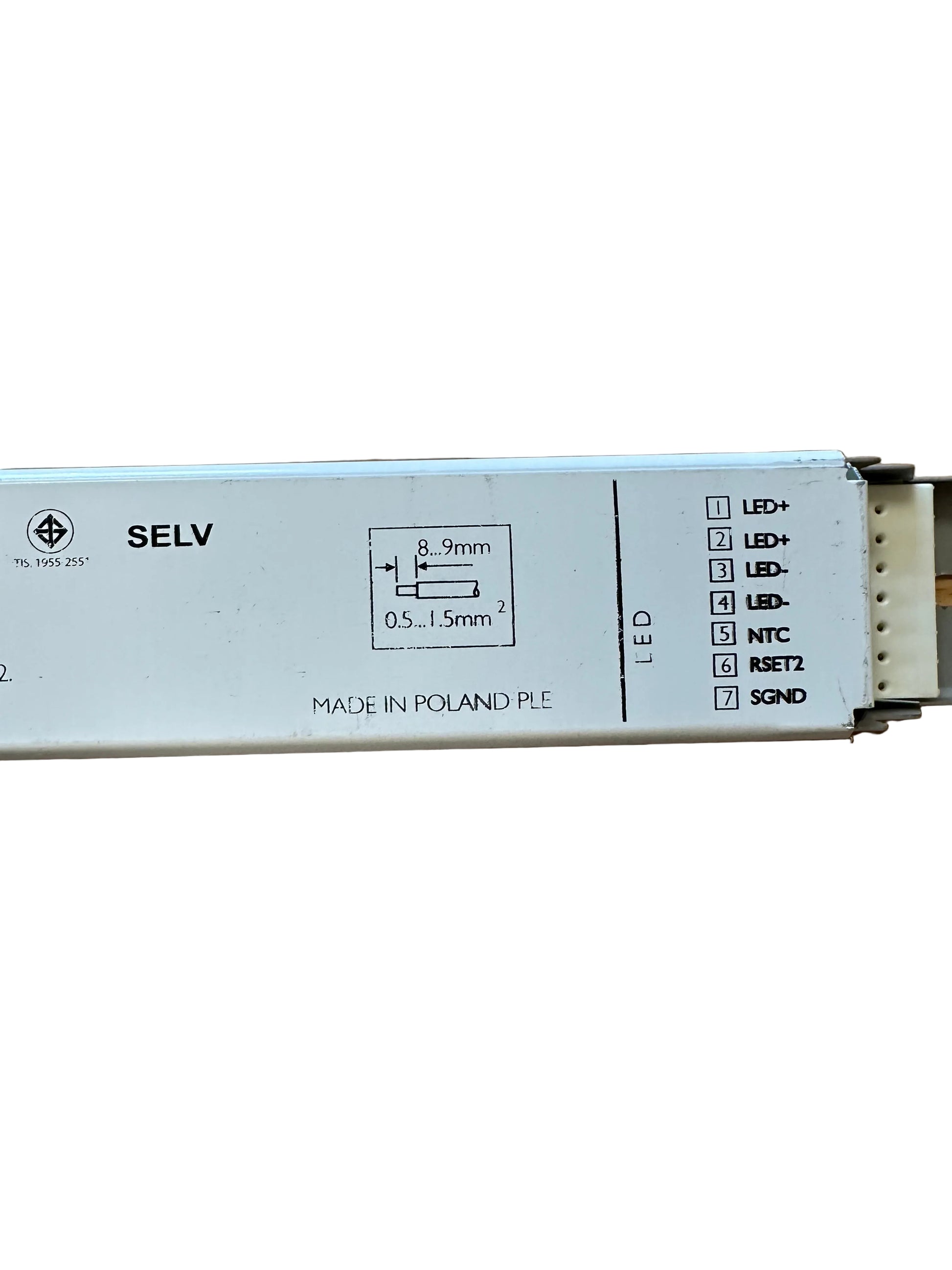

• Isolation input to output SELV

929000863503 Electrical Output data

• Regulation method Constant Current
• Output voltage 27-54 Vdc
• Output voltage max. 60 V Maximum output voltage (rms)
• Output current 0.7-2 A
• Output current tolerance ± 5 %
• Output current ripple LF ≤ 4 %
• Output Pst LM ≤ 0.03 LM
• Output Power 21-75W
