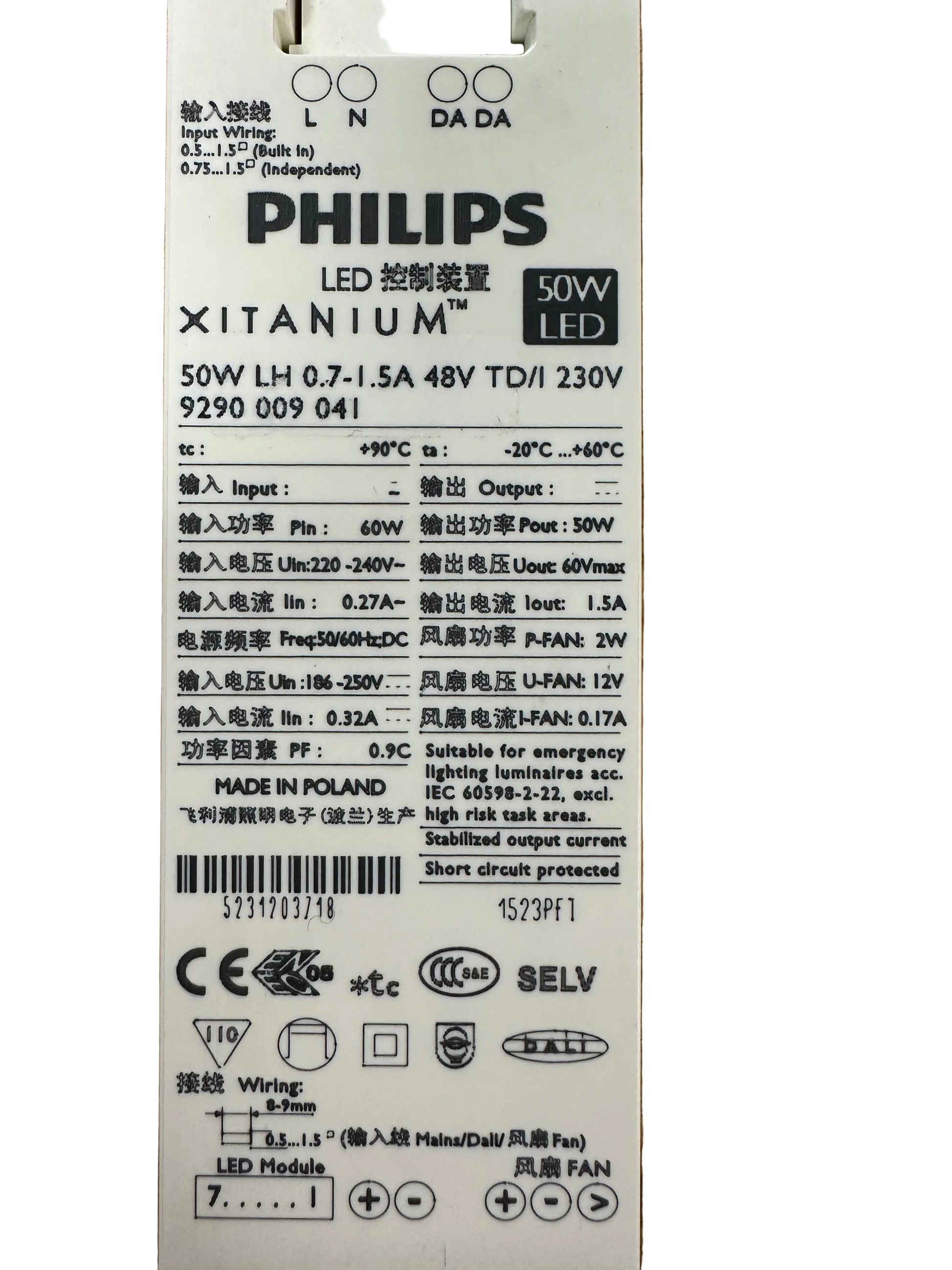

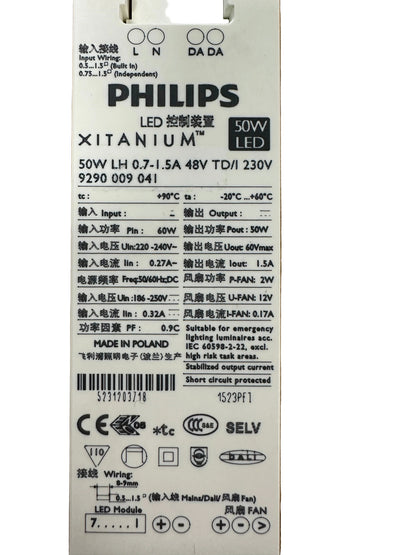

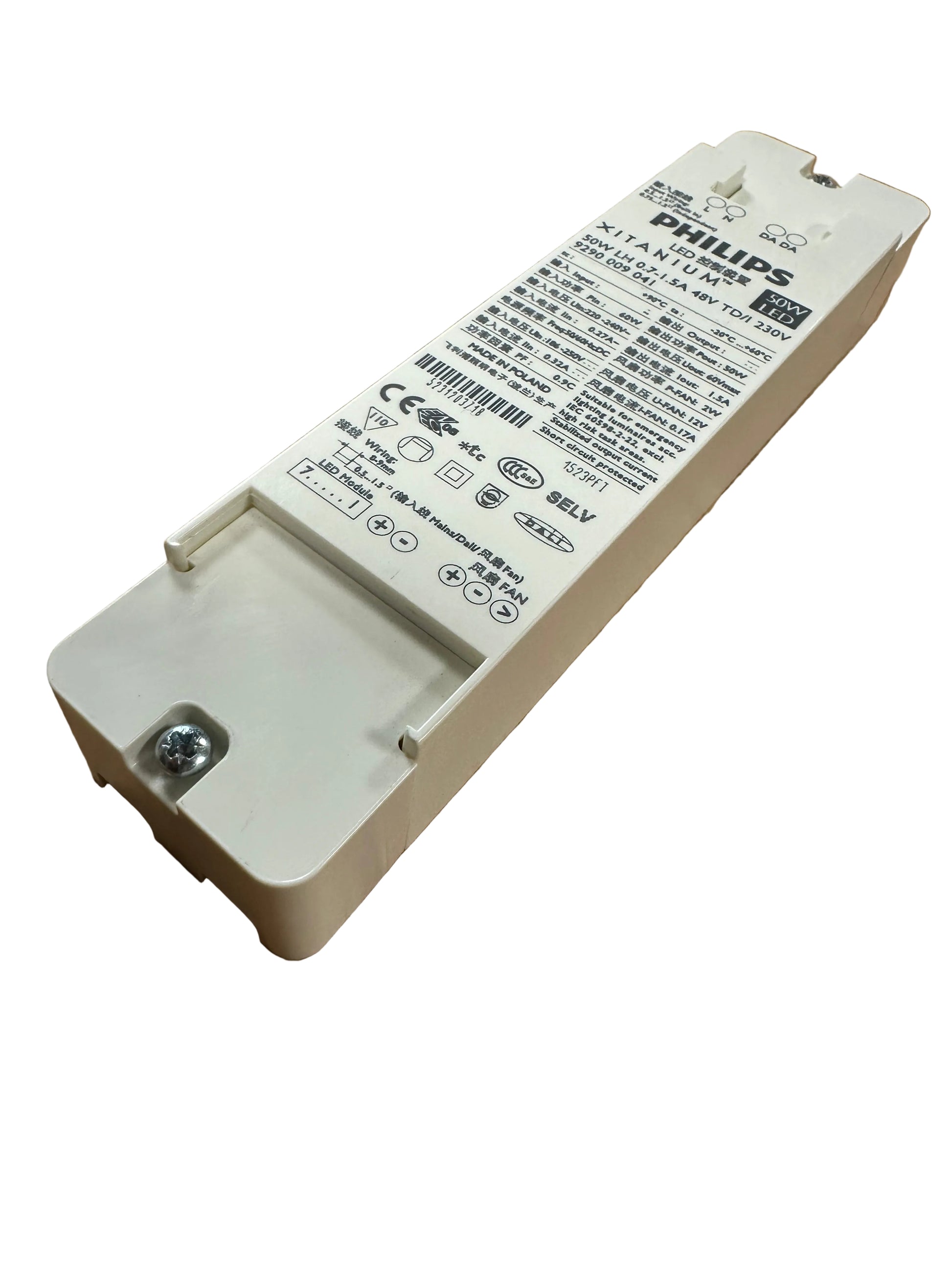

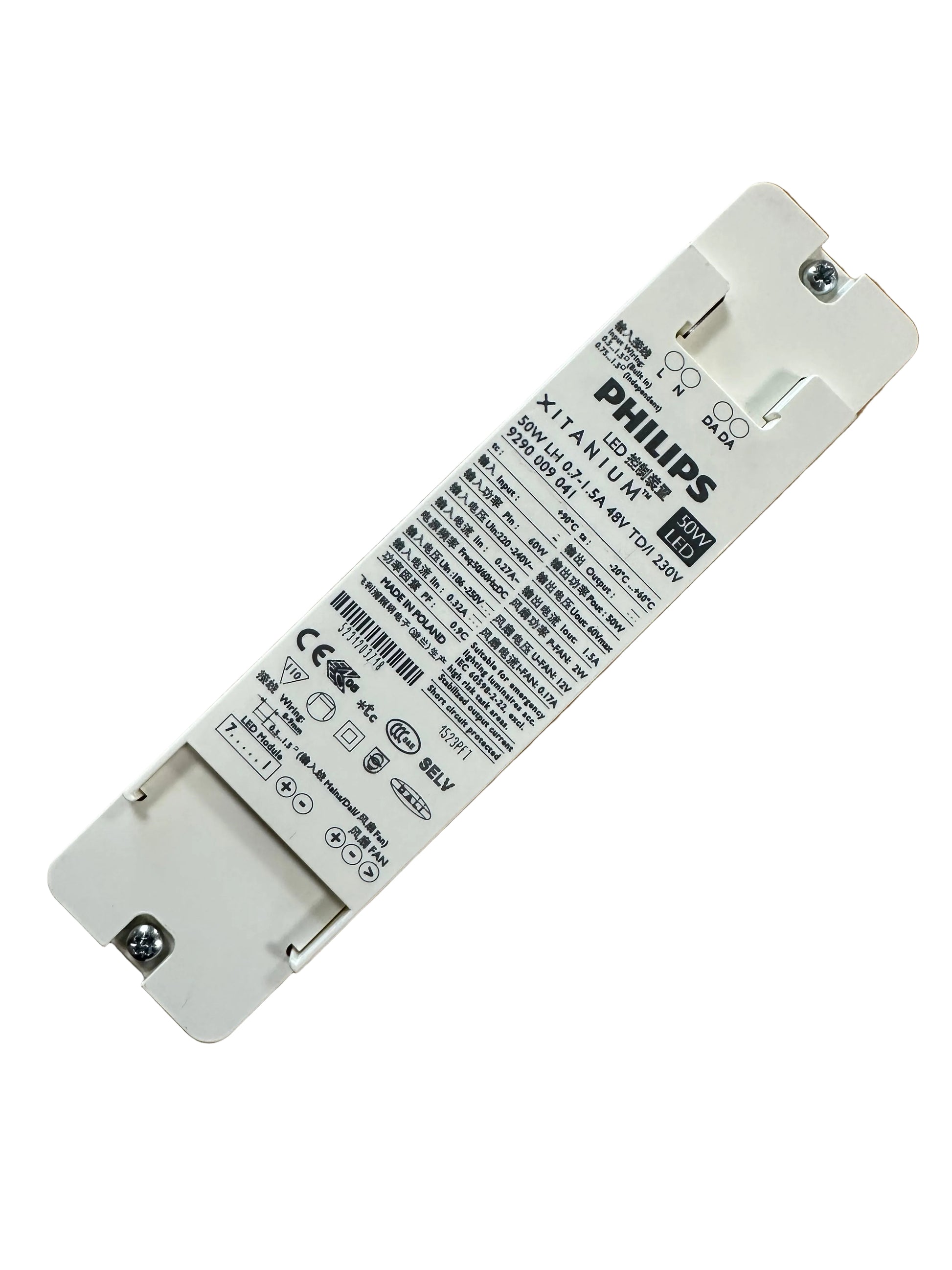

Philips 9290009041 Xitanium 50W LH 0.7-1.5A 48V TD/I 230V DALI LED Driver

Philips 9290009041 Xitanium 50W LH 0.7-1.5A 48V TD/I 230V DALI LED Driver

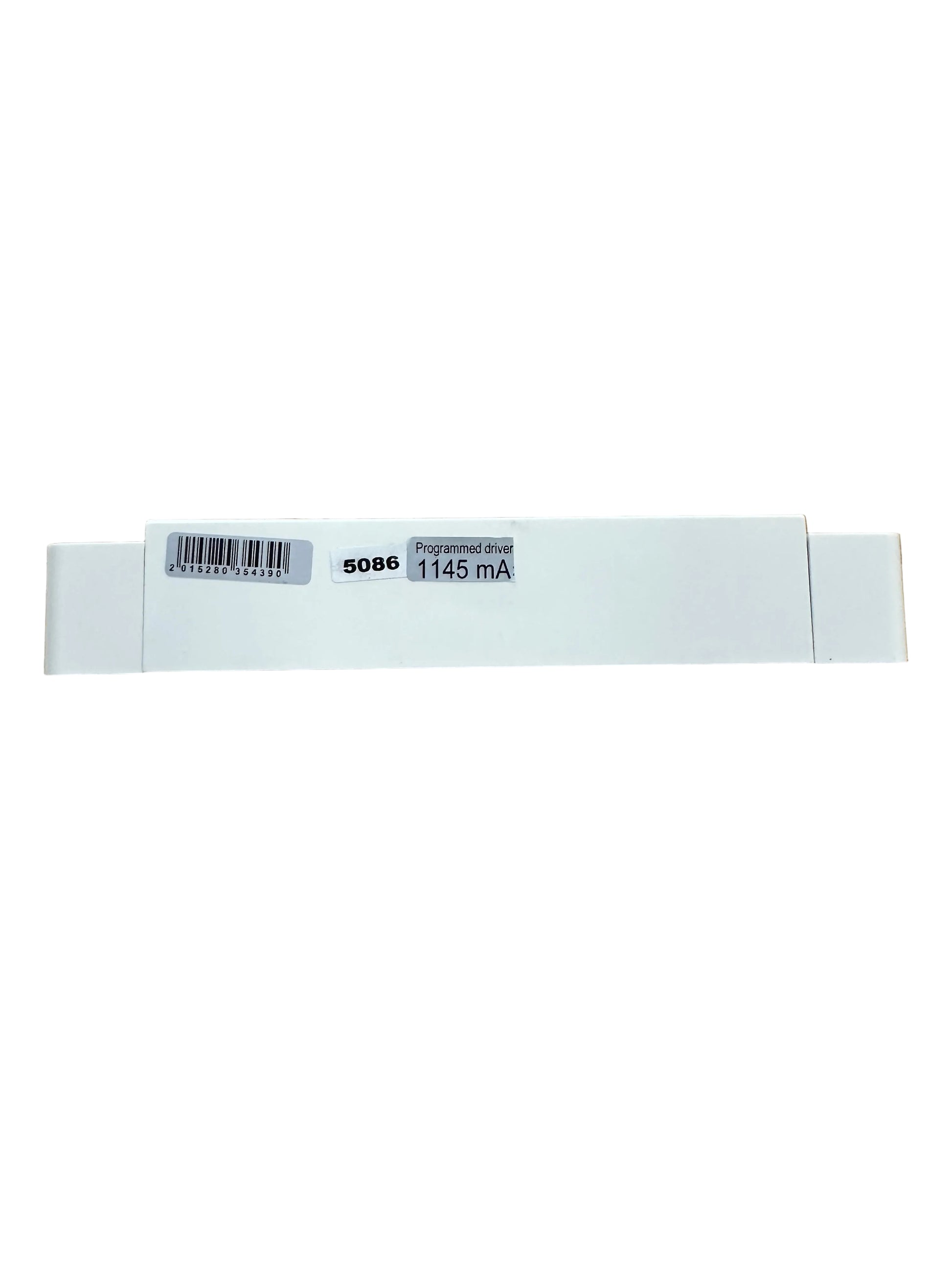

These are programmed to 1145mA

Xitanium LED drivers are designed to operate LED solutions for general lighting applications.
Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring,
reduced ripple current and thermal derating. Most drivers feature central DC operation. In
the coming years LEDs will continue to increase in efficiency, creating challenges for OEMs.
With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable
output current. Application-oriented operating windows offer stable lumen output and light
quality levels that specifiers and architects demand. The adjustable output current also
enables operation of various LED PCB solutions from different manufacturers.

• Input Voltage: 220-240V 50-60Hz
• Output Power: 15-50W
• Output Current: 700-1500mA (SET TO 1145mA can be changed via DALI)
• Forward Voltage: 24-48V
• Dimensions: 190mm L 46mm W 32mm H

Philips 9290009041
