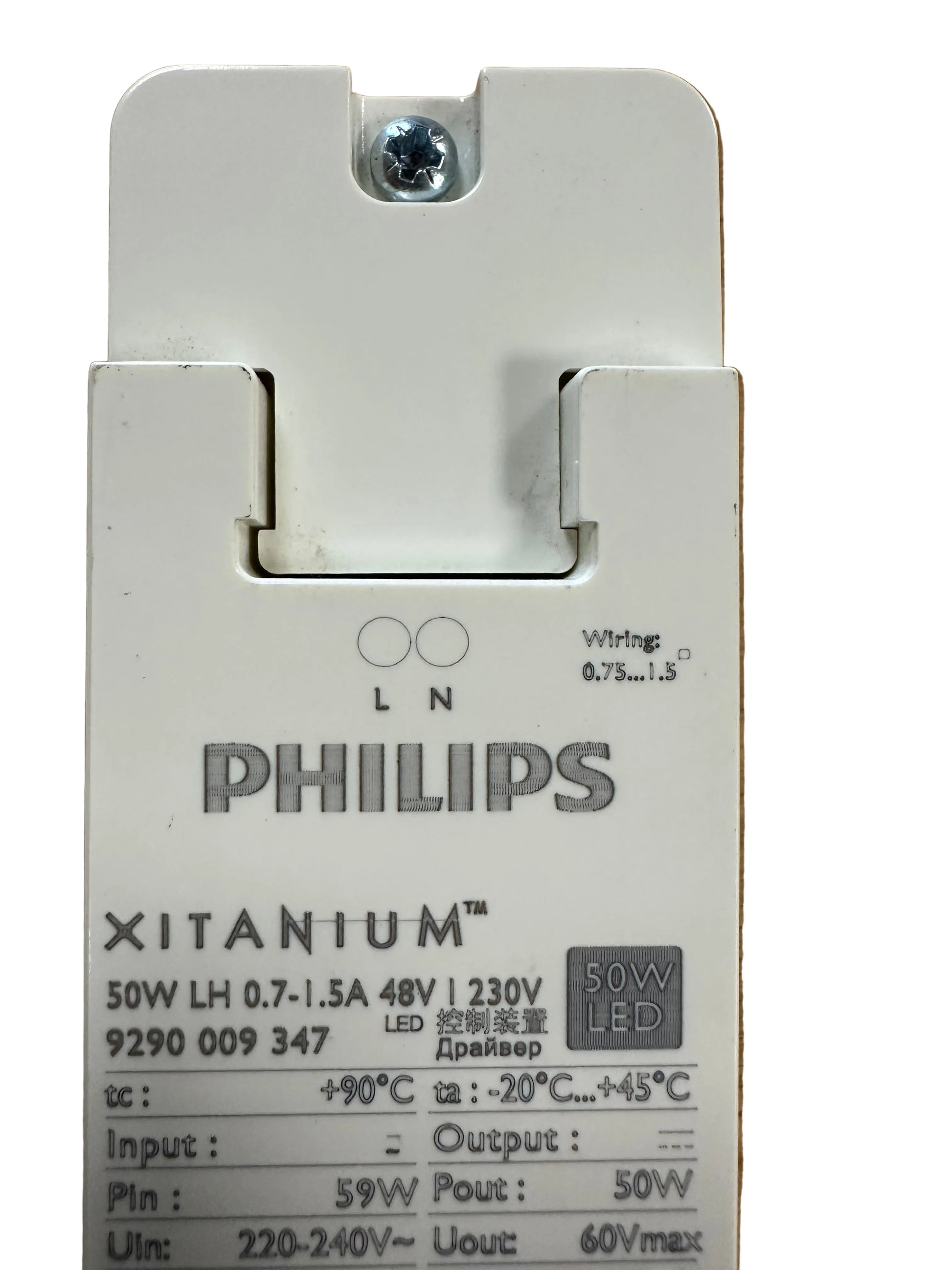

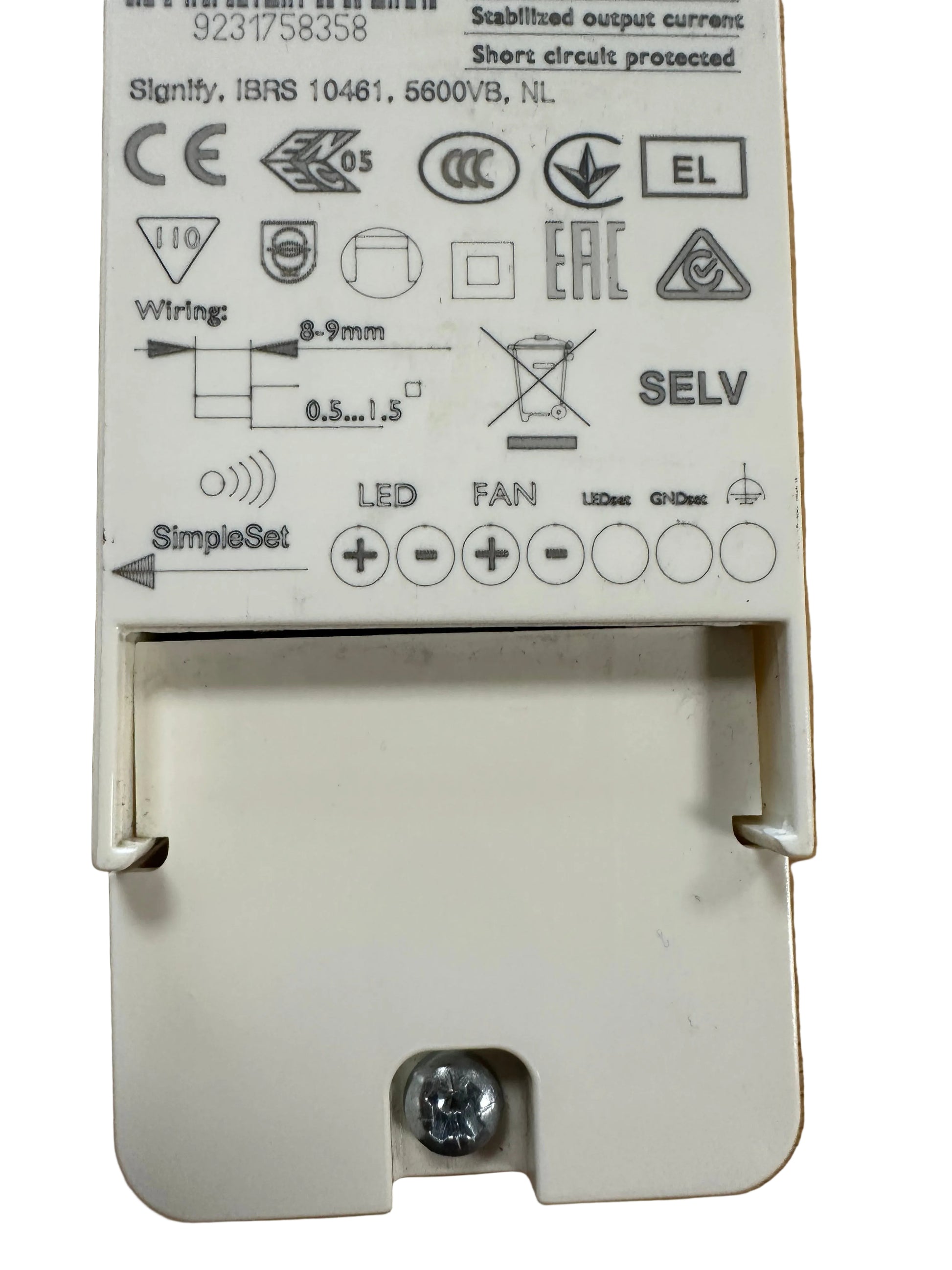

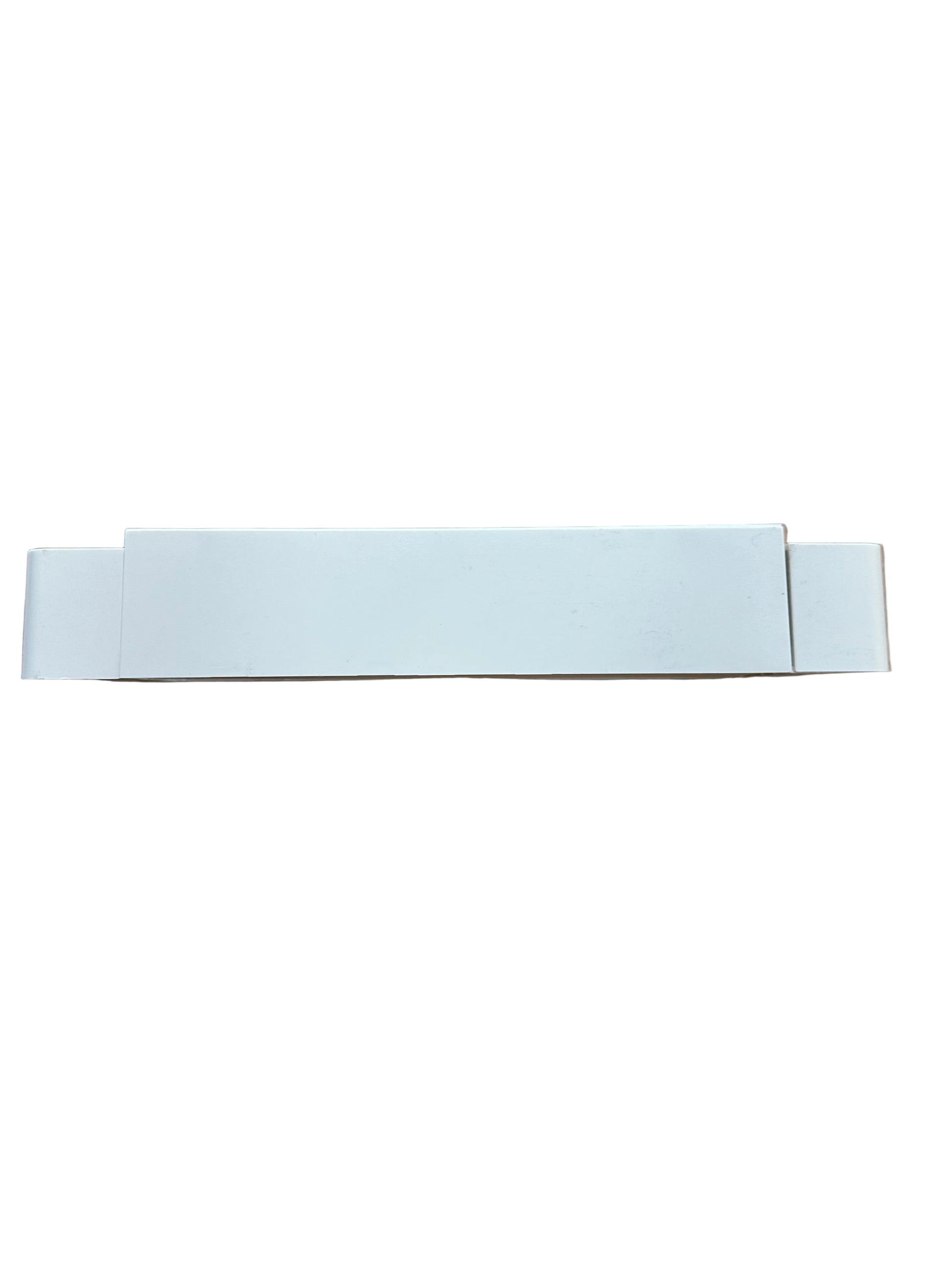

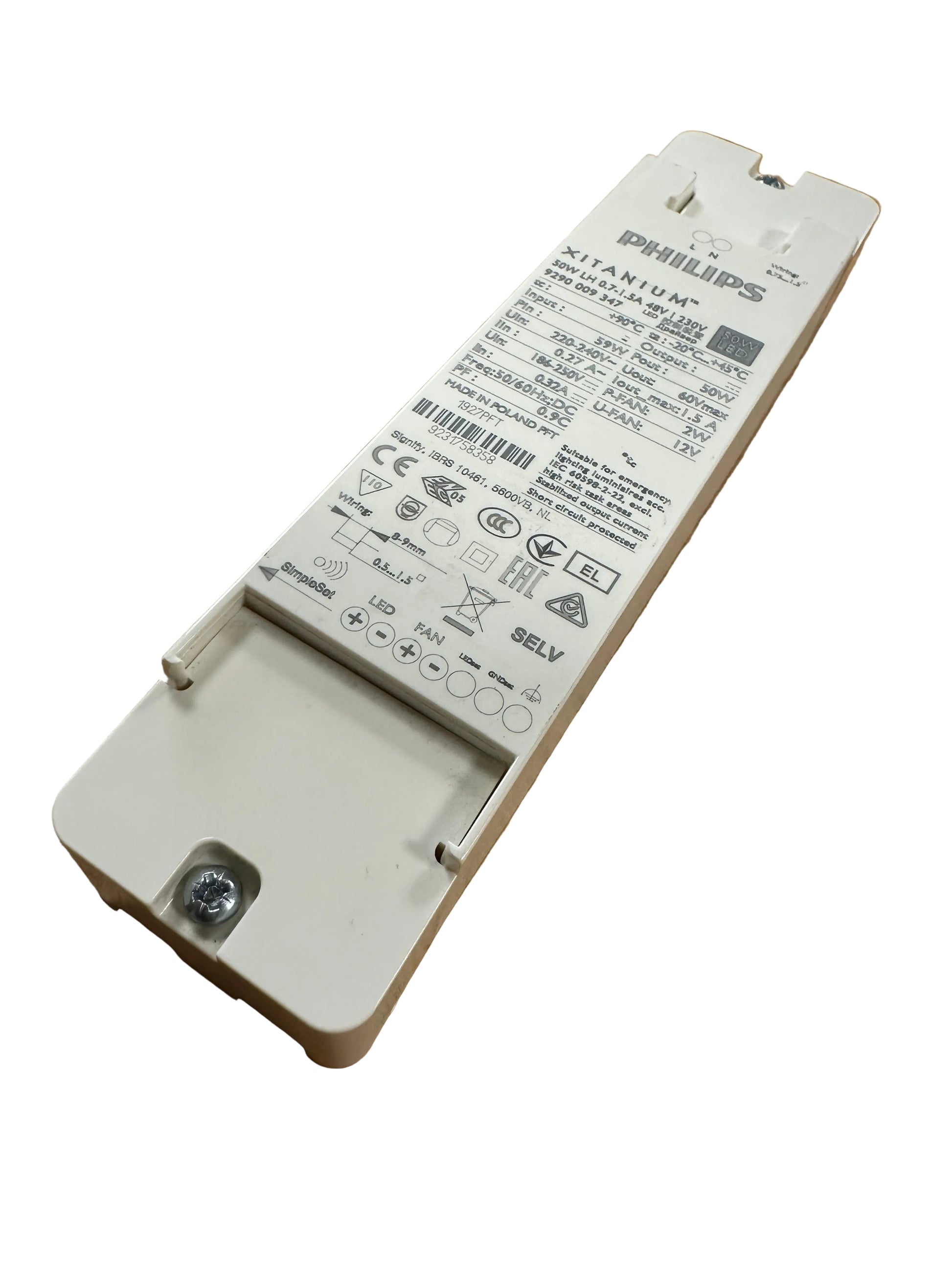

Philips 9290009347 Xitanium 50W LH 0.7-1.5A 48V I 230V

Philips 9290009347 Xitanium 50W LH 0.7-1.5A 48V I 230V

929000934706

• Future-proof flexibility – application-oriented operating windows enable LED generation and complexity management
• Compatibility – can also be used for other manufacturers’ modules or OEMs’ own PCB designs

• High reliability underpinned by 5 year warranty
• Future-proof flexibility – application-oriented operating windows enable LED generation and complexity management
• Compatibility – can also be used for other manufacturers’ modules or OEMs’ own PCB designs

Xitanium LED drivers are designed to operate LED solutions for general lighting applications. Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation.

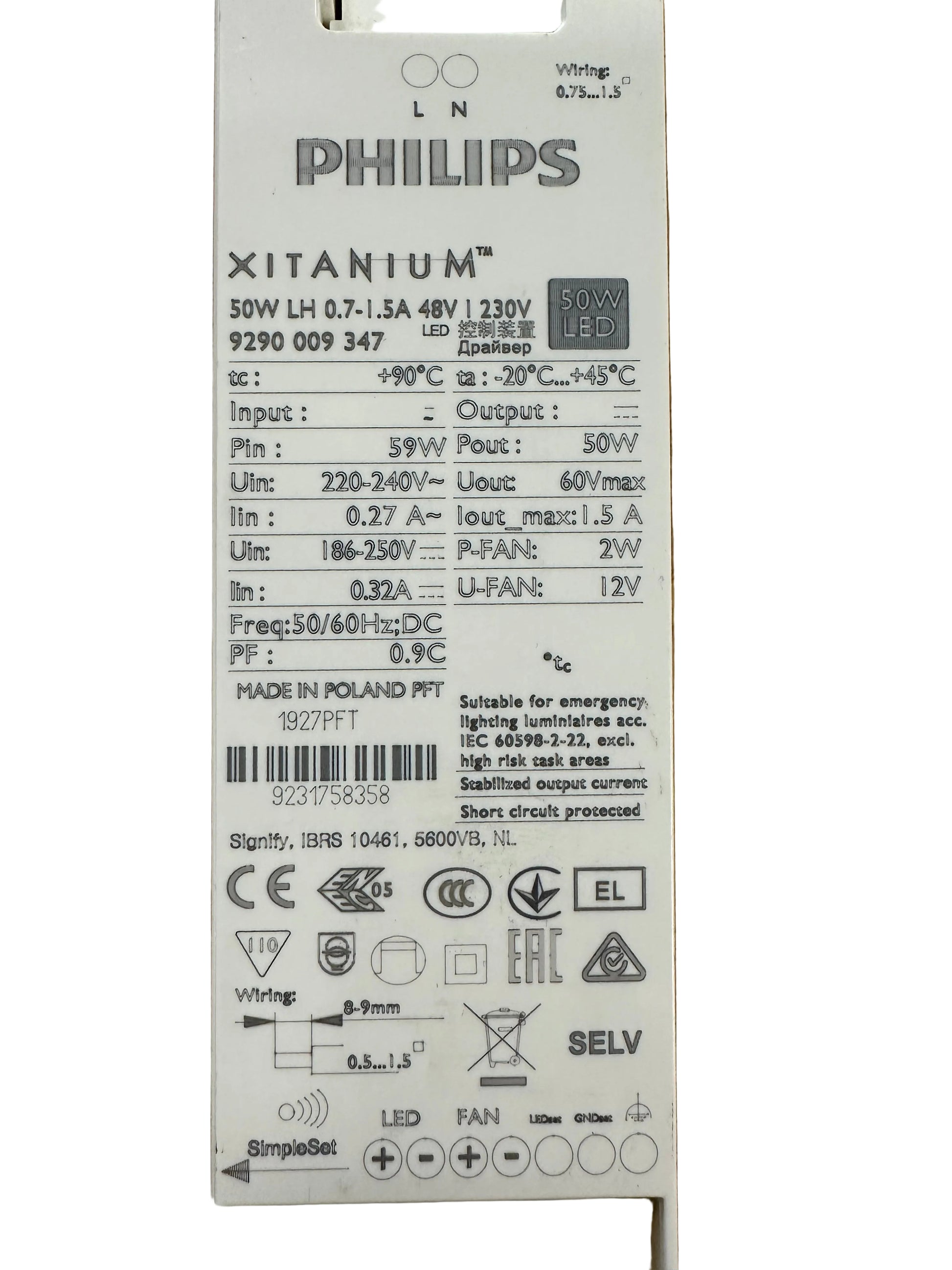

9290009347 Electrical input data

• Rated input voltage range 220…240 Vac Performance range
• Rated input voltage 230 Vac
• Rated input frequency range 50…60 Hz Performance range
• Rated input current 0.27 A @ rated output power @ rated input voltage
• Rated input power 59 W @ rated output power @ rated input voltage
• Power factor 0.9 @ rated output power @ rated input voltage
• Total harmonic distortion 20 % @ rated output power @ rated input voltage
• Efficiency ≥ 88 % @ rated output power @ rated input voltage
• Rated input voltage DC range 186…250 Vdc Performance range
• Input voltage AC range 202…254 Vac Operational range
• Input frequency AC range 47.5…63 Hz Operational range
• Isolation input to output SELV

Philips 9290009347
