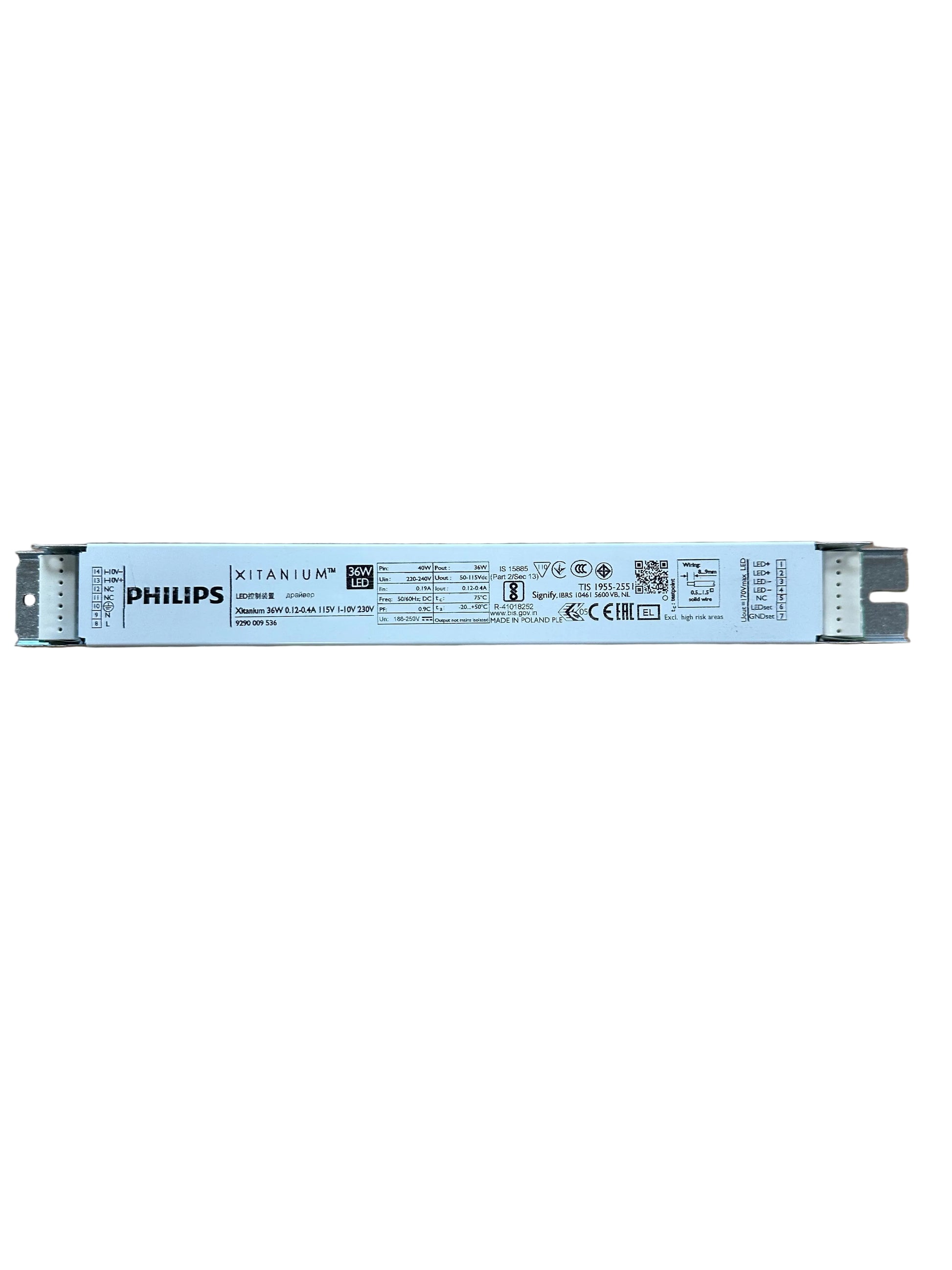

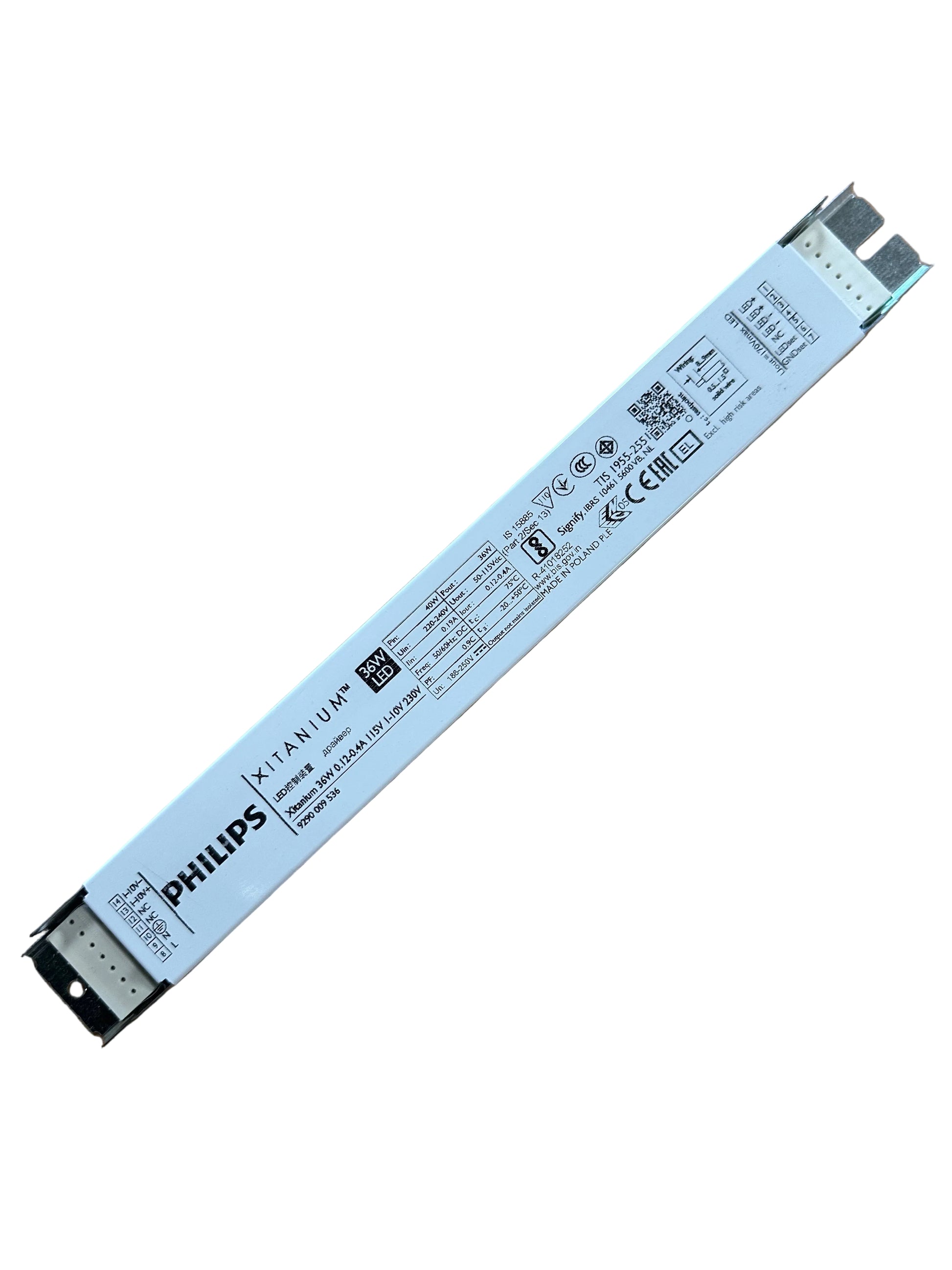

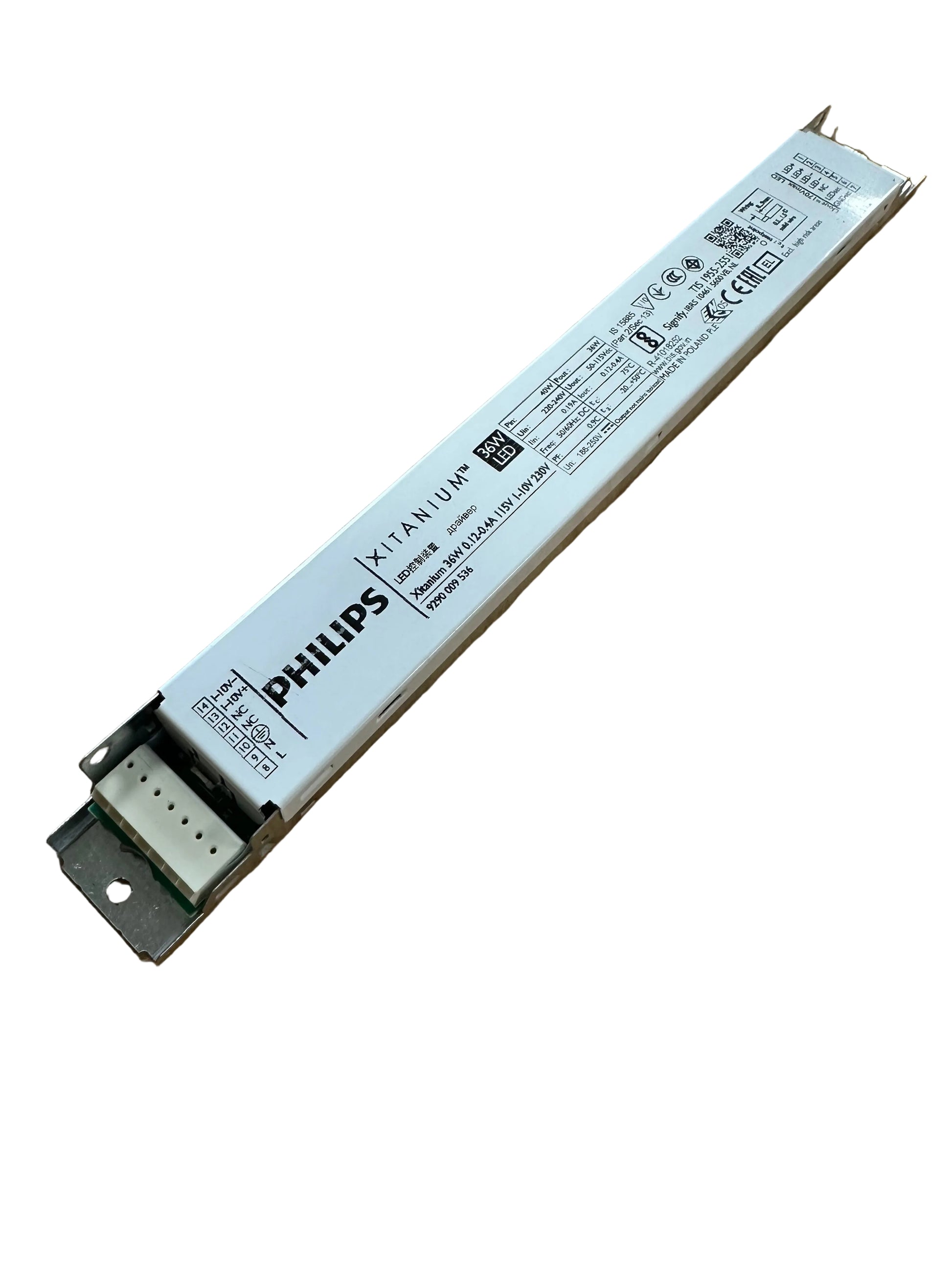

Philips 9290009536 Xitanium 36W 0.12-0.4A 115V 1-10V 230V

Philips 9290009536 Xitanium 36W 0.12-0.4A 115V 1-10V 230V

Order code: 929000953606

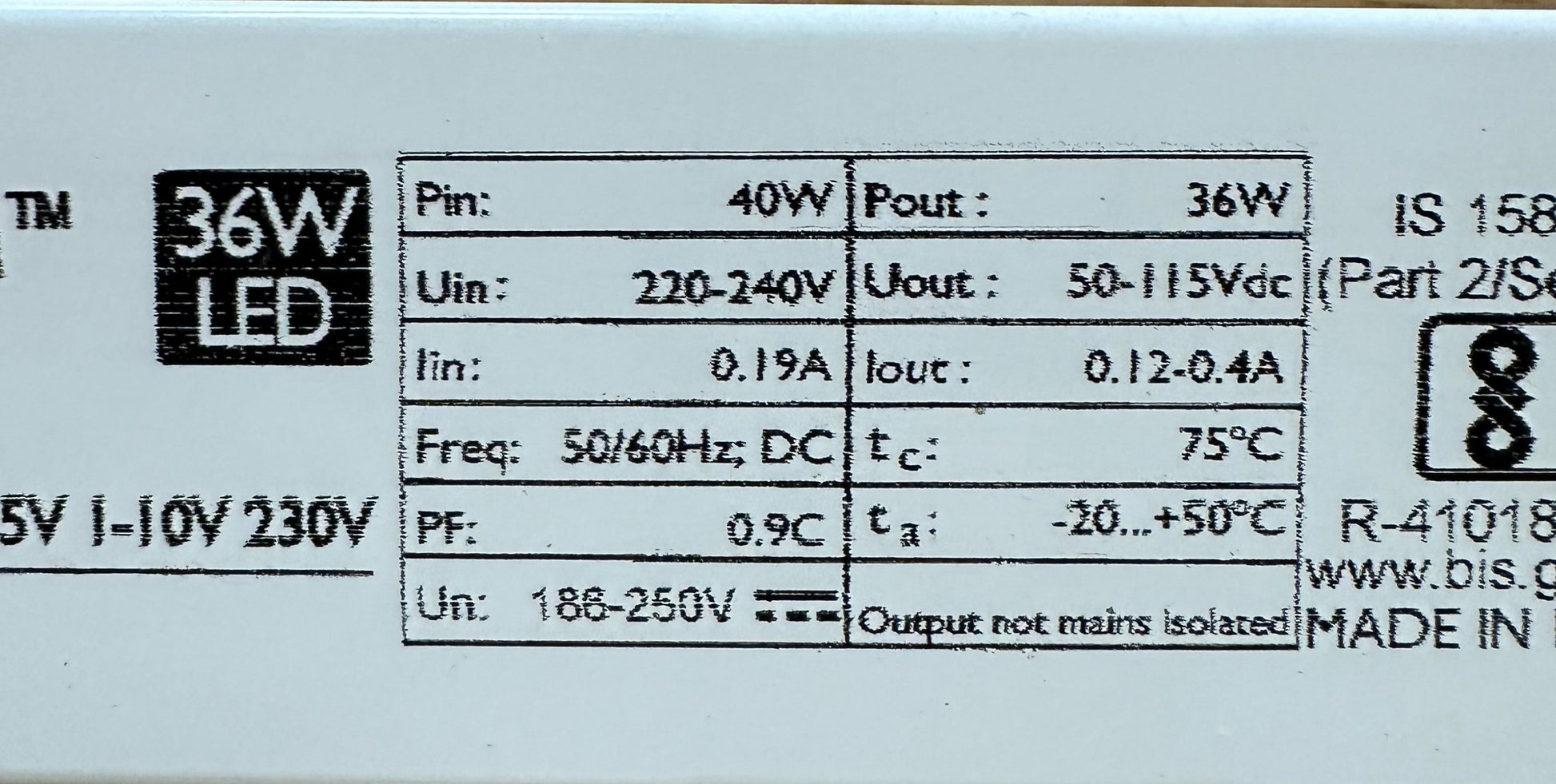

• Input Frequency: 50 to 60 Hz
• Mains voltage operation (DC): 168-275 V
• Power Consumption: 40 W
• Foward Voltage: 50-115V
• Wattage: 10-36W
• Output Current Ripple (Max): 4 %
• Maximum Efficiency at Full Load : 88.7 %
• Output Current (Max): 400 mA
• Adjustable Output Current: LEDSet/Resistor
• Output Current Tolerance (Max): 5 %
• Mains voltage performance (DC): 186-250 V
• Power Factor (Fraction): 0.9
• Open Circuit Voltage (DC) (Max): 70 V
• Protection Level Up (LN-Earth) at 5 kA (Max): 2 kV
• Input current (AC): 190 mA
• Input current (DC): 190 mA
• Inrush Current Peak (Max):16 A
• Inrush Current Peak (Nom): 16 A
• Output Power (Max): 36 W
• Default output current: 120 mA

Philips 9290009536
