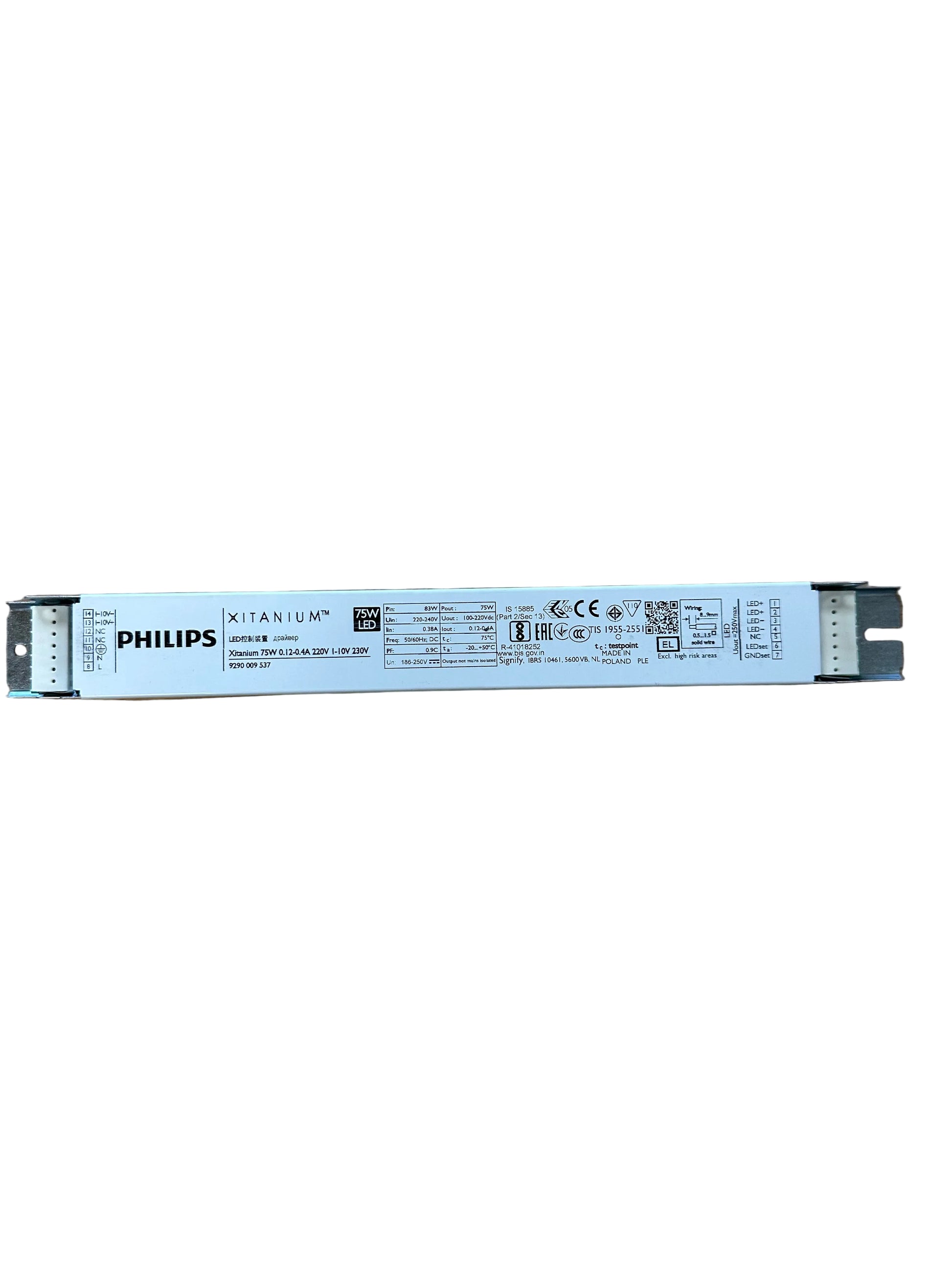

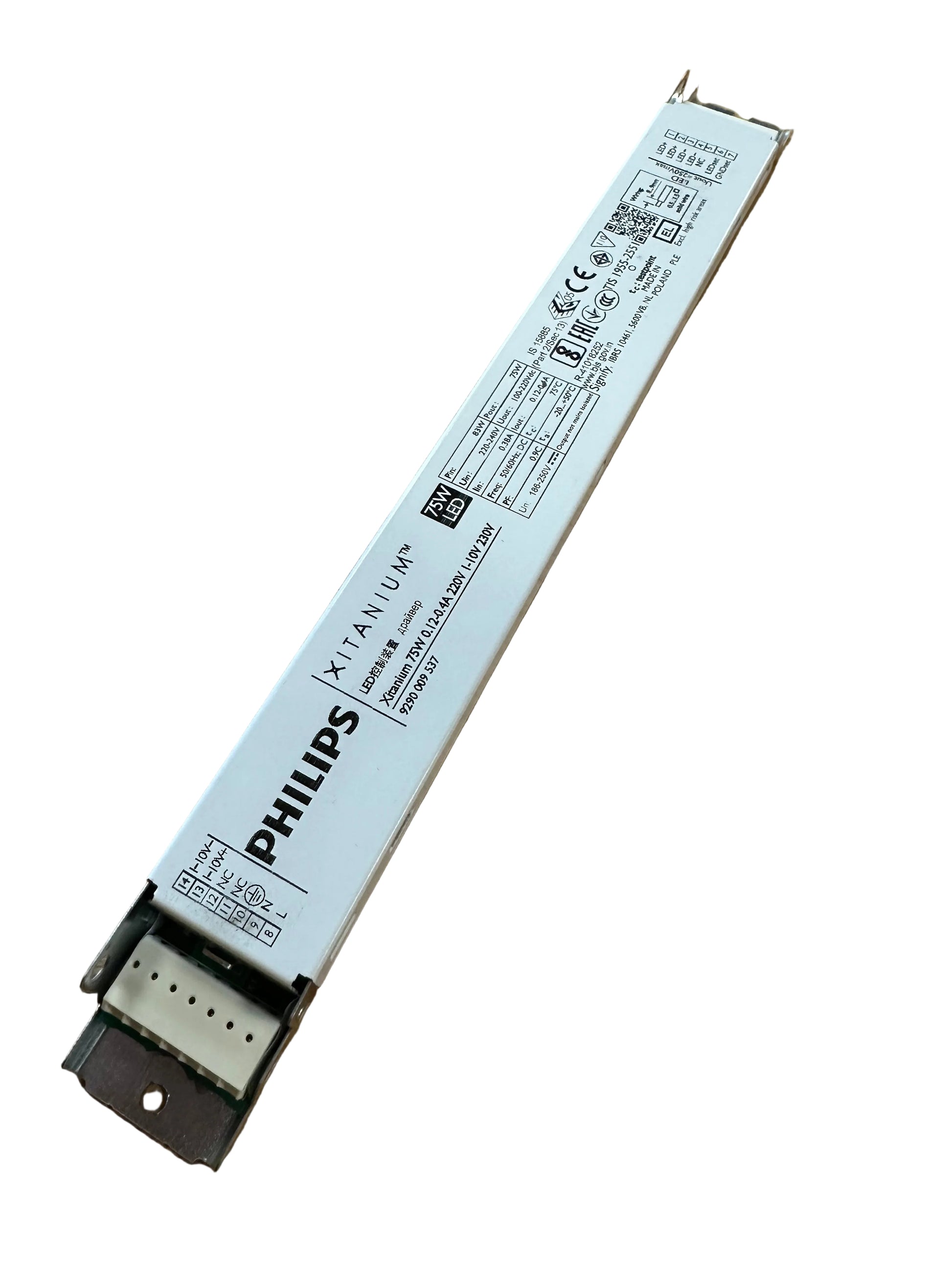

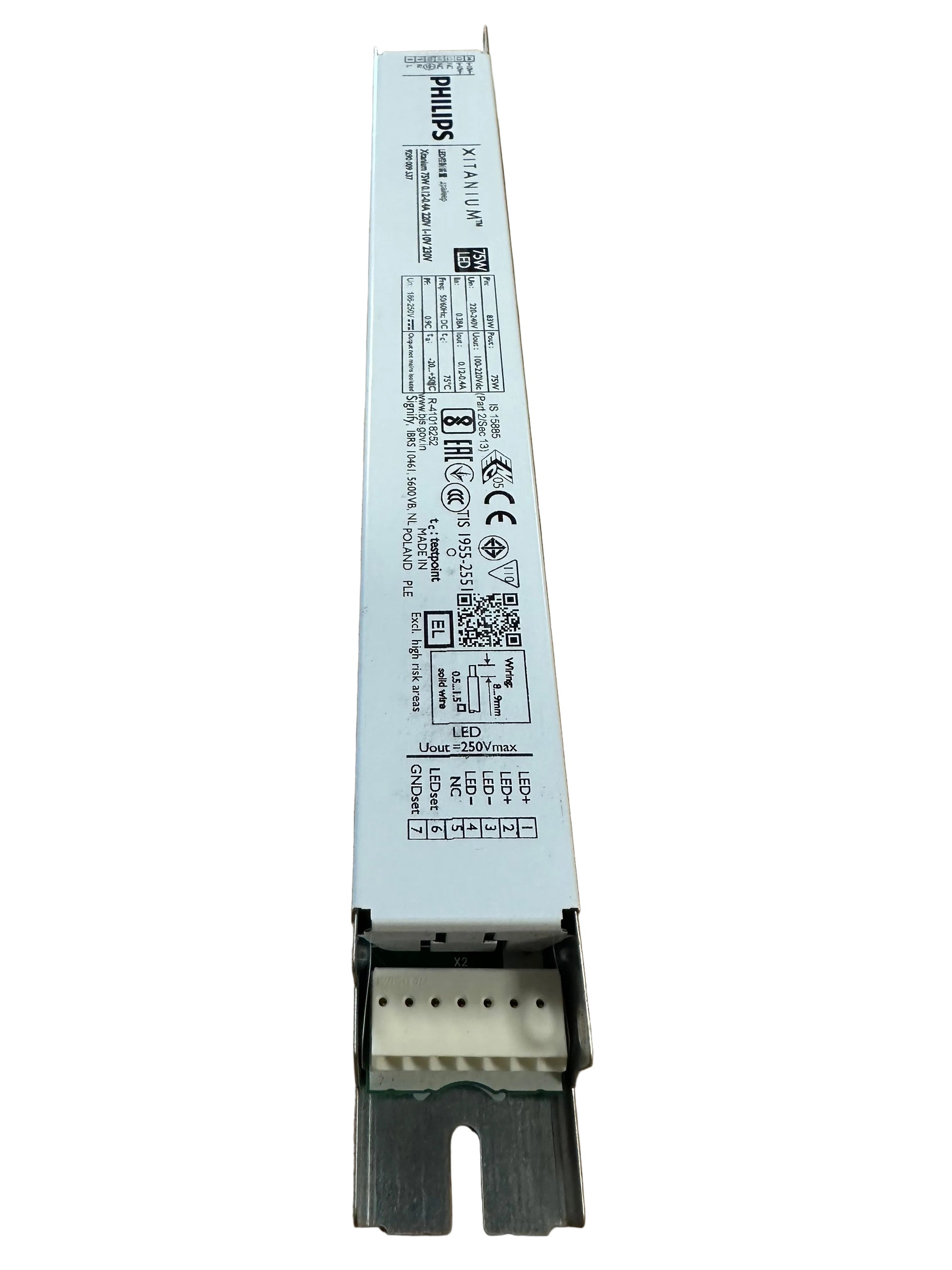

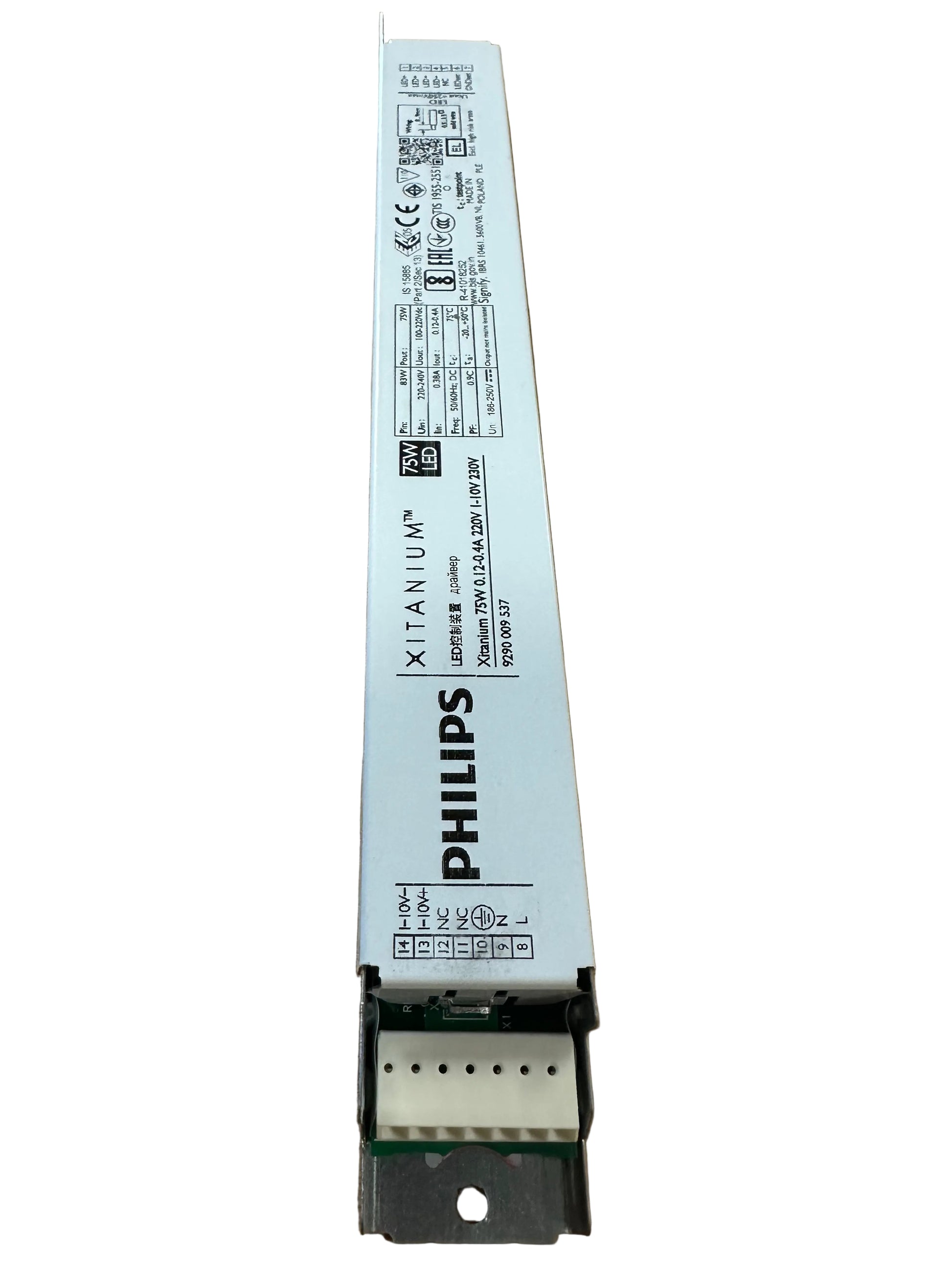

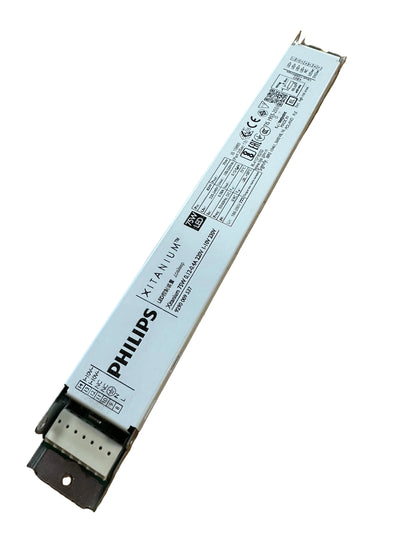

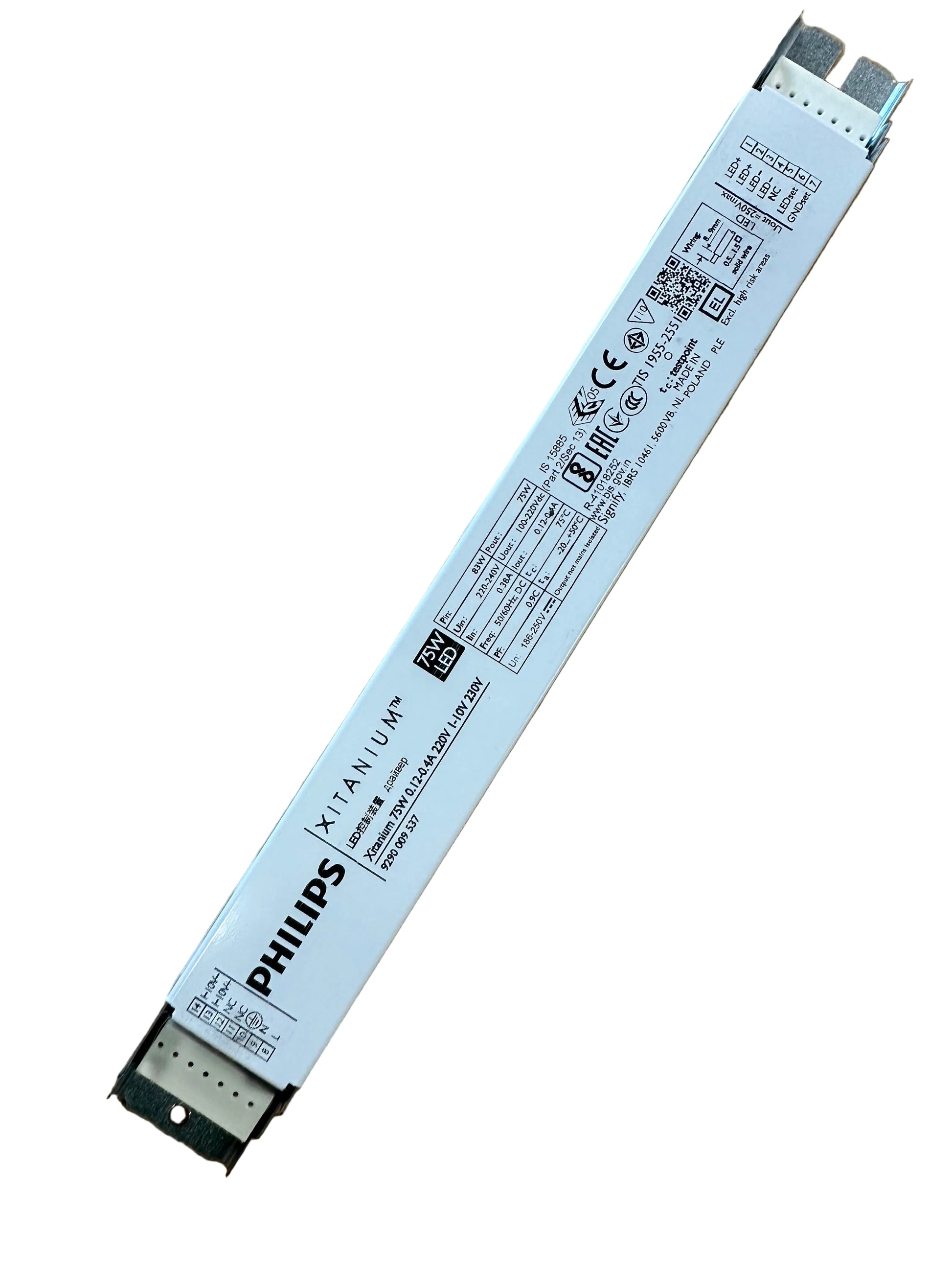

Philips 929000953706 Xitanium 75W 0.12A-0.4A 220V 1-10V 230V

Philips 929000953706 Xitanium 75W 0.12A-0.4A 220V 1-10V 230V

Enabling future-proof LED technology

Xitanium LED drivers are designed to operate LED solutions for general lighting applications such as linear lighting, as well as down lighting and spot/accent lighting.

Reliability is enhanced by specific features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal de-rating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating generation and complexity challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand.

Features

• Up to 95% efficiency, lowest cost and smallest dimensions

• Operating windows – output current can be adjusted via the Philips MultiOne configurator (TD drivers) or with a resistor outside the driver

• Reduced output ripple current and thermal de-rating for increased reliability

• Multiple versions – DALI dimmable & programmable, 1-10V dimmable, and fixed-output;

• All T5 form factors but various lengths

• For the iXt versions. longer life time (100khrs), improved surge and burst (4kV) and ambient (-40°C to +60°C) specification

929000953706 ELECTRICAL DATA

• Rated input voltage range 220…240 Vac Performance range

• Rated input voltage 230 Vac

• Rated input frequency range 50…60 Hz Performance range

• Rated input current 0.38 A @ max output power @ rated input voltage

• Rated input power 83 W @ rated output power @ rated input voltage

• Power factor 0.9 @ rated output power @ rated input voltage

• Total harmonic distortion 20 % @ rated output power @ rated input voltage

• Efficiency 91.9 % @ rated output power @ rated input voltage @ max. Uout

• Rated input voltage DC range 186…250 Vdc Performance range

• Input voltage AC range 198…264 Vac Operational range

• Input frequency AC range 45…66 Hz Operational range

• Input voltage DC range 168…275 Vdc Operational range

• Isolation input to output No

Electrical output data

• Regulation method Constant Current

• Output voltage 100…220 Vdc

• Output voltage max. 250 V Maximum output voltage (rms)

• Output current 0.12…0.4 A

• Output current tolerance ± 5 %

• Output current ripple LF ≤ 4 % Ripple = peak / average, < 3kHz

• Output Pst LM ≤ 0.12

• Output SVM ≤ 0.07

• Output power 21…75 W
