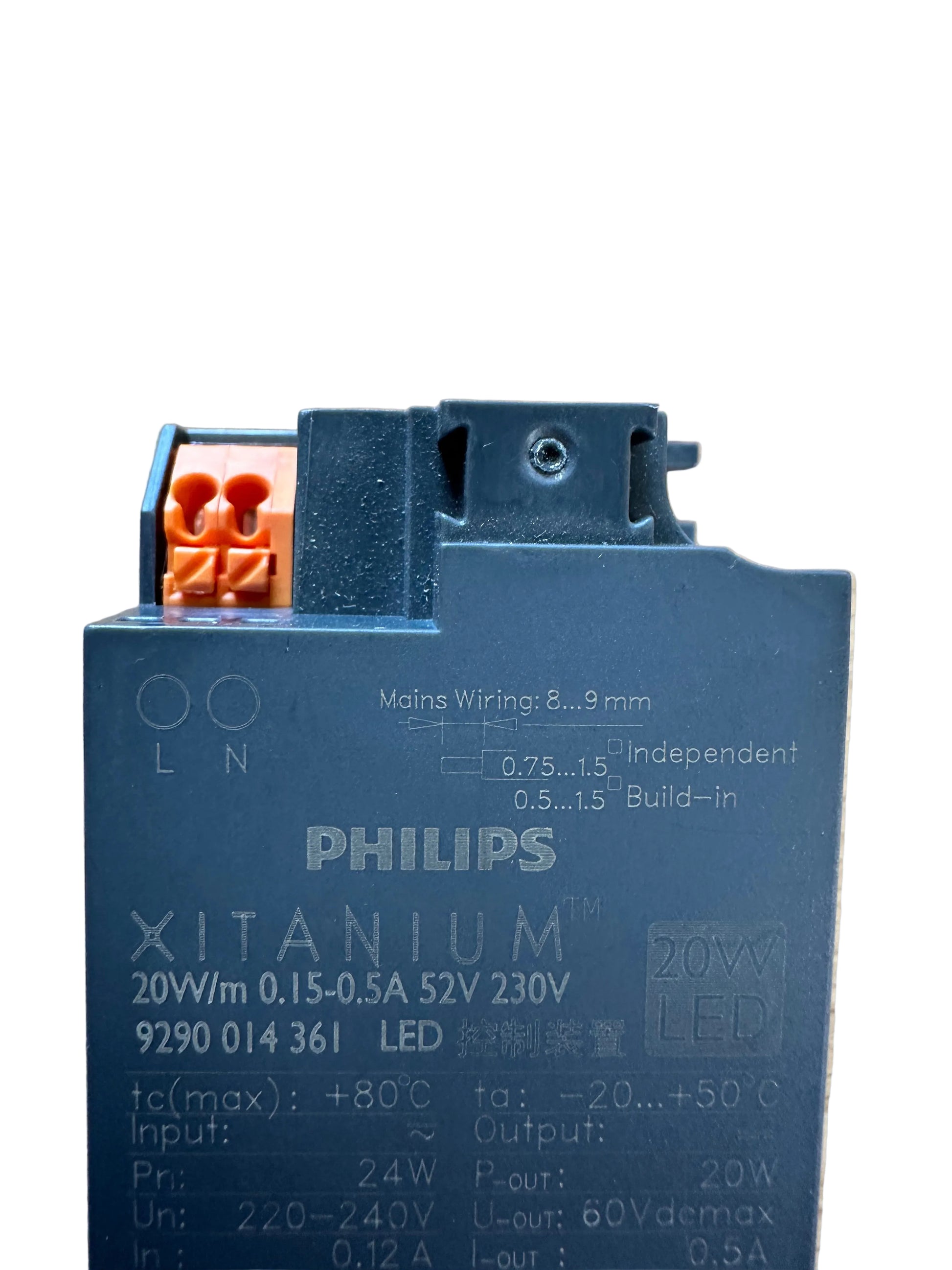

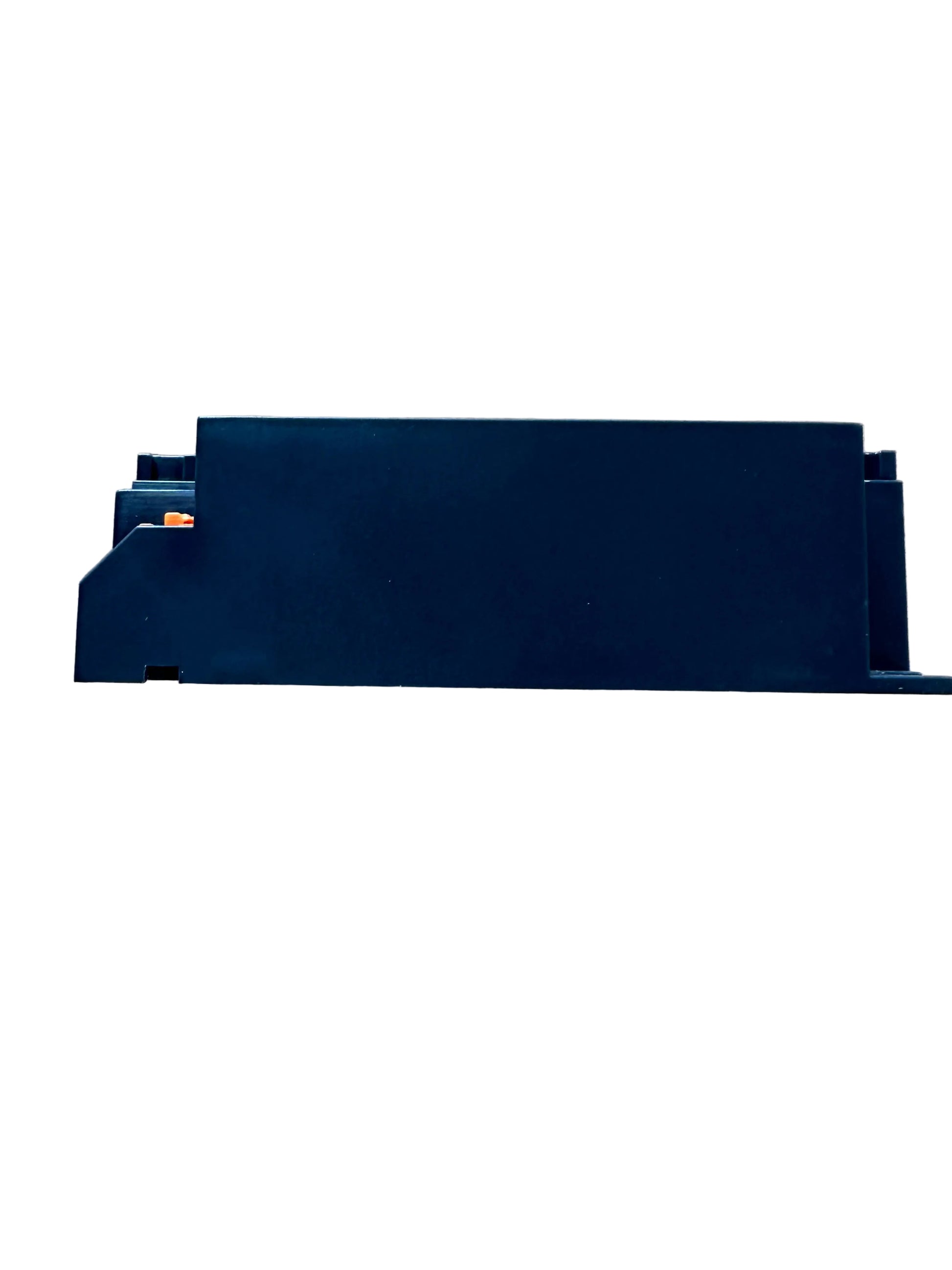

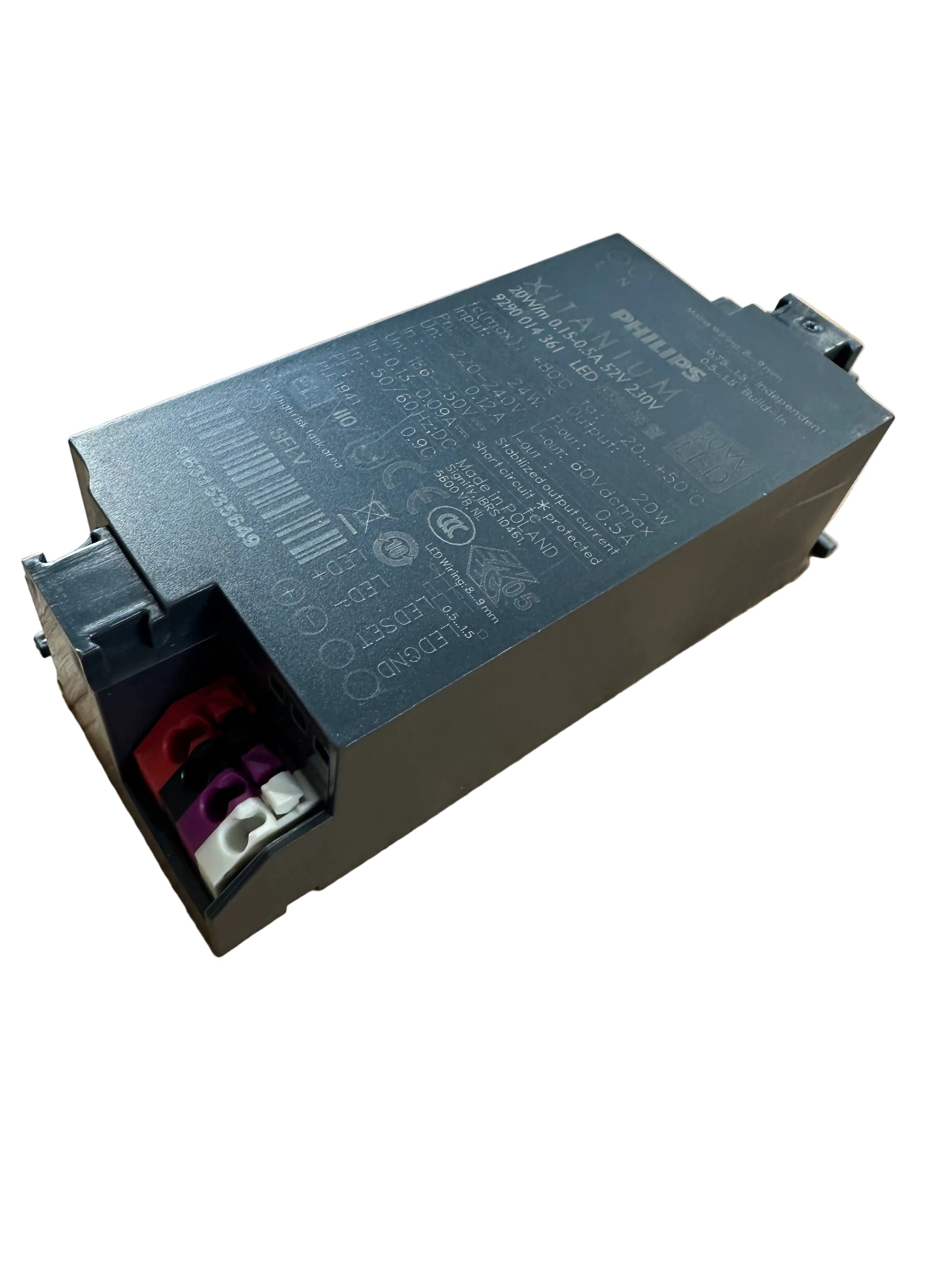

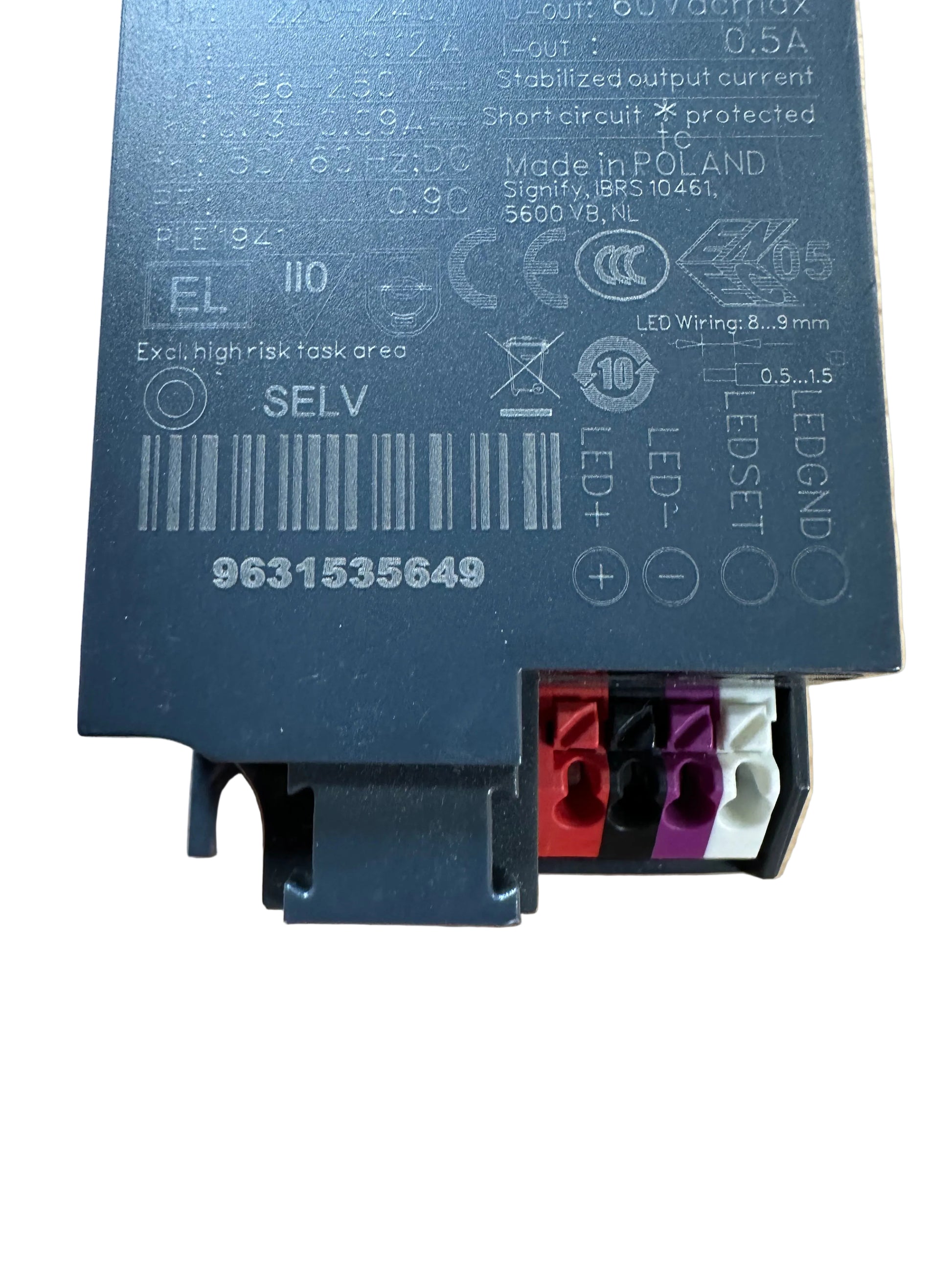

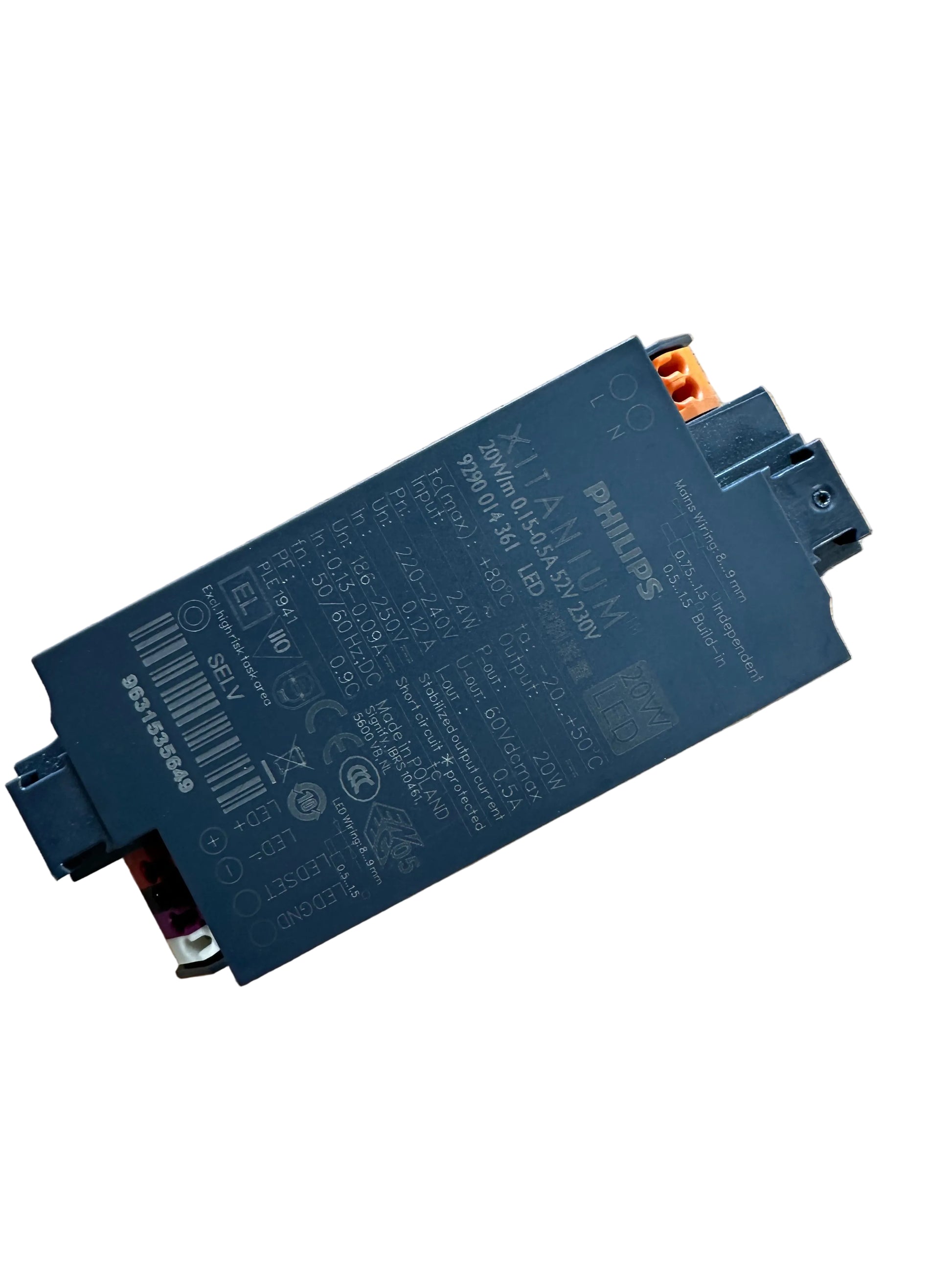

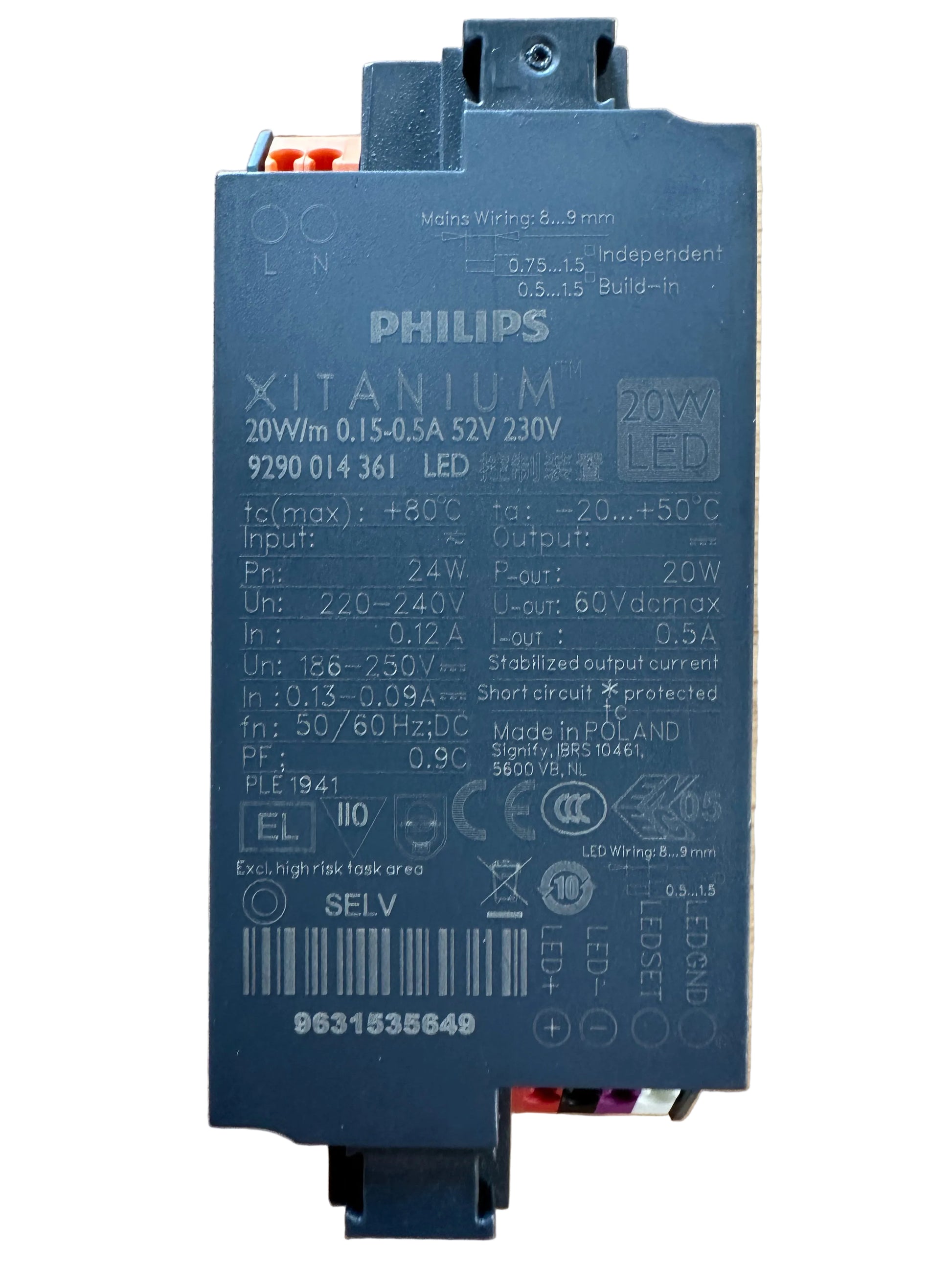

Philips 929001436106 XITANIUM 20W M 0.15-0.5A 52V 230V

Philips 929001436106 XITANIUM 20W M 0.15-0.5A 52V 230V

929001436106 Benefits

• High reliability underpinned by 5 year warranty
• Future-proof flexibility – application-oriented operating windows enable LED generation and complexity management

Xitanium LED drivers are designed to operate LED solutions for general lighting applications. Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating challenges for OEMs.

With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer stable lumen output and light quality levels that specifiers and architects demand. The adjustable output current also enables operation of various LED PCB solutions from different manufacturers.

929001436106 OPERATING AND ELECTRICAL

• Mains voltage operation (DC) 168-275 V
• Total Harmonic Distortion IEC (Max) 20 %
• Power Consumption 24 W
• Output Current Ripple (Max) 4 %
• Maximum Efficiency at Full Load 86.6 %
• Output Current (Max) 500 mA
• Output Current Tolerance (Max) 5 %
• Mains voltage performance (DC) 186-250 V
• Power Factor (Fraction) 0.9
• Open Circuit Voltage (DC) (Max) 60 V
• Input current (AC) 120 mA
• Inrush Current Peak (Max) 4.5 A
• Inrush Current Peak (Nom) 4.5 A
• Output Power (Max) 20 W
• Output Power (Nom) 20 W
• Default output current 150 mA
• Inrush Current Width to 50% of Peak 65 µs
• Power Factor 100% Load (Max) 0.9
• Energy Metering No
• Constant Current (CC) True
• Constant Voltage (CV) False
• Diagnostics False
• Output Power (Min) 6 W
• Output Current (Min) 150 mA
• Output Voltage (Max) 52 V
• Output Voltage (Min) 24 V
• Number of Products on MCB (16A Type B) (Max) 34
• Protection class IEC Safety class II
• Adjustable Output Current LEDSet/Resistor
