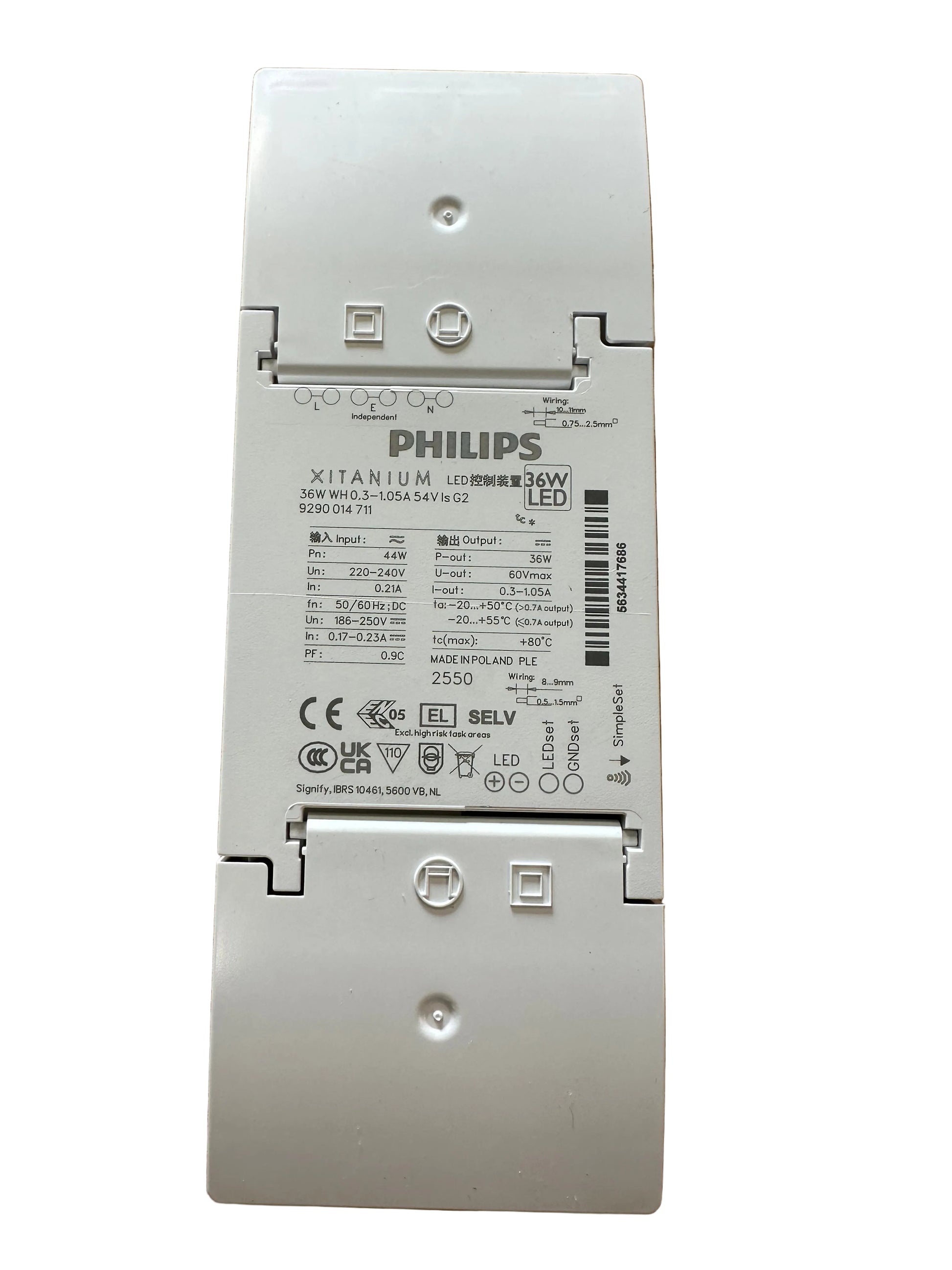

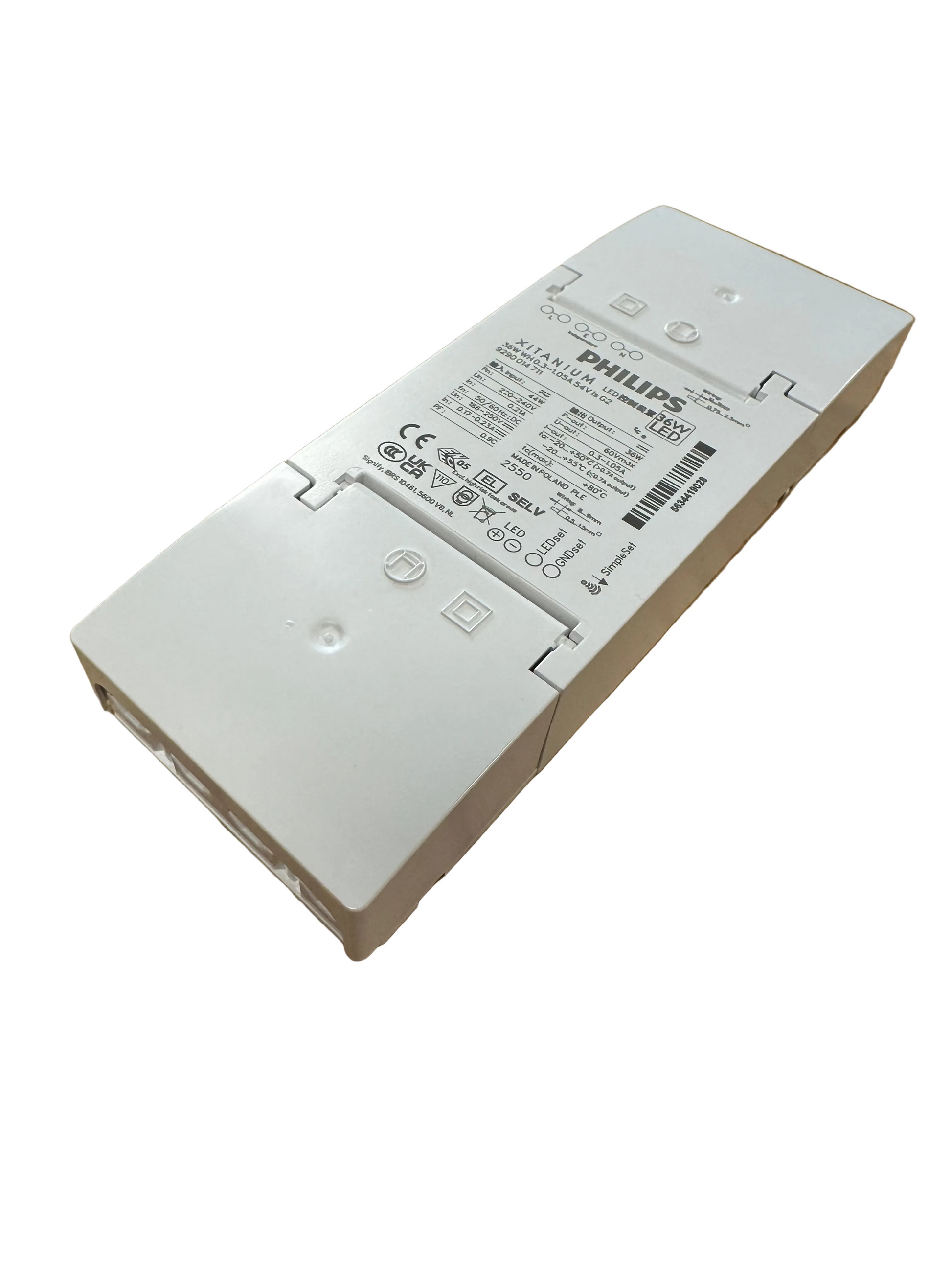

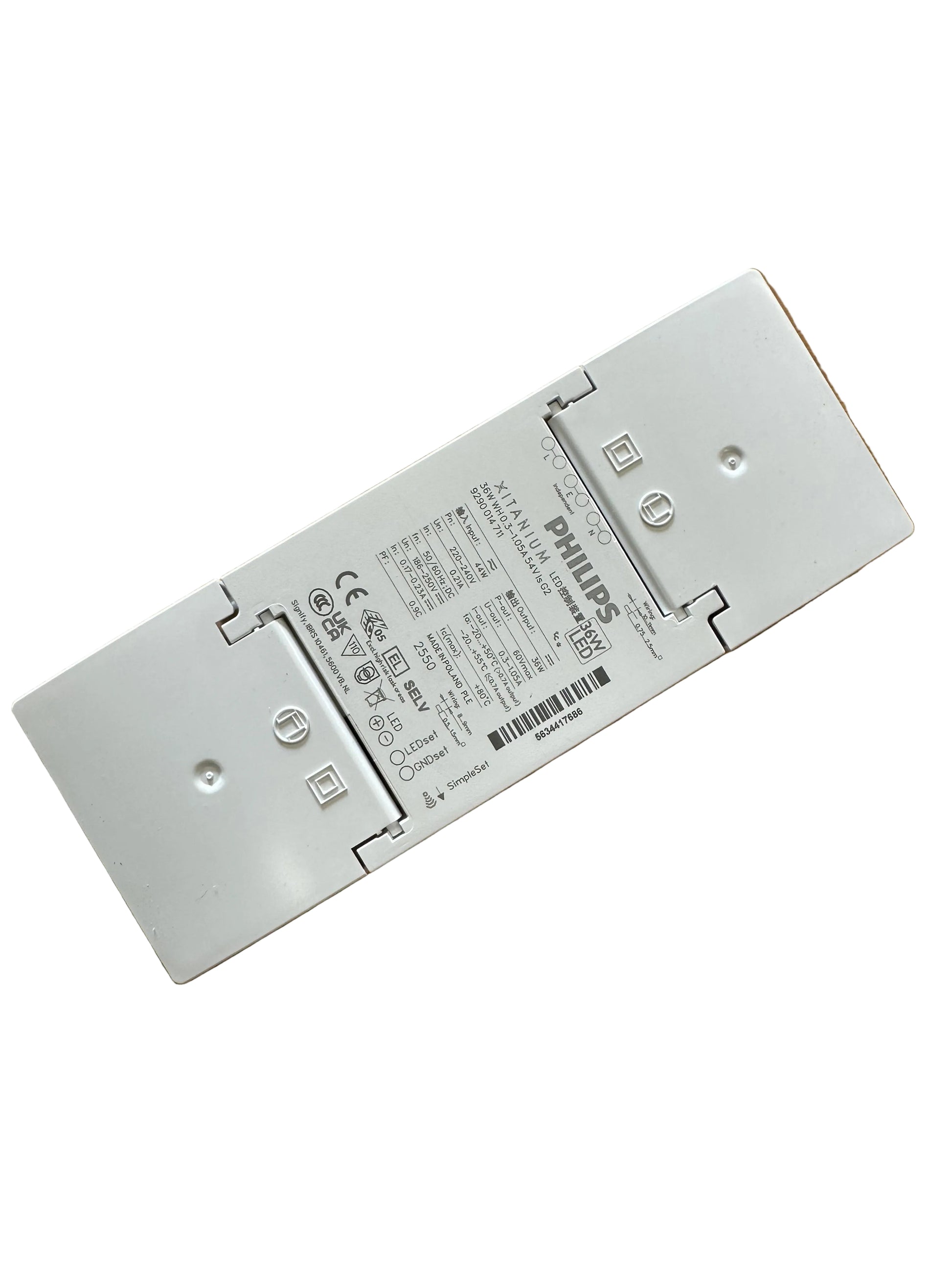

Philips 9290014711 Xitanium 36W WH 0.3-1.05A 54V Is G2

Philips 9290014711 Xitanium 36W WH 0.3-1.05A 54V Is G2

929001471106

We have the software here at LED Retro to set the mA rating for you, if this is required, then please contact the sales team, we can do this service for you free of charge.

• Future-proof flexibility – application-oriented operating windows enable LED generation and complexity management
• Compatibility – can also be used for other manufacturers’ modules or OEMs’ own PCB designs.

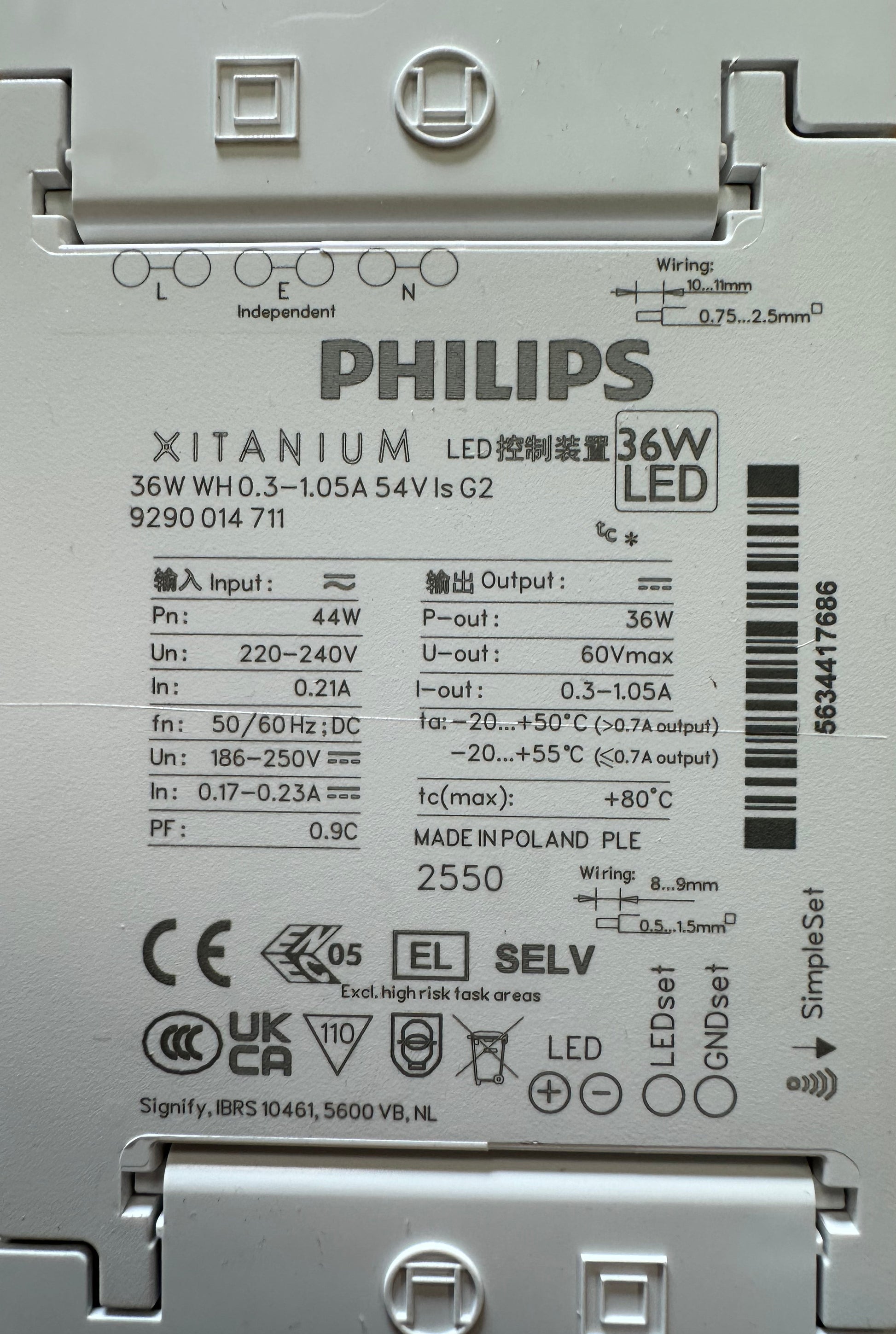

929001471106 Electrical input data

• Rated input voltage range 220…240 Vac Performance range
• Rated input voltage 230 Vac
• Rated input frequency range 50…60 Hz Performance range
• Rated input current 0.21 A @ rated output power @ rated input voltage
• Rated input power 44 W @ rated output power @ rated input voltage
• Power factor 0.9 @ full output power @ rated input voltage
• Total harmonic distortion 20 % @ full output power @ rated input voltage
• Efficiency 88 % @ full output power @ rated input voltage
• Rated input voltage DC range 186…250 Vdc Performance range
• Input voltage AC range 198…264 Vac Operational range
• Input frequency AC range 45…66 Hz Operational range
• Input voltage DC range 168…275 Vdc Operational range
• Isolation input to output SELV

929001471106 Electrical output data

• Regulation method Constant Current
• Output voltage 24…54 Vdc
• Output voltage max. 60 V Maximum output voltage (rms)
• Output current 0.3…1.05 A
• Output current min programmable 300 mA
• Output current tolerance ± 5 % @ full load
• Output current ripple LF ≤ 4 % Ripple = peak / average, < 3kHz
• Output power 11…36 W

Benefits

• High reliability underpinned by 5 year warranty
• Future-proof flexibility – application-oriented operating windows enable LED generation and complexity management
• Compatibility – can also be used for other manufacturers’ modules or OEMs’ own PCB designs

Features

• Operating windows – output current can be adjusted via the Philips MultiOne configurator (‘TD’ drivers) or with a resistor outside the driver or SimpleSet
• Power ratings: 10-75W

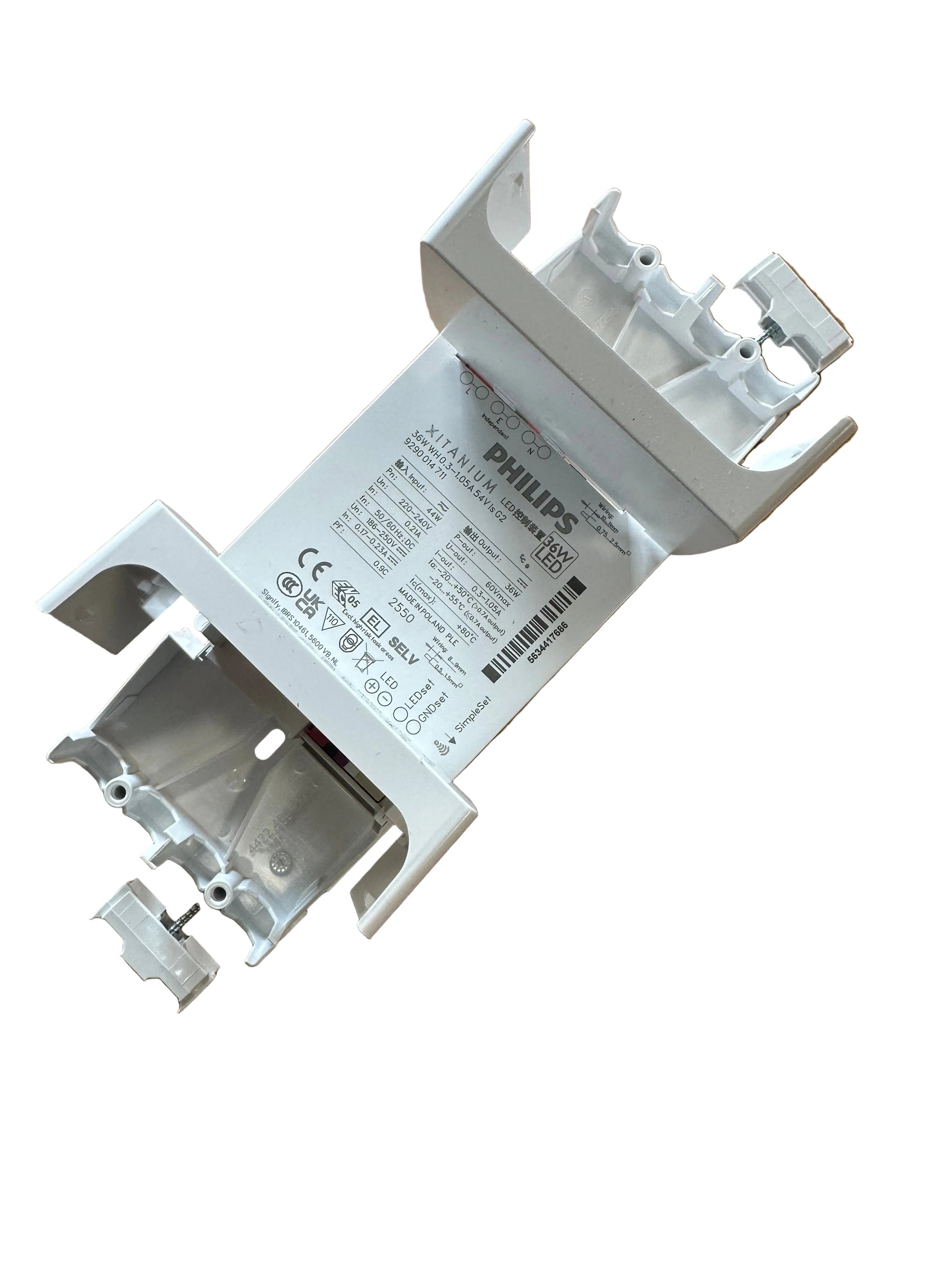

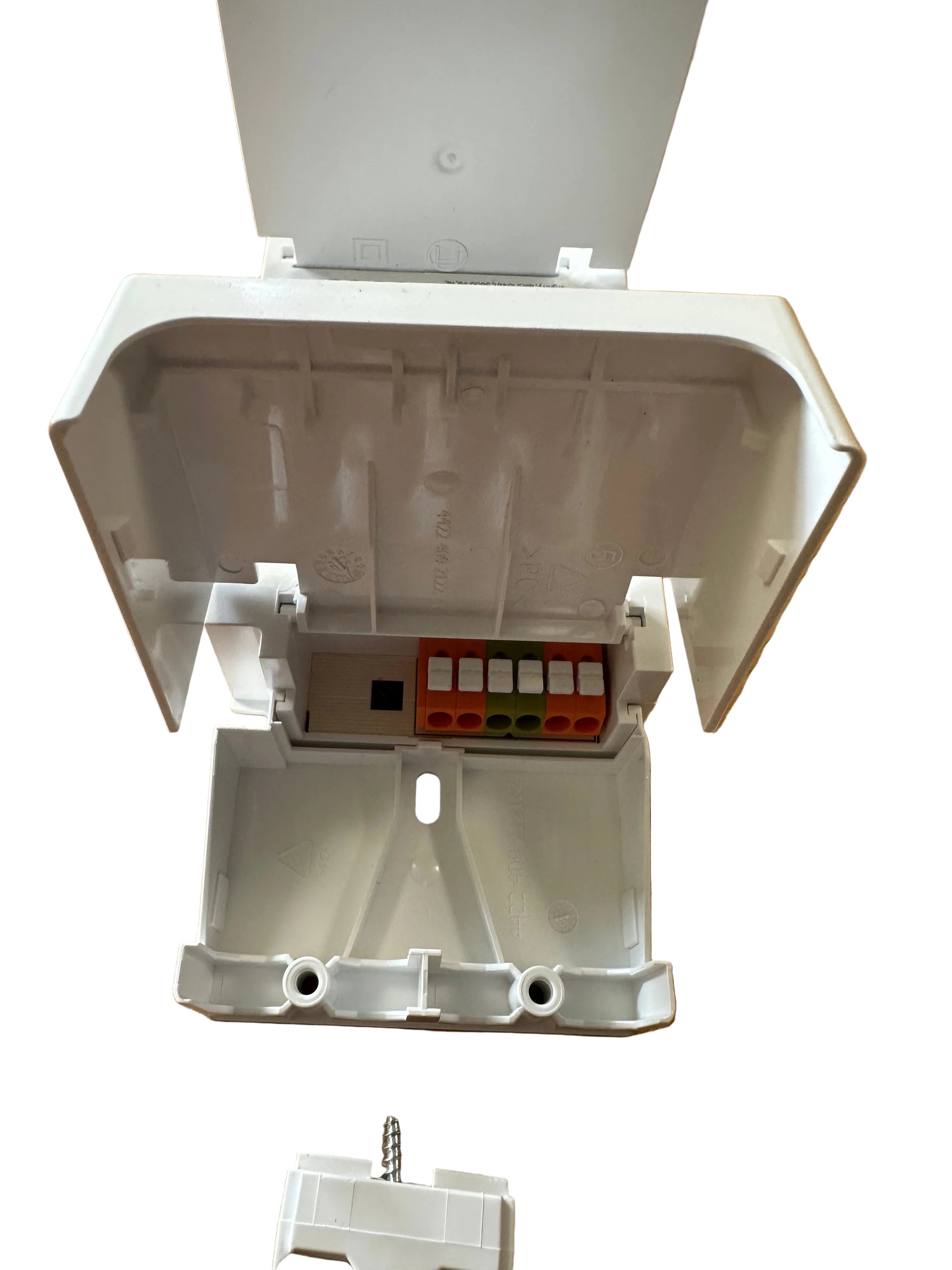

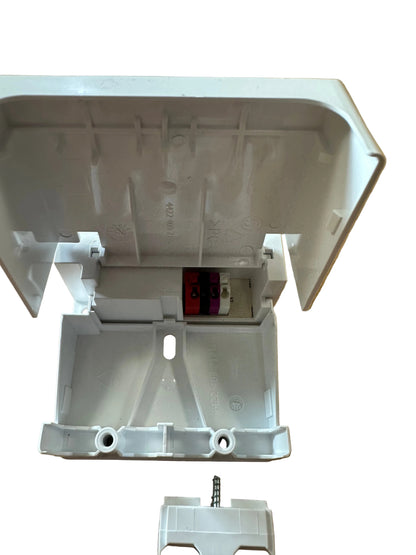

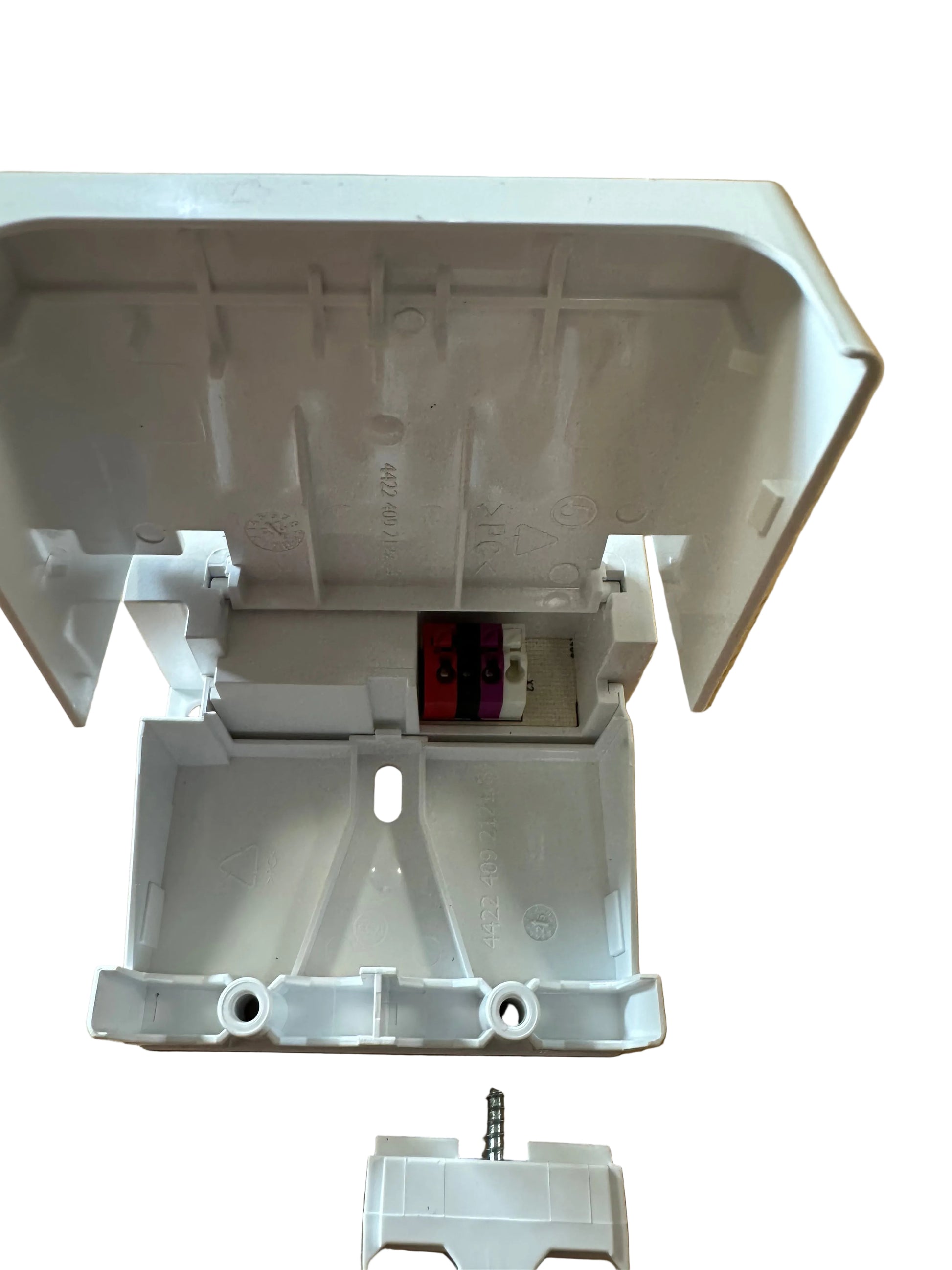

• Choice of housing designs -linear housing for tracks in ‘3 in 1’ in design, conventional HID housings for down and Spotlighting and WH housing for independent use with strain relief and loop through

Application

• Retail
• Office

The Philips Xitanium programmable window LED drivers ensure OEMs have complete flexibility and control in producing high quality luminaires. Available in application-dedicated form factors use and independent applications, our LED point drivers provide further customization via wide operating windows.

Additionally, almost all drivers feature the following specifications: SELV, improved ripple current, temperature derating, – providing OEMs the tools to produce, and even alter later if necessary, premium downlights and spotlights.
