Philips 929001503606 Xitanium 36W 0.3-1A 54V TD 230V

Philips 929001503606 Xitanium 36W 0.3-1A 54V TD 230V

Full Product Code: 871869655264300

Xitanium LED drivers are designed to operate LED solutions for general lighting applications such as linear lighting, as well as downlighting and spot/accent lighting. High reliability underpinned by 5 year warranty, enhanced by specific features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating generation and complexity challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand. And the adjustable output current also enables operation of various LED PCB solutions from different manufacturers.

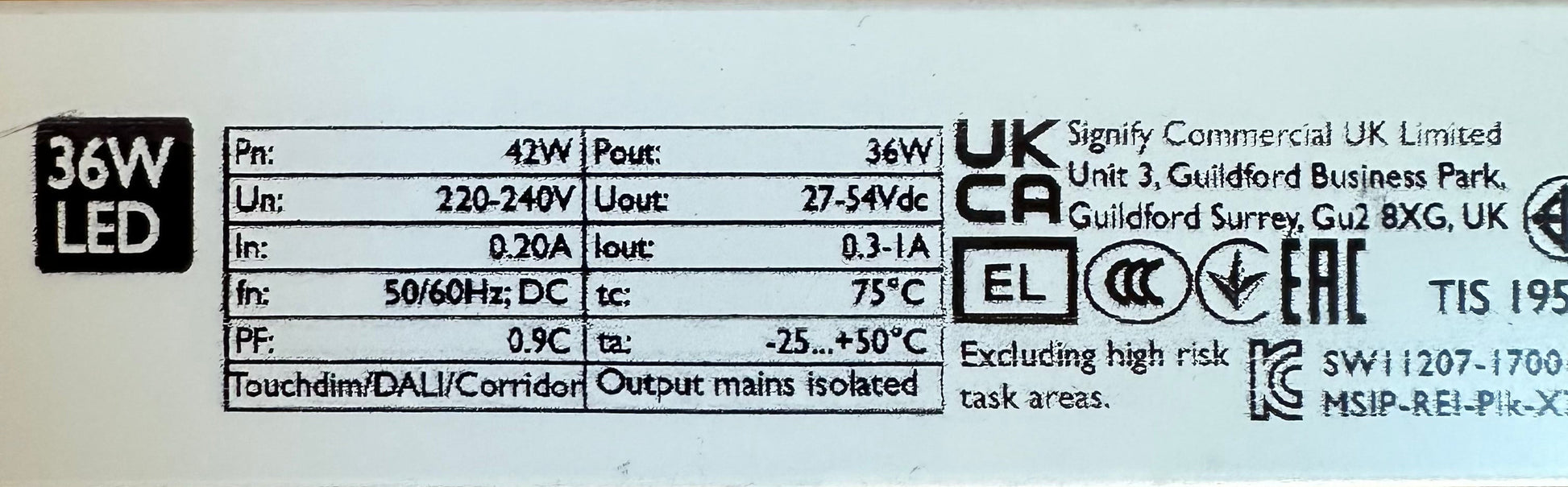

• Constant Current LED Driver 0.3-1A
• Output Power 10-36W
• Output Voltage 27-54V
• Dimming Range 1-100% Touch or DALI
• Length A1 = 360mm B1 = 30mm C1 = 22mm

Philips 9290015036
