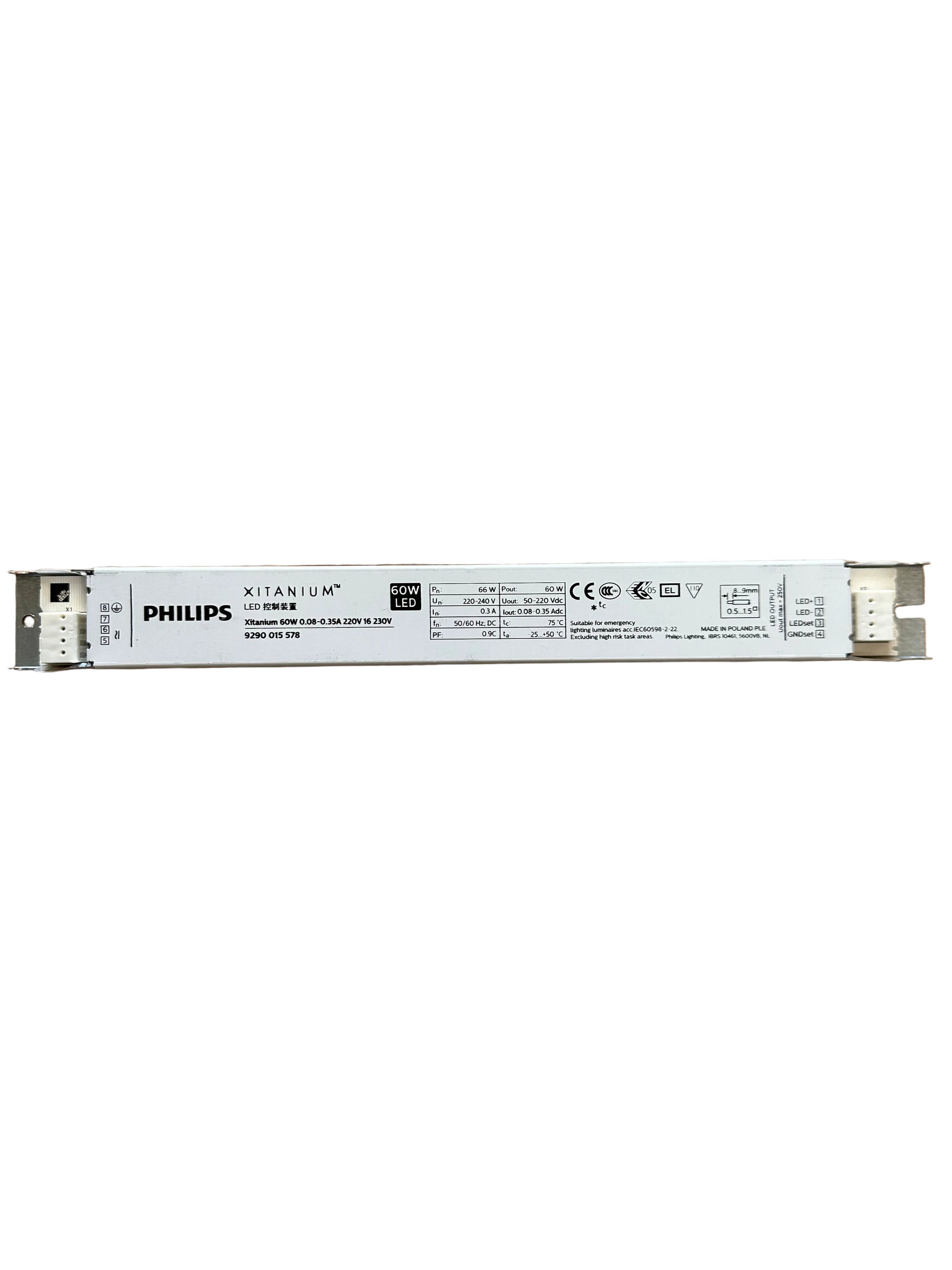

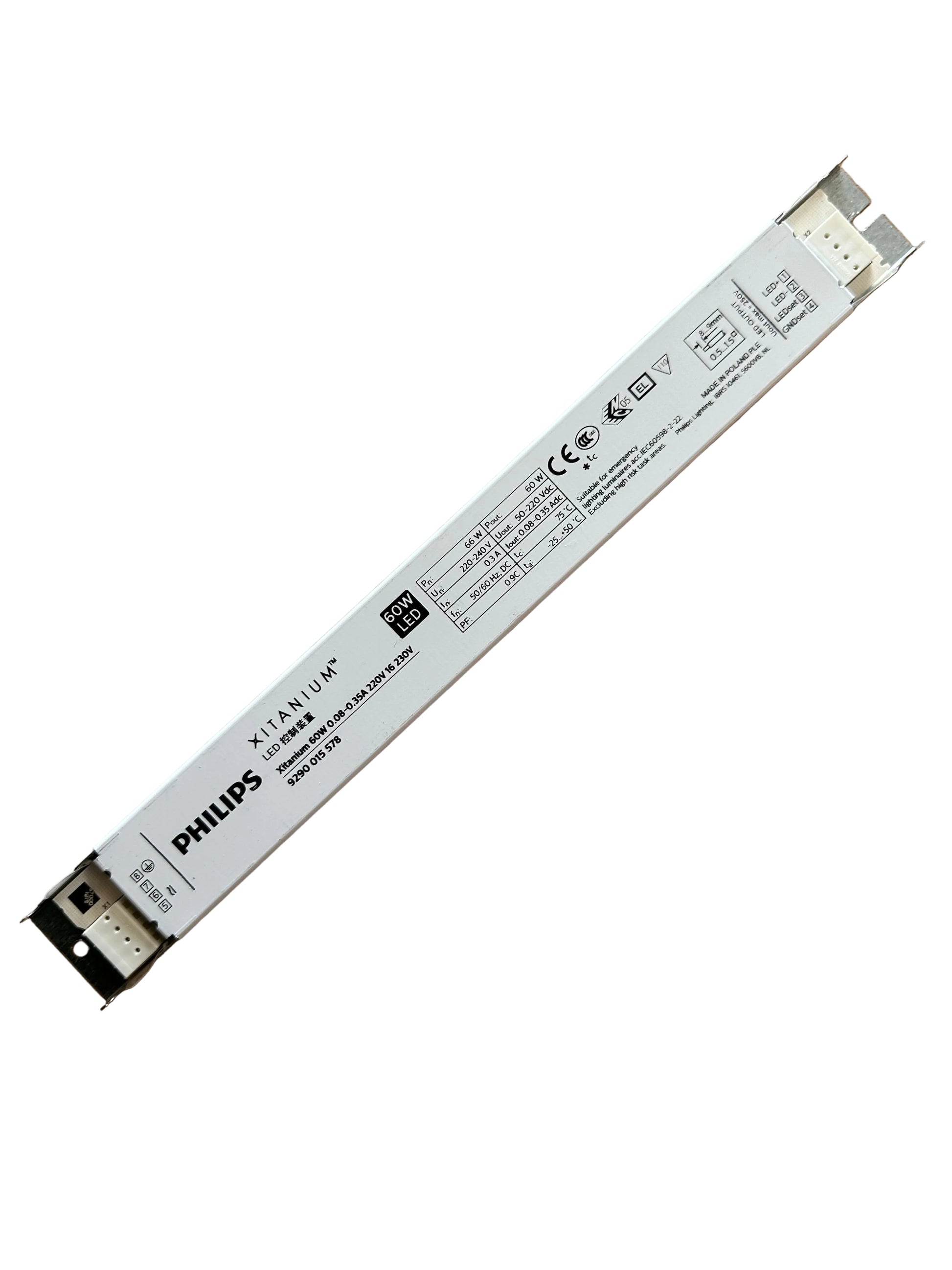

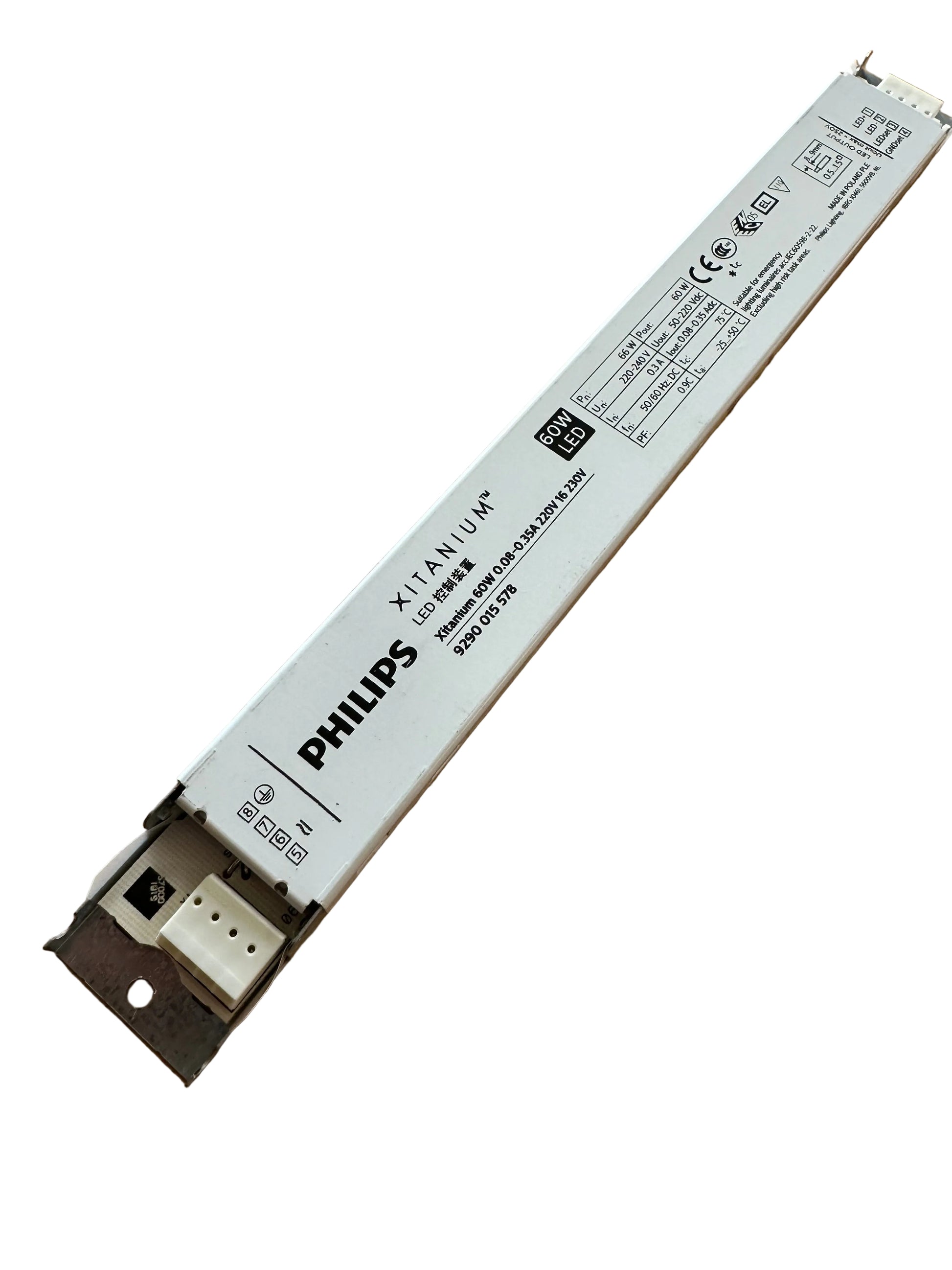

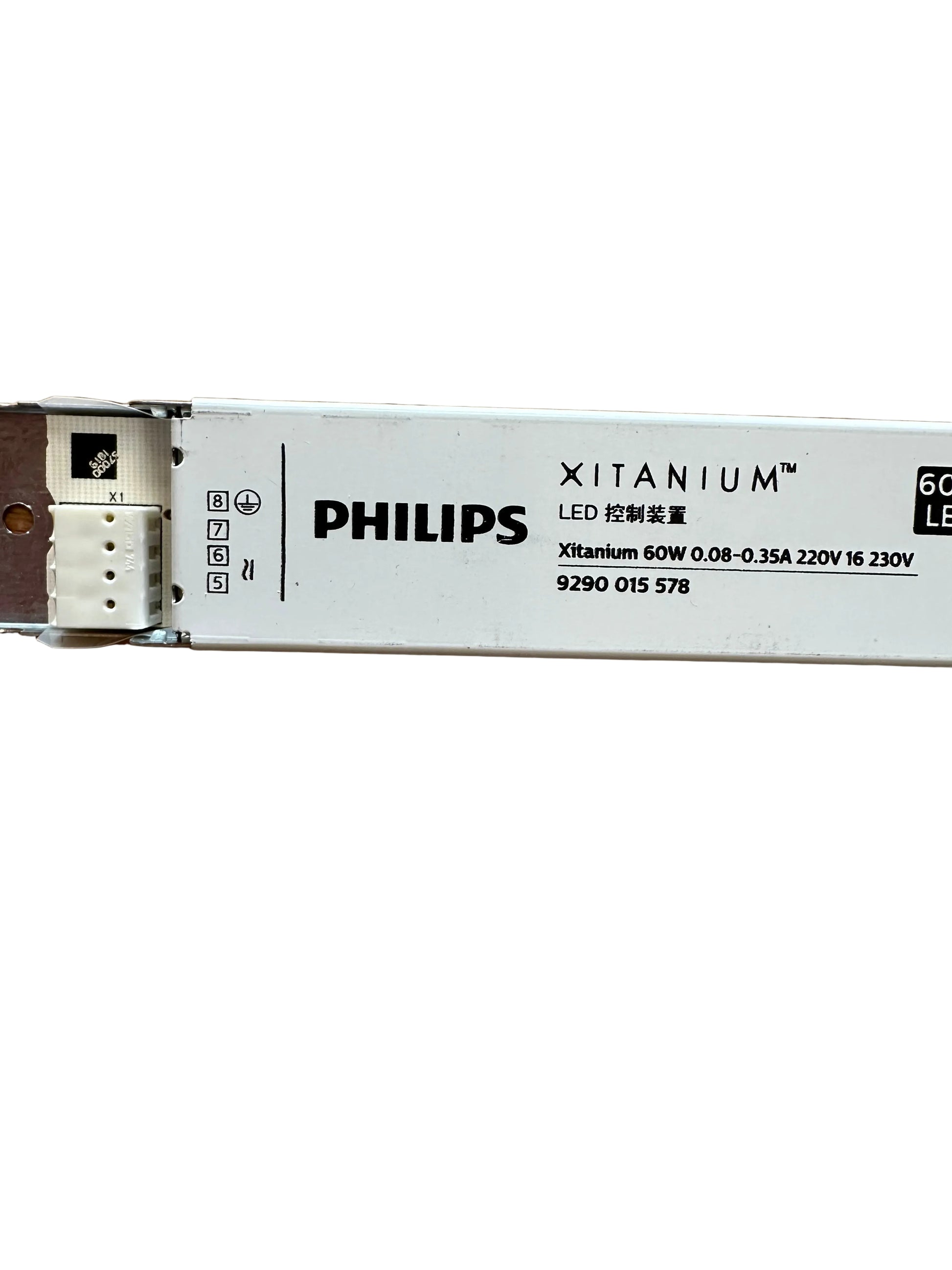

Philips 929001557806 Xitanium 60W 0.08-0.35A 220V 16 230V

Philips 929001557806 Xitanium 60W 0.08-0.35A 220V 16 230V

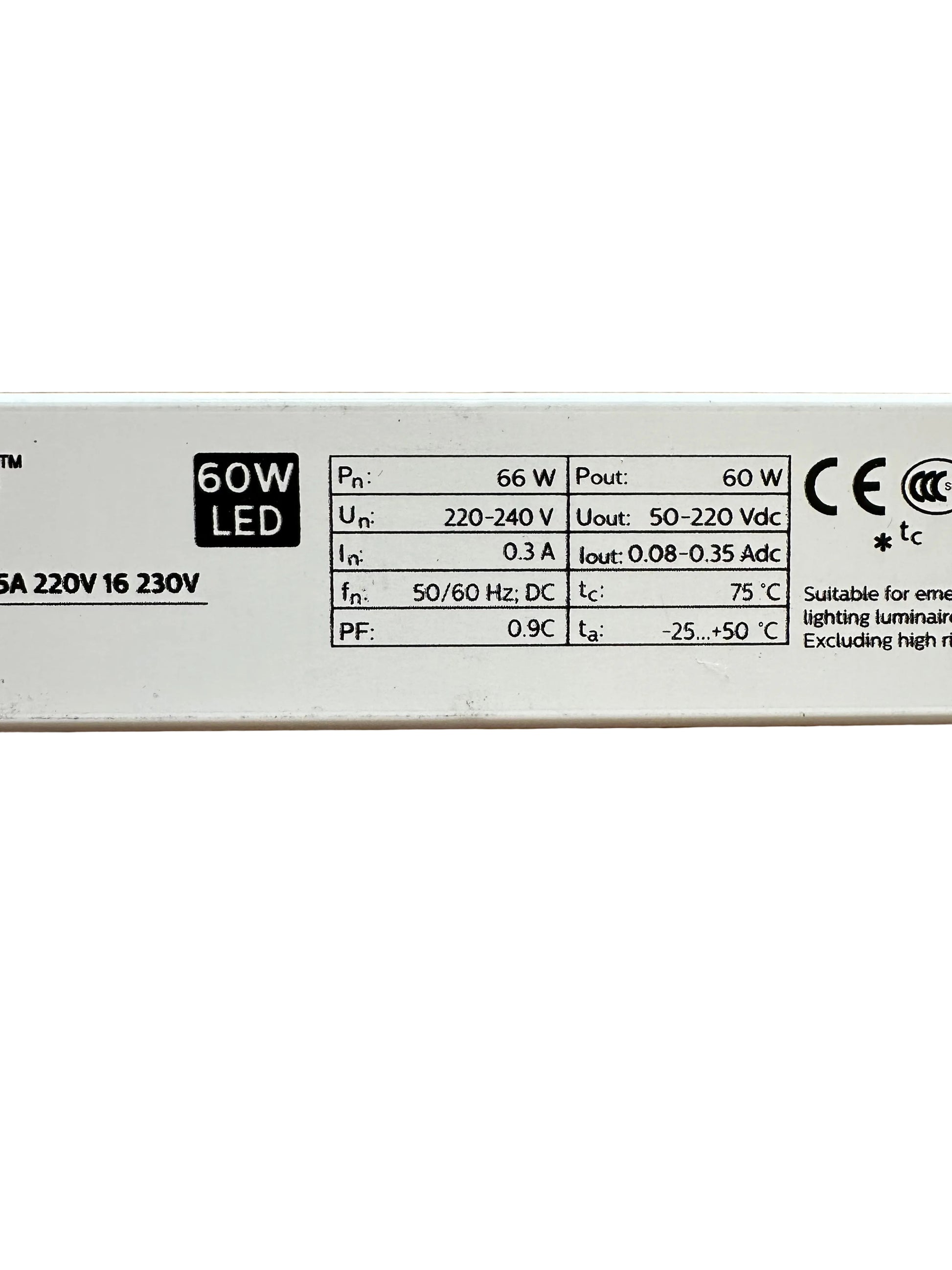

929001557806 Electrical input data

• Rated input voltage range 220…240 Vac Performance range
• Rated input voltage 230 Vac
• Rated input frequency range 50…60 Hz Performance range
• Rated input current 0.3 A @ max output power @ rated input voltage
• Rated input power 66 W @ max output power @ rated input voltage
• Power factor 0.9 @ rated output power @ rated input voltage
• Total harmonic distortion 20 % @ rated output power @ rated input voltage
• Efficiency 92.2 % @ max output power @ rated input voltage @ max. Uout
• Rated input voltage DC range 186…250 Vdc Performance range
• Input voltage AC range 198…264 Vac Operational range
• Input frequency AC range 45…66 Hz Operational range
• Input voltage DC range 168…275 Vdc Operational range
• Isolation input to output No

929001557806 Electrical output data

• Regulation method Constant Current
• Output voltage 50…220 Vdc
• Output voltage max. 250 V Maximum output voltage (rms)
• Output current 0.08…0.35 A
• Output current tolerance ± 5 %
• Output current ripple LF ≤ 4 % Ripple = peak / average, < 3kHz
• Output current ripple HF ≤ 4 %
• Output Pst LM ≤ 0.03
• Output SVM ≤ 0.13
• Output power 17…60 W

Benefits

• High quality of light
• High reliability
• Future-proof flexibility
• Fast and easy wireless programming with SimpleSet (if applicable)

Application

• Offices
• Industry
• Retail: supermarkets, shopping malls

By using Xitanium LED drivers in your luminaires, you can be sure to offer your customers high quality of light without visual flicker and stroboscopic effects. The reliability of your complete lighting system is enhanced as our drivers offer specific features that protect the connected LED module, including reduced ripple current.

Finally, application-oriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand.
