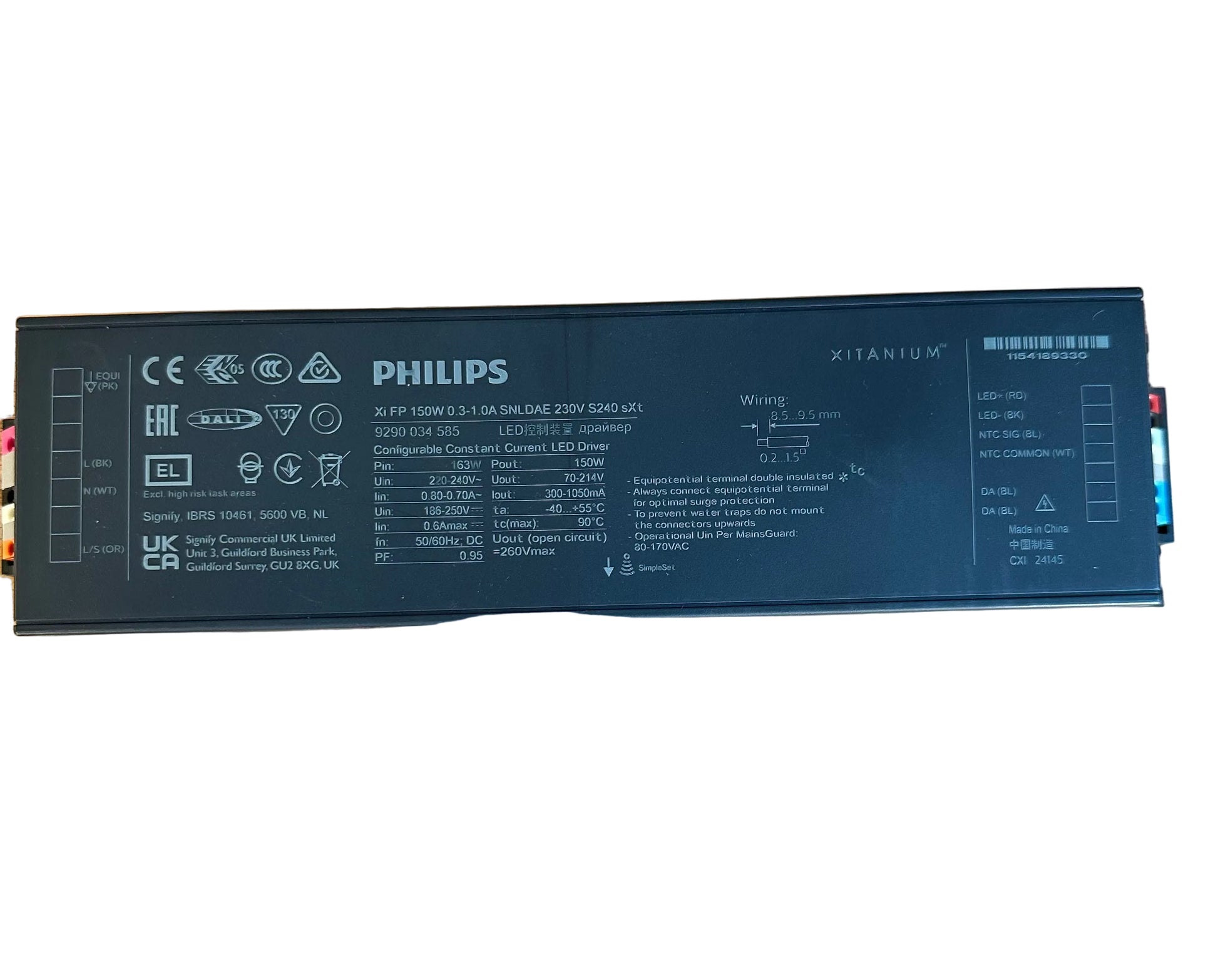

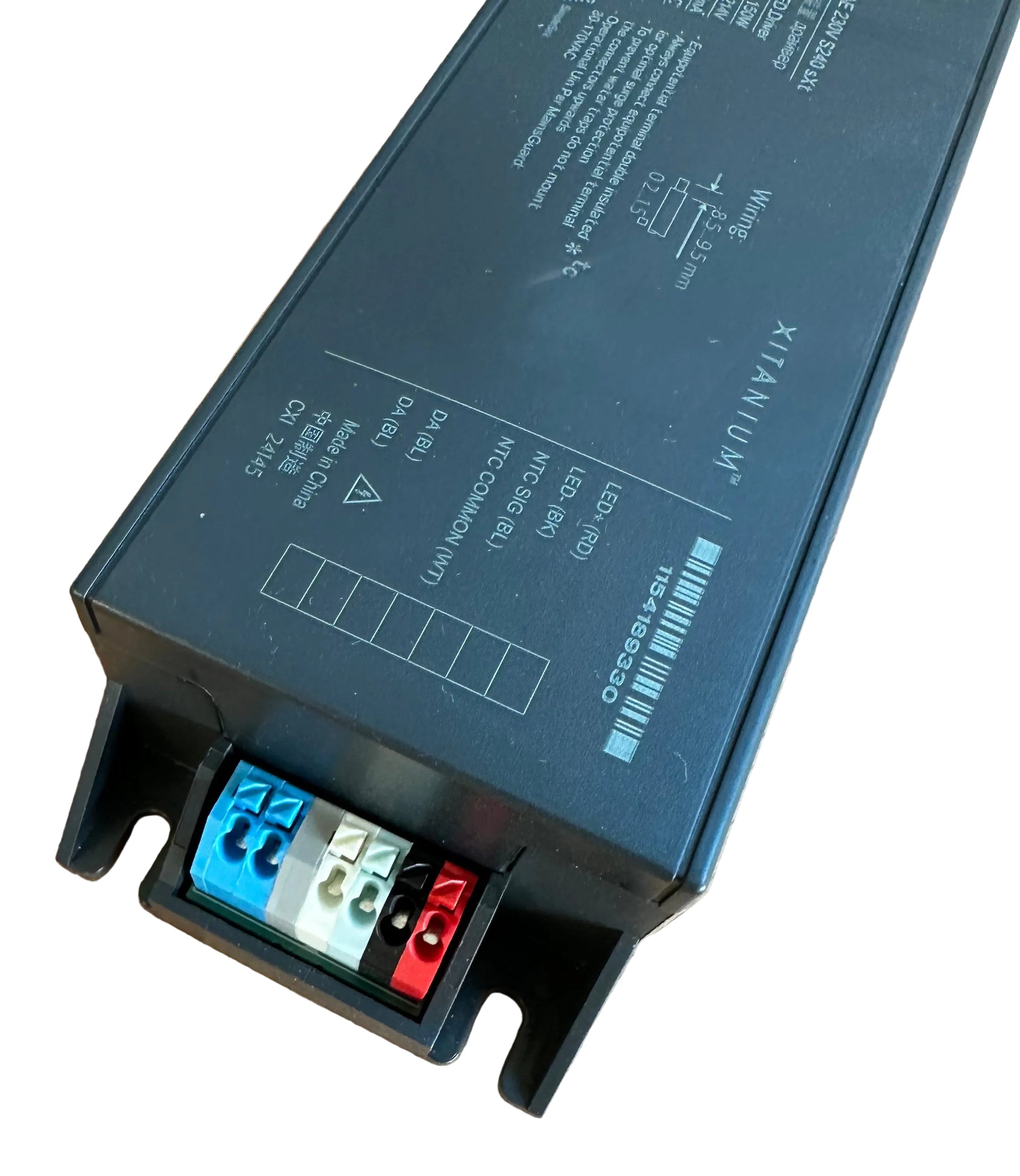

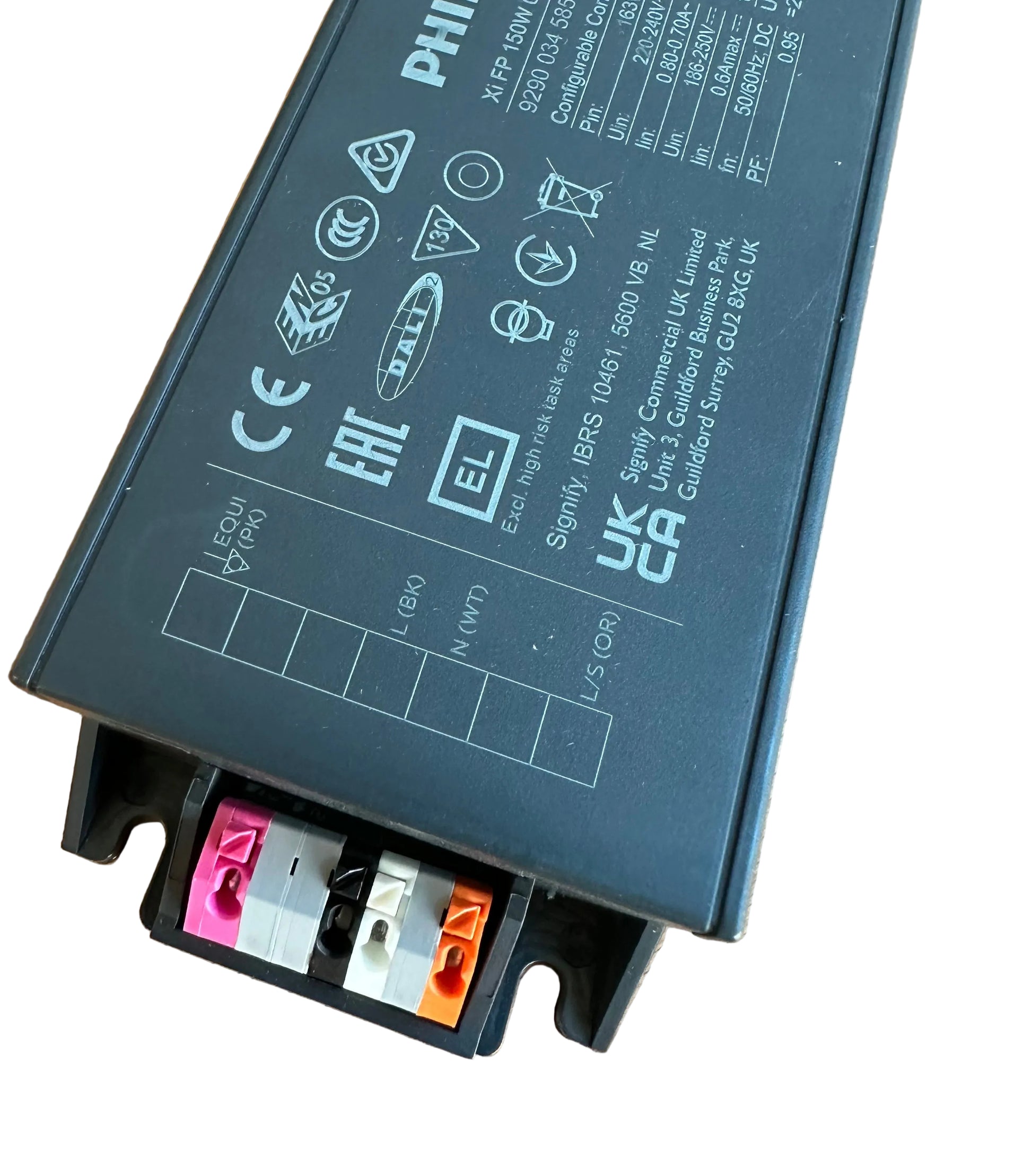

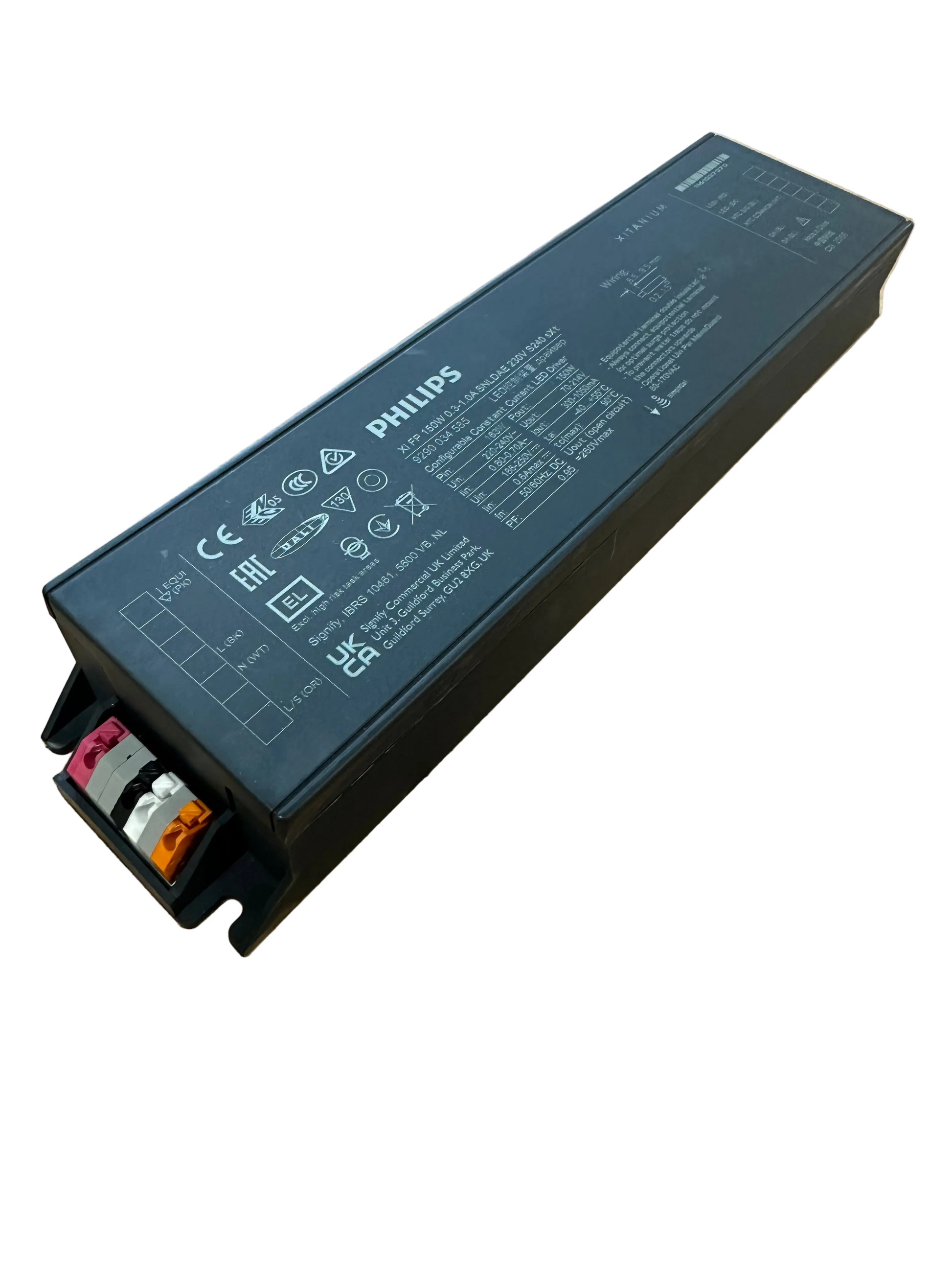

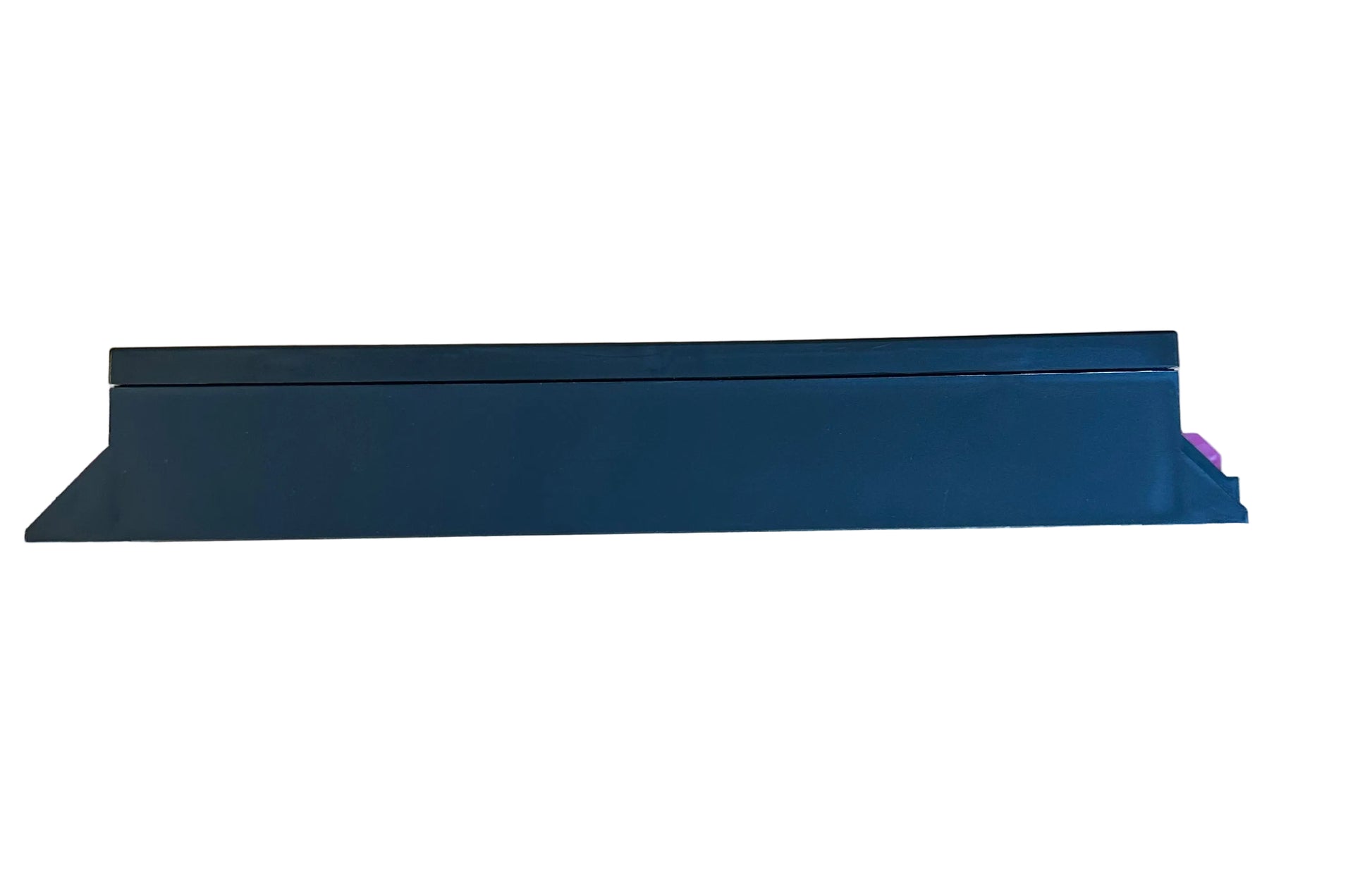

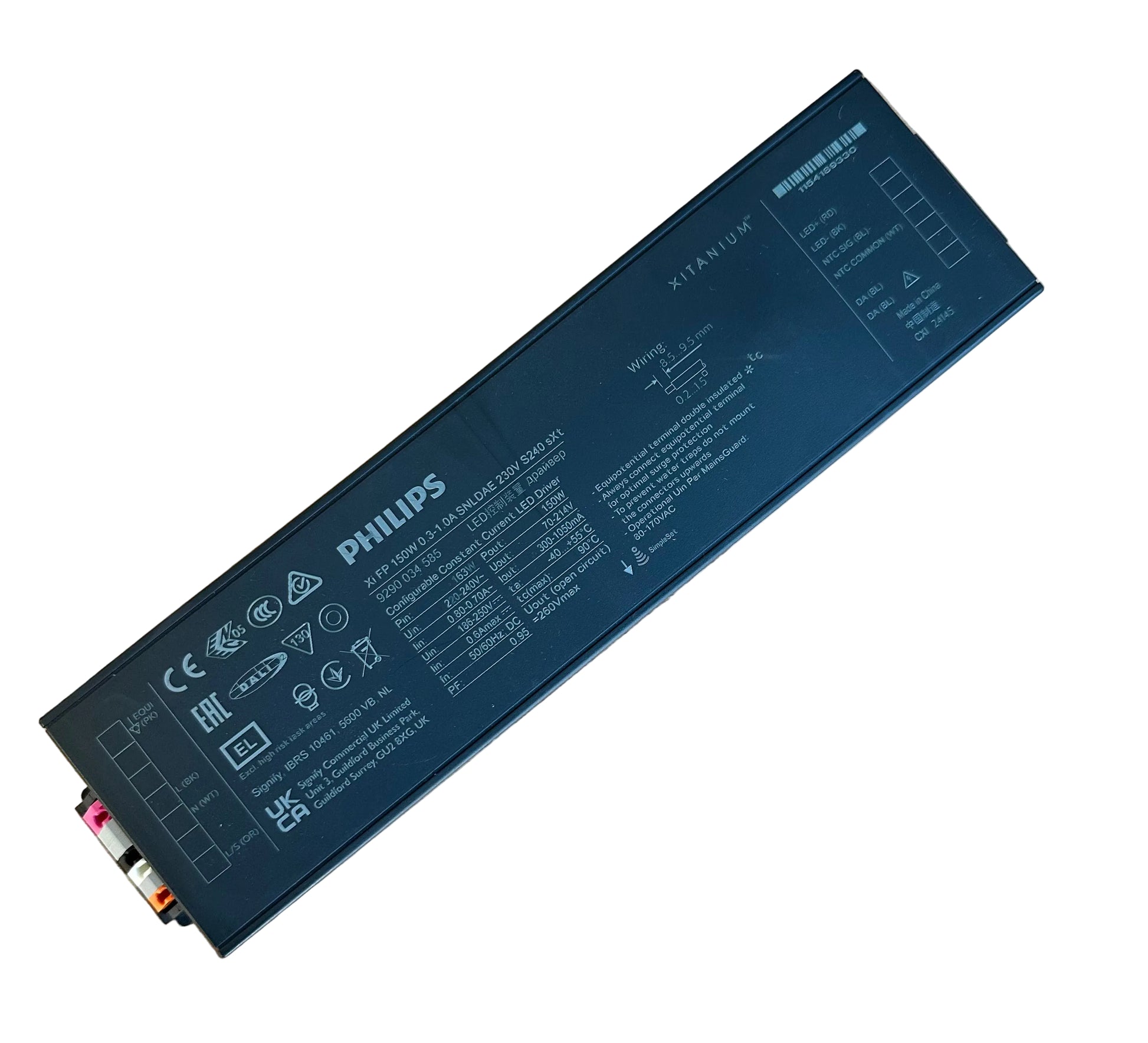

Philips 929001644306 Xi FP 150W 0.3-1.0A SNLDAE (9290009623)

Philips 929001644306 Xi FP 150W 0.3-1.0A SNLDAE 230V S240 sXt

Also Philips codes 929002128706  Philips 929003458506

Replaces 9290009623

Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime.

In this product family Philips introduces new drivers in a stretched form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver in a production environment, without the need to power the driver.

• Constant Current LED Driver 0.3-1.0A
• Output power 5-150W
• Dimming Range 10-100%
• Length A1 = 240mm Width B2 = 42.9mm Height C1 = 37.8mm

Philips 9290016443
