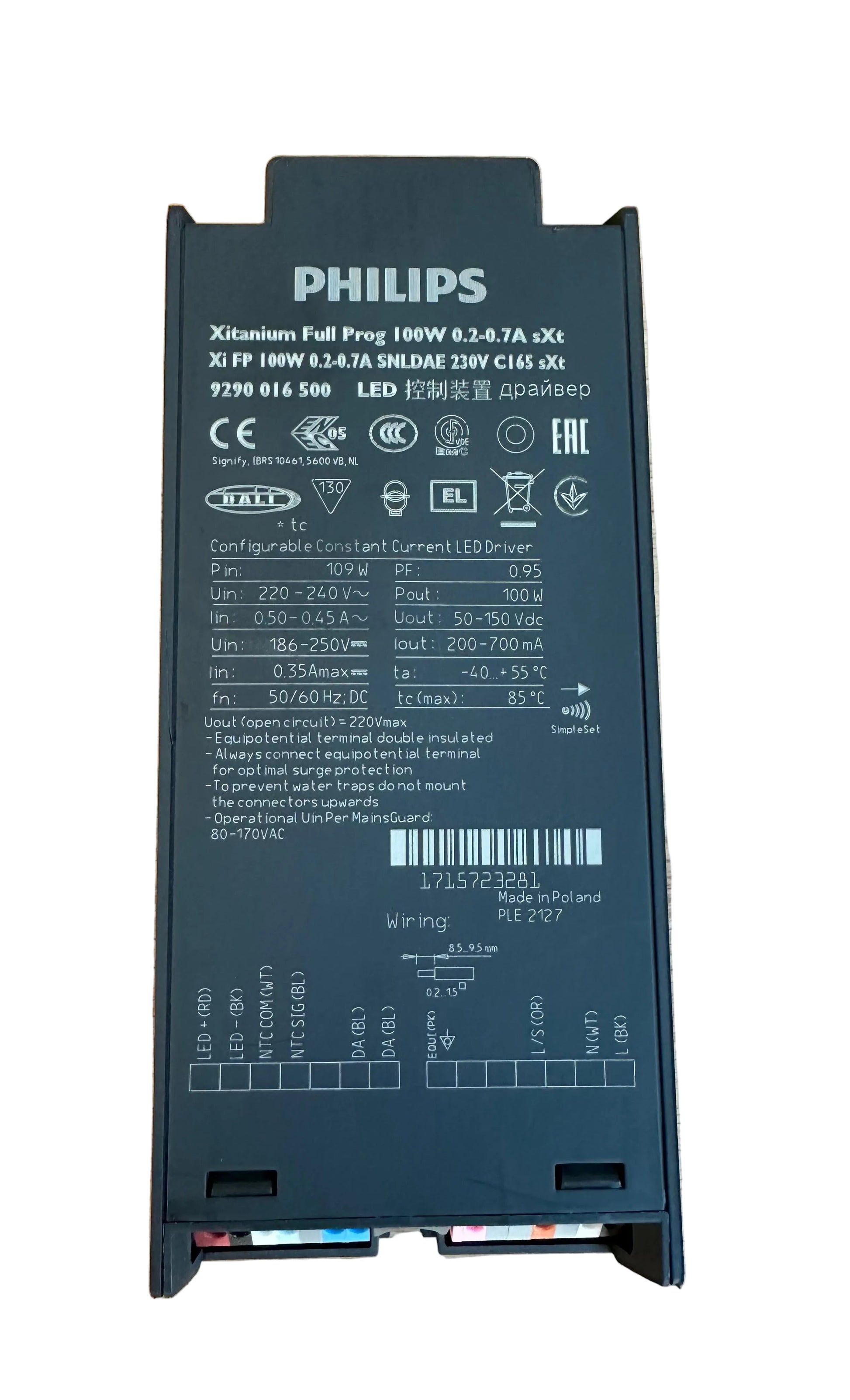

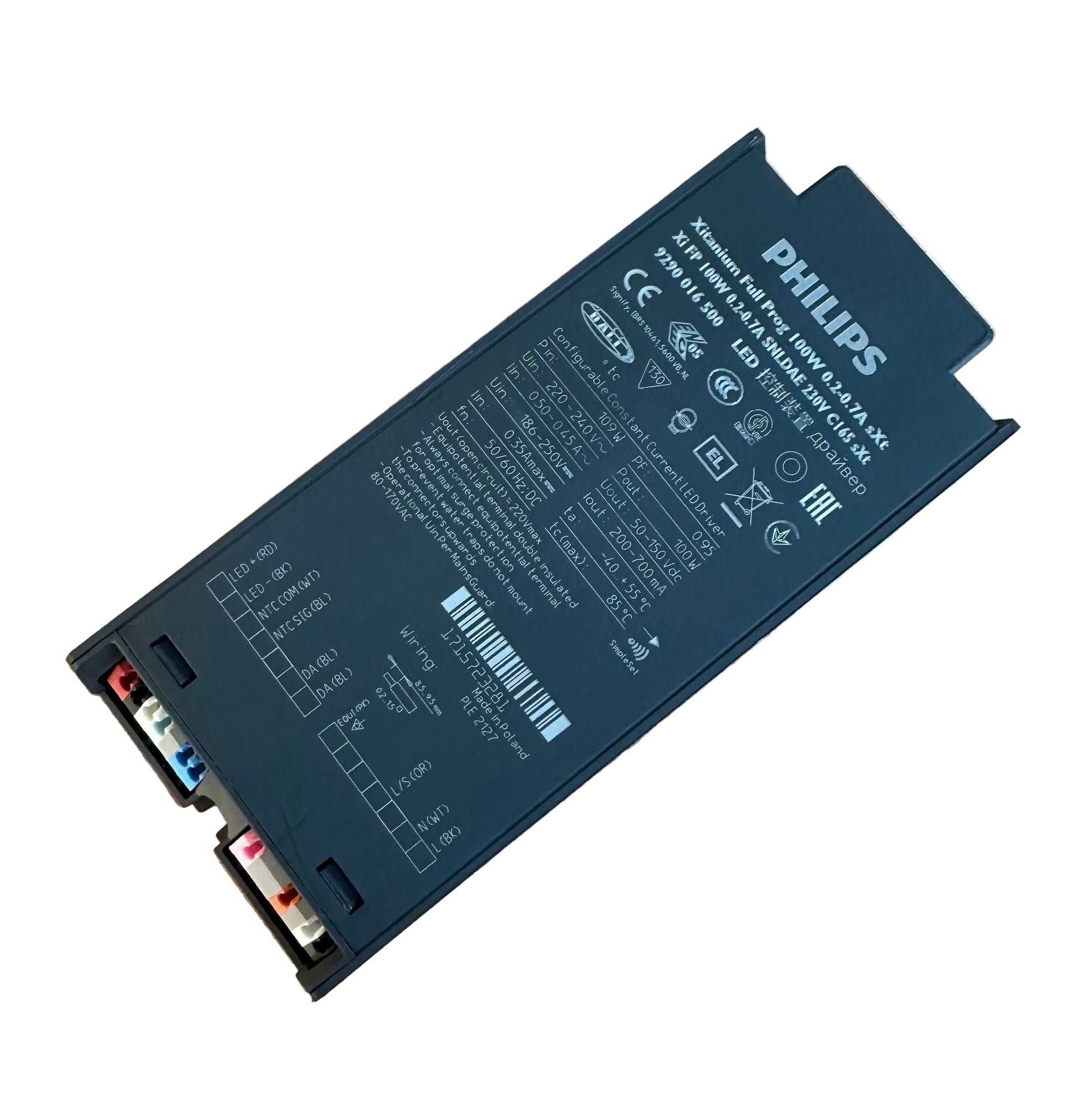

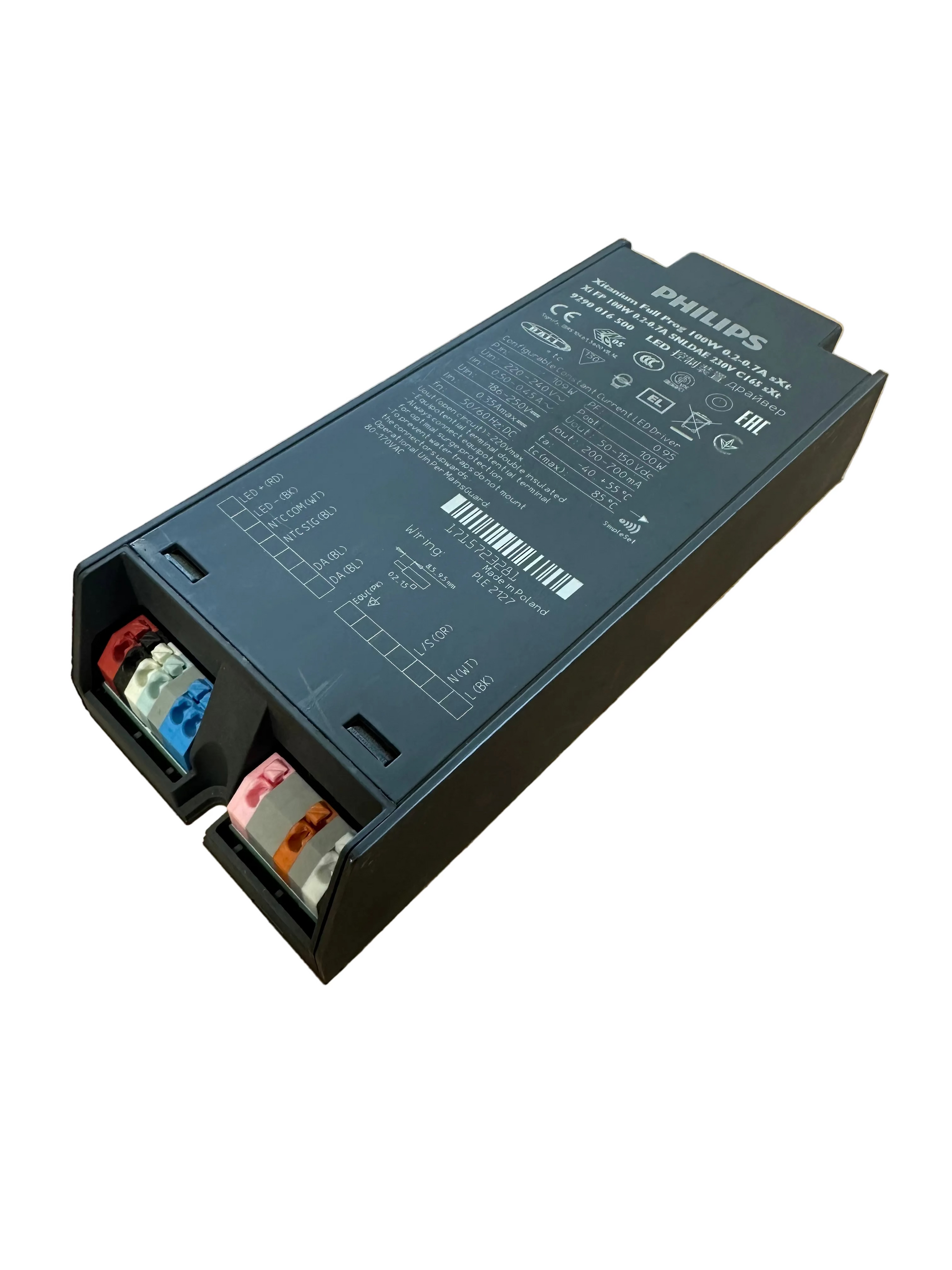

Philips 929001650006 Xi FP 100W 0.2-0.7A SNLDAE 230V C165 sXt
Philips 929001650006 Xi FP 100W 0.2-0.7A SNLDAE 230V C165 sXt
Philips 929001650006 Xi FP 100W 0.2-0.7A SNLDAE 230V C165 sXt
Replaces 929001522006 & 929000710403
Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime. In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.
- Rated input voltage range 202...254 Vac
- Rated input voltage 230 Vac
- Rated input frequency range 47...63 Hz Performance range
- Rated input current 0.48 A @ rated output power @ rated input voltage
- Max. input current 0.56 A @ rated output power @ minimum performance input voltage
- Rated input power 109 W @ rated output power @ rated input voltage
- Power factor 0.99 @ rated output power @ rated input voltage
- Total harmonic distortion 6 % @ rated output power @ rated input voltage
- Efficiency 92.5 % @ rated output power @ rated input voltage
- Rated input voltage DC range 186...250 Vdc
- Performance range Input voltage AC range 80...264 Vac Safety operational range
- Input frequency AC range 45...66 Hz
- Safety operational range Input voltage DC range 168...275 Vdc
- Safety operational range Standby Power 0.5 W
- Regulation method Constant Current
- Output voltage 50...150 Vdc
- Output voltage max. 220 V Maximum voltage at open load
- Output current 0.2...0.7 A
- Output current min programmable 200 mA
- Output current min dimming 50 mA
- Output current tolerance ± 3 %
- Output current ripple LF ≤ 4 %
- Ripple = peak / average, < 3kHz
- Output current ripple HF ≤ 4 %
- Output power 3...100 W
Product features
Product features
Energy Saving, Compact Design
