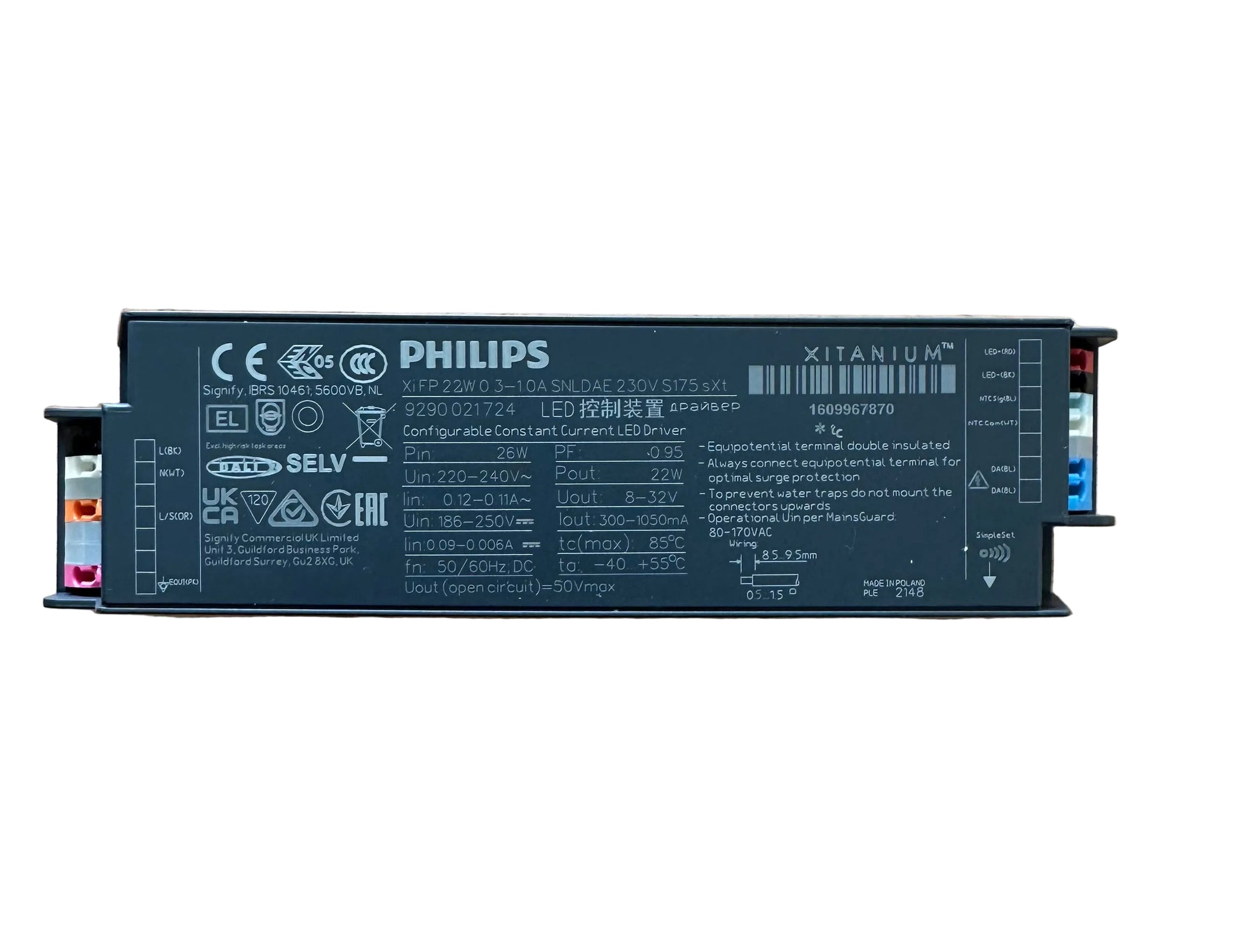

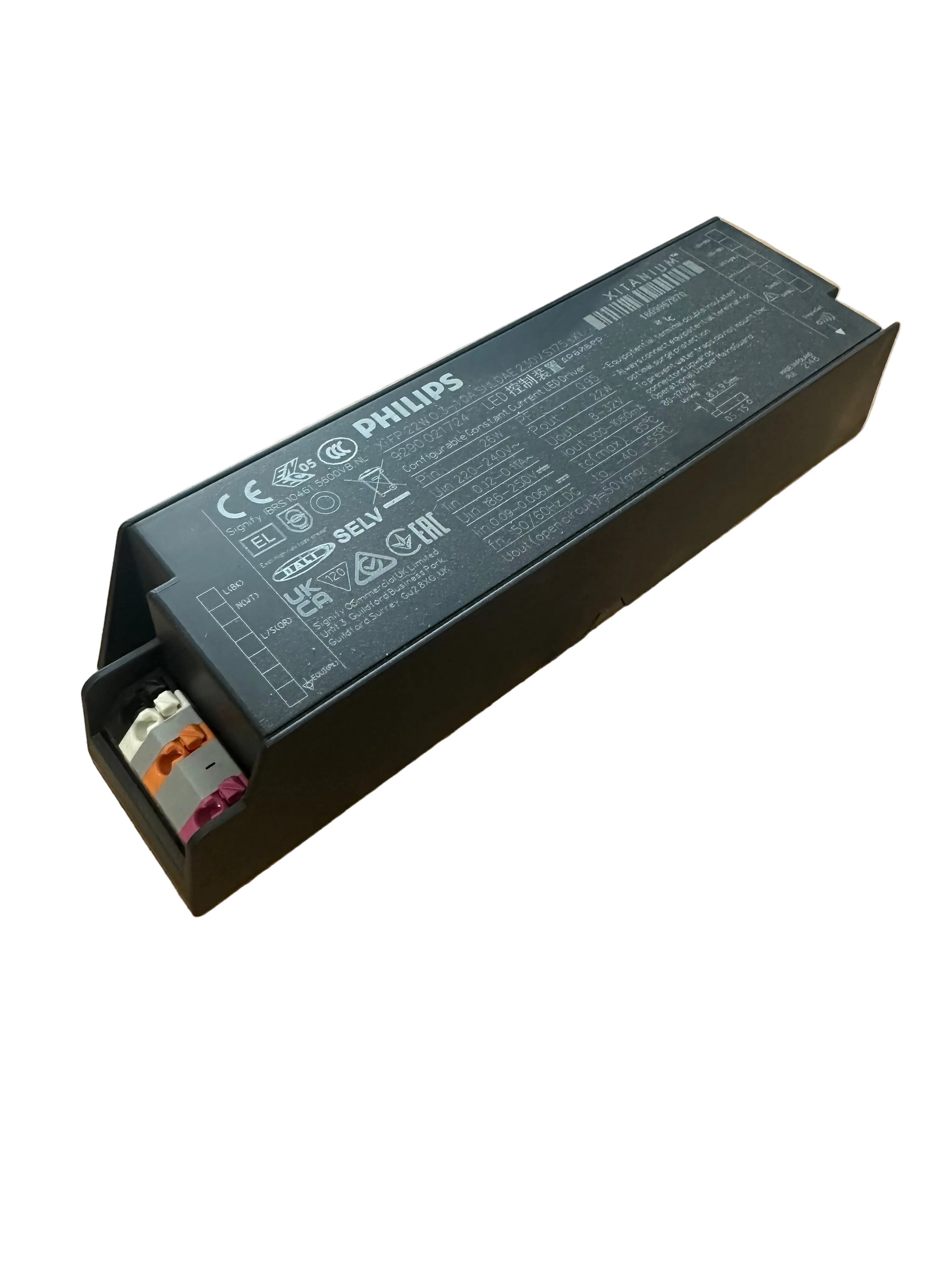

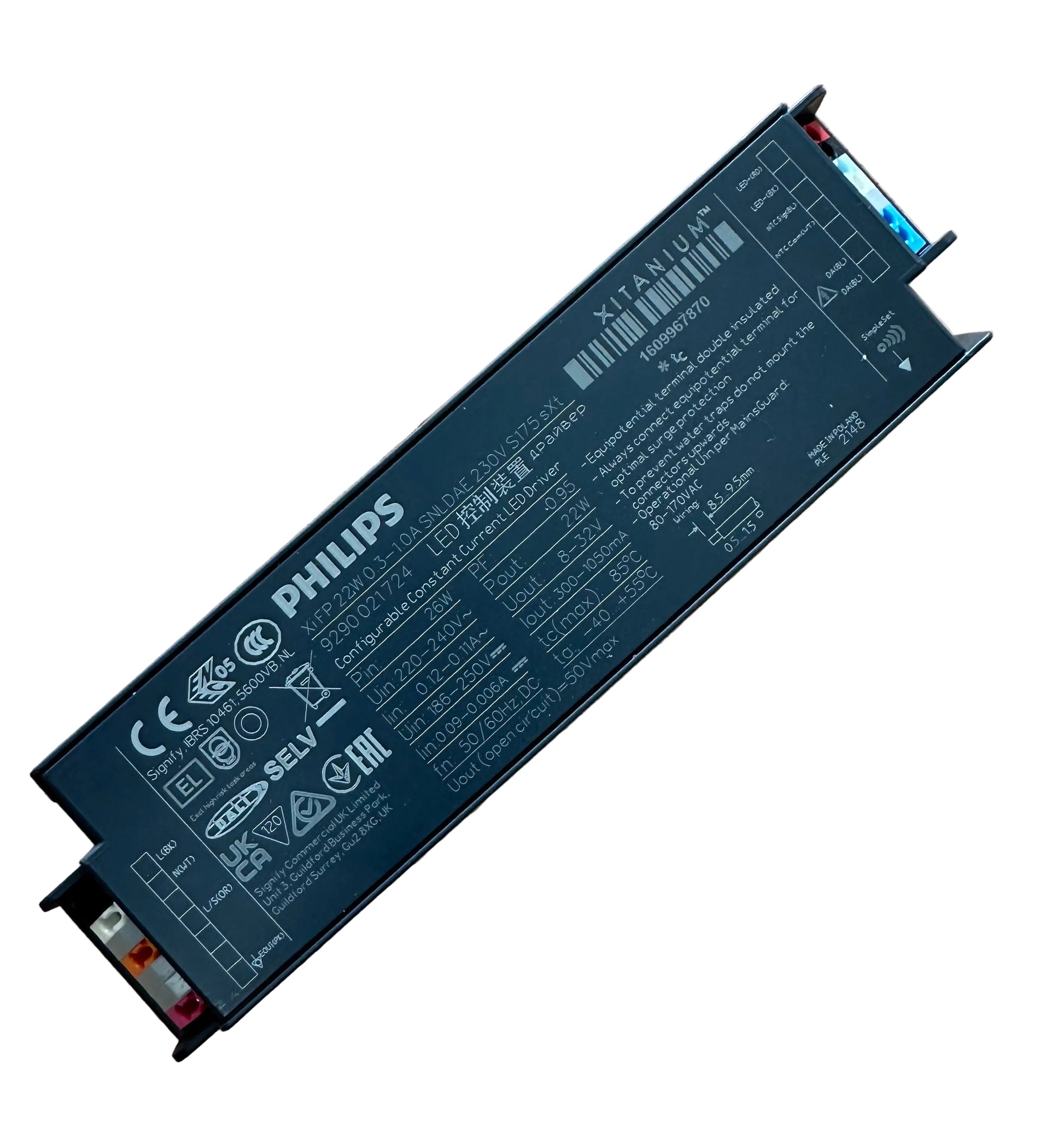

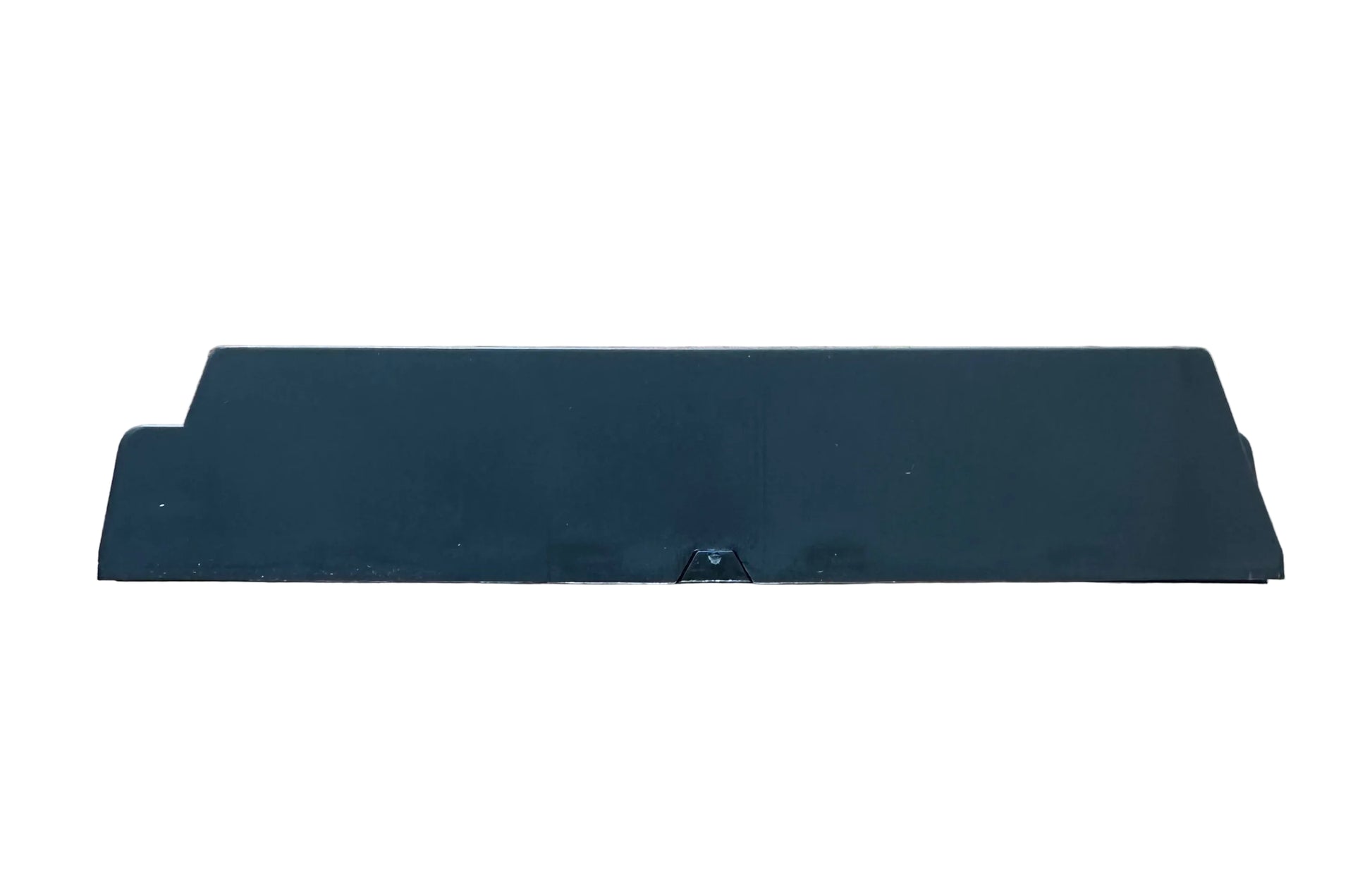

Philips 929002172406 Xi FP 22W 0.3-1.0A SNLDAE 230V S175 sXt

Philips 929002172406 Xi FP 22W 0.3-1.0A SNLDAE 230V S175 sXt

Replaces 9290009912

Xitanium FULL Prog LED Xtreme drivers Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime. In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.

• Rated input voltage range 202...254 Vac
• Rated input voltage 230 Vac
• Rated input frequency range 47...63 Hz
• Rated input current 0.11 A
• Max. input current 0.12 A
• Rated input power 26 W
• Power factor 0.99
• Total harmonic distortion 7 %
• Efficiency 86 %
• Rated input voltage DC range 186...250 Vdc
• Rated input current DC range 0.006...0.09 Adc
• Input voltage AC range 80...264 Vac
• Input frequency AC range 45...66 Hz
• Input voltage DC range 168...275 Vdc
• Standby Power 0.5 W
• Isolation input to output SELV
• Regulation method Constant Current
• Output voltage 8...32 Vdc
• Output voltage max. 50 V Maximum voltage at open load
• Output current 0.07...1.05 A
• Output current min programmable 300 mA
• Output current min dimming 70 mA
• Output current tolerance ± 3 % Output current ripple LF ≤ 4 %
• Output current ripple HF ≤ 20 %
• Output Pst LM ≤ 0.04
• Output SVM ≤ 0.07
• Output power 0.6...22
