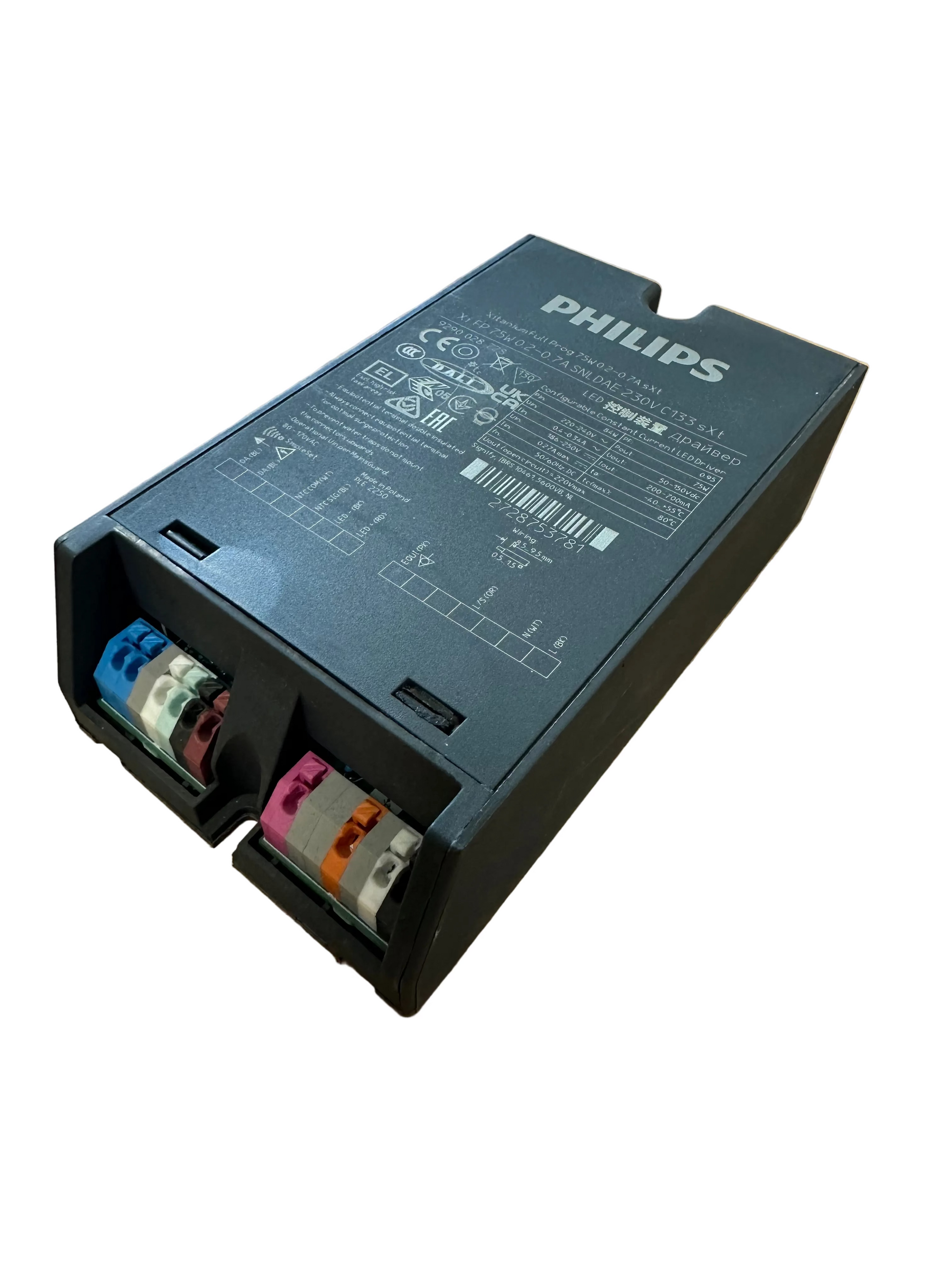

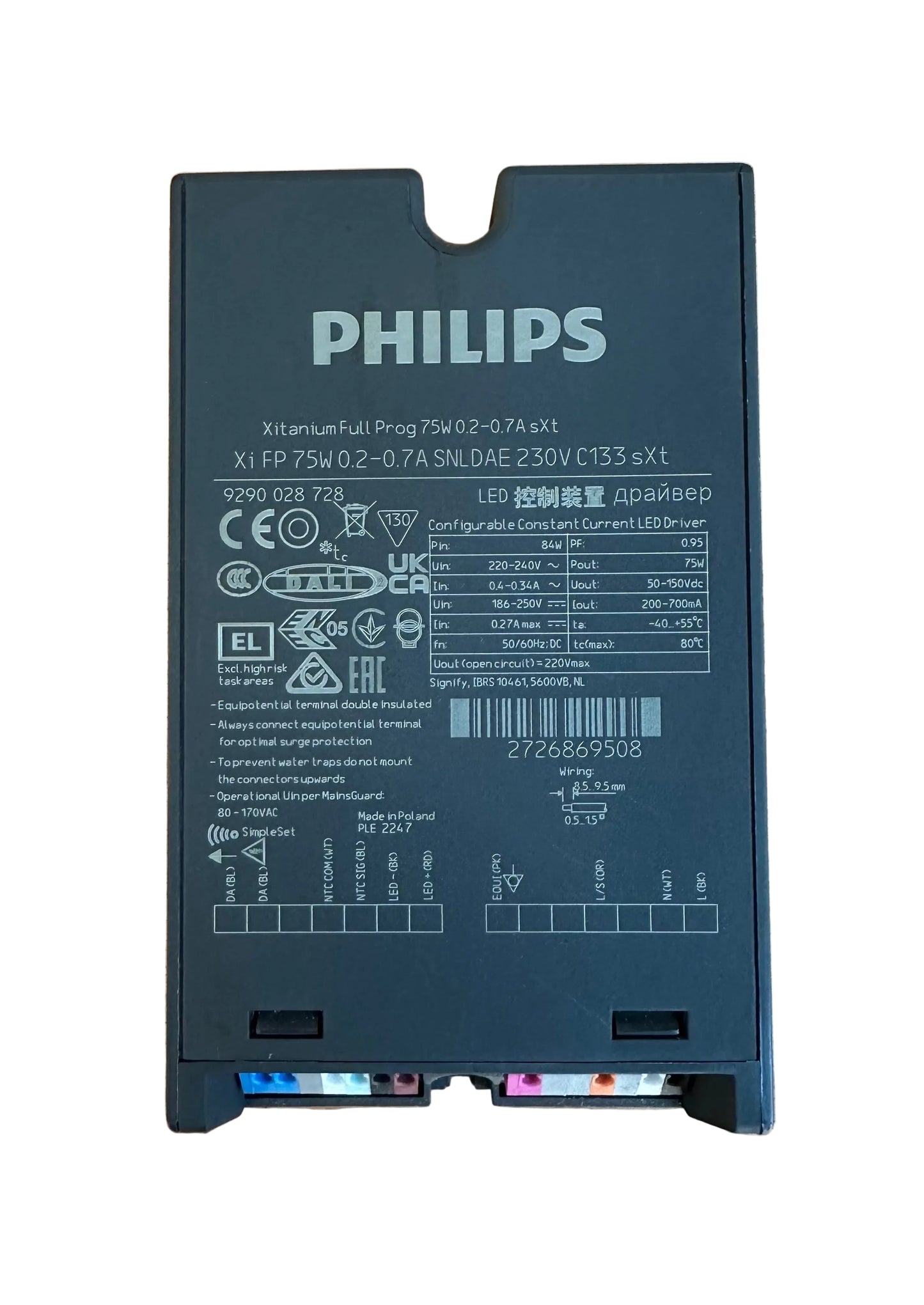

Philips 929002872806 Xi FP 75W 0.2-0.7A SNDLAE 230V C133 sXt
Philips 929002872806 Xi FP 75W 0.2-0.7A SNDLAE 230V C133 sXt
Philips 929002872806 Xi FP 75W 0.2-0.7A SNDLAE 230V C133 sXt
Philips Xitanium Full Programmable LED drivers are specifically designed to deliver the highest performance, protection and configurability. The portfolio offers both central and standalone dimming protocols further increasing the energy savings and CO2 reductions achieved with LED lighting. The Xtreme technology ensures maximum robustness and protection combined with a very long lifetime. In this product family Philips introduces new drivers in a compact form factor with state-of-the-art features, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance.
- Regulation method Constant Current
- Output voltage 50...150 Vdc
- Output voltage max. 220 V
- Output current 0.05...0.7 A
- Output current min programmable 200 mA
- Output current min dimming 50 mA
- Output current tolerance ± 3 %
- Output current ripple LF ≤ 4 % Ripple = peak / average @ < 3kHz
- Output current ripple HF ≤ 4 %
- Output Pst LM ≤ 0.02 In entire operating window
- Output SVM ≤ 0.07 In entire operating window Output power 2.5...75
Product features
Product features
Energy Saving, Compact Design
