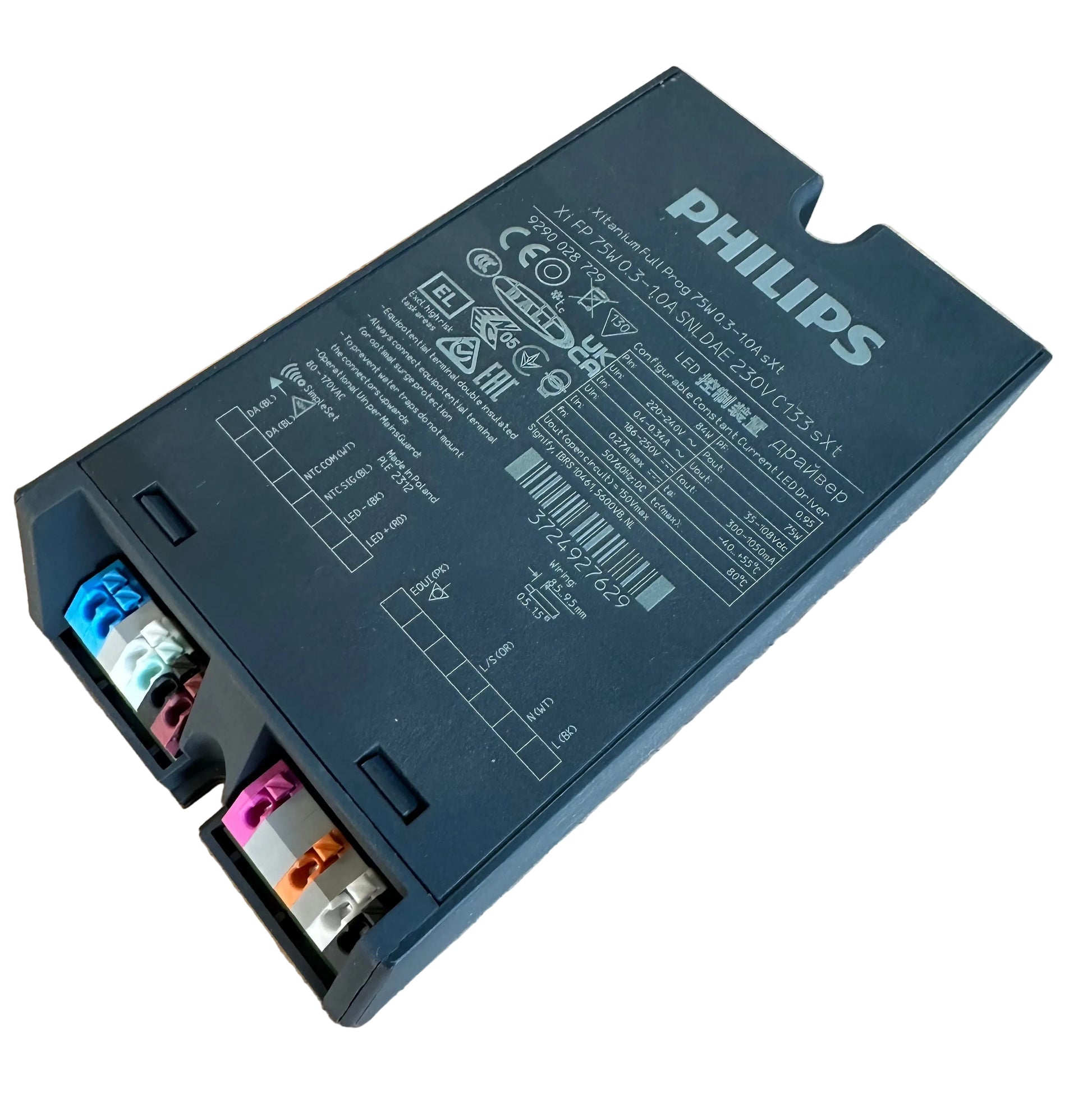

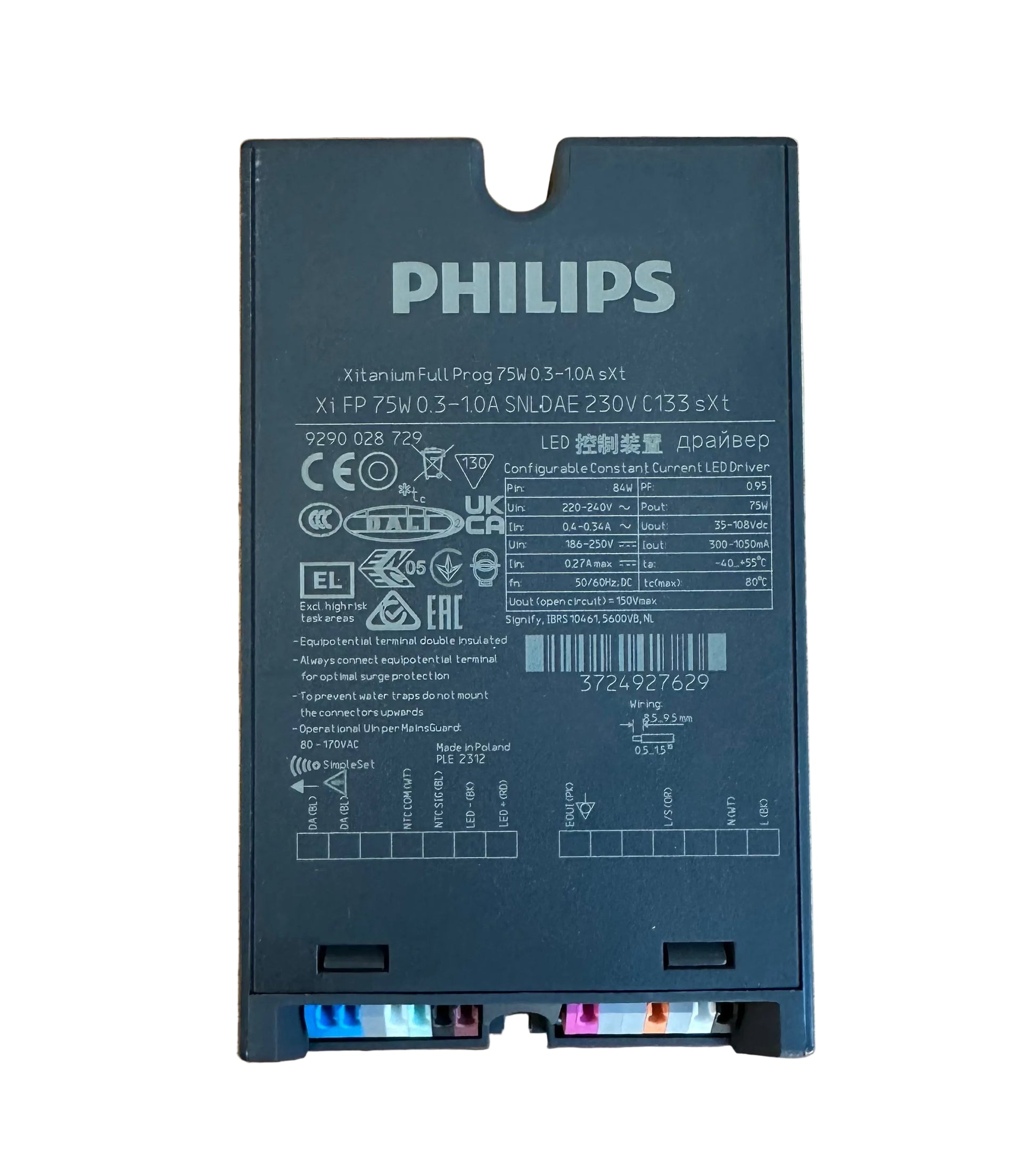

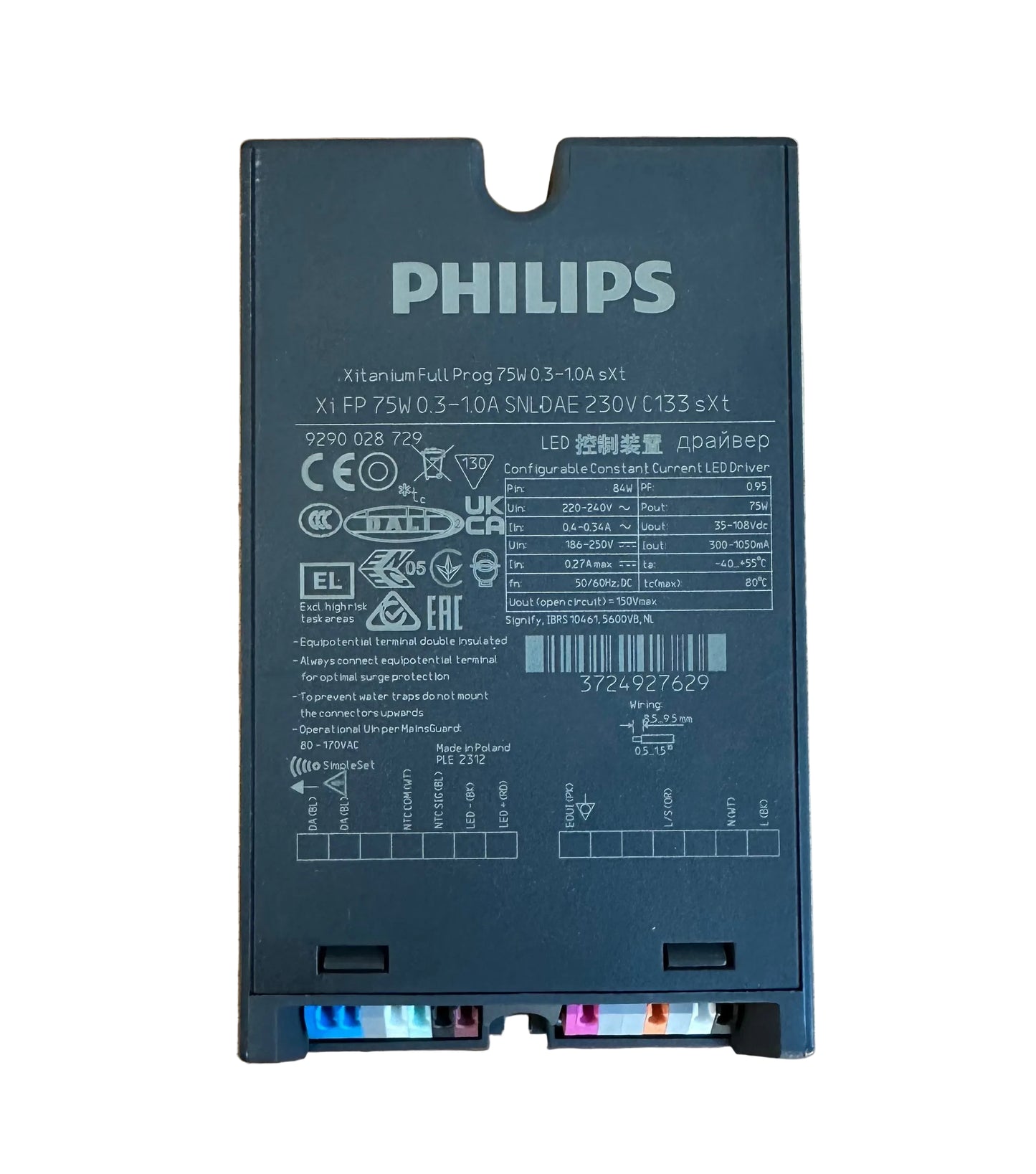

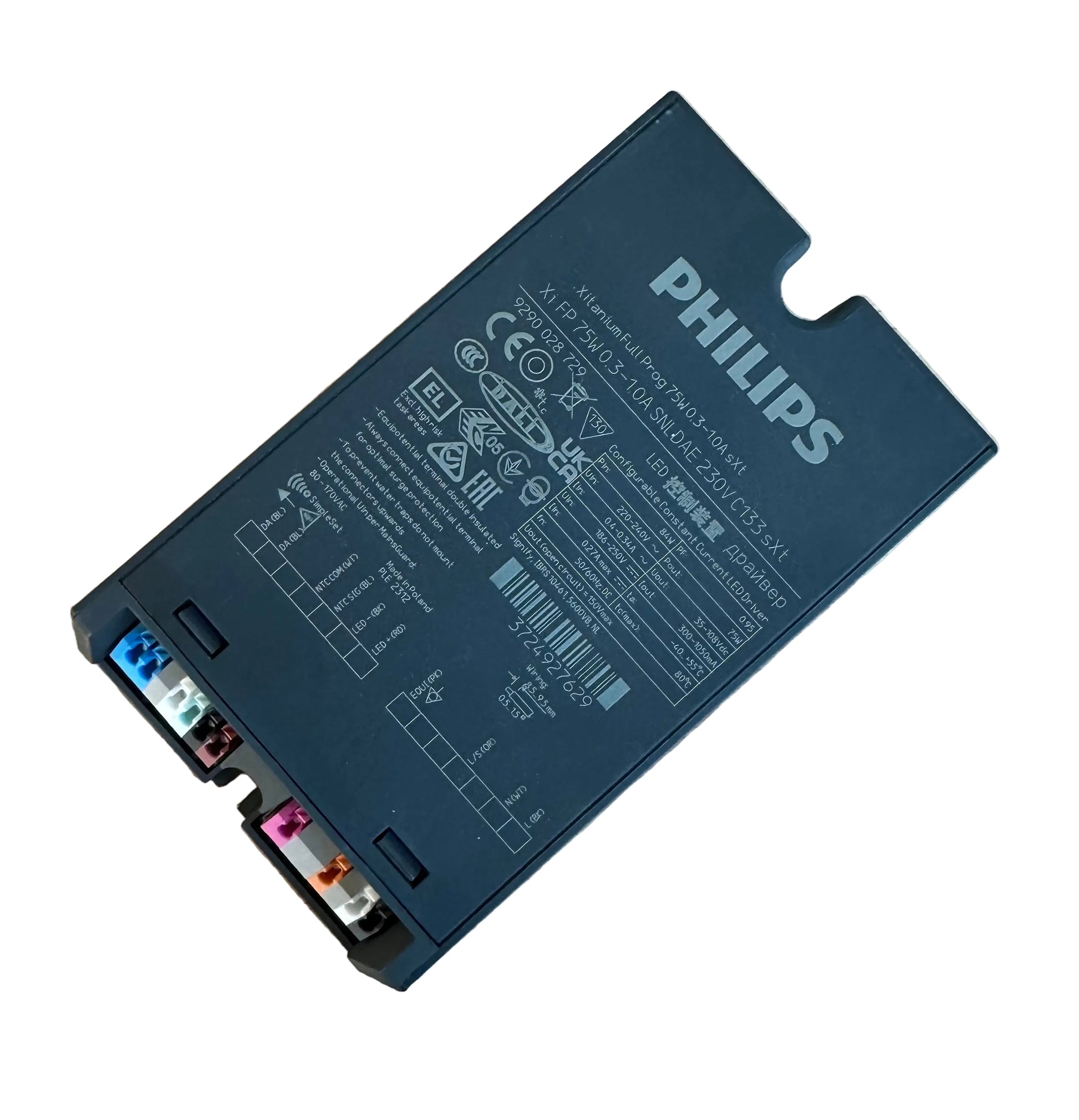

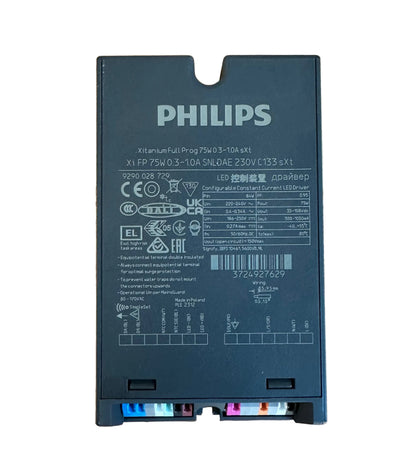

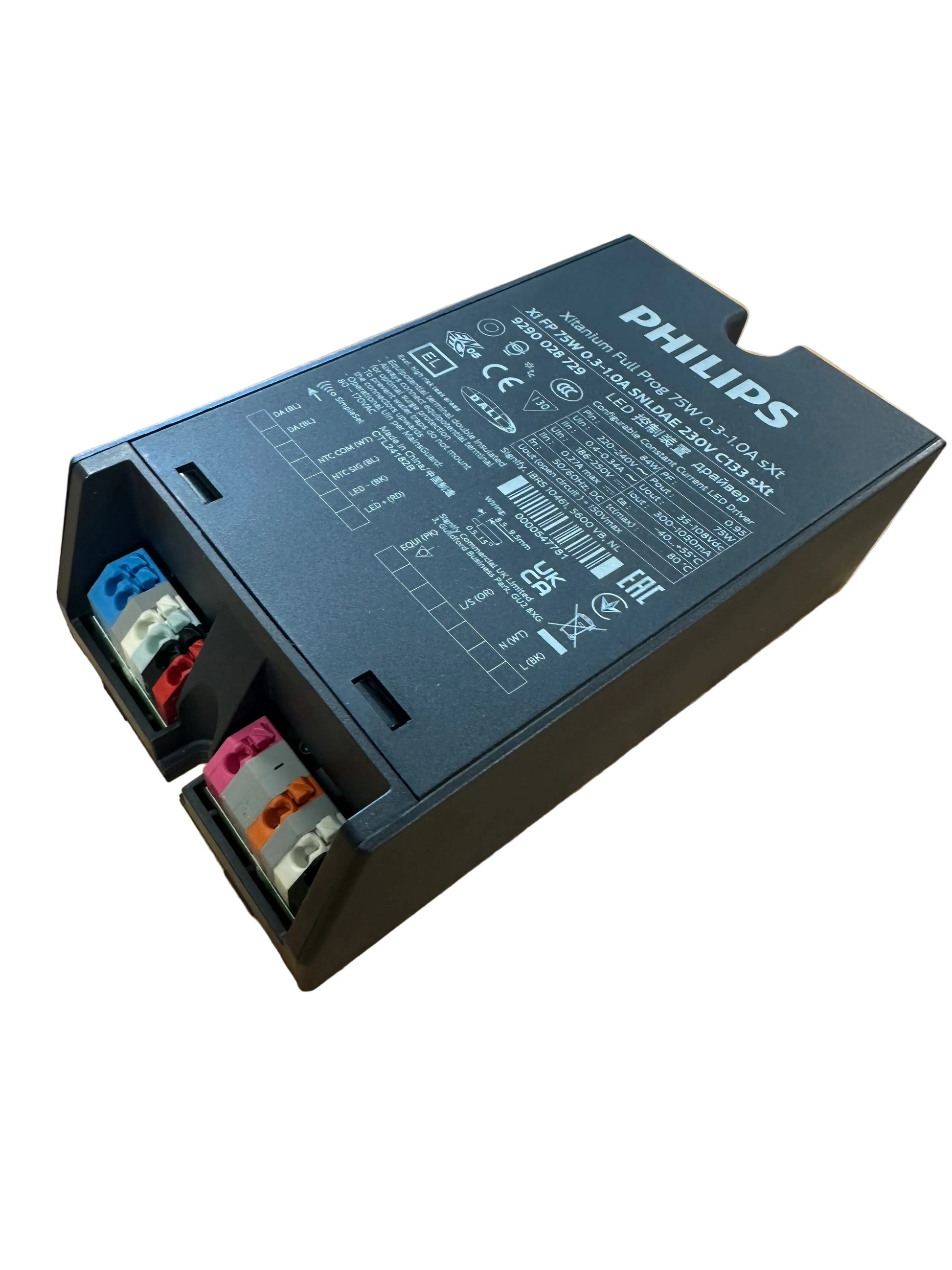

Philips 929002872906 Xi FP 75W 0.3-1.0A SNLDAE 230V C133 sXt

Philips 929002872906 Xi FP 75W 0.3-1.0A SNLDAE 230V C133 sXt

Replaces 929001408506 &  929000884306

929002872906 Electrical Input Data

• Rated input voltage range 202…254 Vac Performance range
• Rated input voltage 230 Vac
• Rated input frequency range 47…63 Hz Performance range
• Rated input current 0.37 A @ rated output power @ rated input voltage
• Max. input current 0.42 A @ rated output @ min performance input voltage
• Rated input power 84 W @ rated output power @ rated input voltage
• Power factor 0.98 @ rated output power @ rated input voltage
• Total harmonic distortion 7 % @ rated output power @ rated input voltage
• Efficiency 91.5 % @ rated output power @ rated input voltage @ max. Uout
• Rated input voltage DC range 186…250 Vdc Performance range
• Rated input current DC range 0.27 Adc Performance range
• Input voltage AC range 80…264 Vac Safety operational range
• Input frequency AC range 45…66 Hz Safety operational range
• Input voltage DC range 168…275 Vdc Safety operational range
• Standby Power 0.45 W
• Isolation input to output Reinforced

929002872906 Electrical output data

• Regulation method Constant Current
• Output voltage 35…108 Vdc
• Output voltage max. 150 V Maximum voltage at open load
• Output current 0.07…1.05 A
• Output current min programmable 300 mA
• Output current min dimming 70 mA
• Output current tolerance ± 3 %
• Output current ripple LF ≤ 4 % Ripple = peak / average < 3kHz
• Output current ripple HF ≤ 4 %
• Output Pst LM ≤ 0.07 In entire operating window
• Output SVM ≤ 0.07 In entire operating window
• Output power 2.5…75 W
