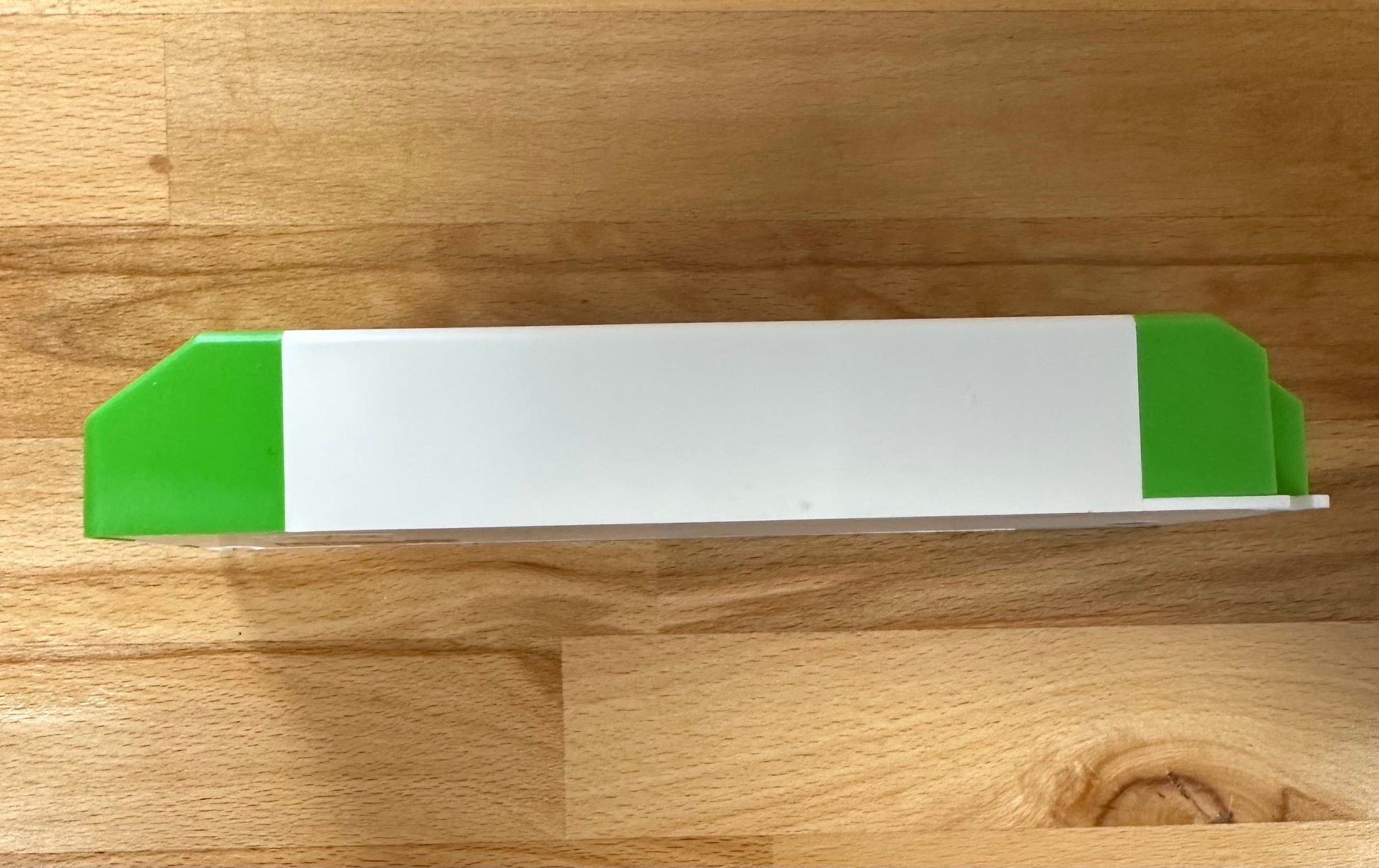

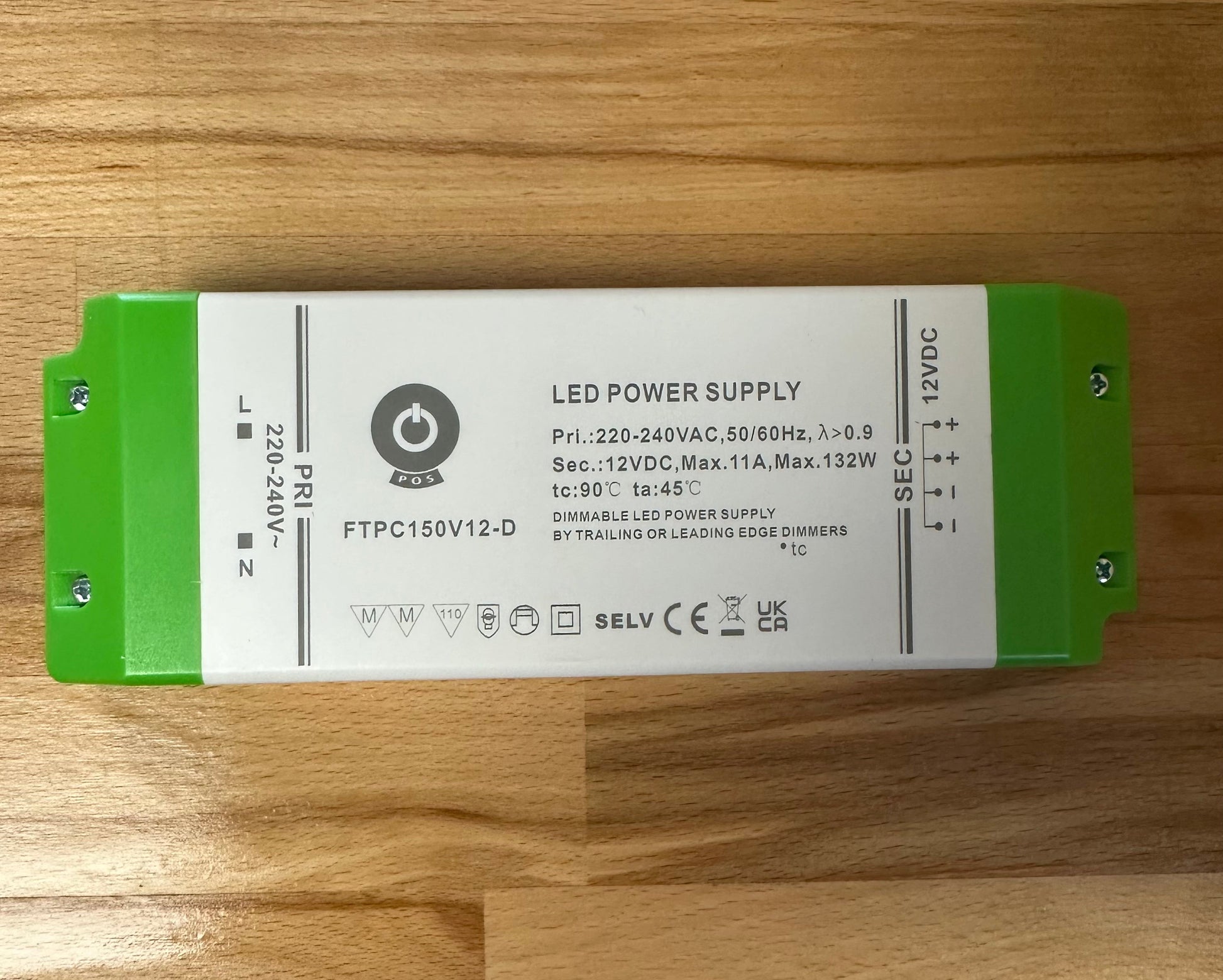

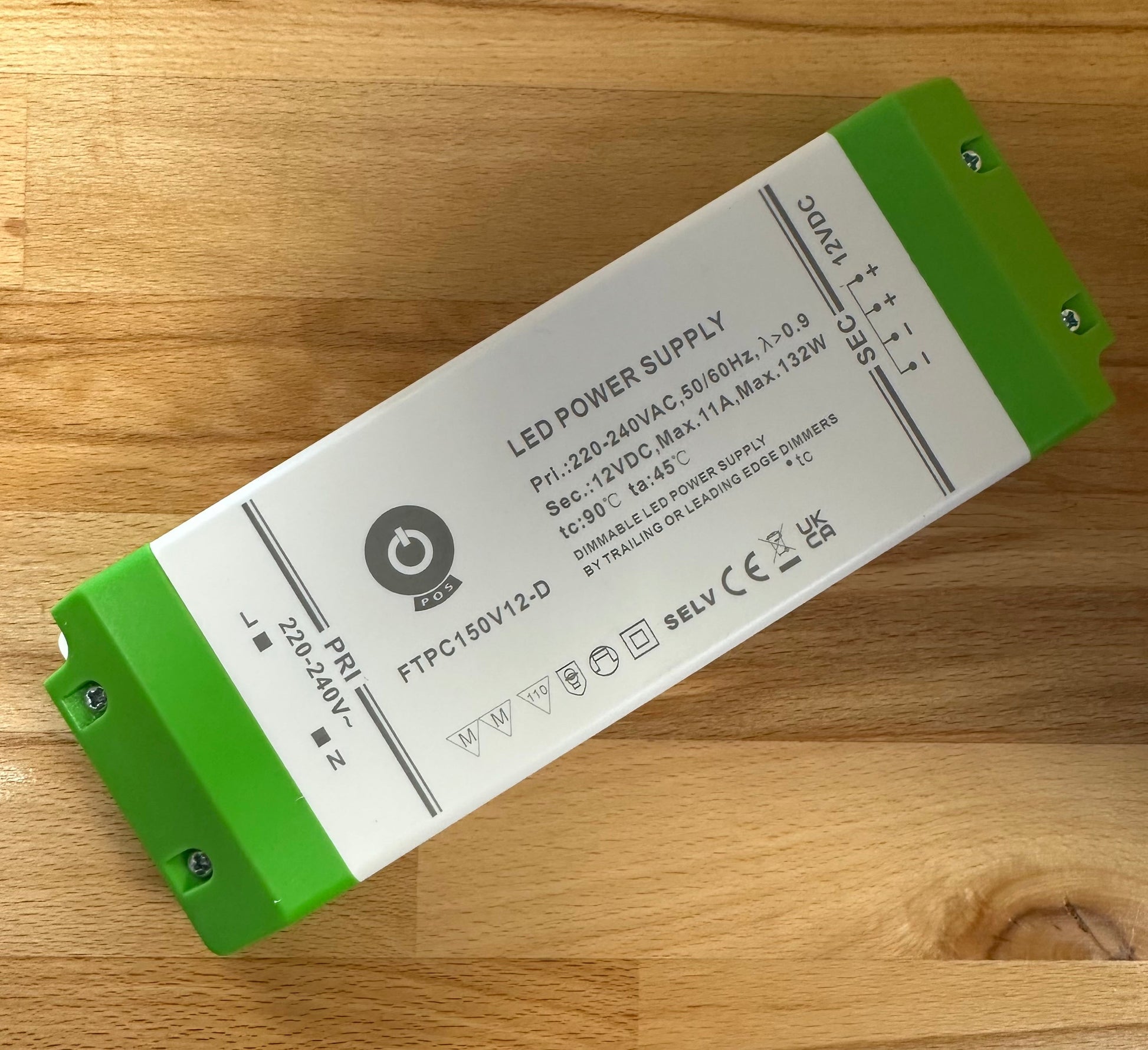

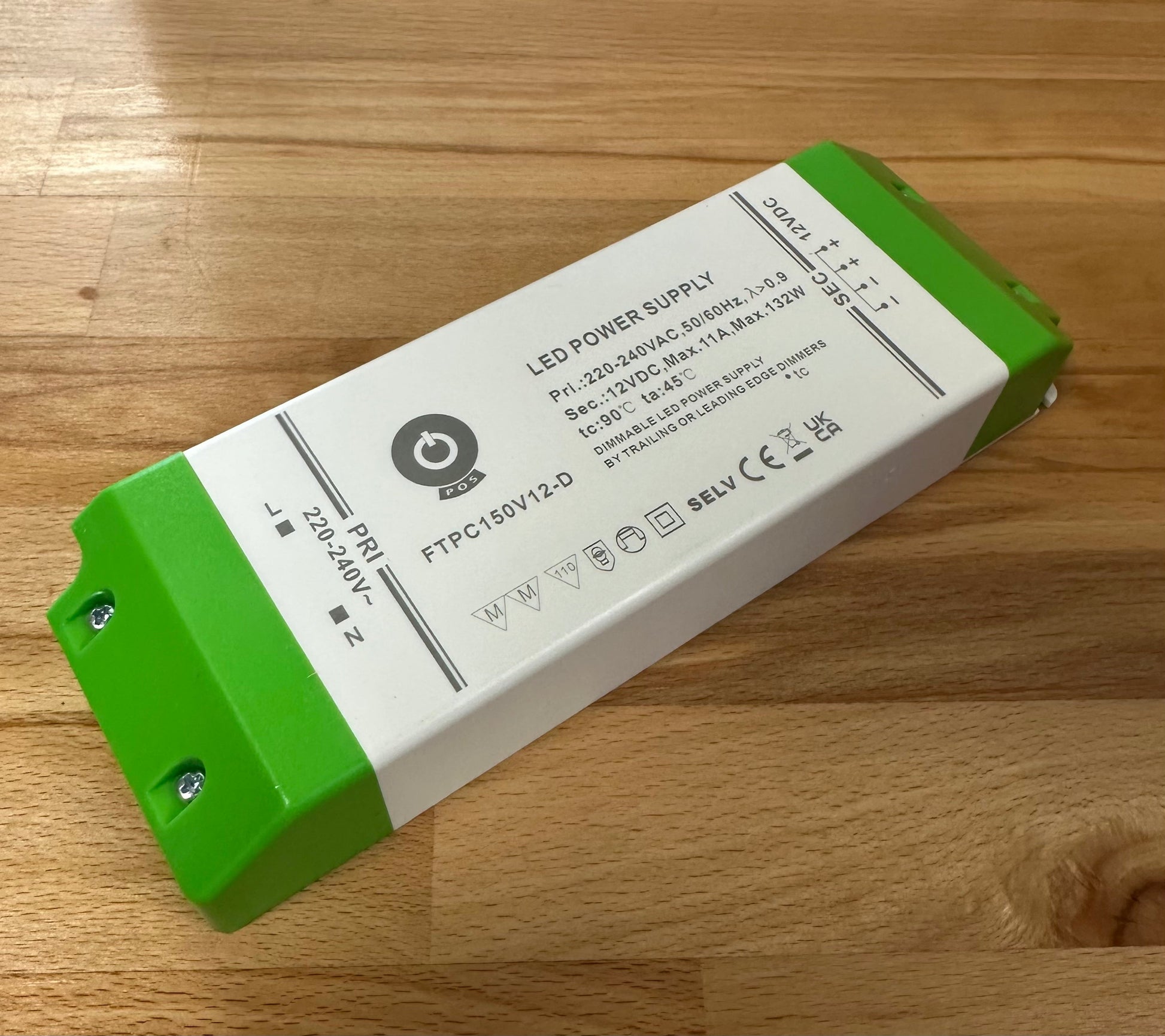

POS Power FTPC150V12-D 150W 12V/11A 48-132W Triac Dimmable LED Power Supply
Constant voltage design • Protections: Short circuit / Overload / Over voltage / Over temperature • AC phase cut (leading or trailing edge) dimmable • Cooling by free air convection • Compliance to worldwide regulations for lighting
Rated Voltage 12V
Rated Current 11A
Current Range 4 ÷ 11A
Rated Power 132W
No Output Voltage (max.) 13V
Line Regulation ± 1%
Load Regulation ± 1%
Voltage Tolerance [3] ± 3%
Ripple & Noise (max.) [2] 500mVP-P
Setup, Rise Time [4] 500ms, 70ms / 230VAC at full load
Hold up Time (typ.) 20ms / 230VAC at full load
Voltage Range 180 ÷ 264VAC
Frequency Range 47 ÷ 63Hz
Power Factor (typ.) PF > 0.9 / 230VAC at full load
Efficiency (typ.) 90%
AC current (typ.) <1A / 230VAC
Inrush current (max.) <75A / 230VAC(25°C)
No Load Power Consumption (max.) < 1W
Dimming Range 10 – 100% of rated output current

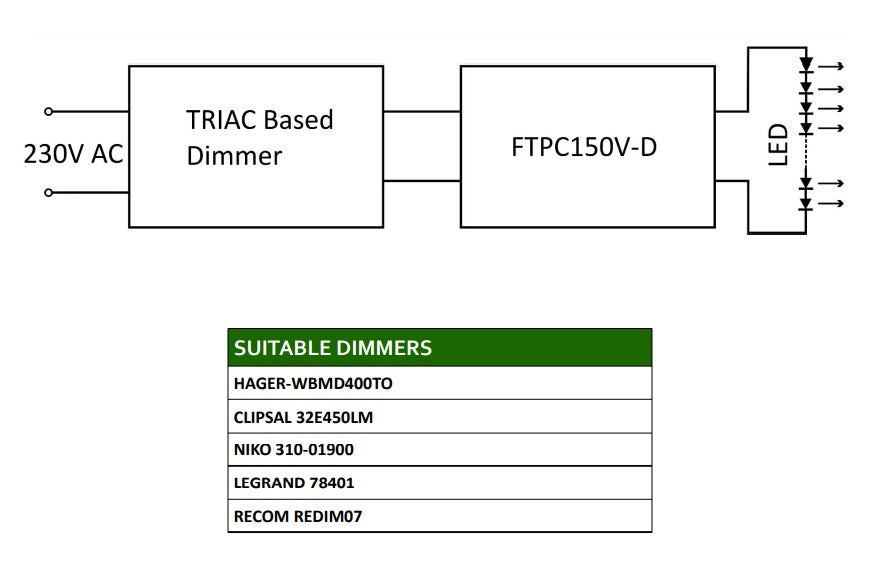

Suitable dimmers Triac dimmers (leading or trailing edge) compatible with capacitive or inductive load
