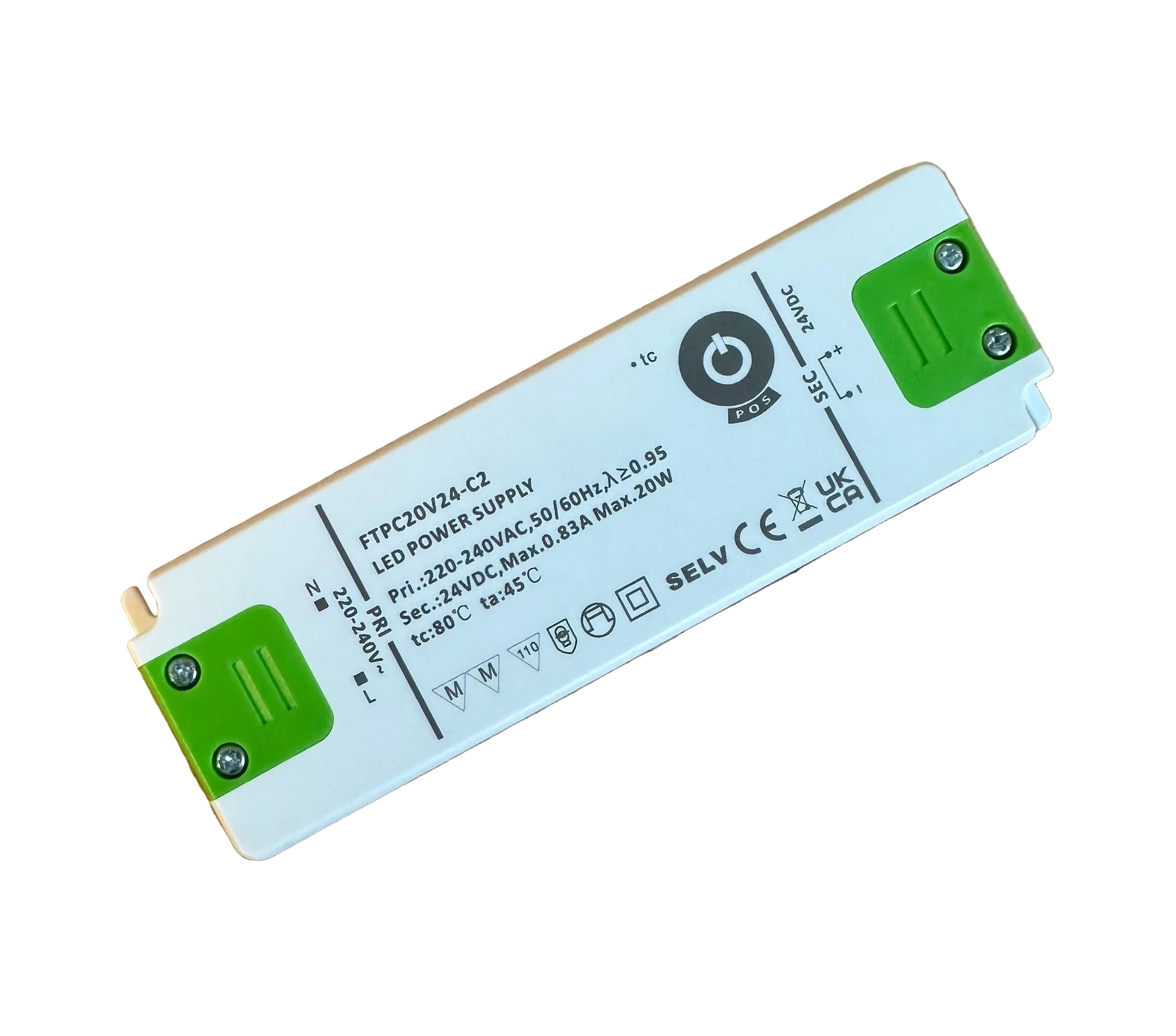

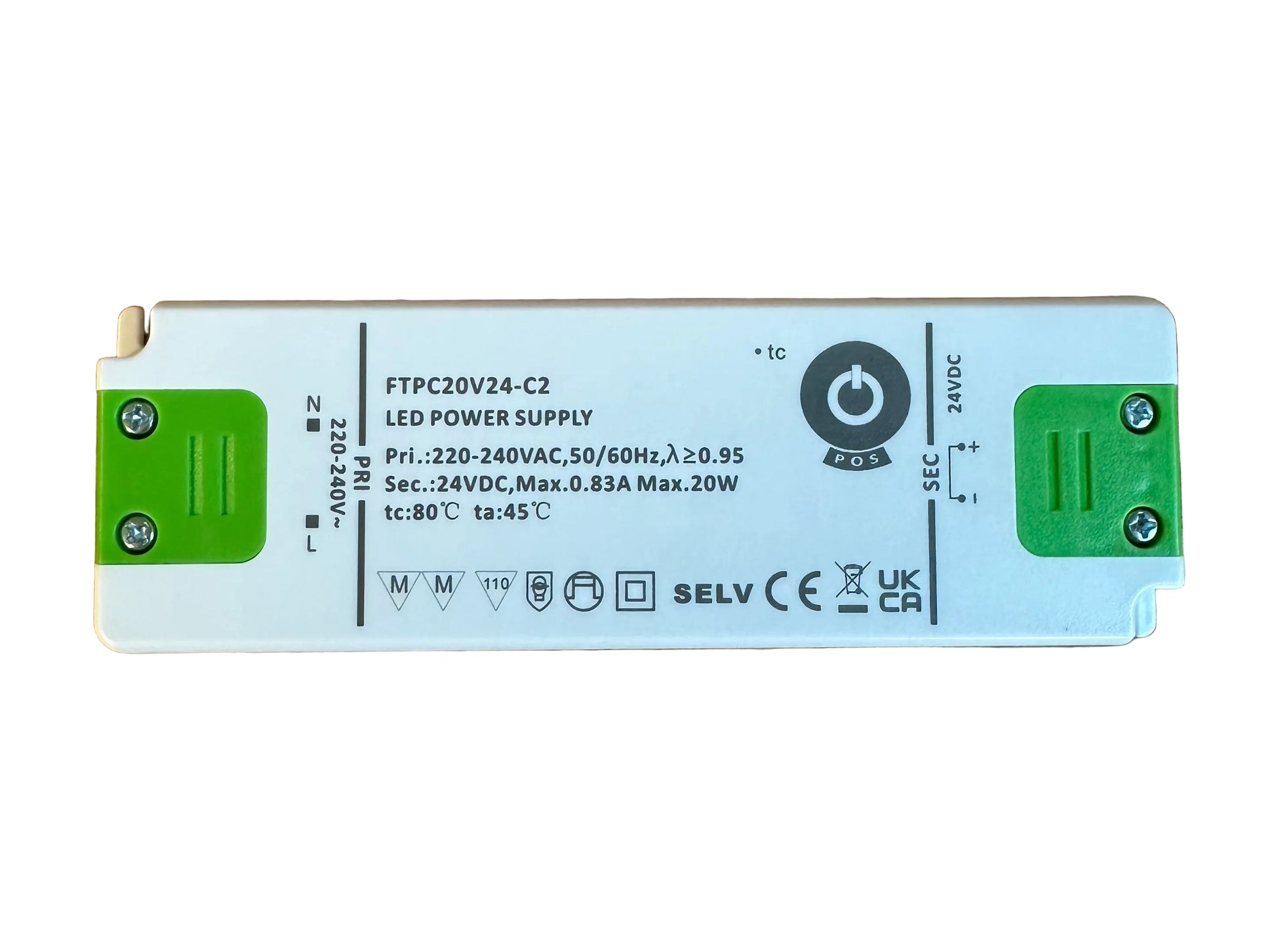

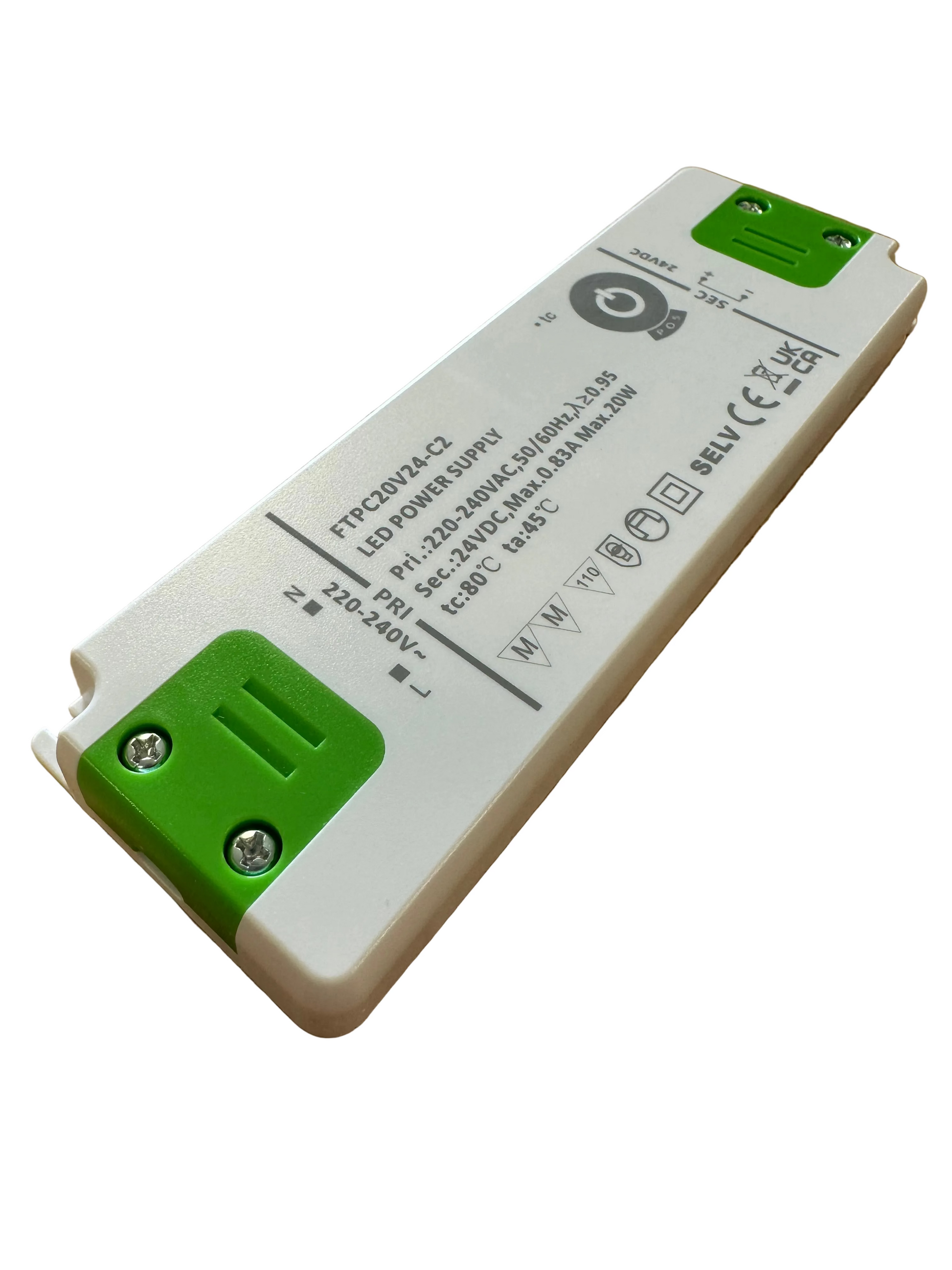

POS Power FTPC20V24-C2 20W 24V/0.83A LED Power Supply

POS Power FTPC20V24-C2 20W 24V/0.83A LED Power Supply

Low Profile Constant Voltage IP20 LED Driver

• Rated Voltage 24V
• Rated Current 0.83A
• Current Range 0 ÷ 3.13A
• Rated Power 20W
• Line Regulation ± 1%
• Load Regulation ± 2%
• Voltage Tolerance  ± 5%
• Ripple & Noise (max.) [2]720mVP-P
• Setup, Rise Time [4] 500ms, 20ms
• Hold up Time (typ.) 12ms / 230VAC at full load
• Voltage Range 180 ÷ 264VAC
• Frequency Range 47 ÷ 63Hz
• Power Factor (typ.) PF > 0.95/ 230VAC
• Efficiency (typ.) 85%
• AC current (typ.) 0.13A / 230VAC
• Inrush current (max.) 30A / 230VAC(25°C)
• No Load Power Consumption (max.) < 0.5W

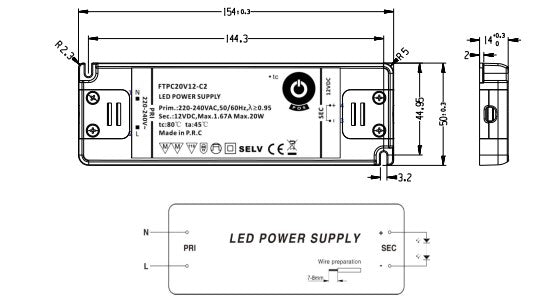

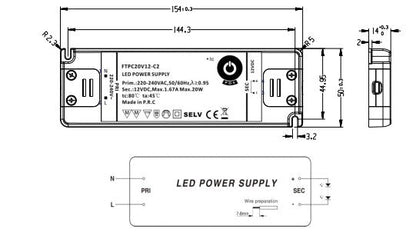

• Dimensions 154mm L 50mm W 14mm H
