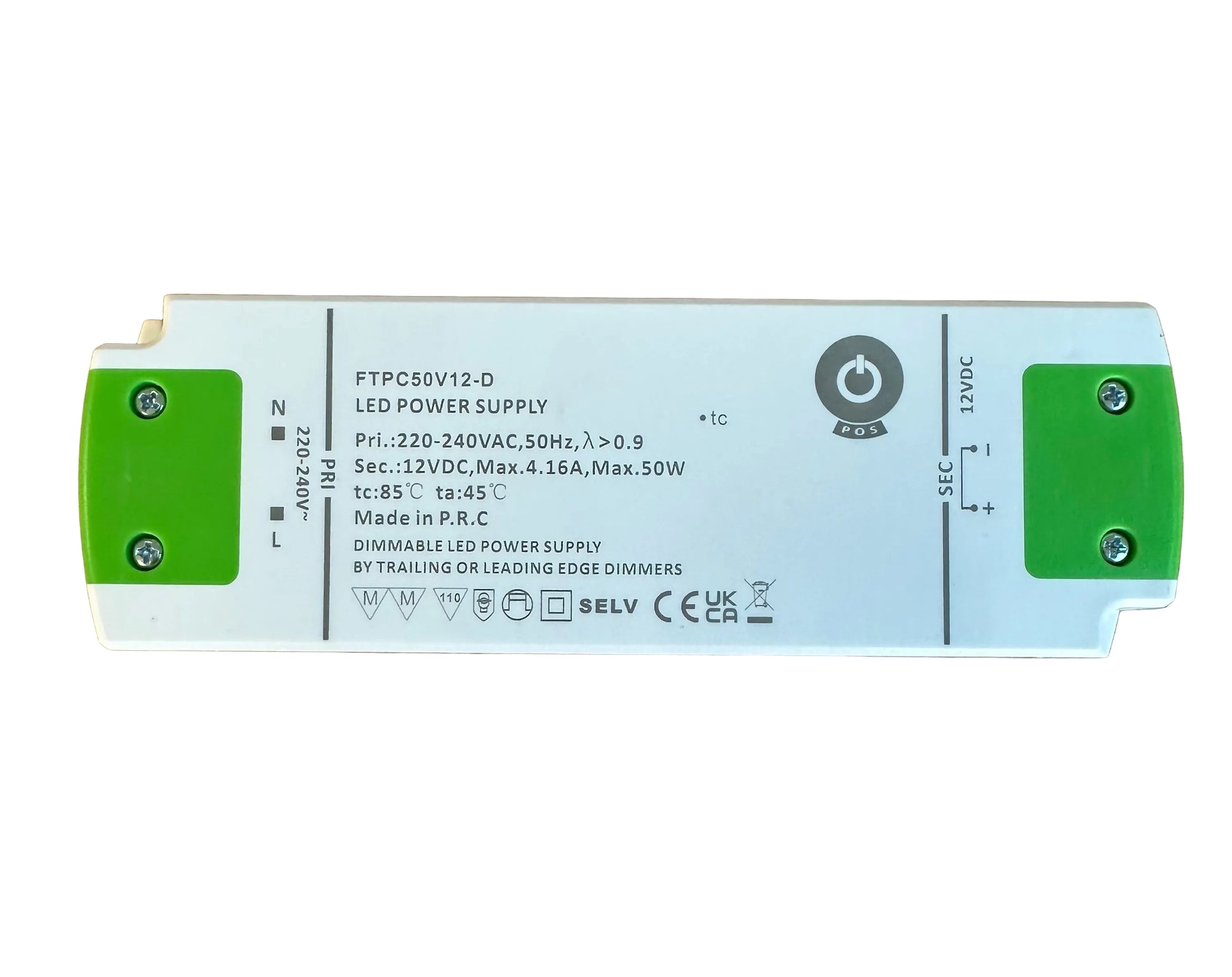

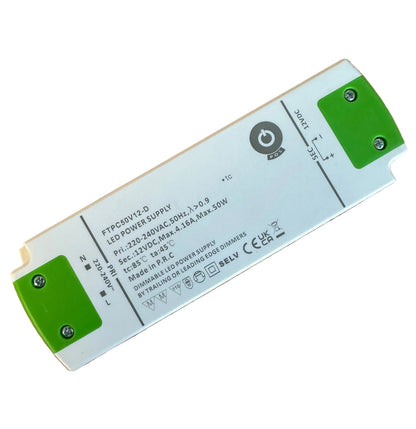

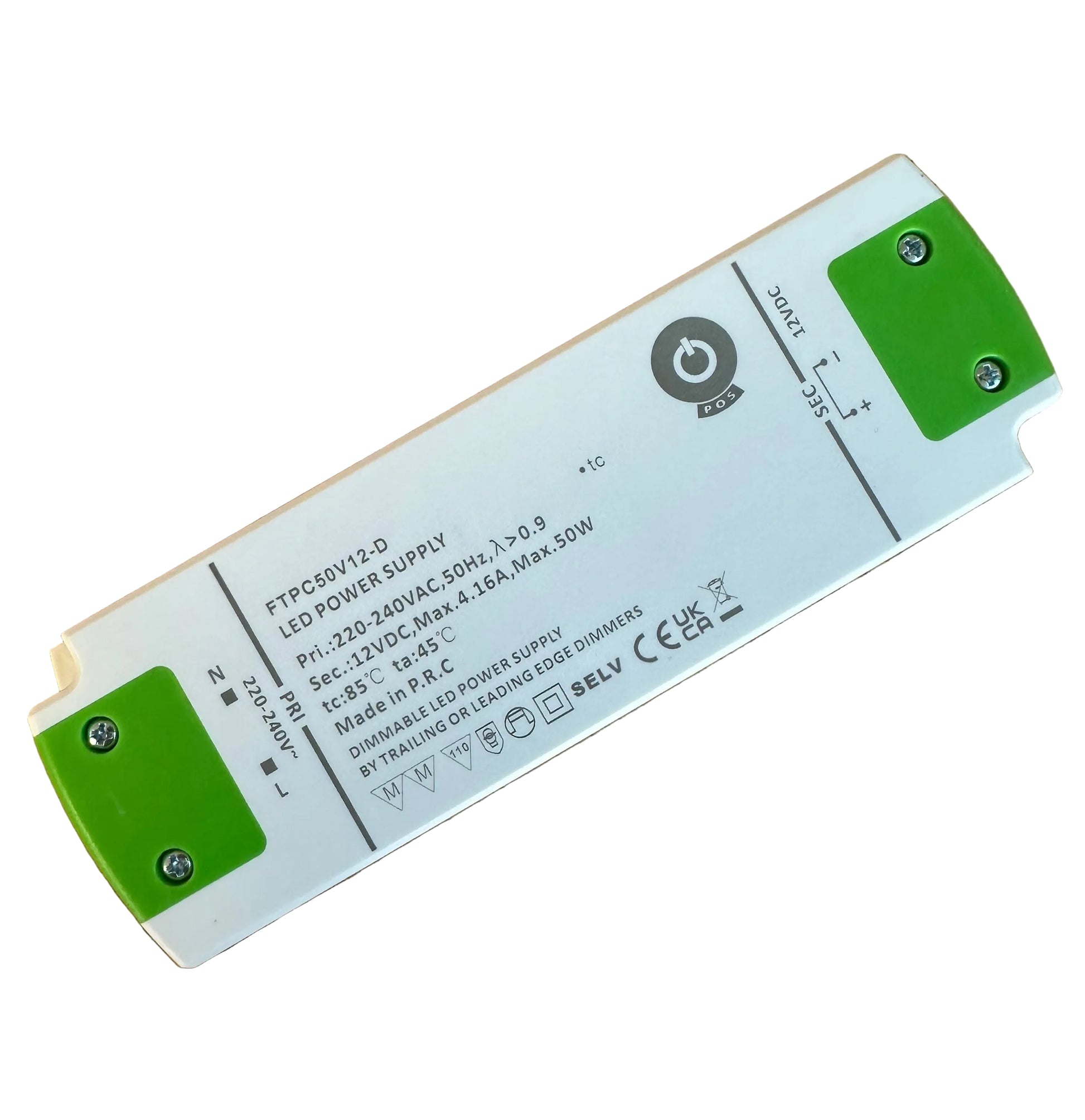

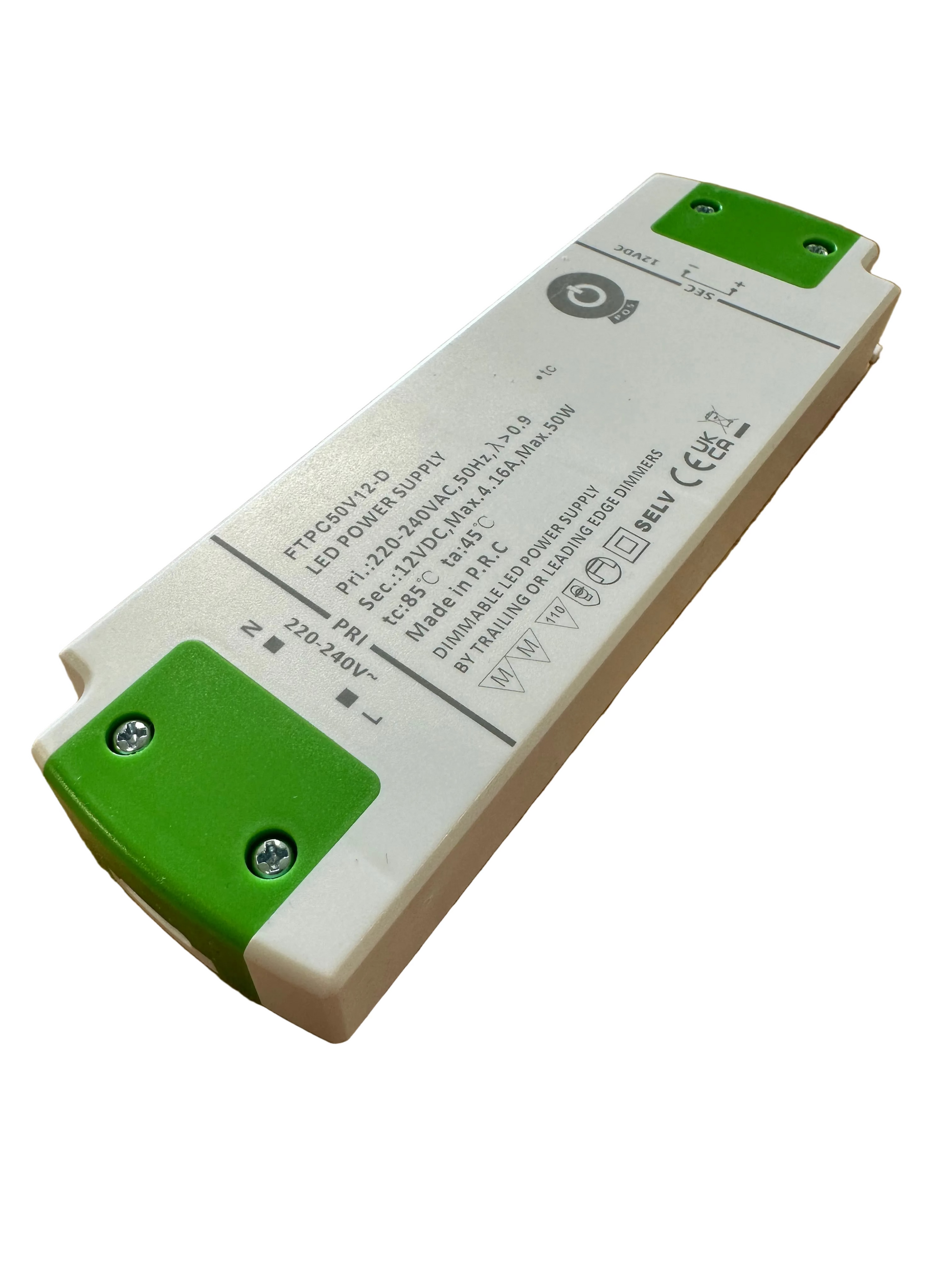

POS Power FTPC50V12-D 50W 12V/4.16A Triac Dimmable LED Power Supply

POS Power FTPC50V12-D 50W 12V/4.16A Triac Dimmable LED Power Supply

Constant voltage design • Protections: Short circuit / Overload / Over voltage / Over temperature • AC phase cut (leading or trailing edge) dimmable • Cooling by free air convection • Compliance to worldwide regulations for lighting.

• Rated Voltage 12V
• Rated Current 4.16A
• Current Range 0.5 ÷ 4.16A
• Rated Power 50W
• No Load Output Voltage (max.) 12.6V
• Line Regulation ± 1% ±
• Load Regulation ± 6%
• Voltage Tolerance [3] ± 5%
• Ripple & Noise (max.) [2] 1.50VP-P
• Setup, Rise Time [4] 1s, 500ms / 230VAC at full load
• Hold up Time (typ.) 1.5ms / 230VAC at full load
• Input Voltage Range 180 ÷ 264VAC
• Frequency Range 47 ÷ 63Hz
• Power Factor (typ.) PF > 0.9 / 230VAC at full load
• Efficiency (typ.) 85%
• AC current (typ.) 0.3A / 230VAC
• Inrush current (max.) 75A / 230VAC (25°C)
• No Load Power Consumption (max.) < 1W
• Dimming Range 1 – 100% of rated output current

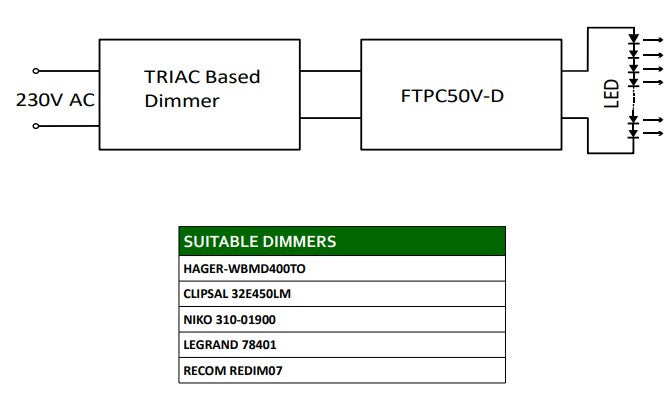

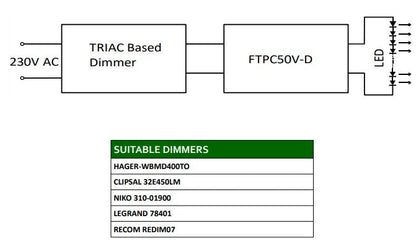

• Suitable dimmers Triac dimmers (leading or trailing edge) compatible with capacitive or inductive load
