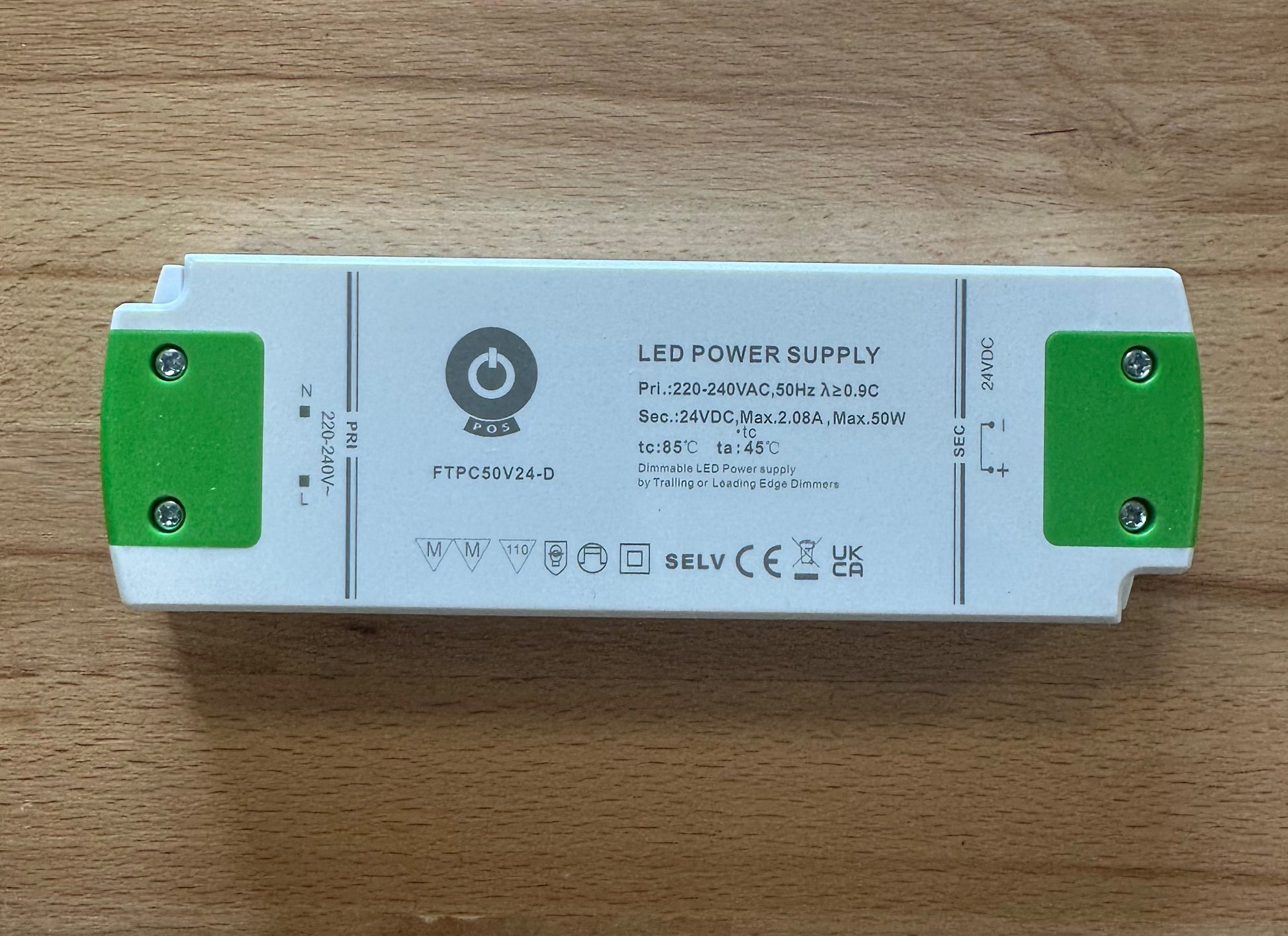

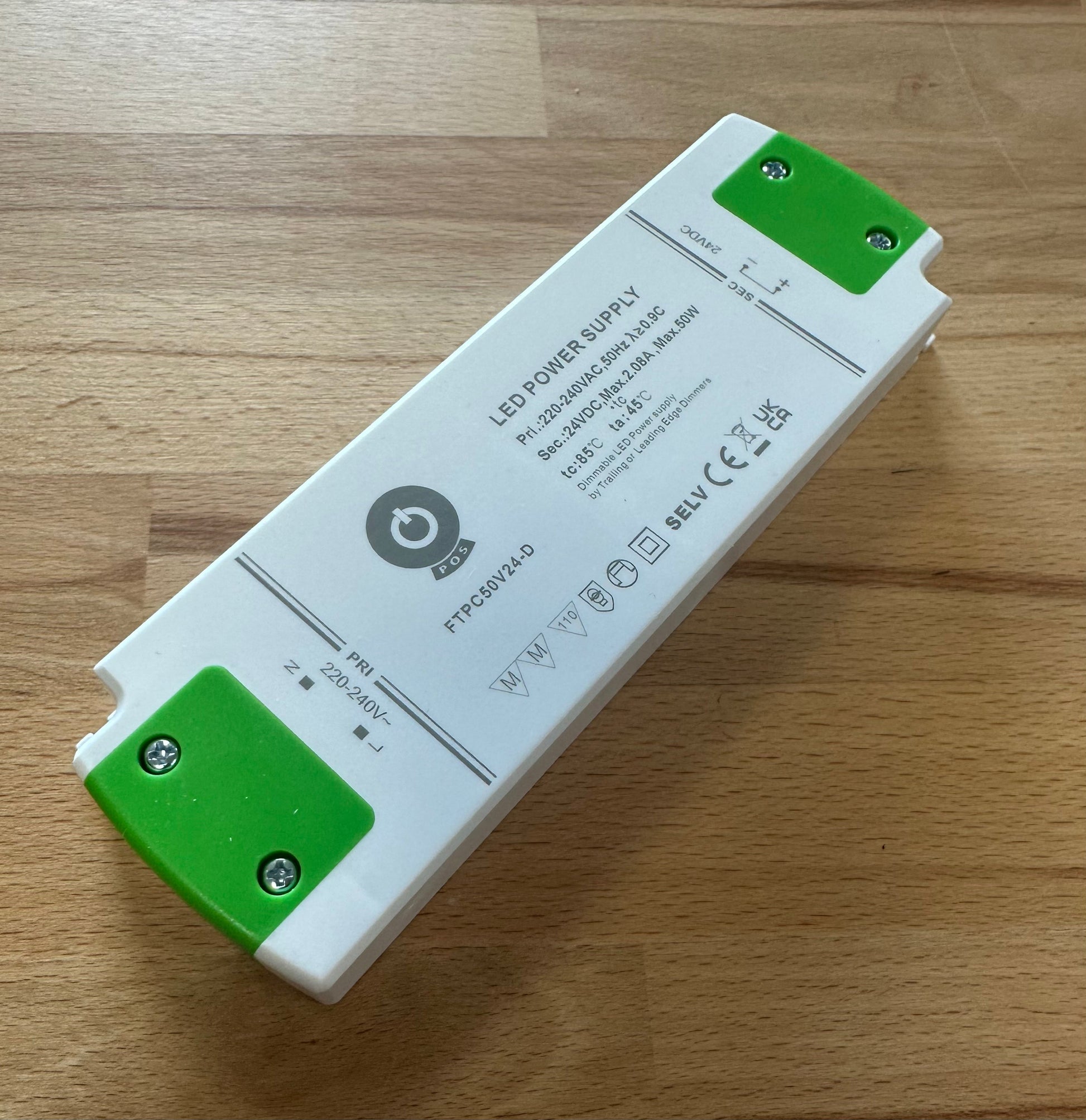

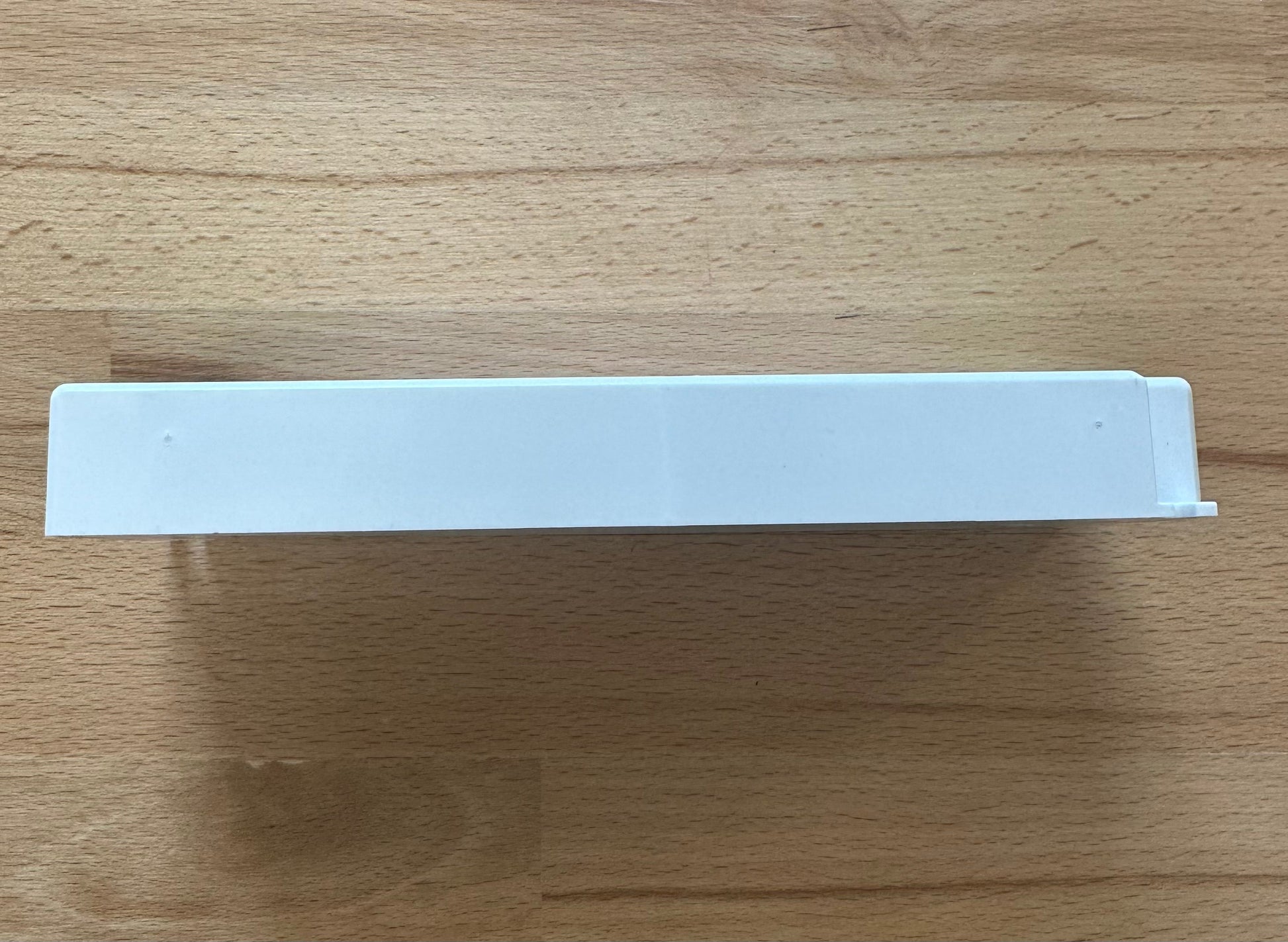

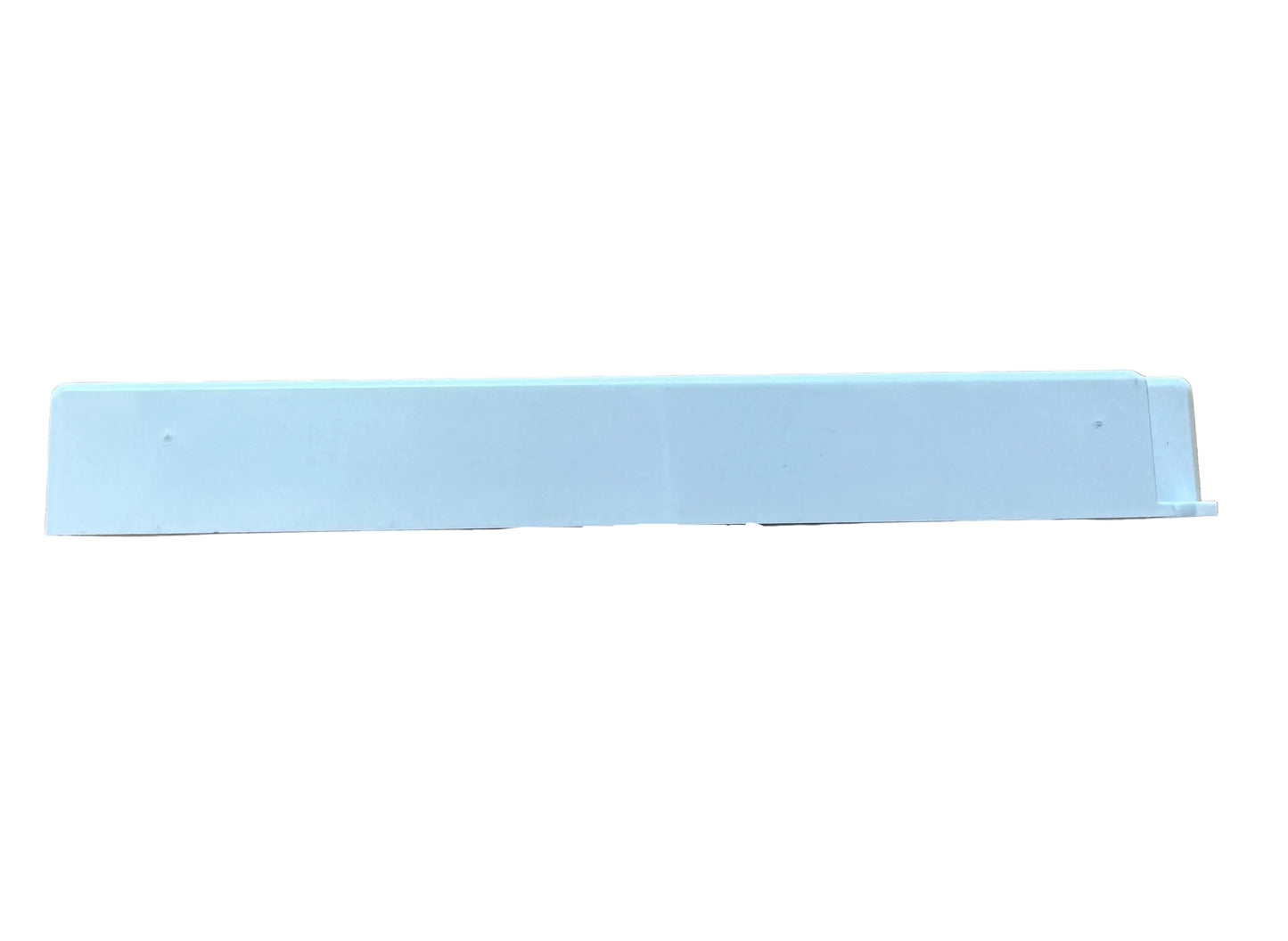

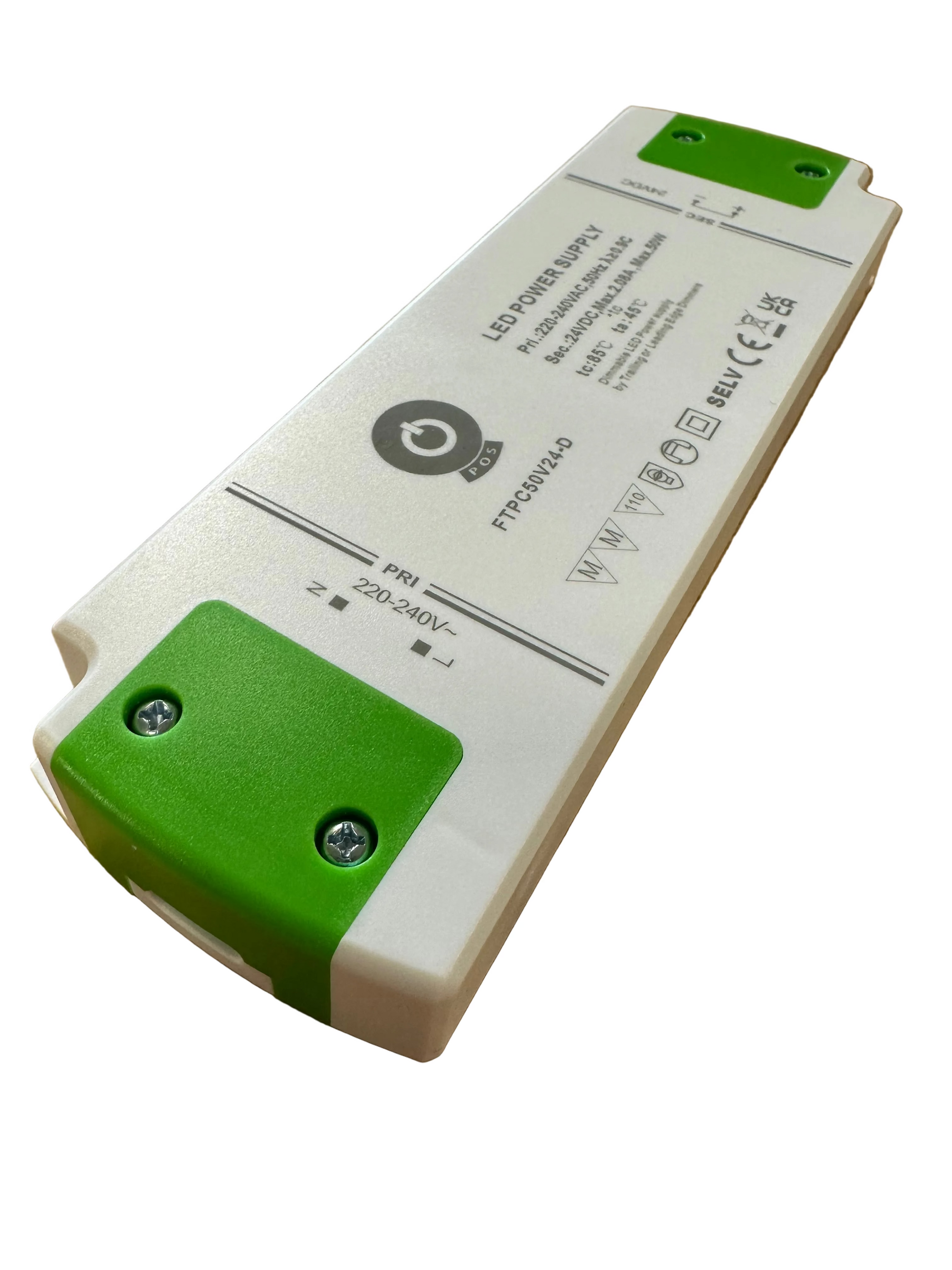

POS Power FTPC50V24-D 50W 24V/2.08A Triac Dimmable LED Power Supply
Constant voltage design • Protections: Short circuit / Overload / Over voltage / Over temperature • AC phase cut (leading or trailing edge) dimmable • Cooling by free air convection • Compliance to worldwide regulations for lighting.
OUTPUT
Rated Voltage 24V
Rated Current 2.08A
Current Range 0.25 ÷ 2.08A
Rated Power 50W
No Output Voltage (max.) 25.2V
Line Reglation ± 1%
Load Reglation ± 6%
Voltage Tolerance [3] ± 5%
Ripple & Noise (max.) 1.5 mVP-P
Setup, Rise Time 1s 500ms / 230VAC at full load
Hold up Time (typ.) 1.5ms / 230VAC at full load
INPUT
Voltage Range 180 ÷ 264V
Frequency Range 47 ÷ 63Hz
Power Factor (typ.) PF > 0.9 / 230VAC at full load
Efficiency (typ.) 85%
Inrush current (max.) <75A / 230VAC(25°C)
No Load Power Consumption (max.) < 1W
Dimming Range 1 – 100% of rated output current
Suitable dimmers Triac dimmers (leading or trailing edge) compatible with capacitive or inductive load
