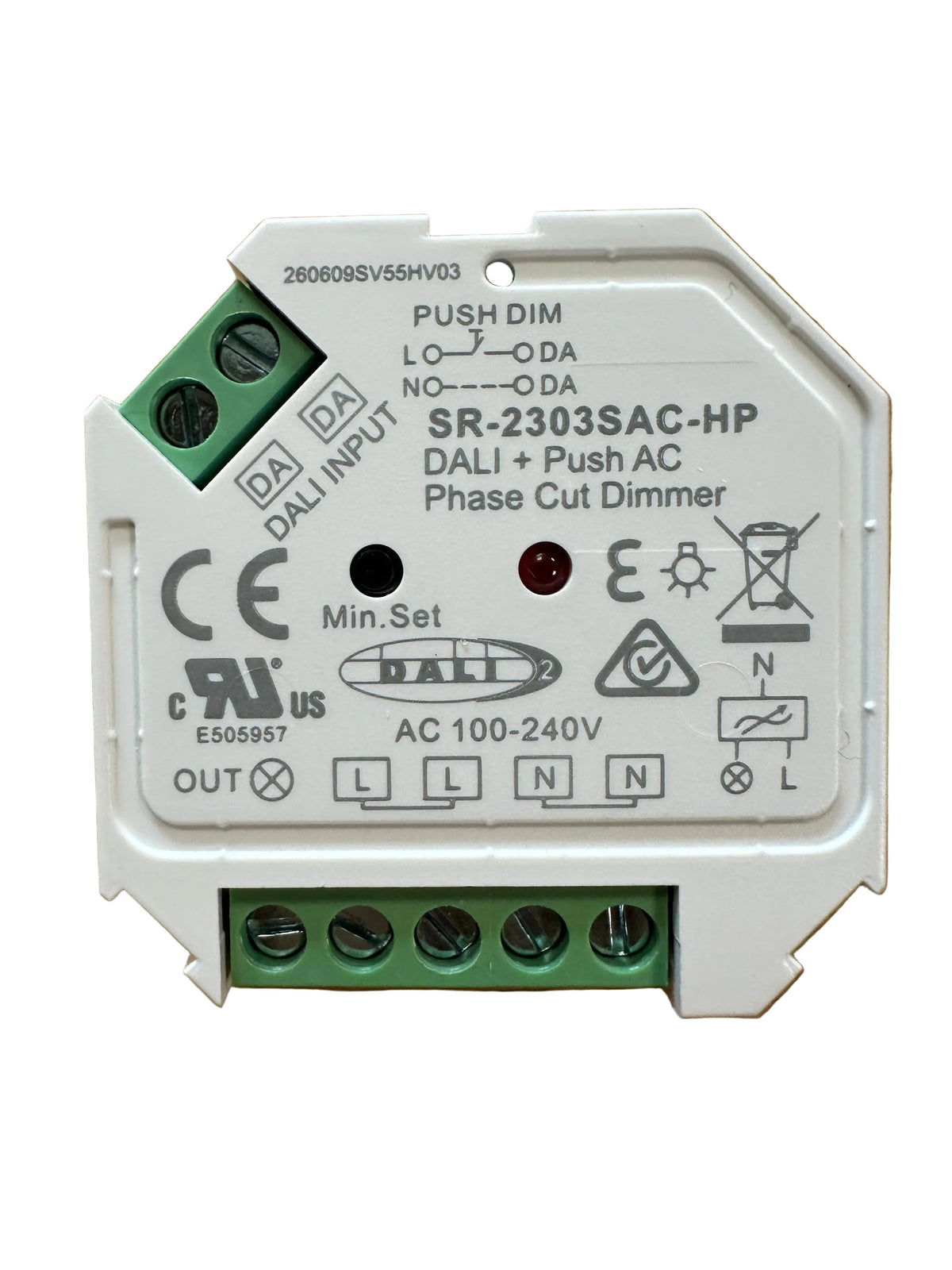

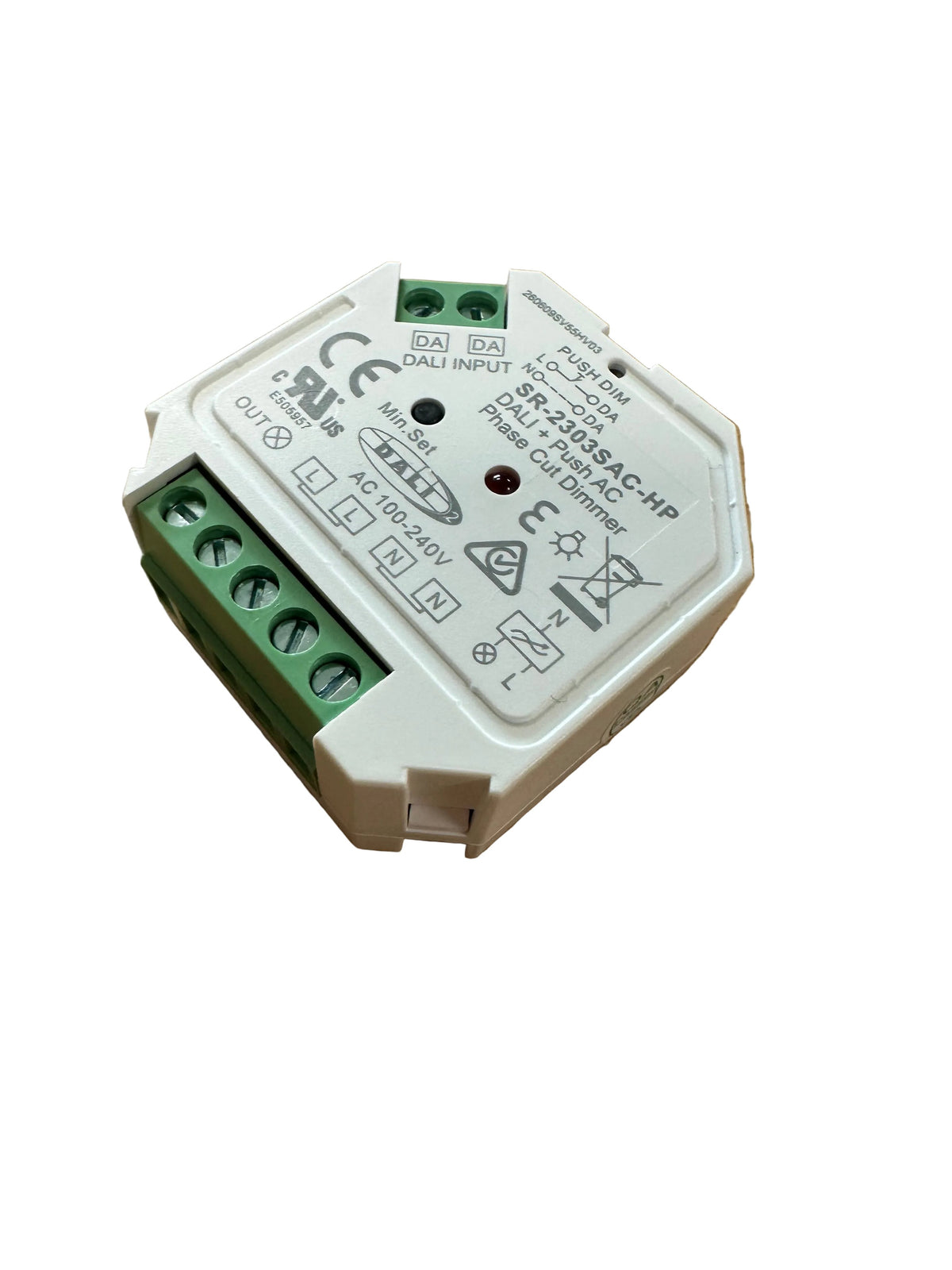

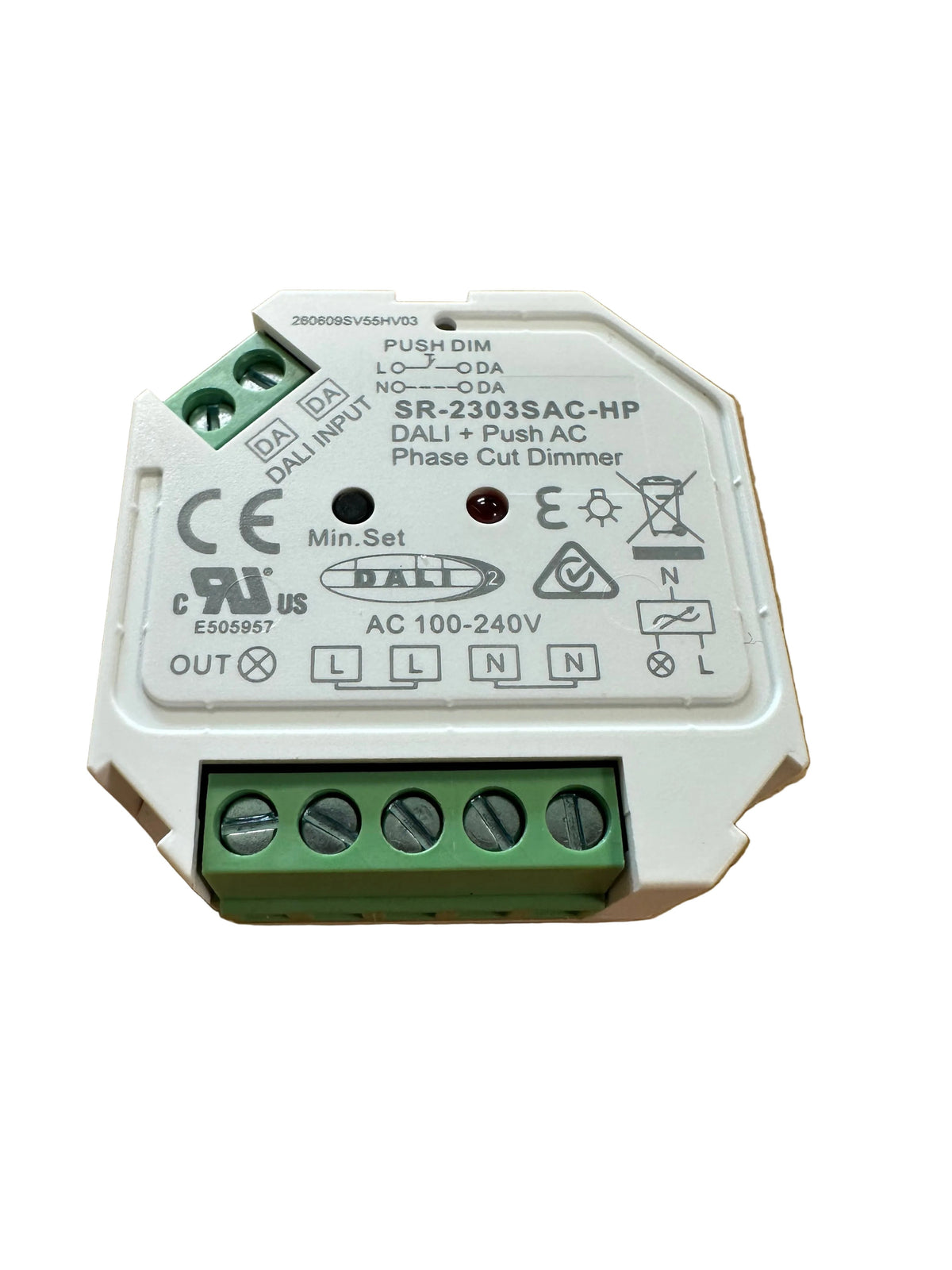

SR-2303SAC-HP DALI-2 DT6 Push AC Phase Cut Dimmer

SR-2303SAC-HP DALI-2 DT6 Push AC Phase Cut Dimmer

This compact AC phase-cut DALI dimmer works with all DALI products. This device will enable you to switch and adjust the brightness of your mains-powered LED or traditional halogen and incandescent lamps from your existing DALI control system.

The dimer also has a built-in "Push Dim" interface enabling it to be operated using a push switch. The dimmer adopts trailing edge dimming and has an innovative minimum dimming level setting which enables users to set the minimum brightness level thus controlling the brightness of your lamp between this level and maximum brightness.

The dimmer complies with DALI standards:

• IEC 62386-102
• IEC 62386-207

The DALI dimmer is ideal for use in both commercial and domestic applications as part of a DALI system.

Product features:

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• AC phase cut dimmer with both DALI and push switch control interface
• 100-240VAC wide input and output voltage
• 1 DALI address to control 1 channel output, up to 400W

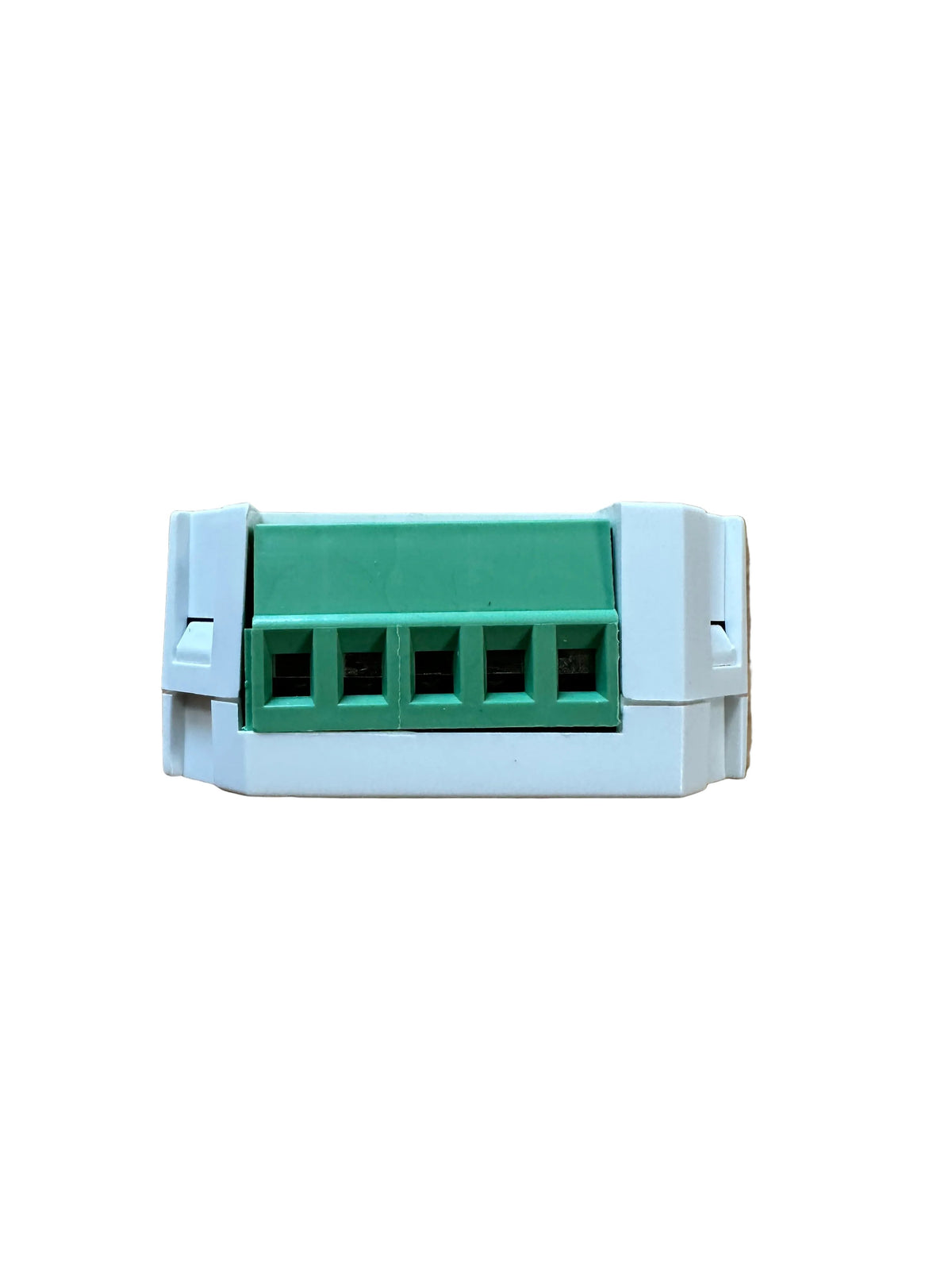

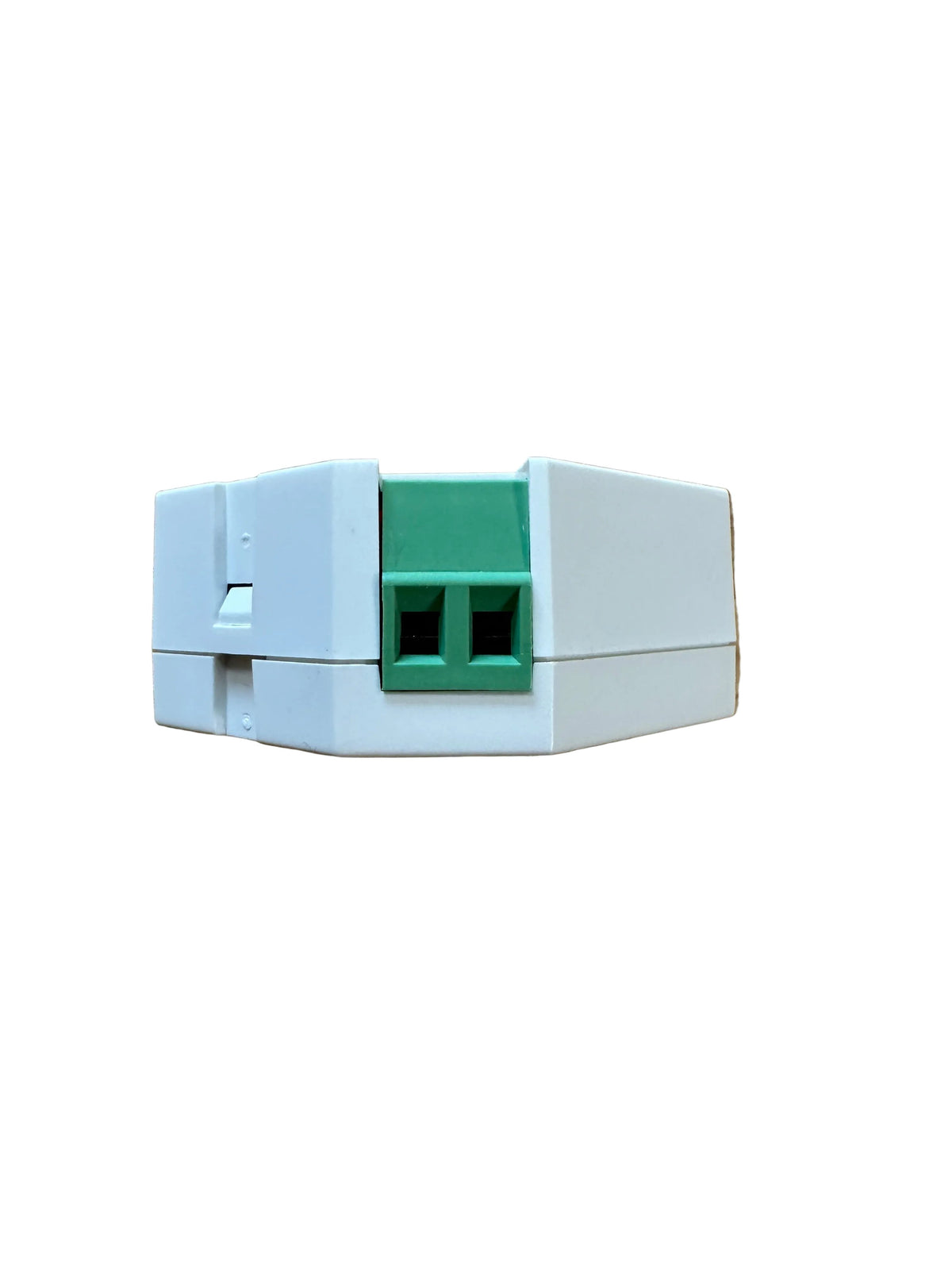

• Input and output with screw terminals, safe and reliable
• Trailing edge dimming, supports resistive loads and capacitive loads
• Innovative minimum brightness setting function
• Single wire push switch input for push dim function
• Great compatibility with universal 8V-230V~ input push switches
• To dim and switch single colour dimmable LED lamps, traditional incandescent and halogen lights
• Mini size, easy to be installed into a standard size wall box
• Waterproof grade: IP20
• Dimensions: 45.5mm L 45mmW 20.3mm H
