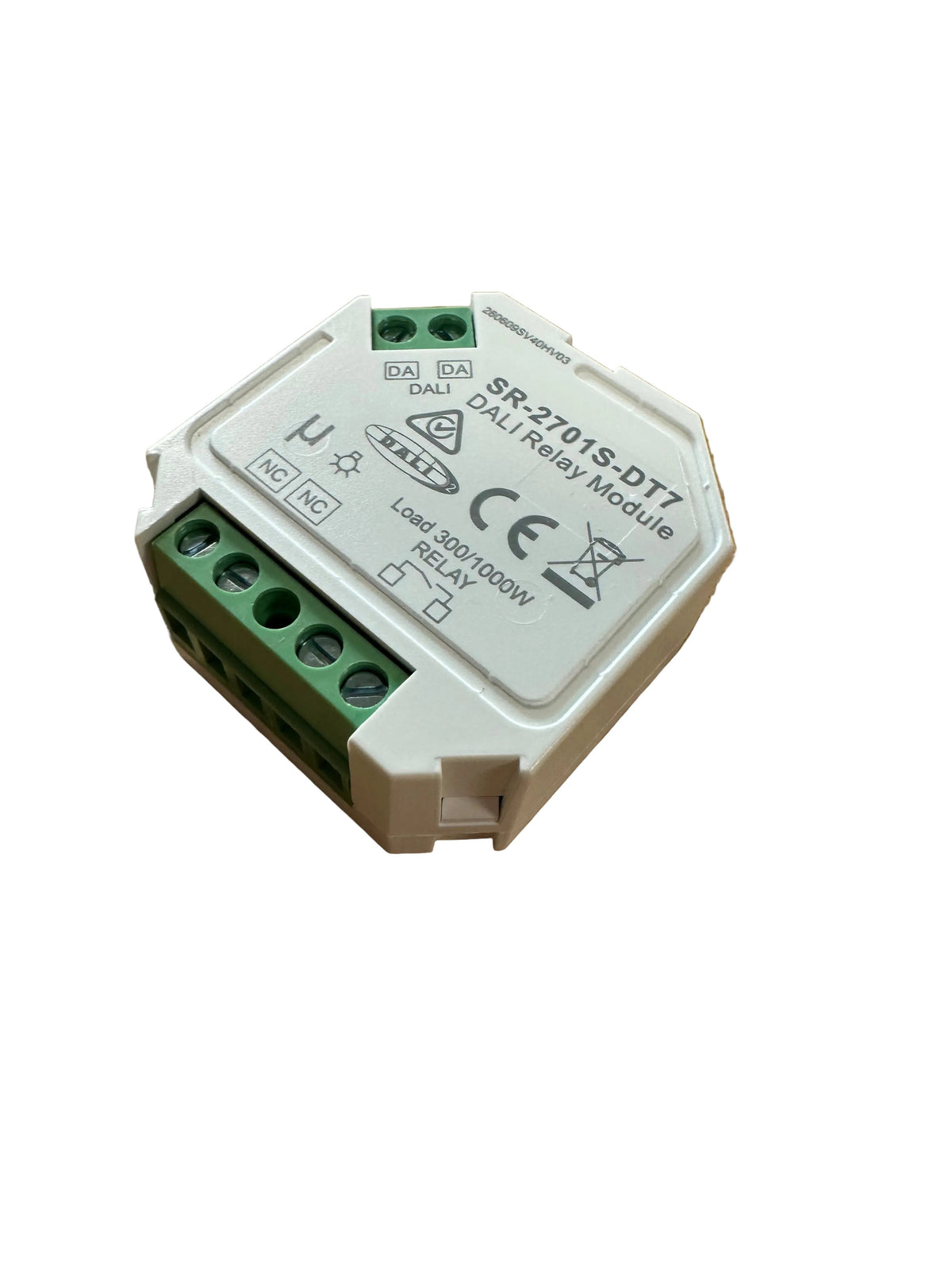

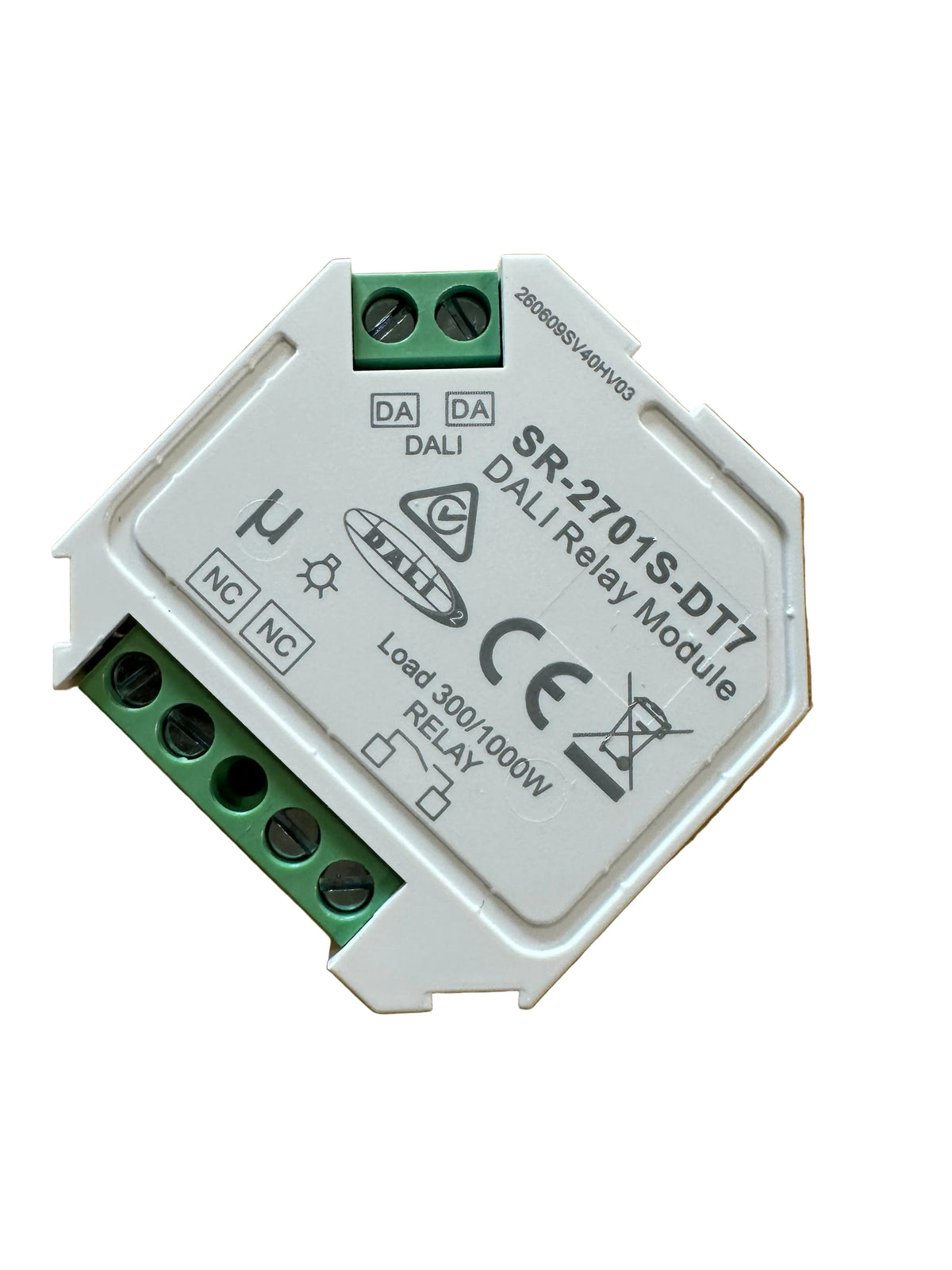

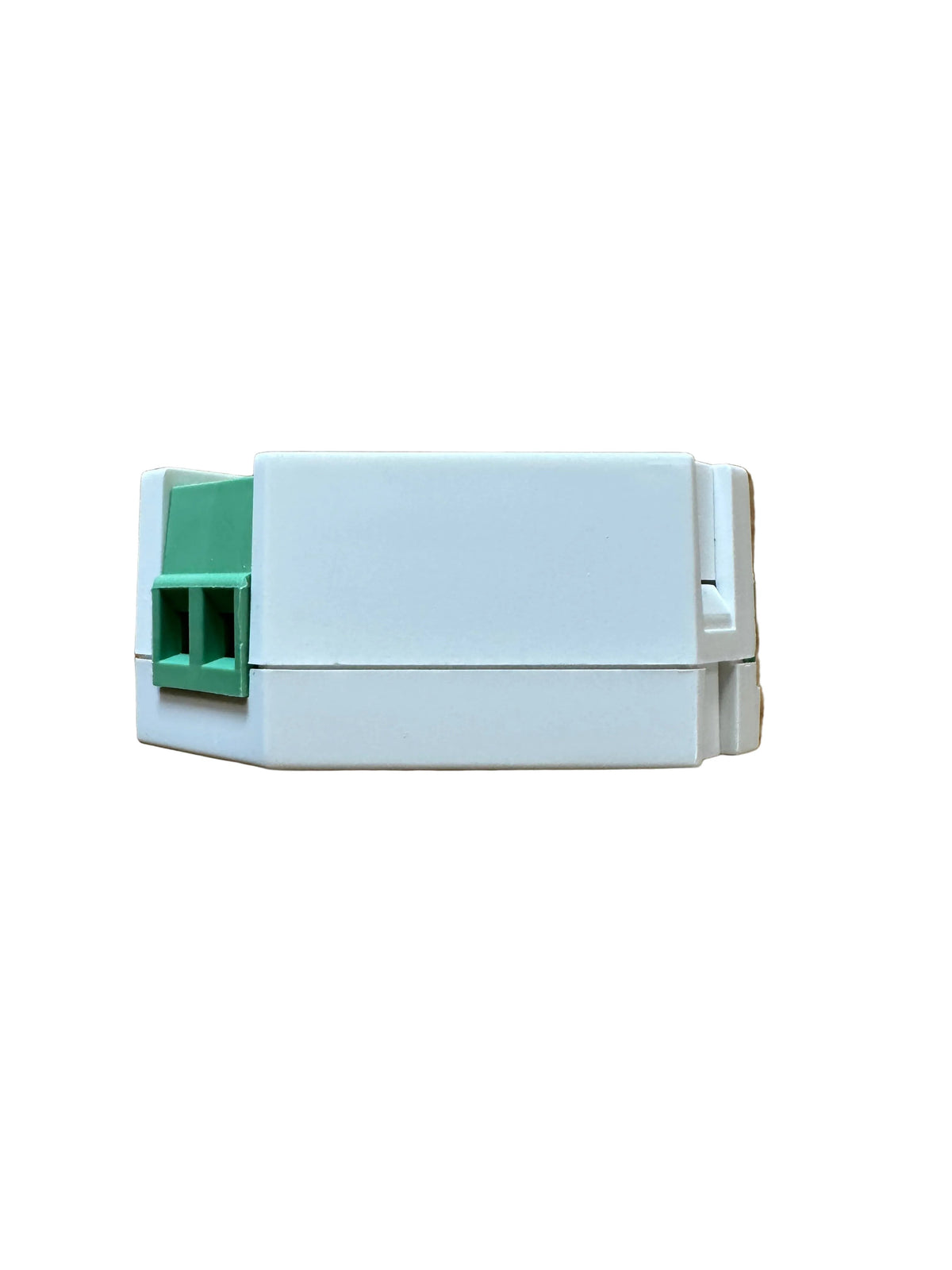

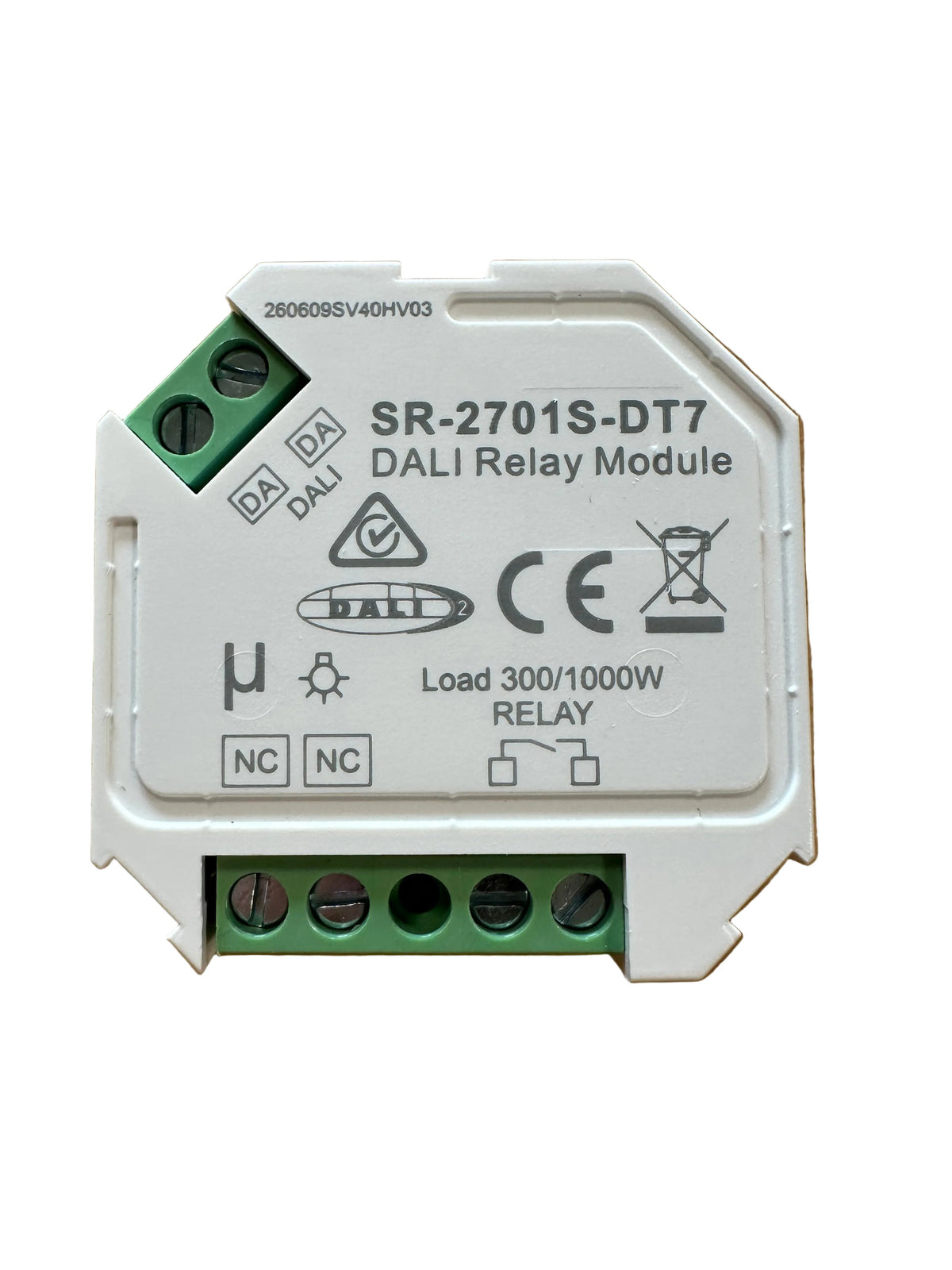

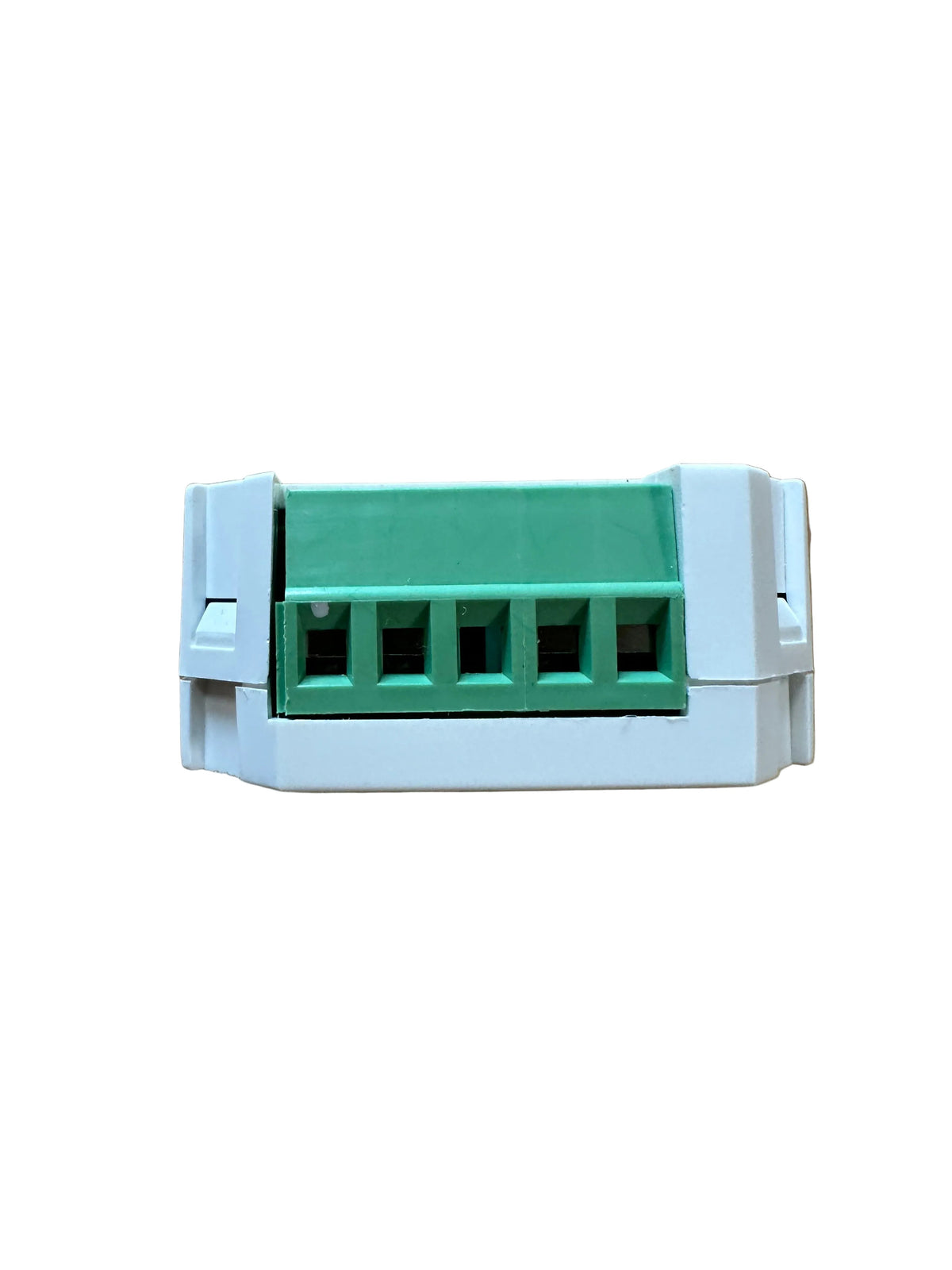

SR2701S-DT7 DALI-2 DT7 Relay Module 300W

SR2701S-DT7 DALI-2 DT7 Relay Module 300W

The DALI 2 relay module is used to integrate non-DALI devices into a DALI circuit. It supports a wide input voltage range of 100-240VAC and is compatible with both DALI and DALI 2 versions, ensuring versatility and adaptability. The module allows a DALI address to be easily assigned via the DALI master controller and complies with the IEC 62386-208 standard. It has a single-channel actuator (switch) with DALI 2 input and includes important safety functions such as zero crossing detection, overload and short circuit protection. Thanks to its compact design, it can be easily installed in a standard wall box. As a Type 7 compliant DALI device, the module comes with a 5-year warranty, with IP20 protection.

Key Features

• DALI 2 relay module
• 100-240VAC input voltage
• 1 DALI address can be assigned via DALI master controller
• Compatible with DALI and DALI 2 versions
• Complies with IEC 62386-208
• Loads without a DALI input can therefore be integrated into the DALI circuit
• 1-channel actuator (switch) with DALI 2 input
• Switching voltage 100-240 VAC
• Zero crossing detection, 300,000 switching cycles
• Overload and short circuit protection
• Mini size, easy to install in a standard wall box
• Compliant with DALI device type 7
• Protection class: IP20
