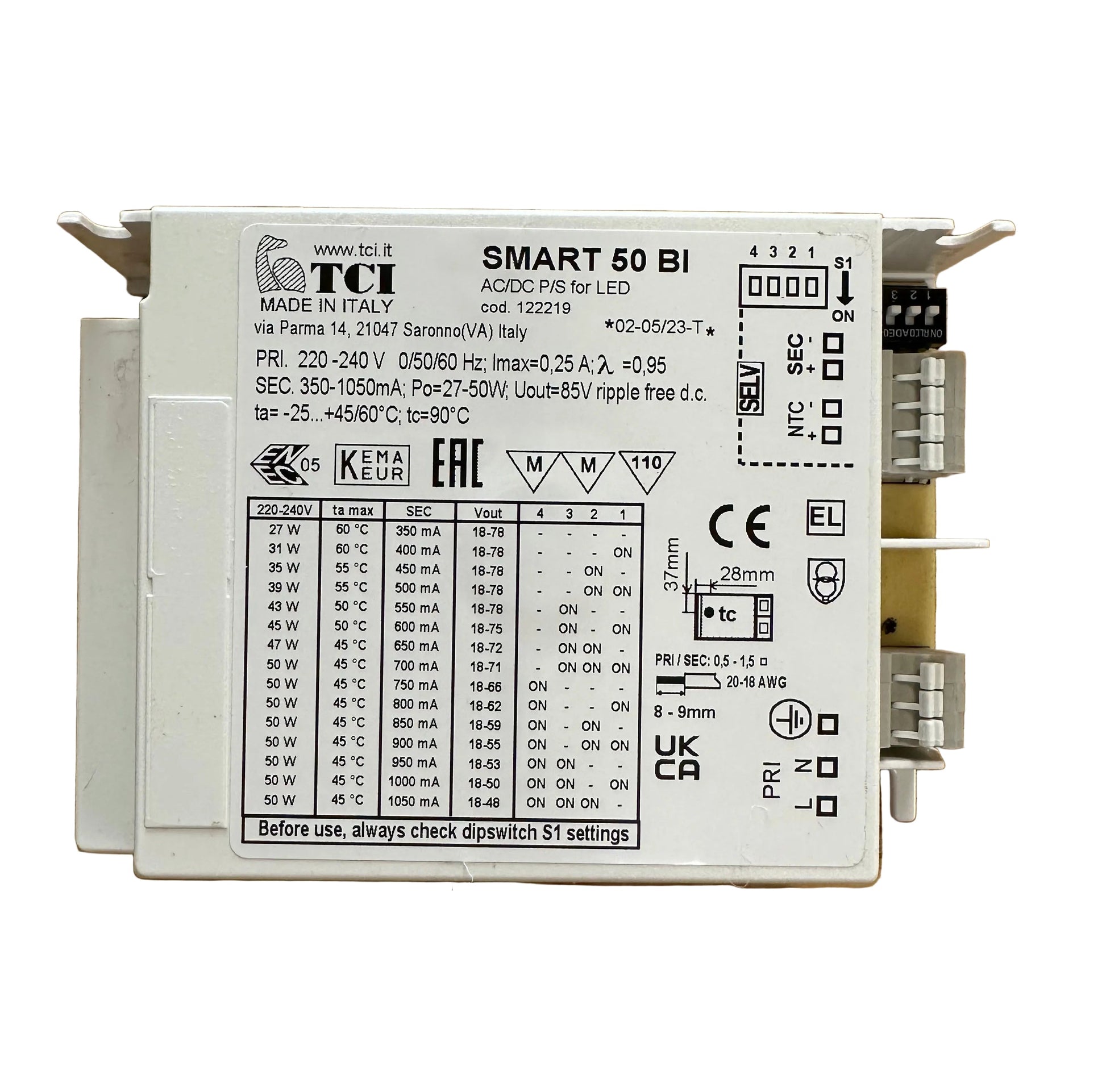

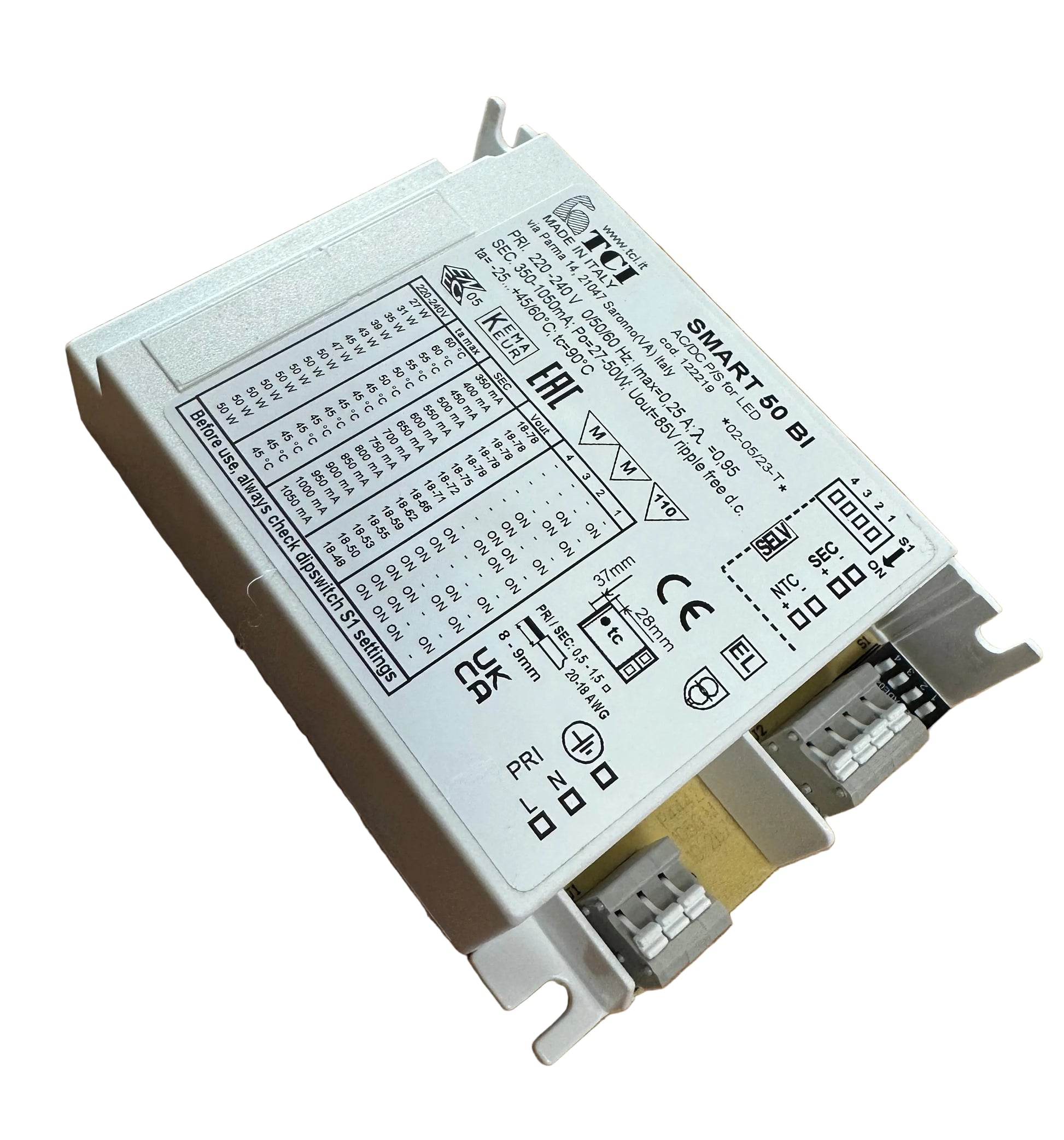

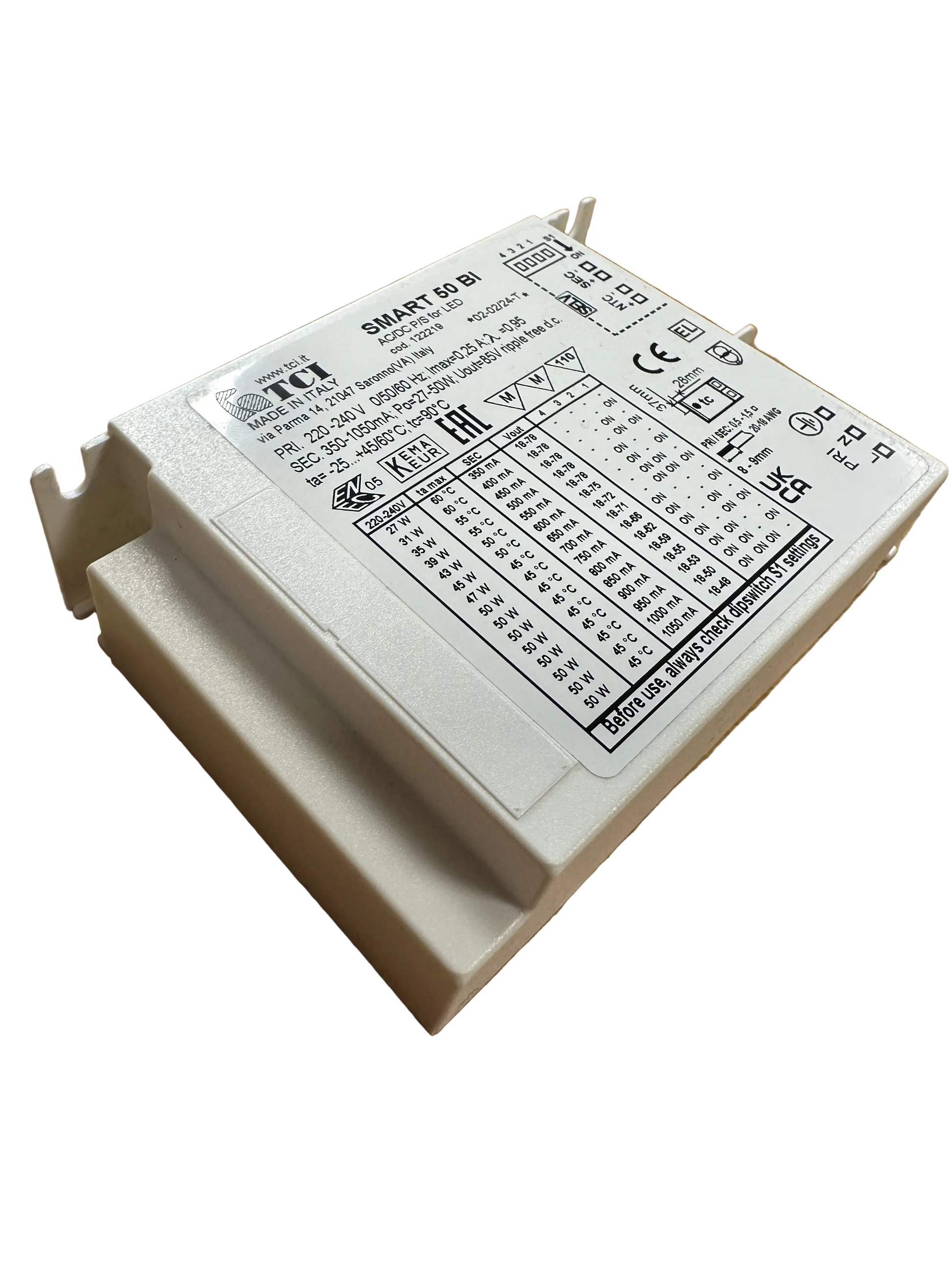

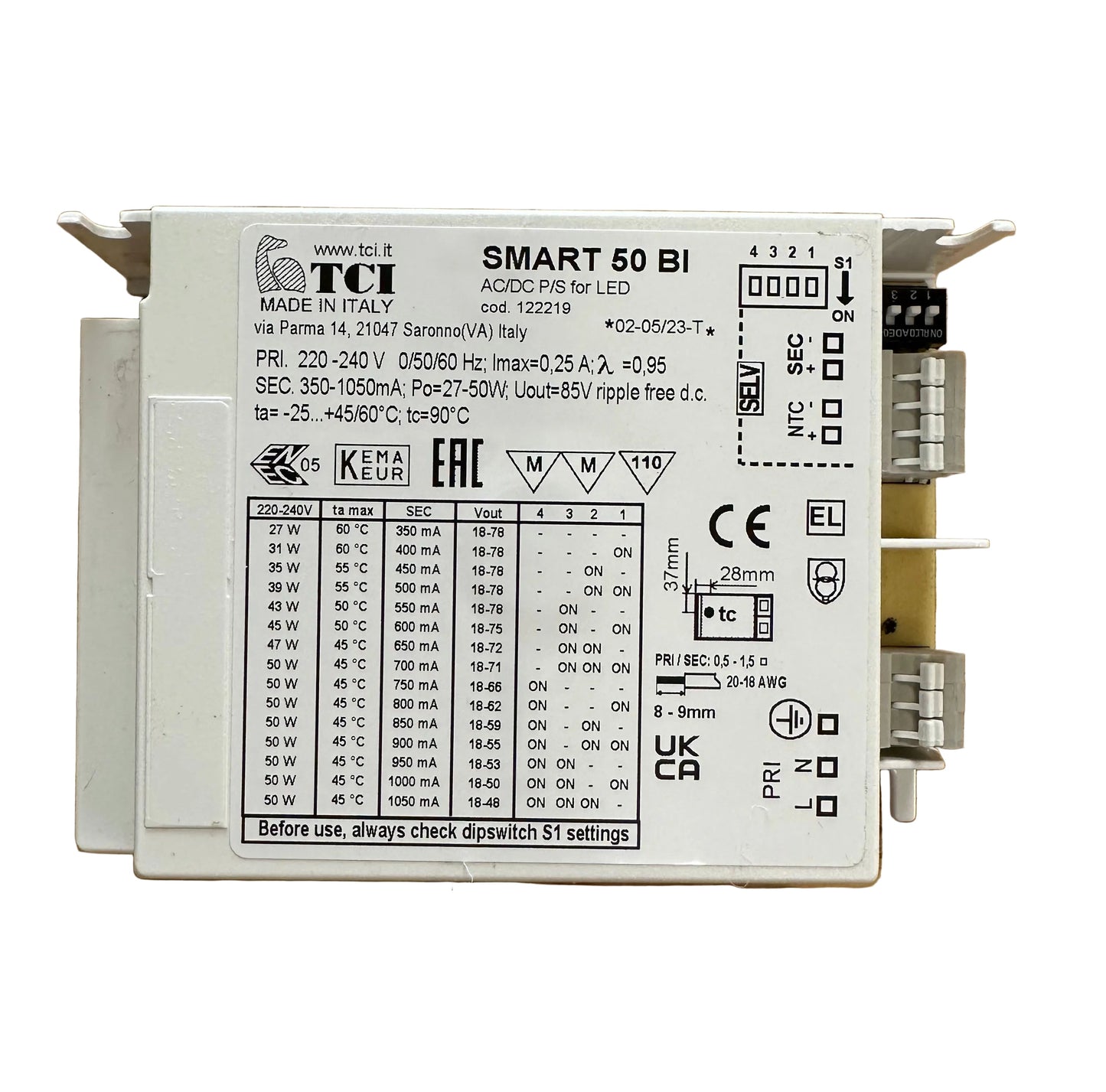

TCI 122219 SMART 50 BI

TCI 122219 SMART 50 BI

Direct current electronic drivers with DIP-SWITCH

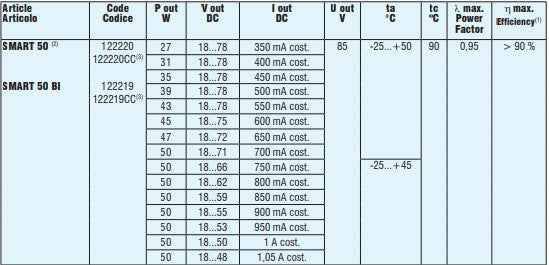

• 27-50W (mA Dependent) See chart
• 350-1050mA (Dip Switches) See chart
• Multipower driver supplied with dip-switch for the selection of the output current.
• Driver for built-in use
• Active Power Factor Corrector.
• It can be used for lighting equipment in protection class I.
• Analogical input (NTC) for thermal sensor connection. •Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15).
• Driver can be secured with slot for screws.
• Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads.
• Thermal protection = C.5.a.
