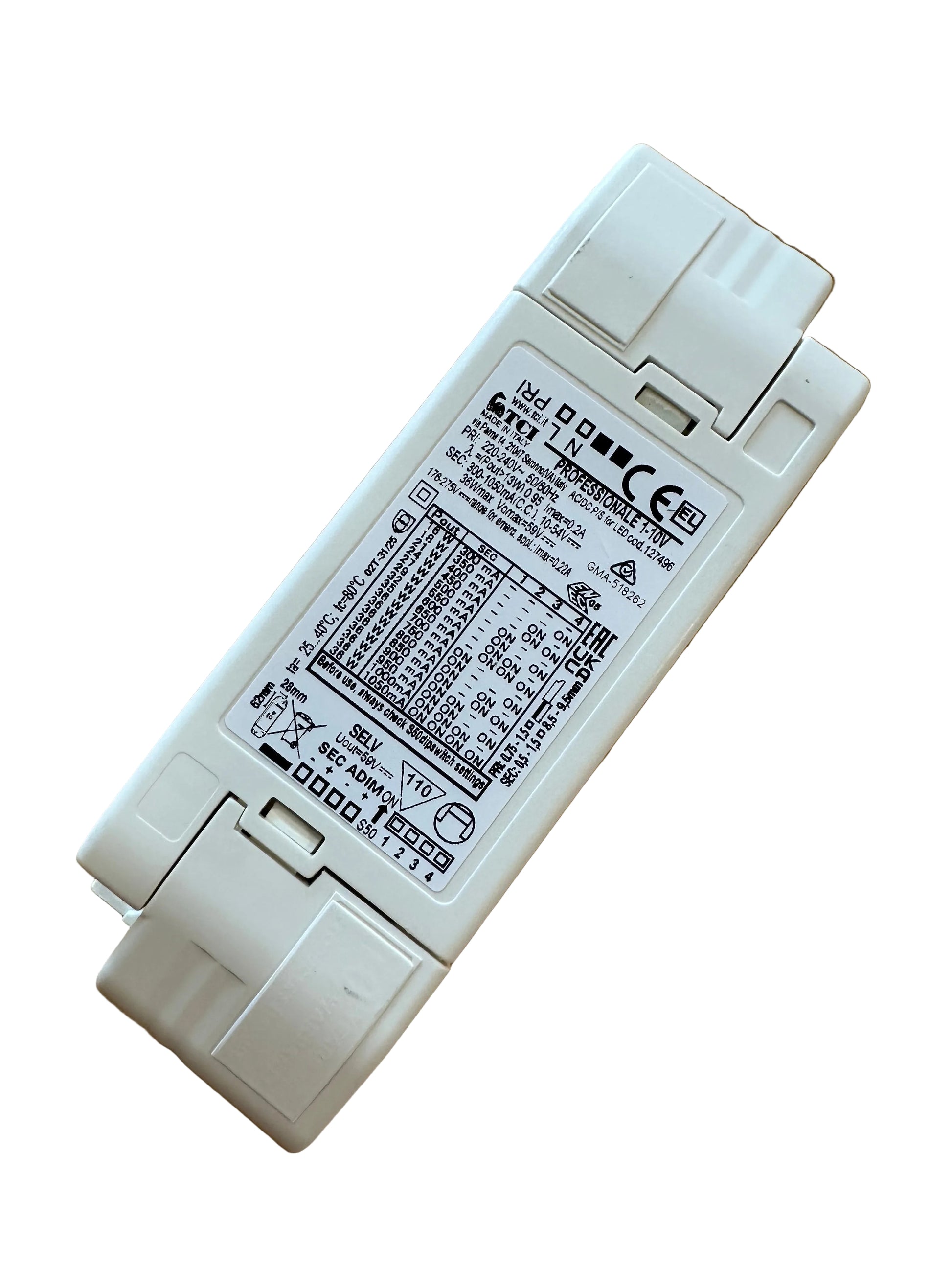

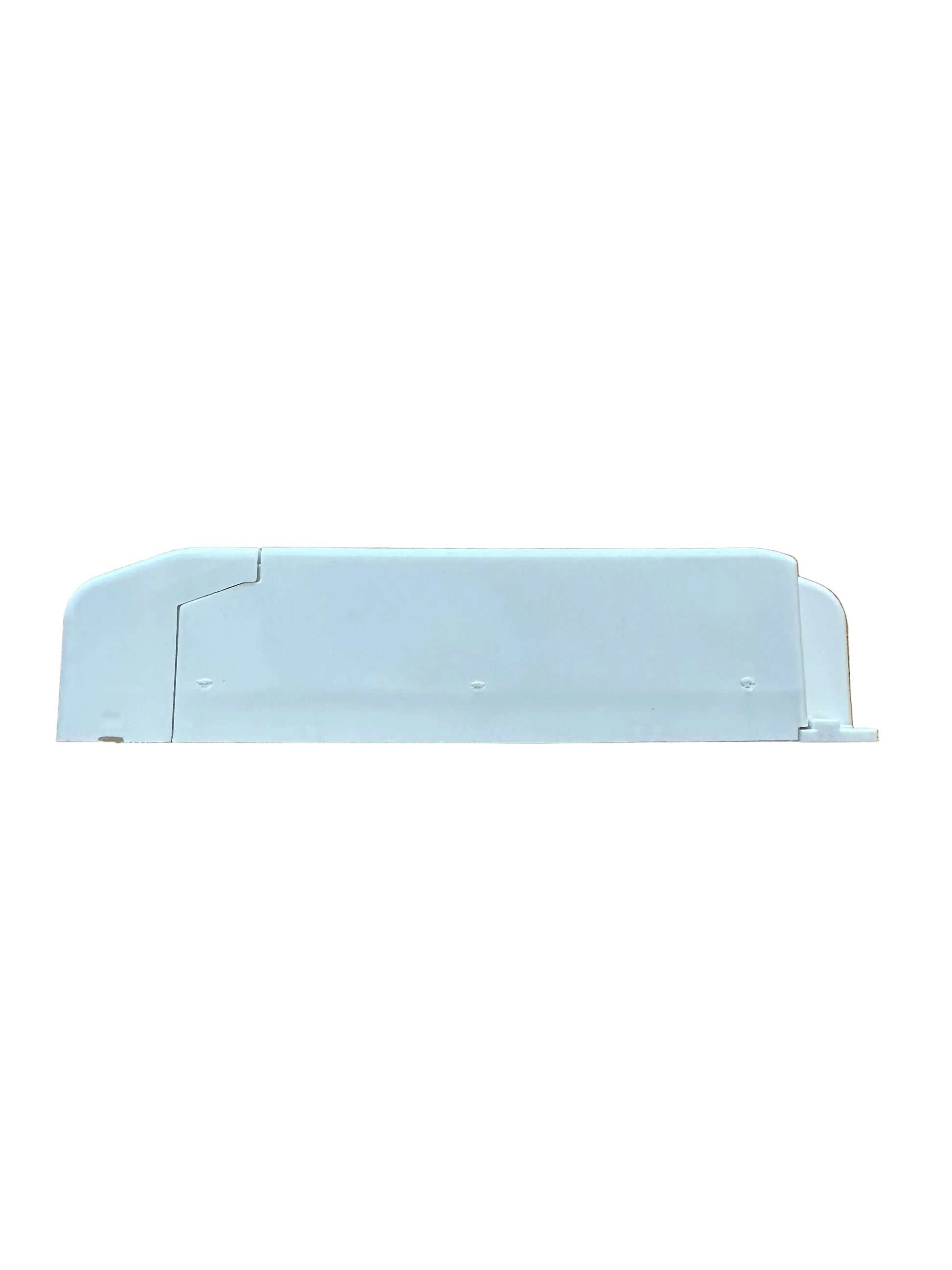

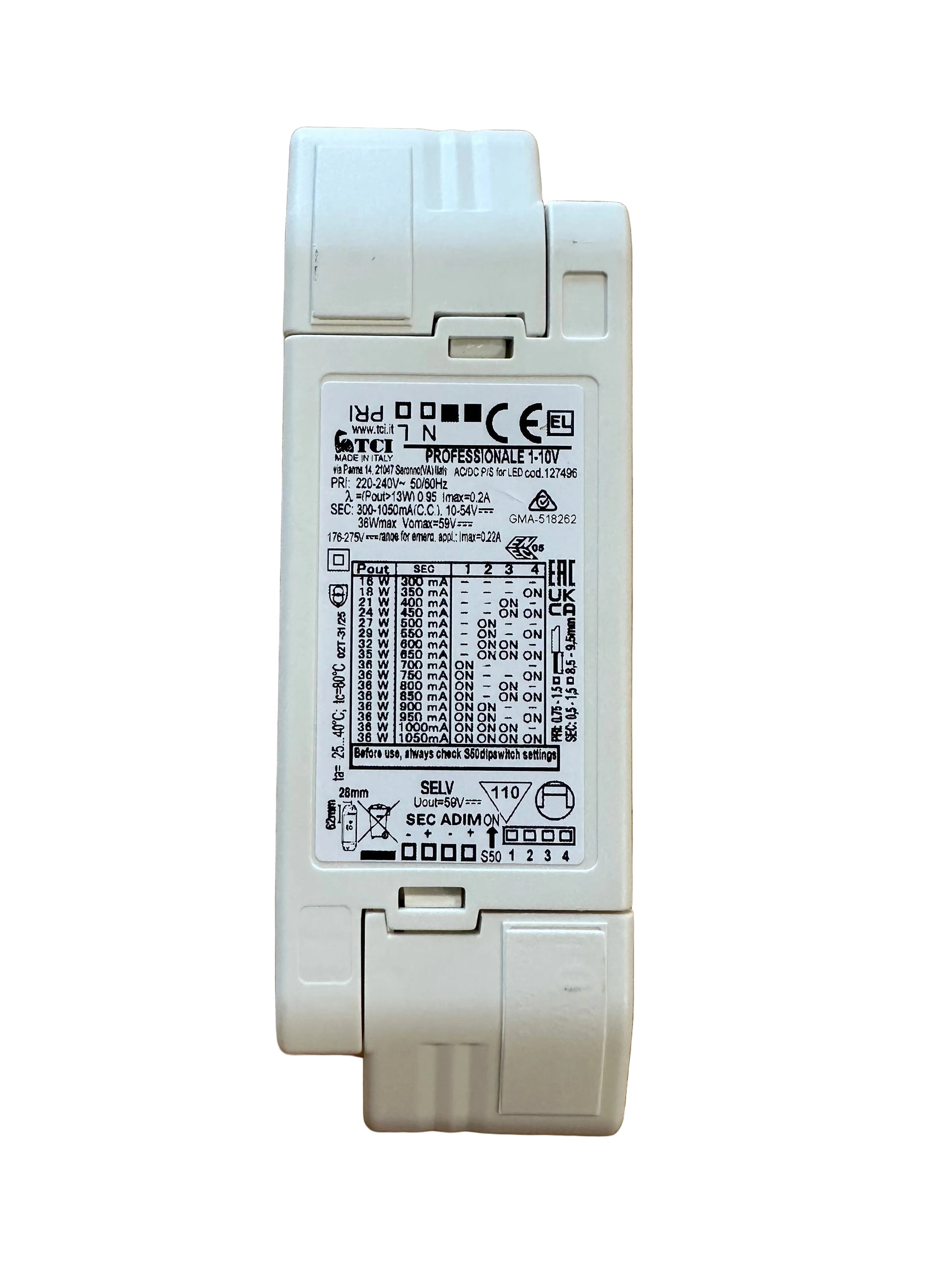

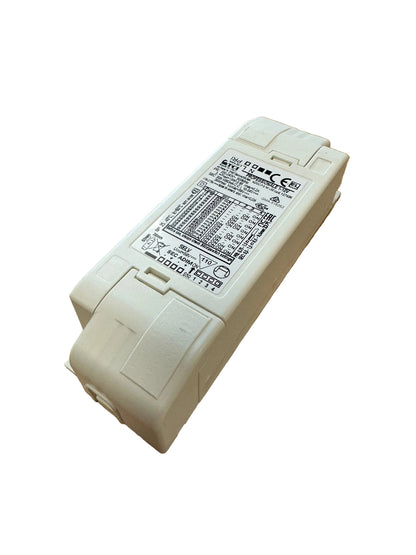

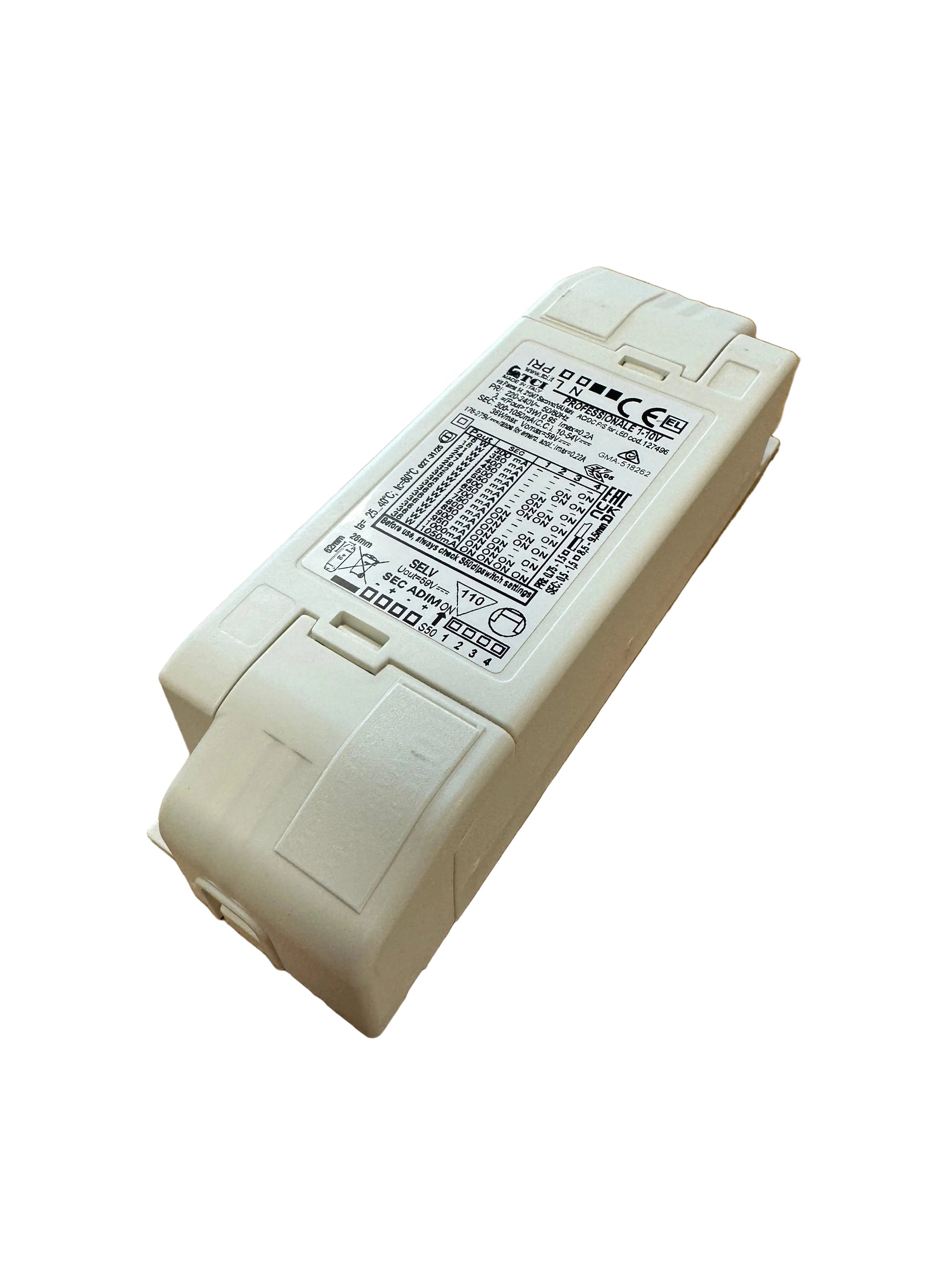

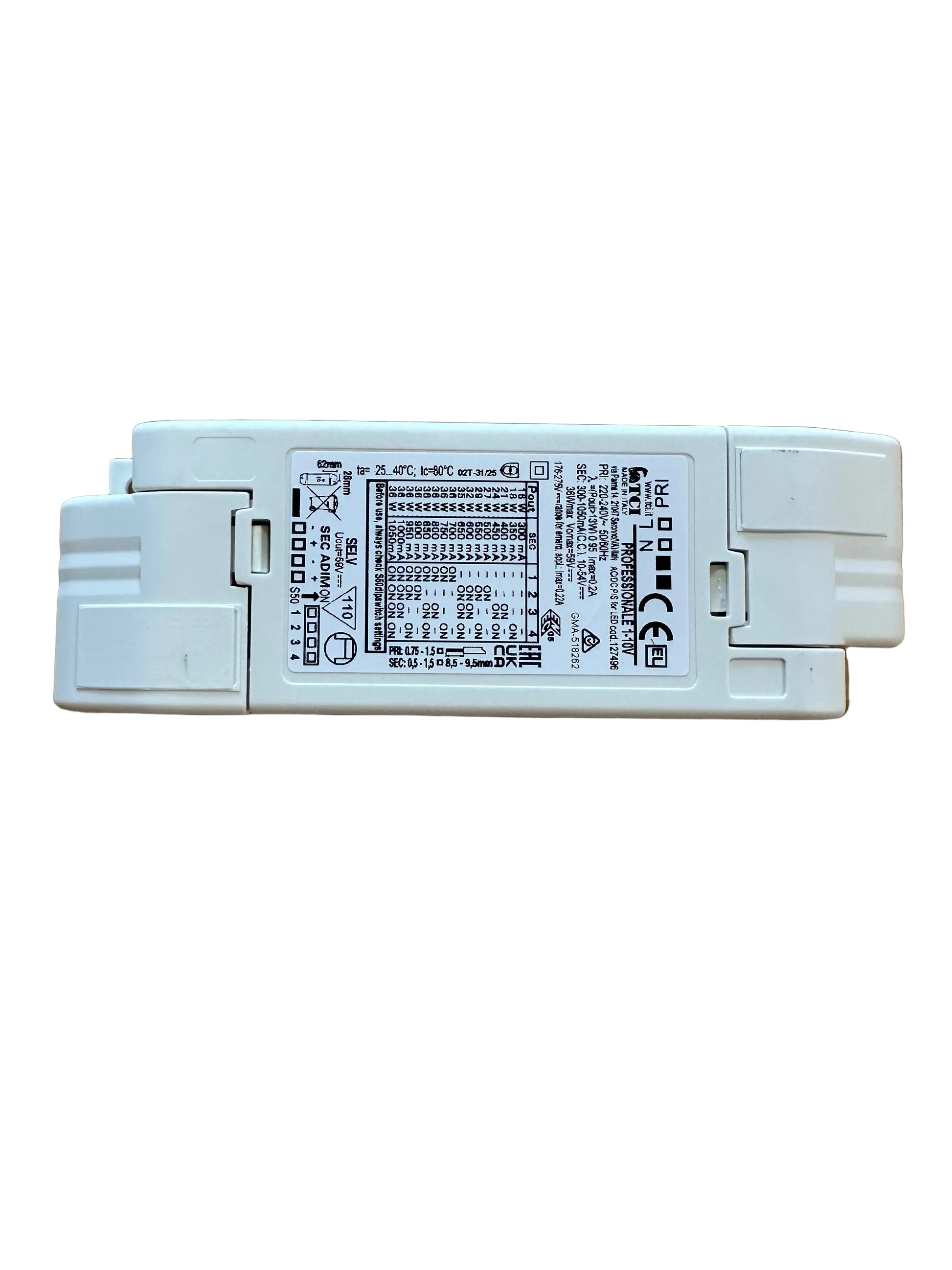

TCI 127496 PROFESSIONALE 1-10V Direct current 1-10V dimmable LED Driver

TCI 127496 PROFESSIONALE 1-10V Direct current 1-10V dimmable LED Driver

• Multipower driver supplied with dip-switch for the selection of the output current.
• 16-36W (mA dependent)
• 300mA up to 1050mA selectable via dip-switch
• Forward Voltage 10-54V (mA dependent)
• Dimensions 129.5mm L 42mm W 30mm H
• IP20 independent driver, for indoor use (PROFESSIONALE).
• Class II protection against electric shock for direct or indirect contact (PROFESSIONALE).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 11 mm
• Driver can be secured with slot for screws.
• Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads.
• Thermal protection = C.5.a.


TCI 127496
