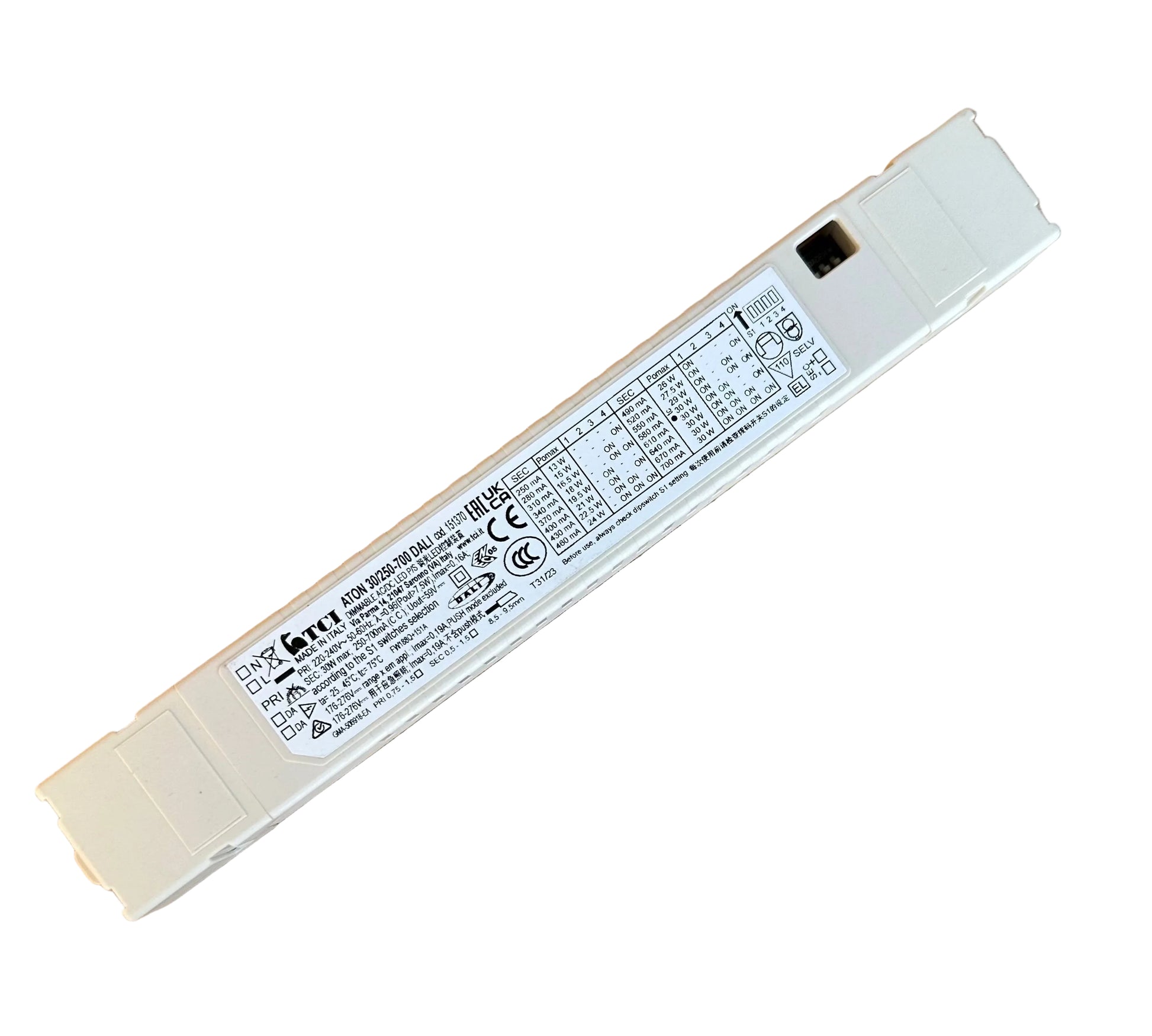

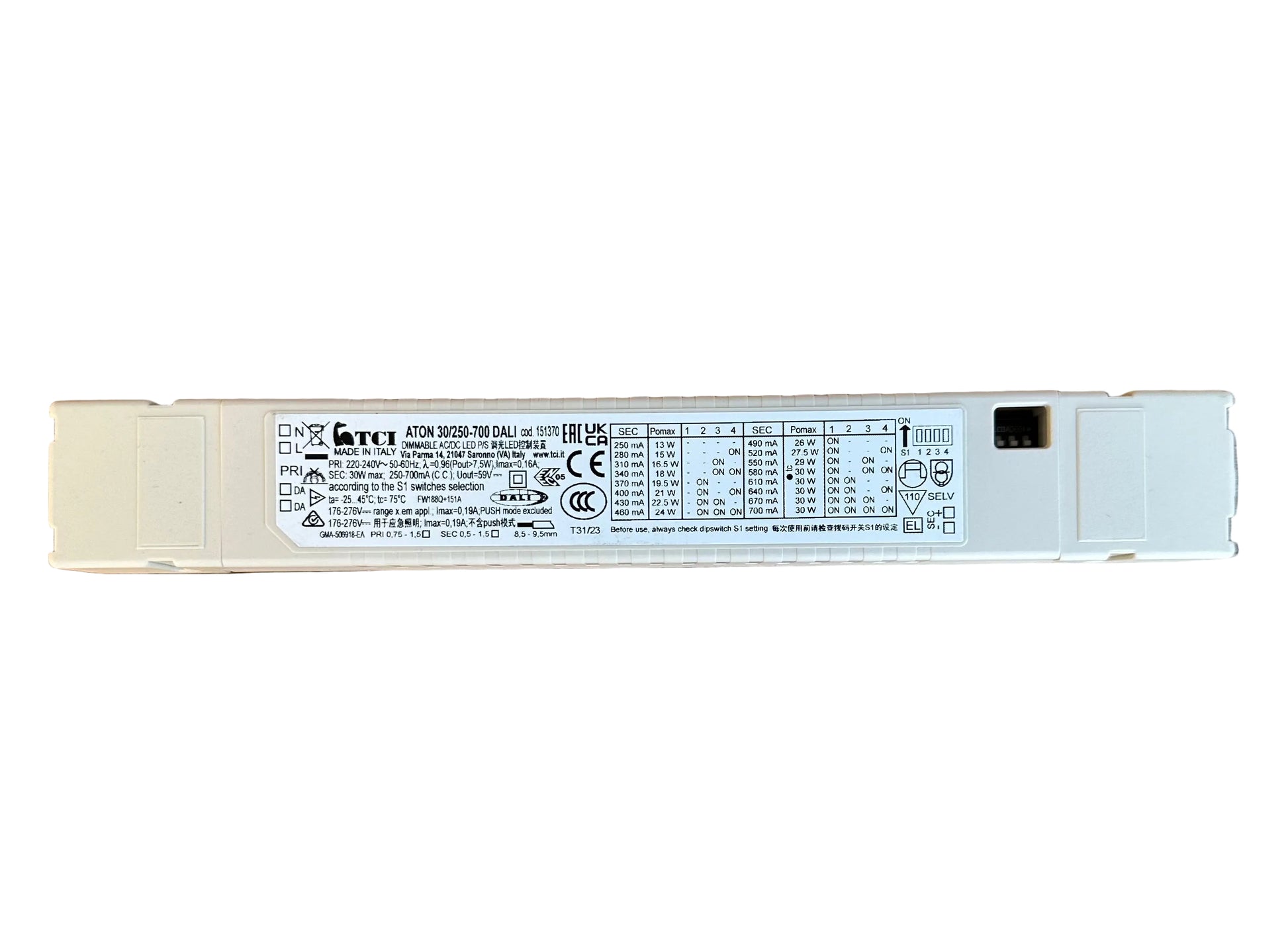

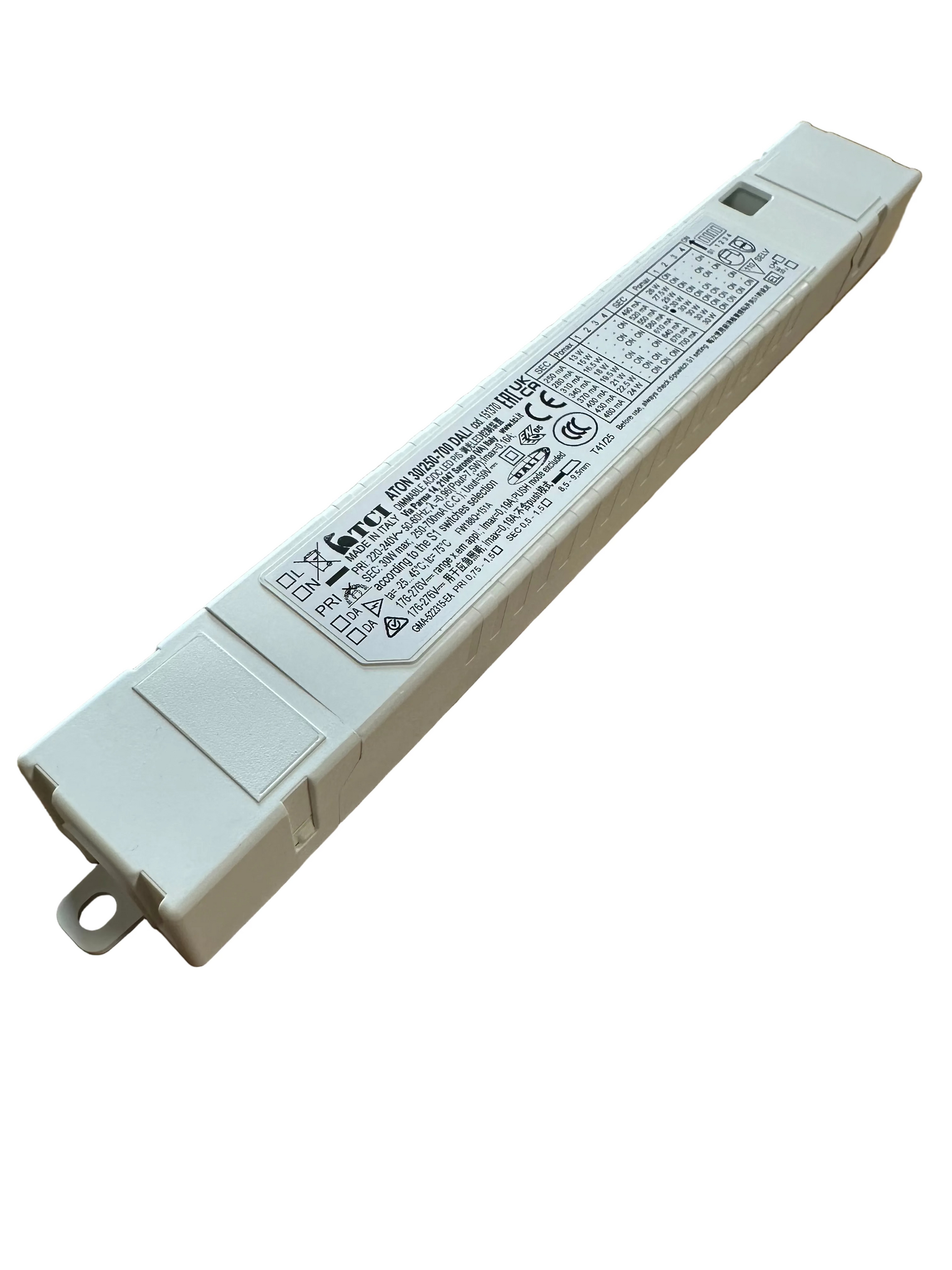

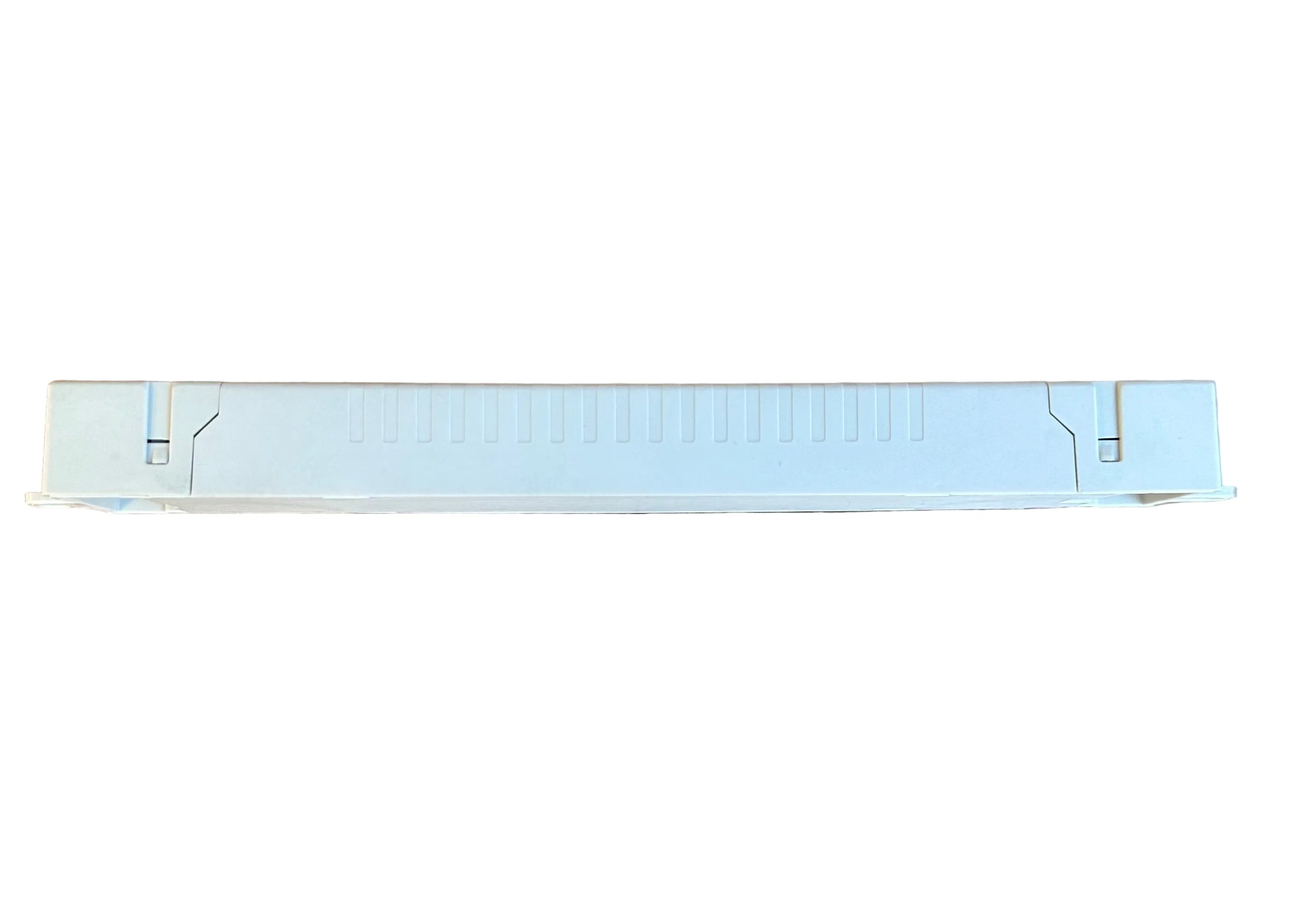

TCI 151370 ATON 30/250-700 DALI

TCI 151370 ATON 30/250-700 DALI

Features

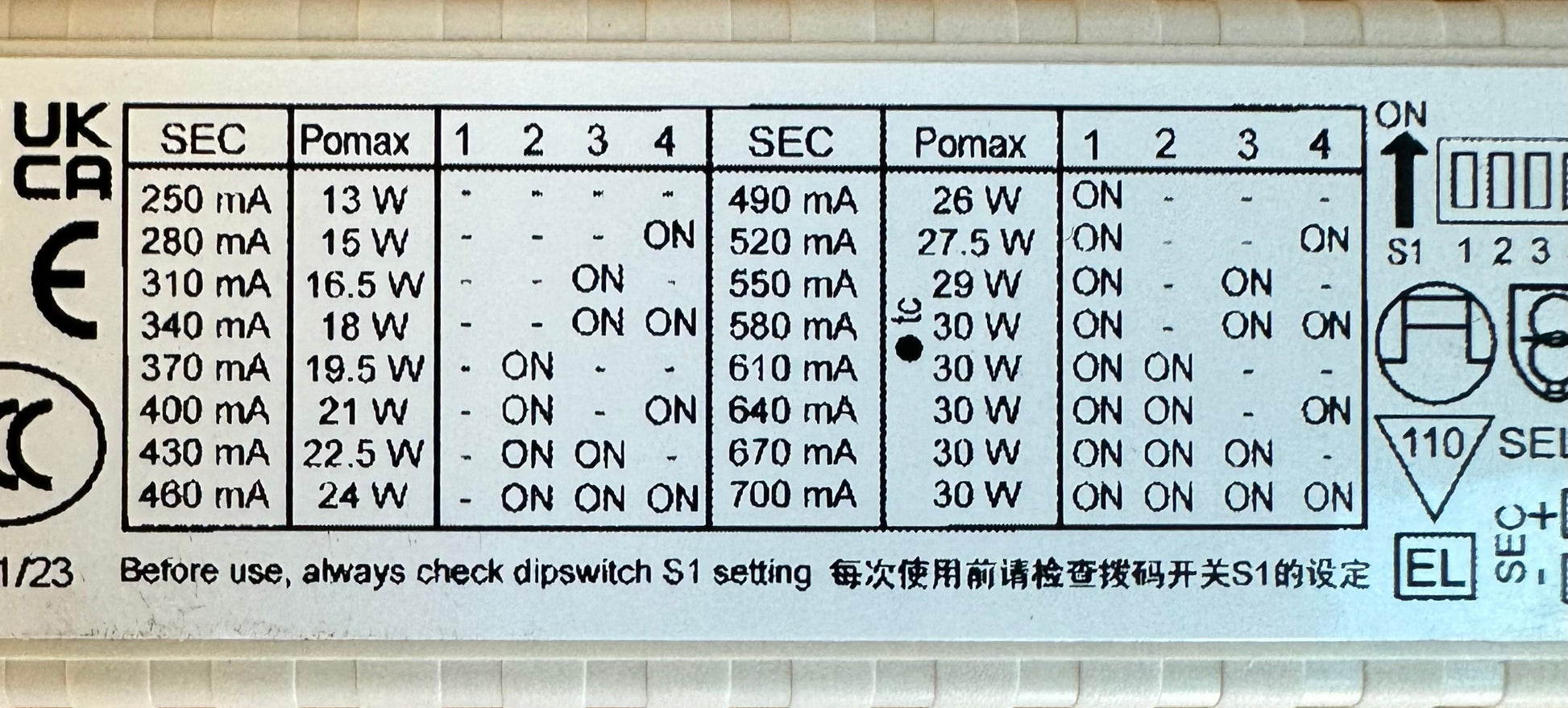

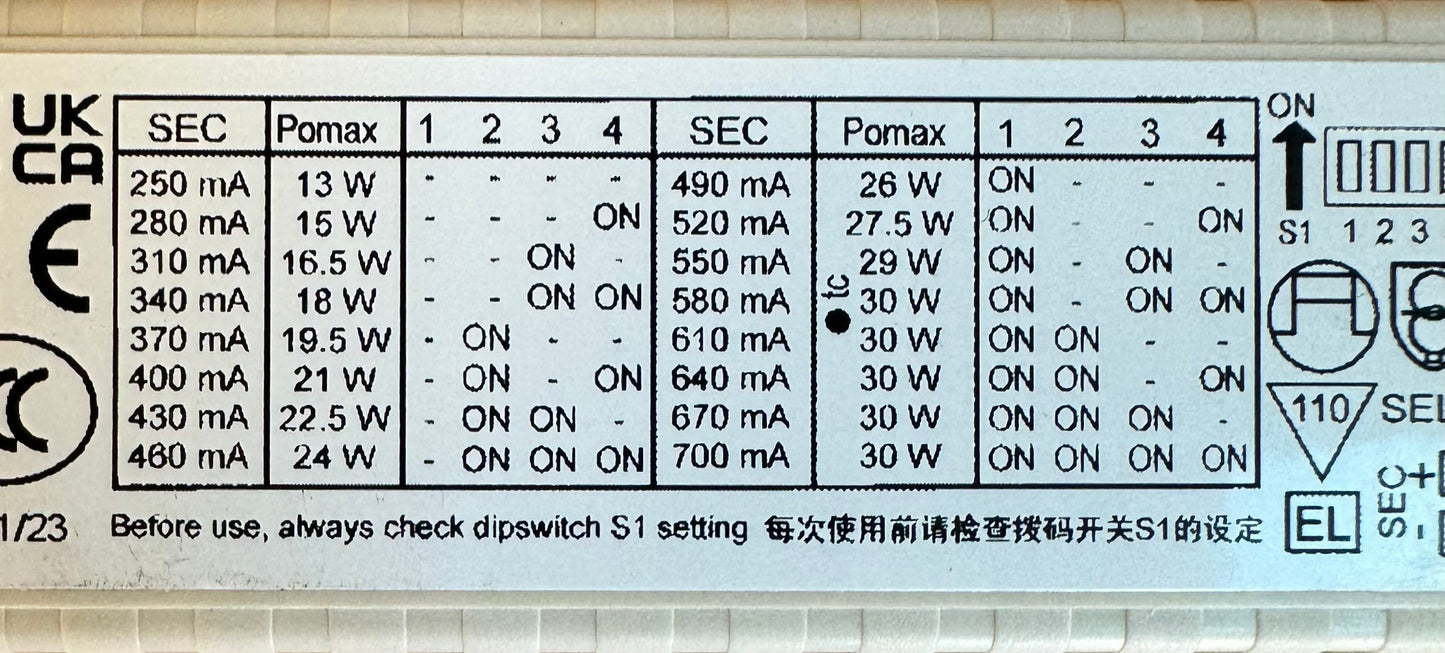

• Multipower driver supplied with dip-switch for the selection of the output current.
• 250-700mA
• Wattage: 13-30W mA Dependent
• Forward Voltage: 3-52V mA Dependent
• IP20 independent driver, for indoor use (ATON).
• Class II protection against electric shock for direct or indirect contact (ATON).
• It can be used for lighting equipment in protection class II
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm (ATON).
• Driver can be secured with slot for screws.
• Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads.
• Thermal protection = C.5.a

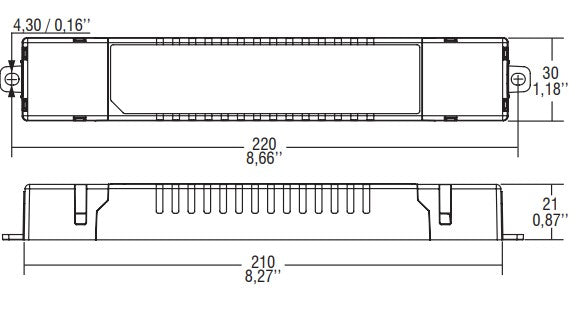

• 220mm L 30mm W 21mm H

TCI 151370
