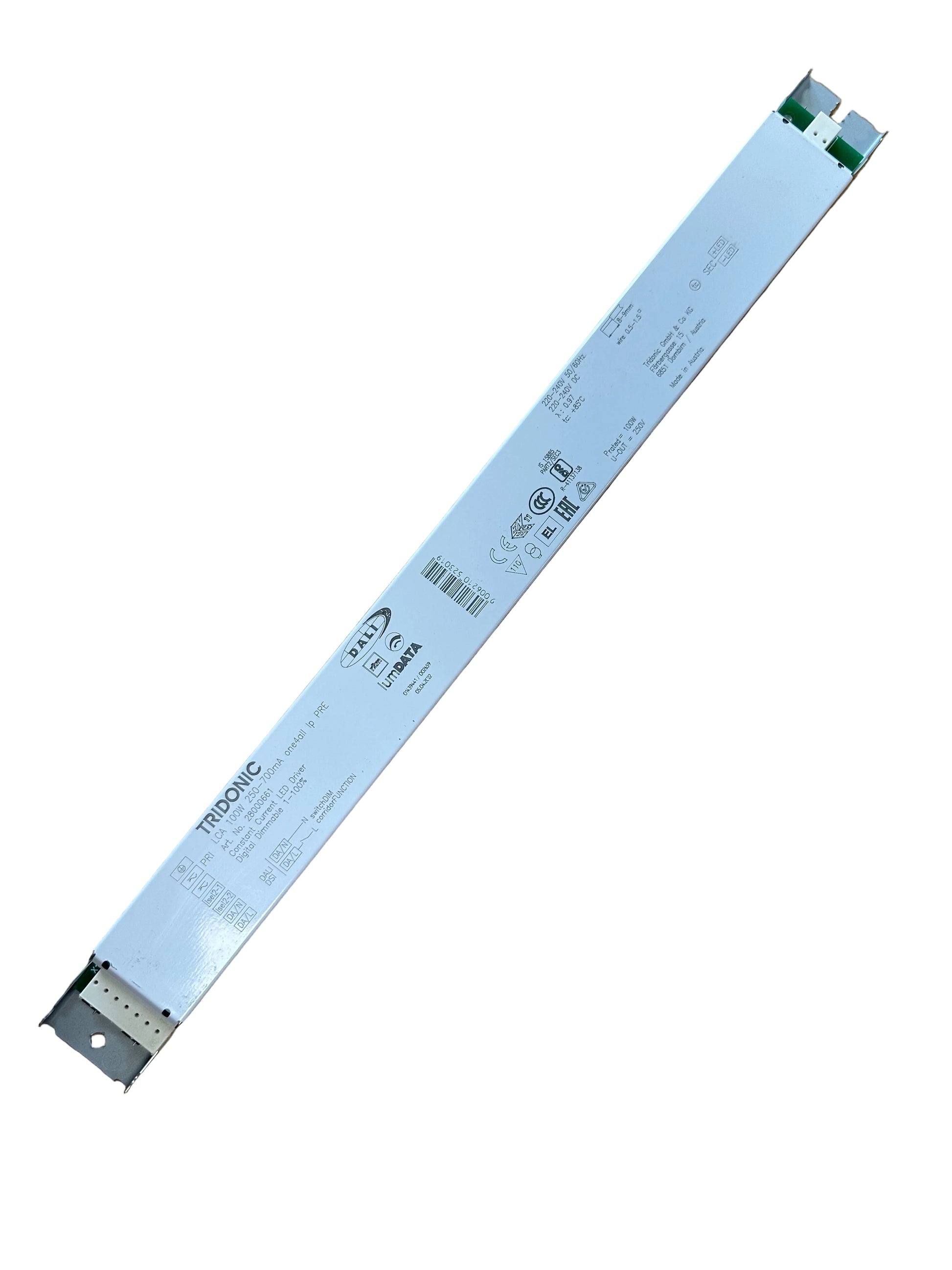

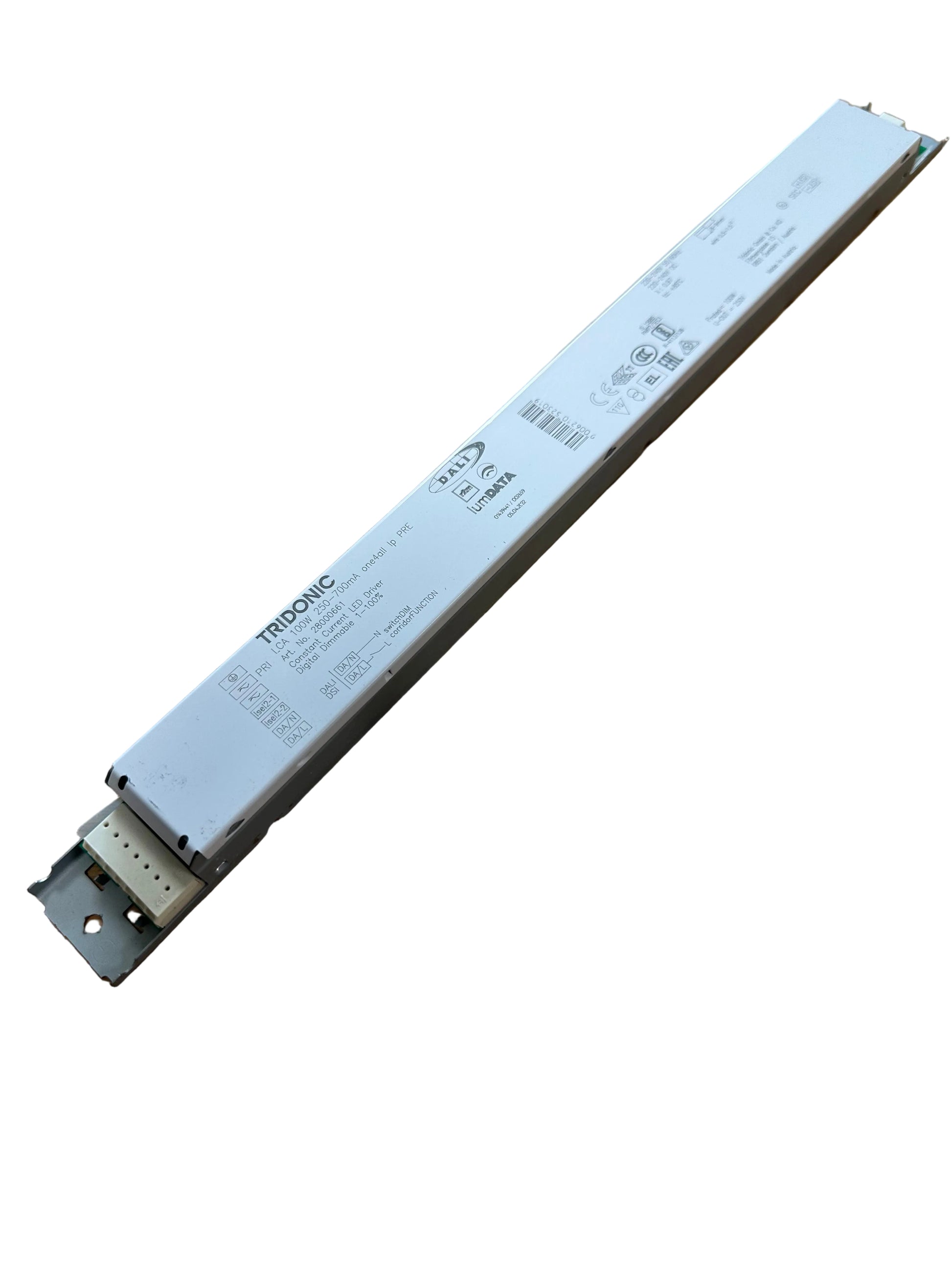

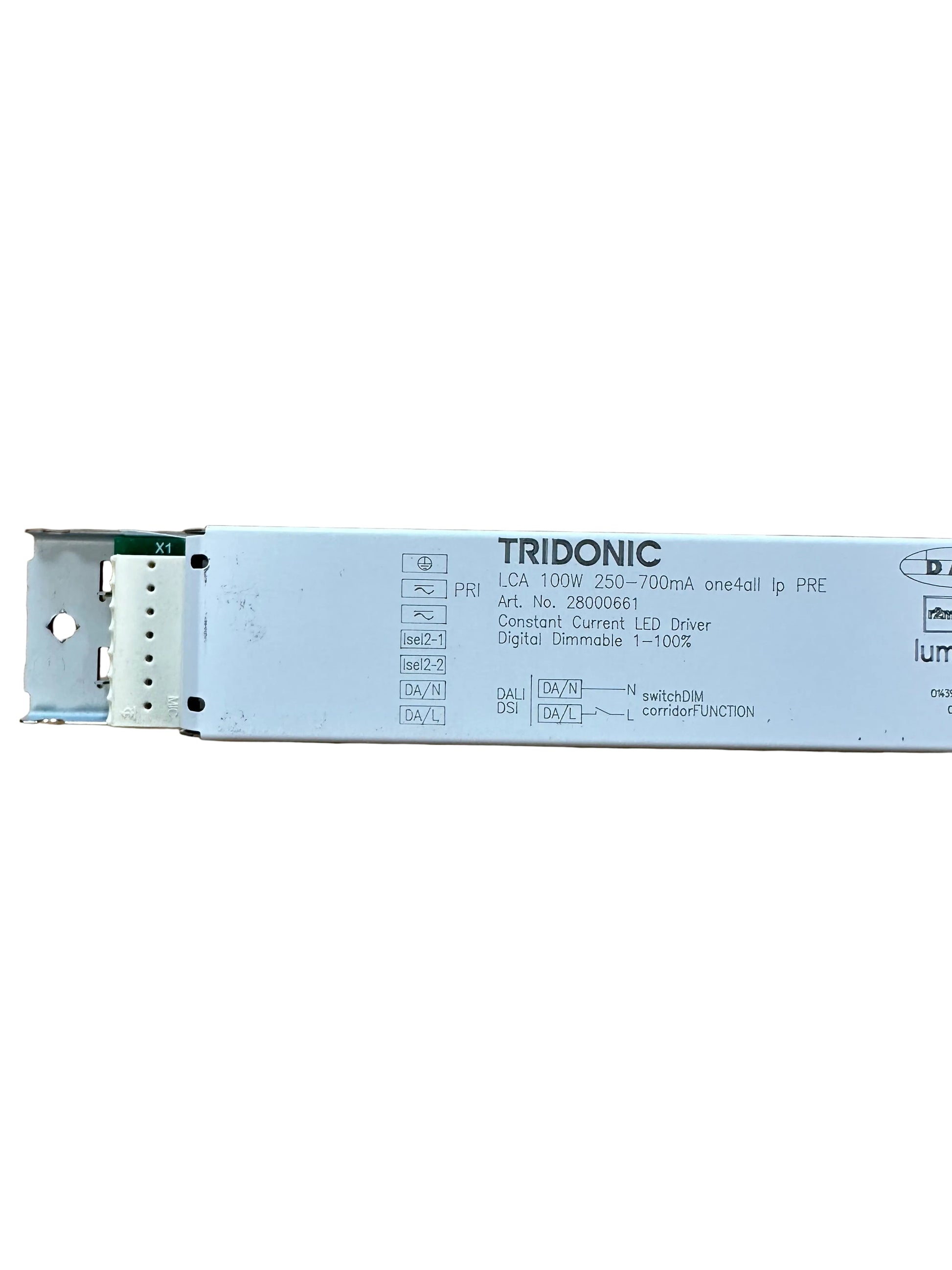

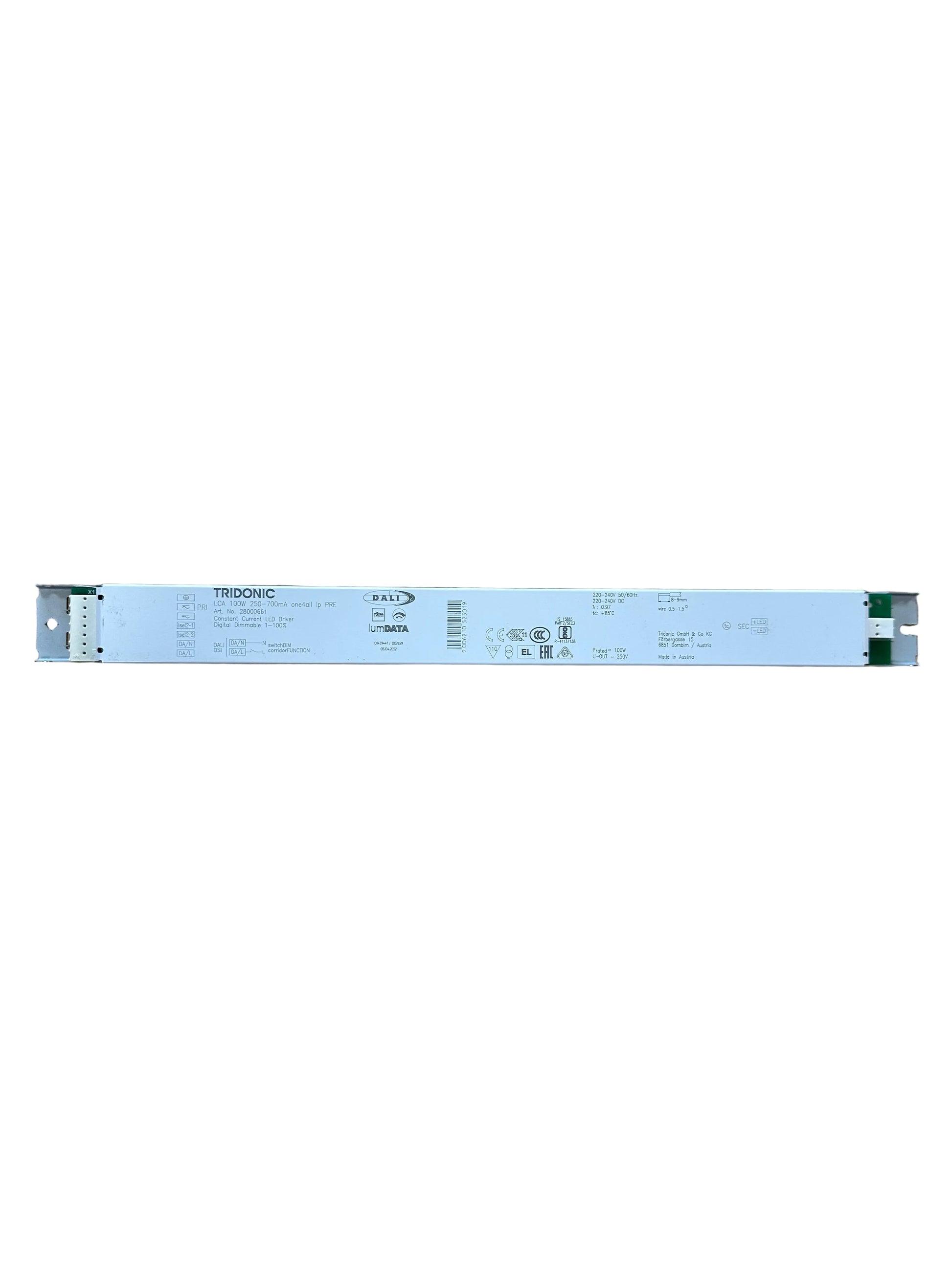

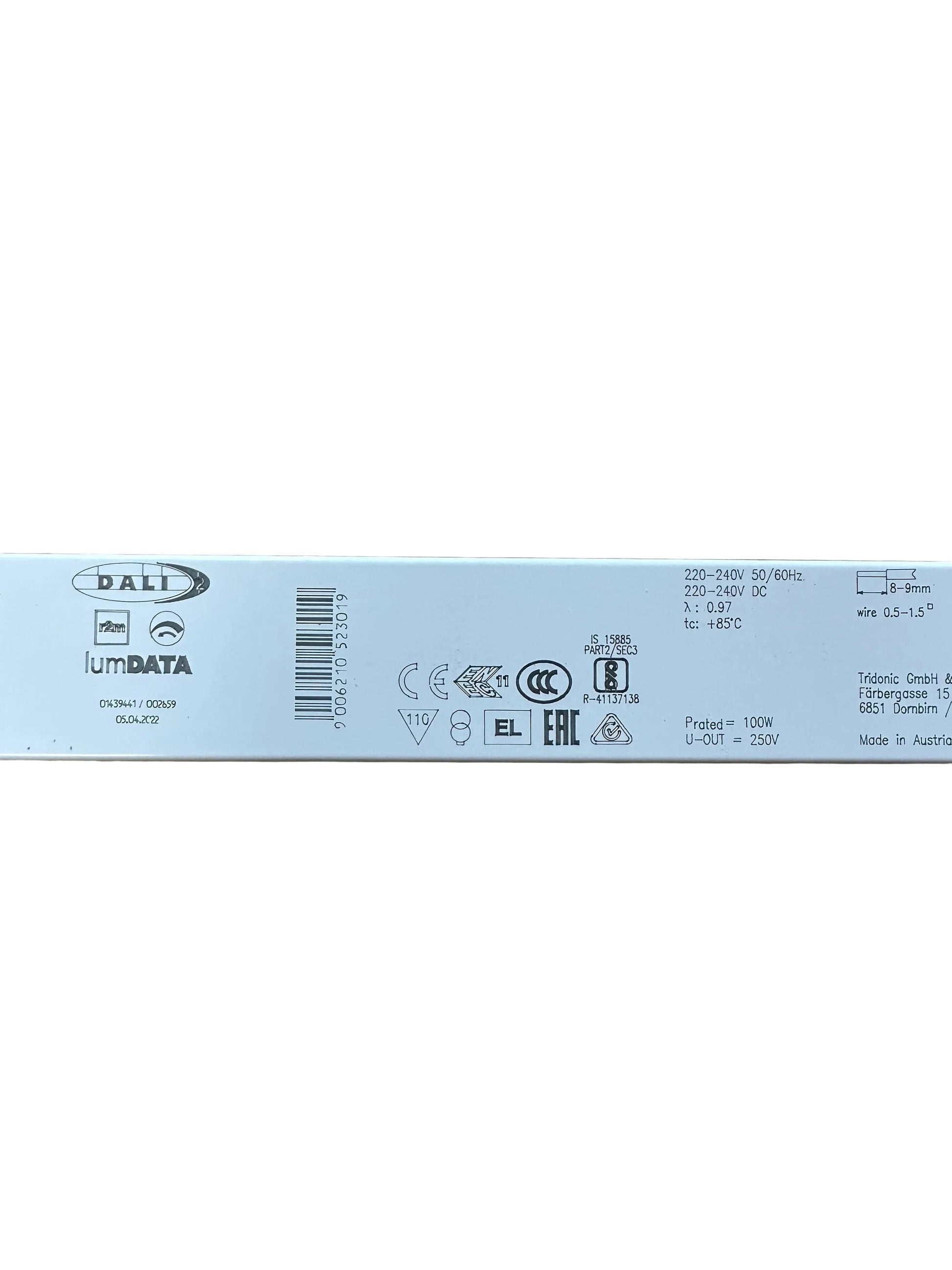

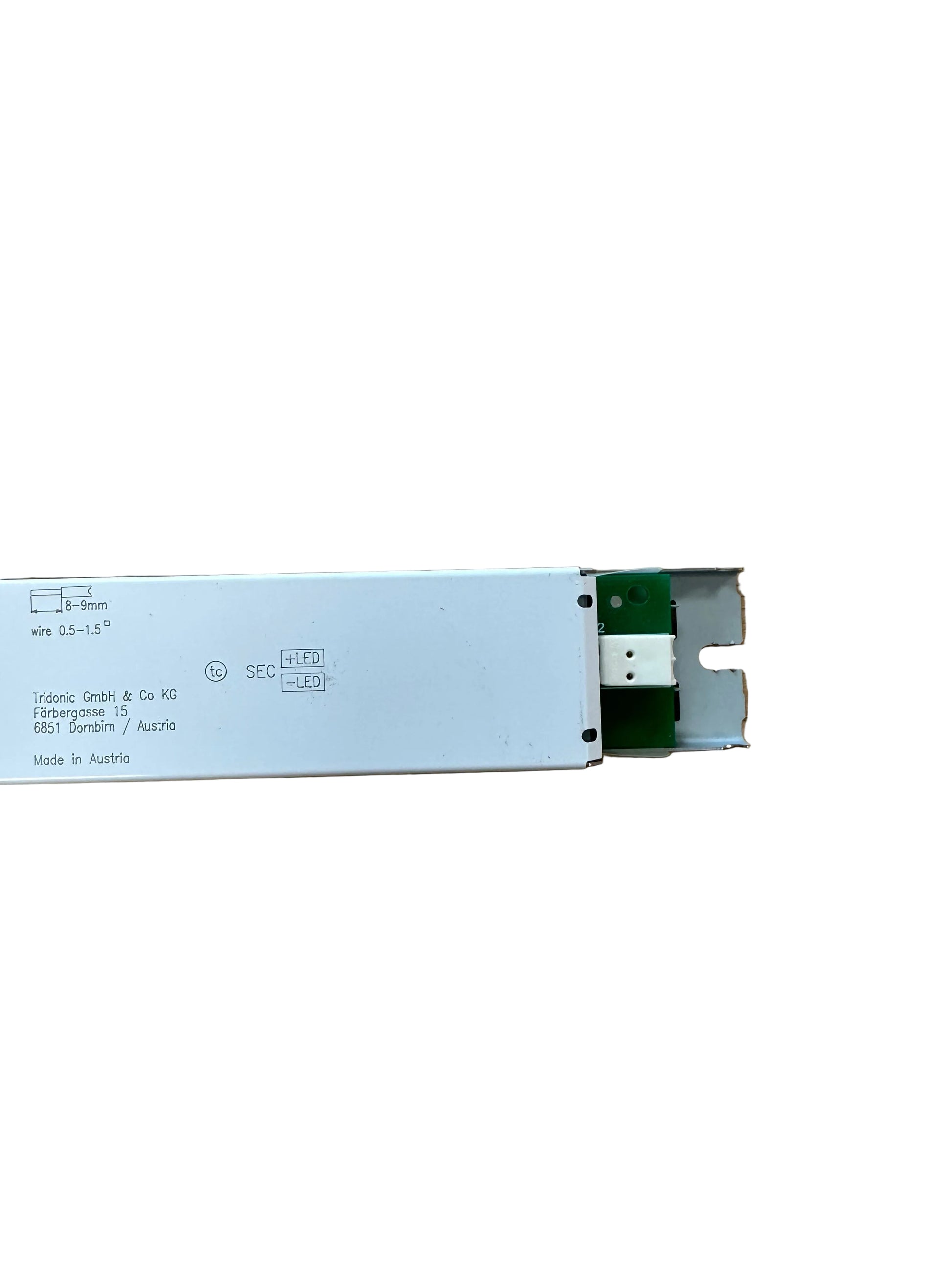

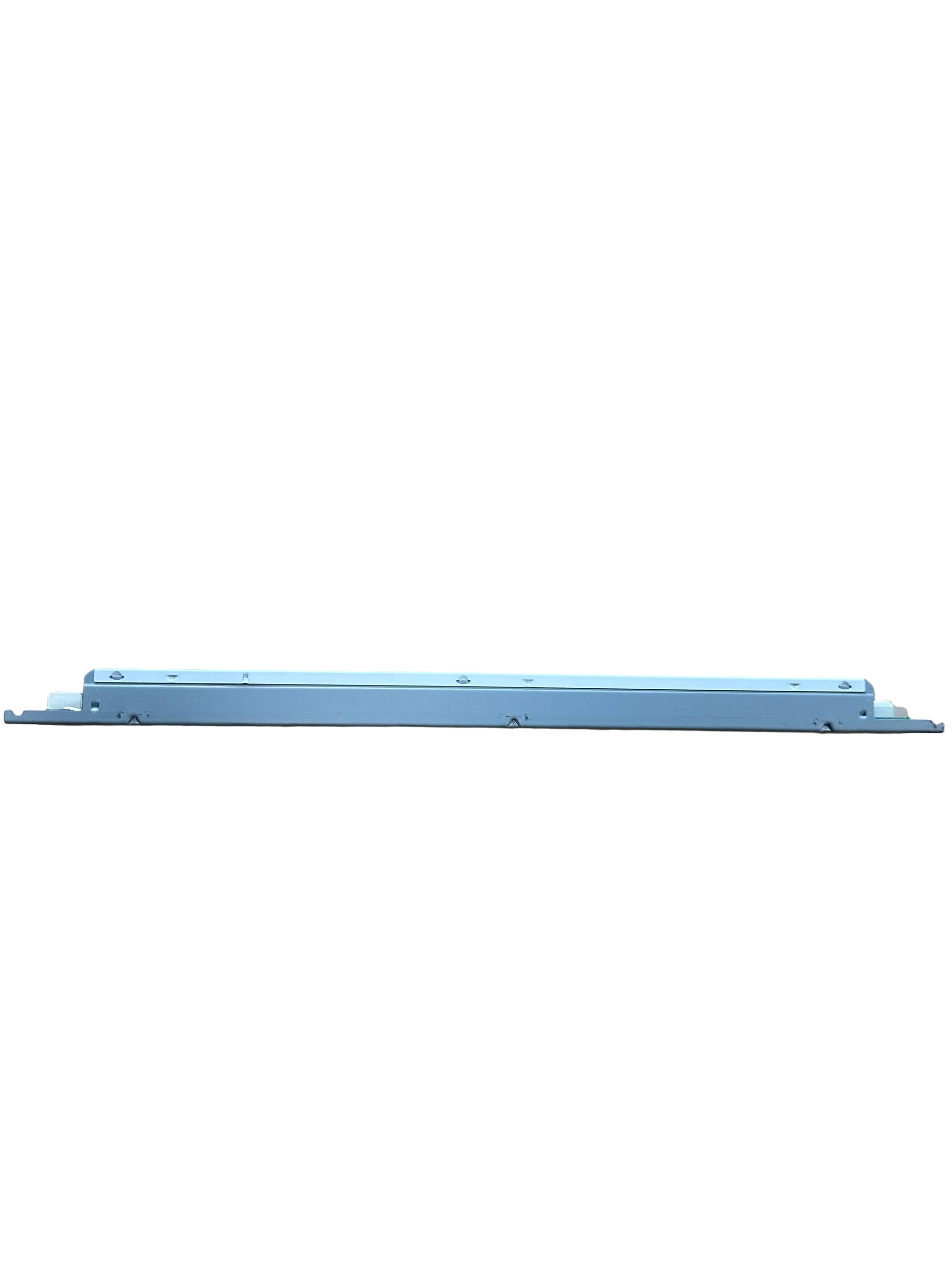

Tridonic 28000661 LCA 100W 250–700mA one4all lp PRE

Tridonic 28000661 LCA 100W 250–700mA one4all lp PRE

Product description

• NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
• Dimmable built-in constant current LED Driver
• Dimming range 1 to 100 %
• For luminaires of protection class I and protection class II
• Output current adjustable between 250 – 700 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
• Max. output power 100 W
• Up to 93 % efficiency
• Power input on stand-by < 0.15 W
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Interfaces

• one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration and dimming via mains)
• Terminal blocks: 0° push terminals
