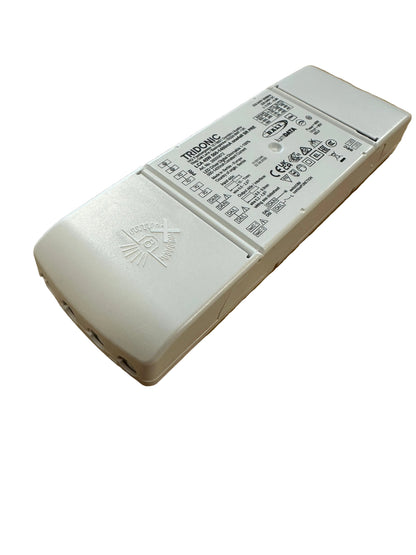

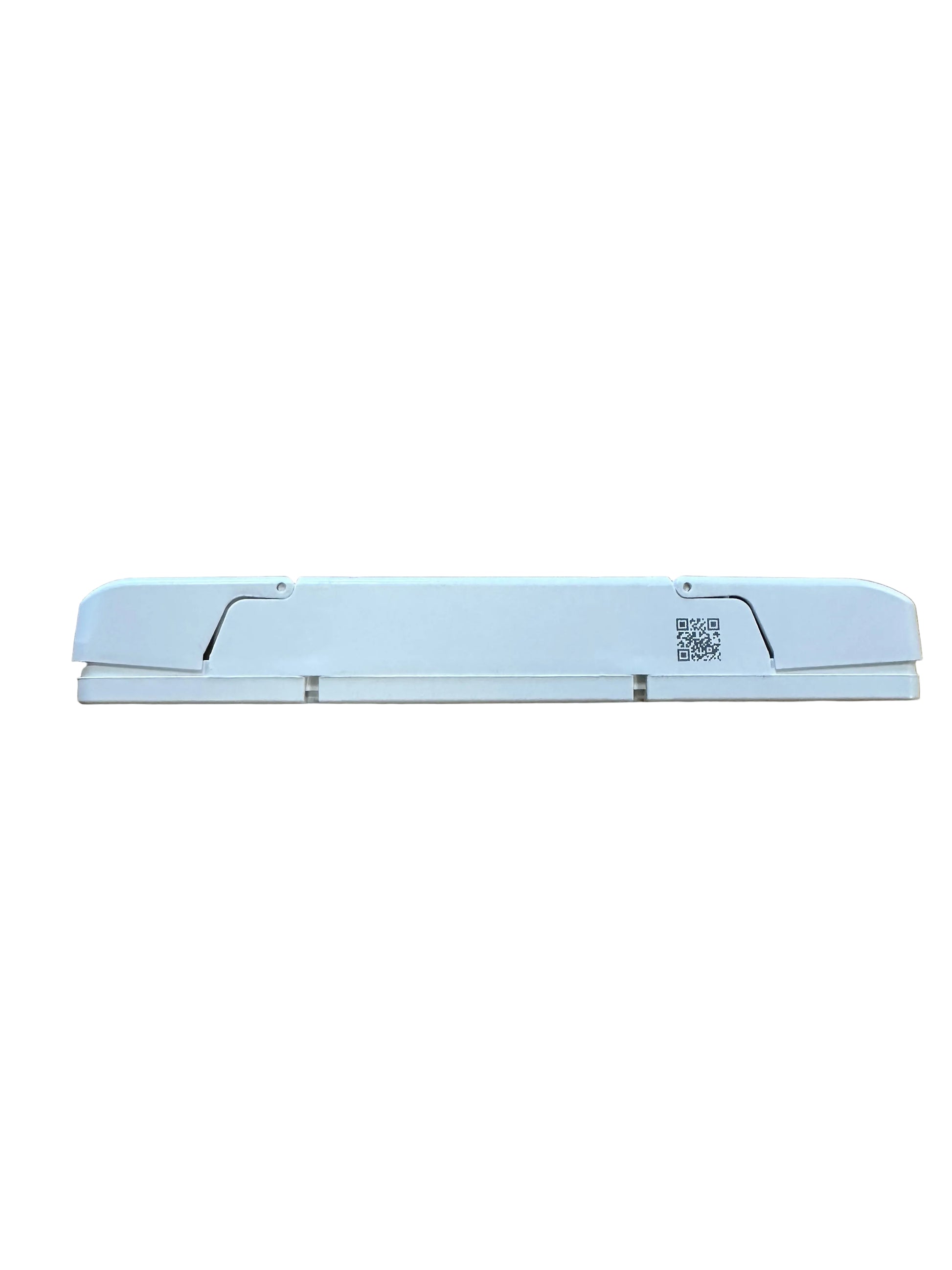

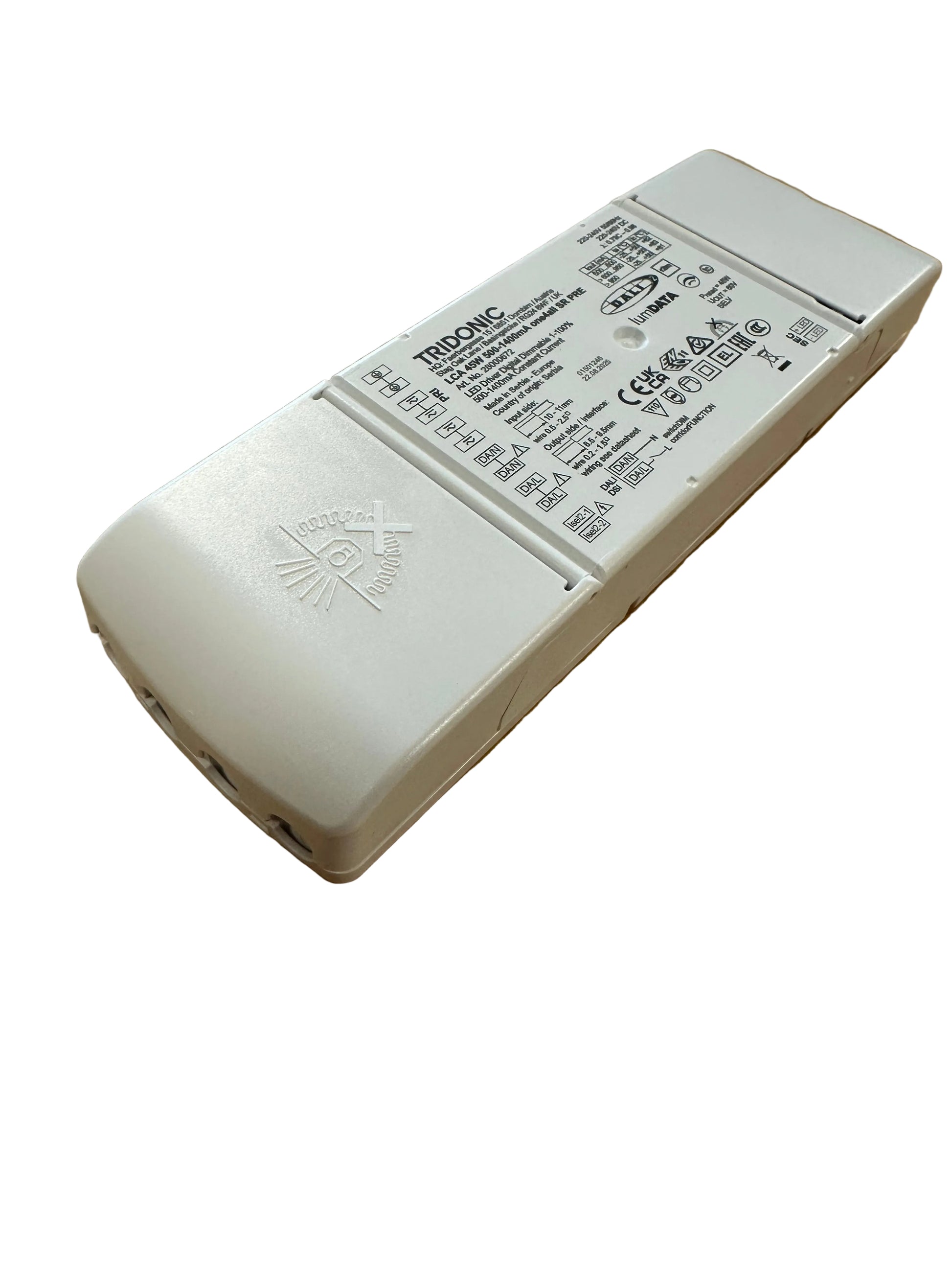

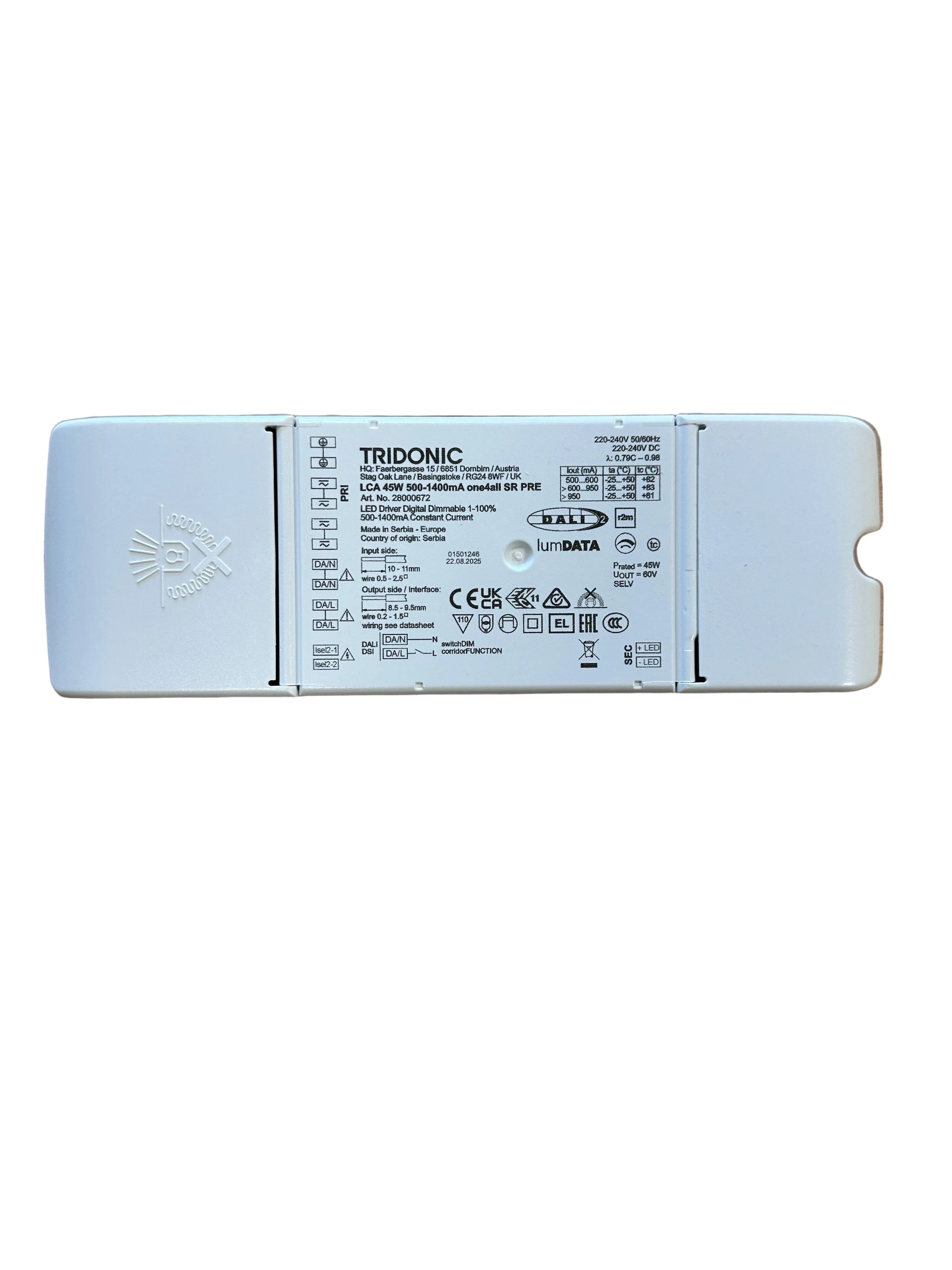

Tridonic 28000672 LCA 45W 500–1400mA one4all SR PRE

Tridonic 28000672 LCA 45W 500–1400mA one4all SR PRE

Product description

• Independent dimmable constant current LED Driver with strain-relief
• Dimmable via DALI / DALI-2
• Dimming range 1 – 100 % (whole operating window)
• Output current adjustable between 500 – 1,400 mA
• Max. output power 45 W
• Up to 90 % efficiency
• Power input on stand-by < 0.15 W
• Nominal life-time up to 100,000 h
• 5-year guarantee

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20

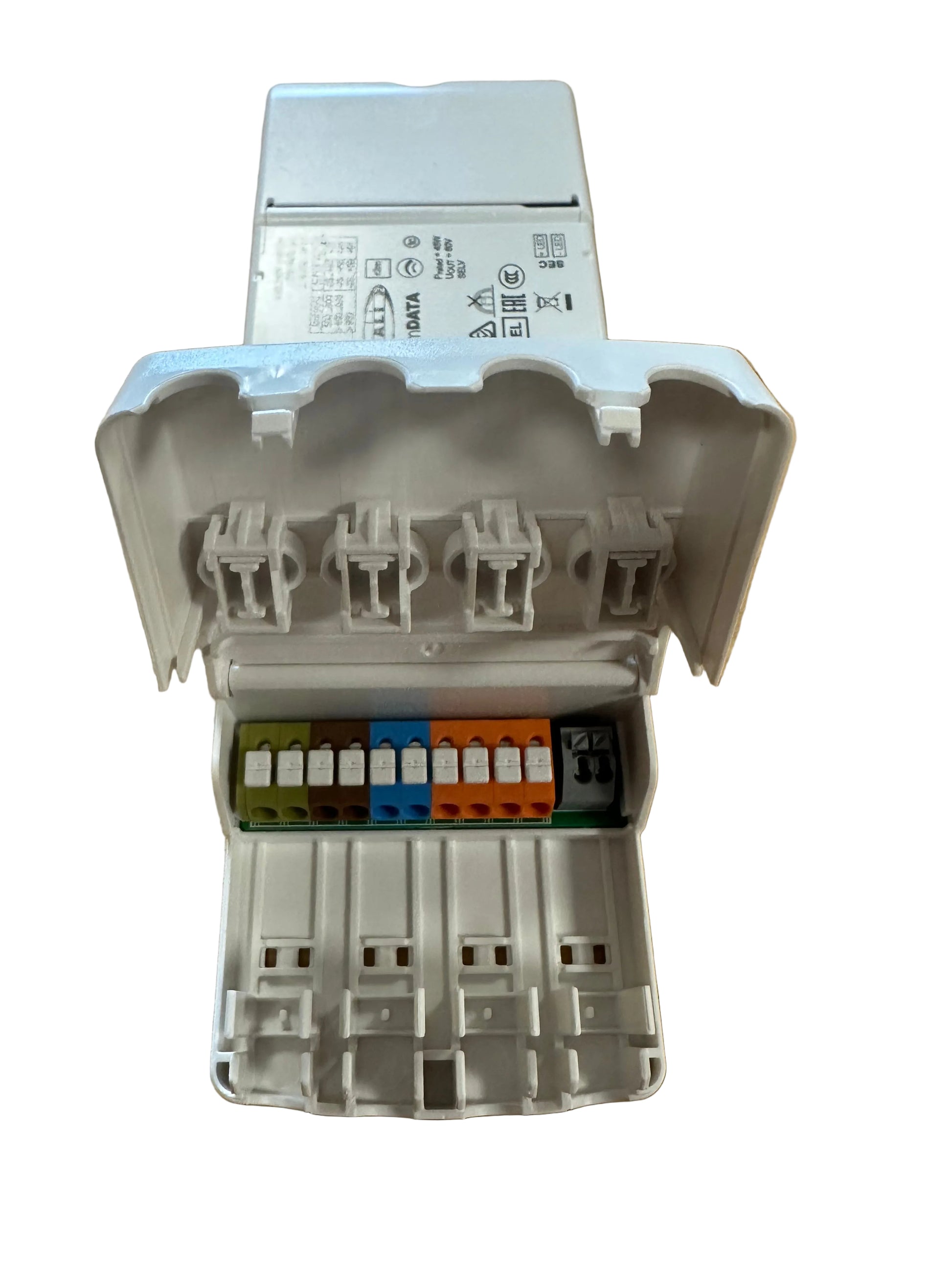

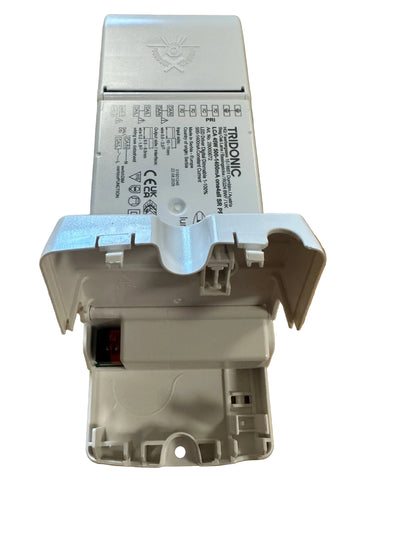

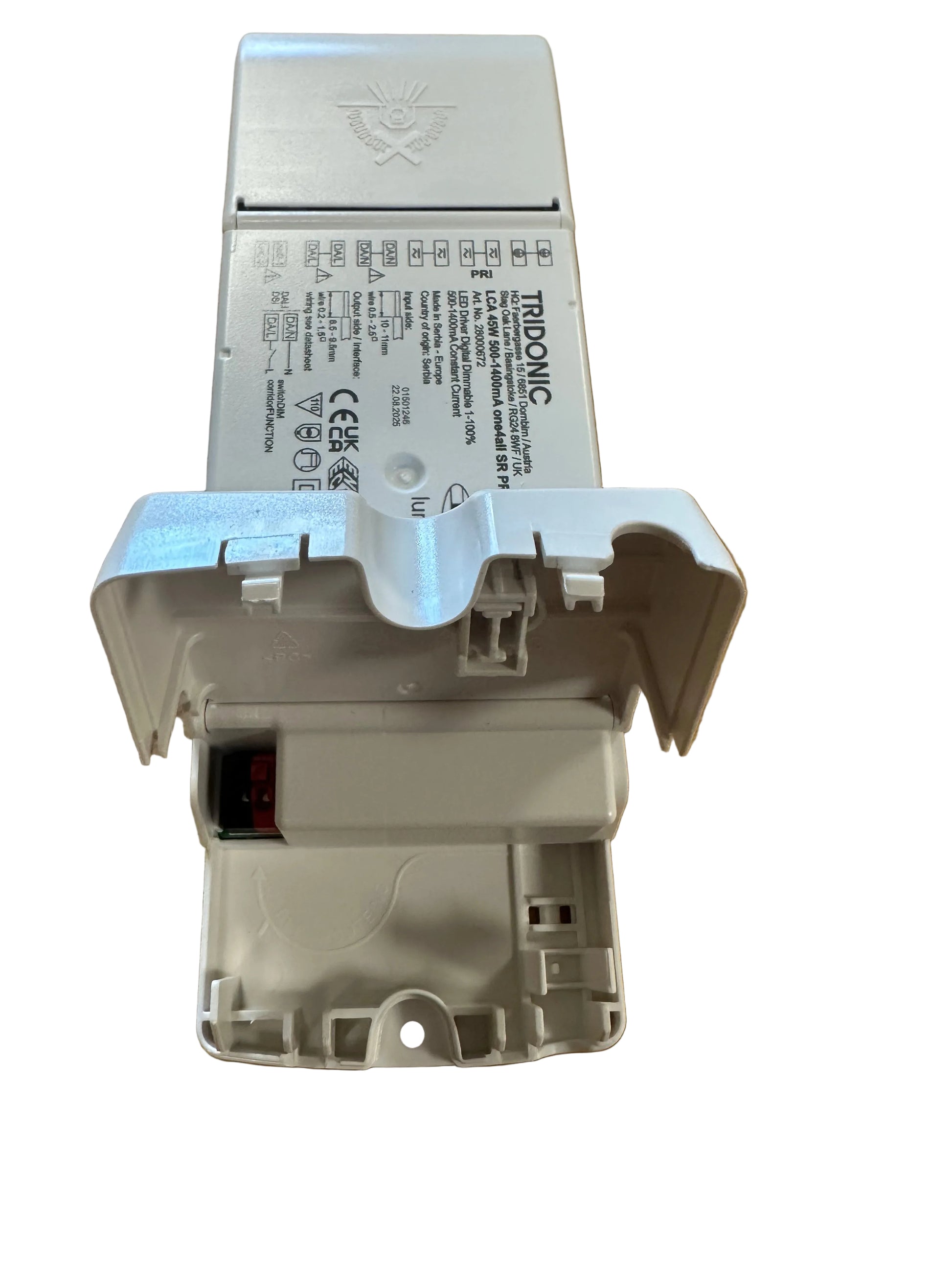

• Strain relief with loop through function

Interfaces

• one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration and dimming via mains)
• Terminal blocks: 0° / 45° push terminals (input / output)

Functions

• Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
• Constant light output function (CLO)
• Power-up fading at AC
• Configurable via ready2mains
• Switch off the Driver with fade2zero
• Service monitor to log certain events
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
• Intelligent Voltage Guard (overvoltage and under voltage monitoring)
• Suitable for emergency escape lighting systems acc. to EN 50172
• For cable cross-sections up to 2.5 mm²
