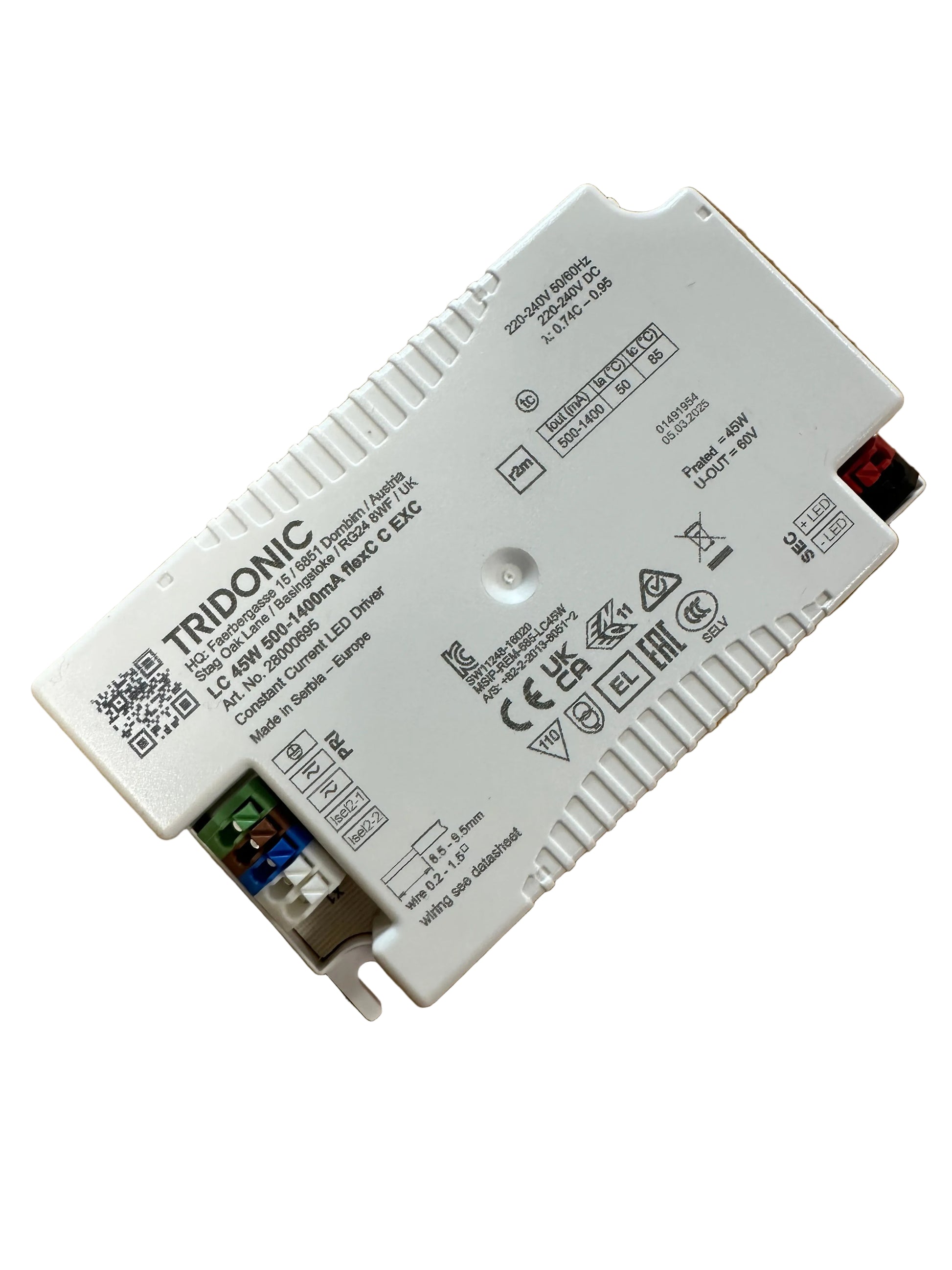

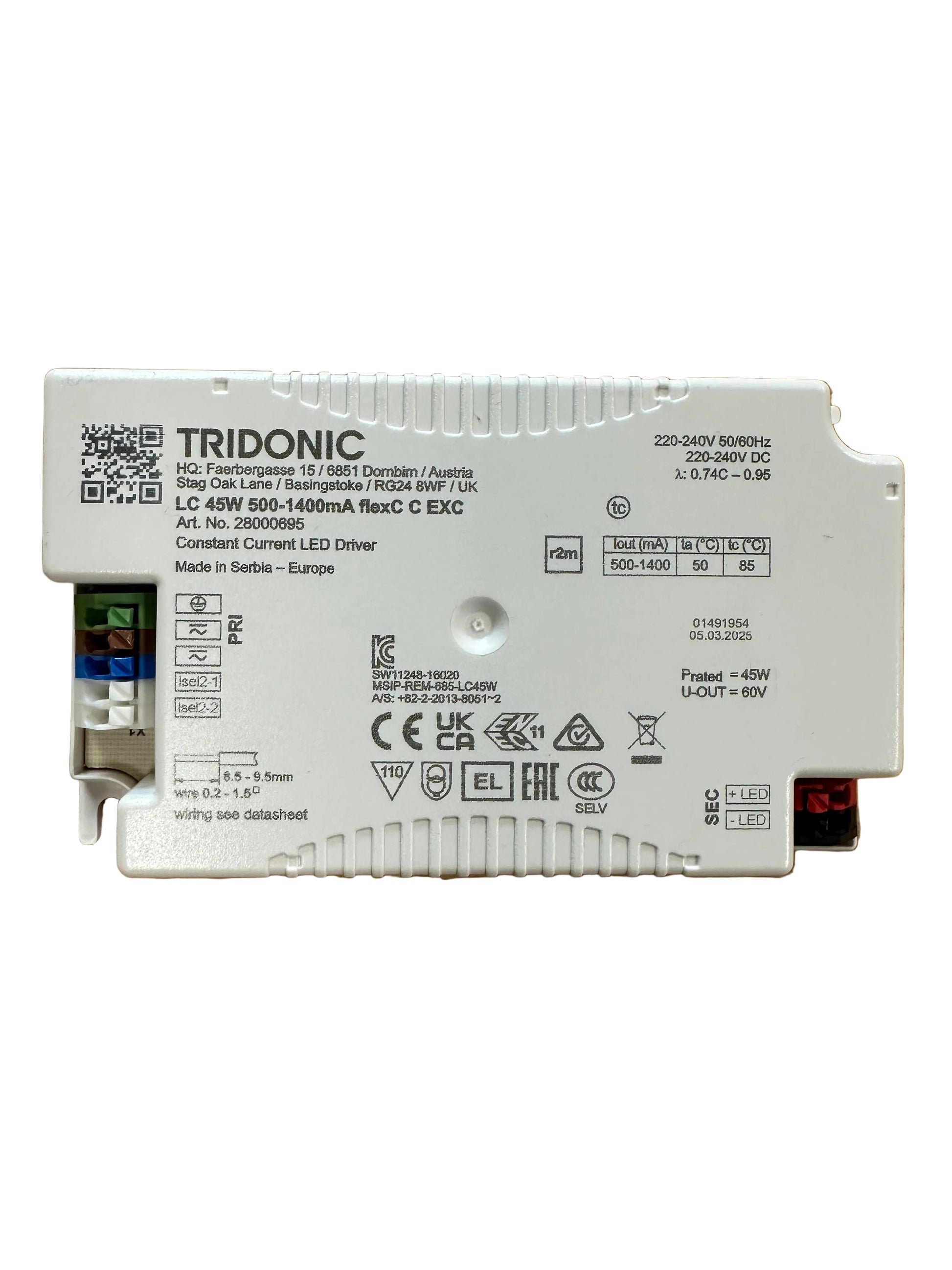

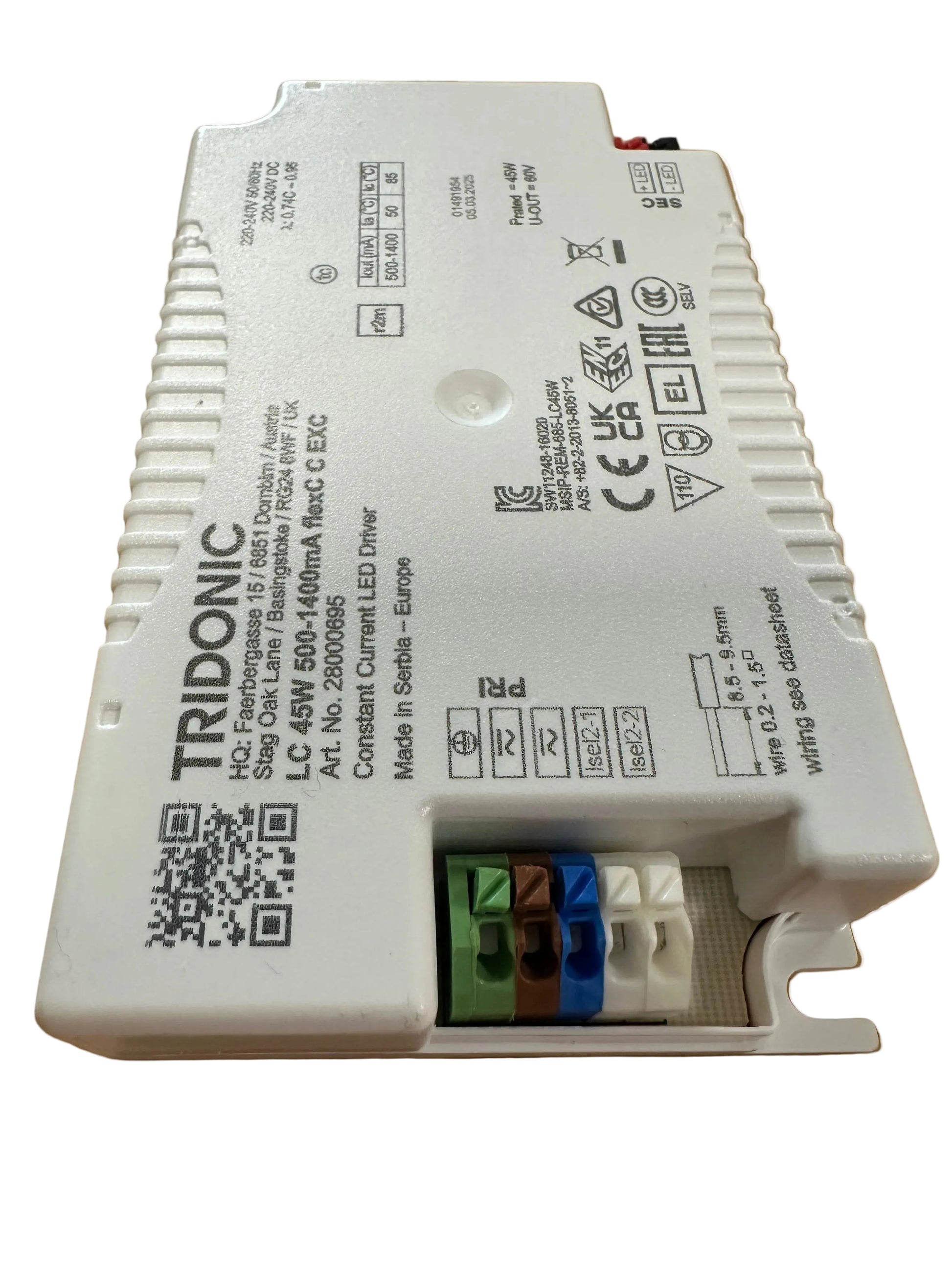

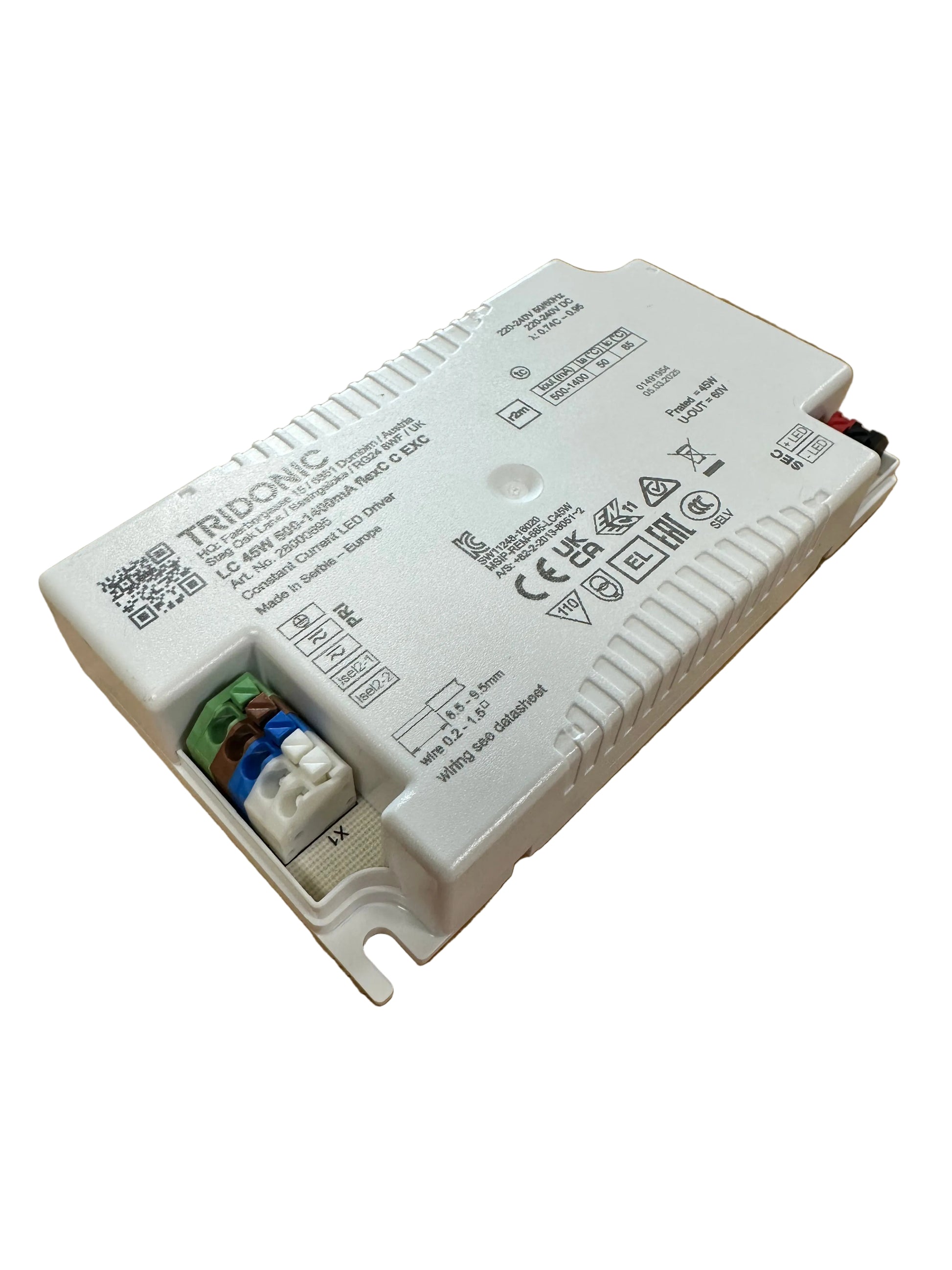

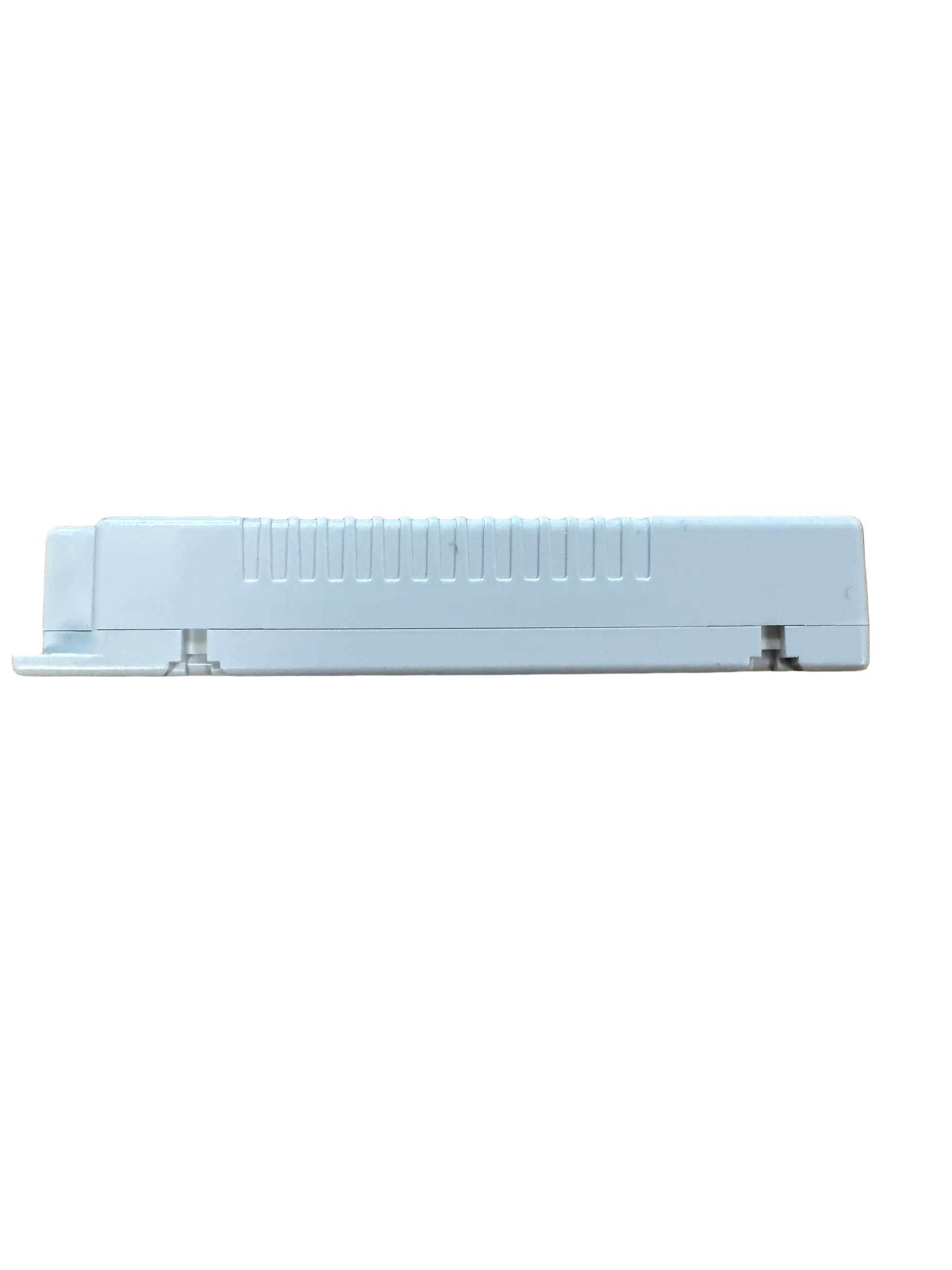

Tridonic 28000695 LC 45W 500–1400mA flexC C EXC

Tridonic 28000695 LC 45W 500–1400mA flexC C EXC

• Constant current LED driver
• Adjustable output current between 500 and 1,400 mA via ready2mains Programmer or I-SELECT 2 plugs
• Max. output power 45 W
• Forward Voltage 20-50V Max, mA dependent (see chart)
• Up to 88 % efficiency
• Nominal lifetime up to 100,000 h
• Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
• Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
• Suitable for emergency escape lighting systems acc. to EN 50172
• Flexible configuration via ready2mains and I-SELECT 2
• 5 years guarantee

Tridonic 28000695
