Tridonic 28000702 LC 60W 900–1750mA flexC SR EXC

Tridonic 28000702 LC 60W 900–1750mA flexC SR EXC

Product description

• Independent constant current LED Driver
• Adjustable output current between 900 and 1,750 mA via ready2mains Programmer or I-SELECT 2 plugs
• Max. output power 60 W
• Up to 90 % efficiency
• Nominal life-time up to 100,000 h
• 5-year guarantee

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20

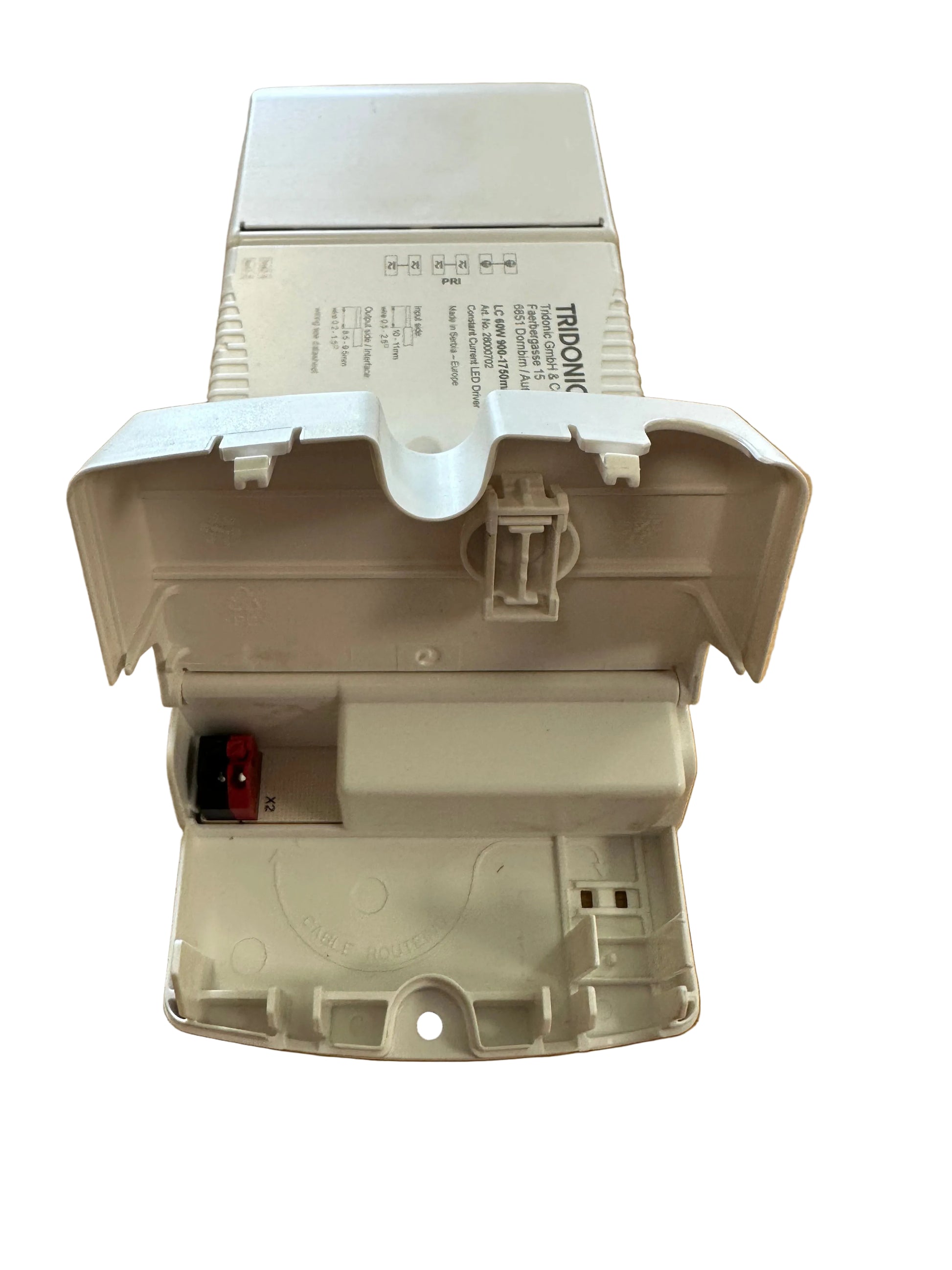

• Strain relief with loop through function

Interfaces

• ready2mains (configuration via mains)

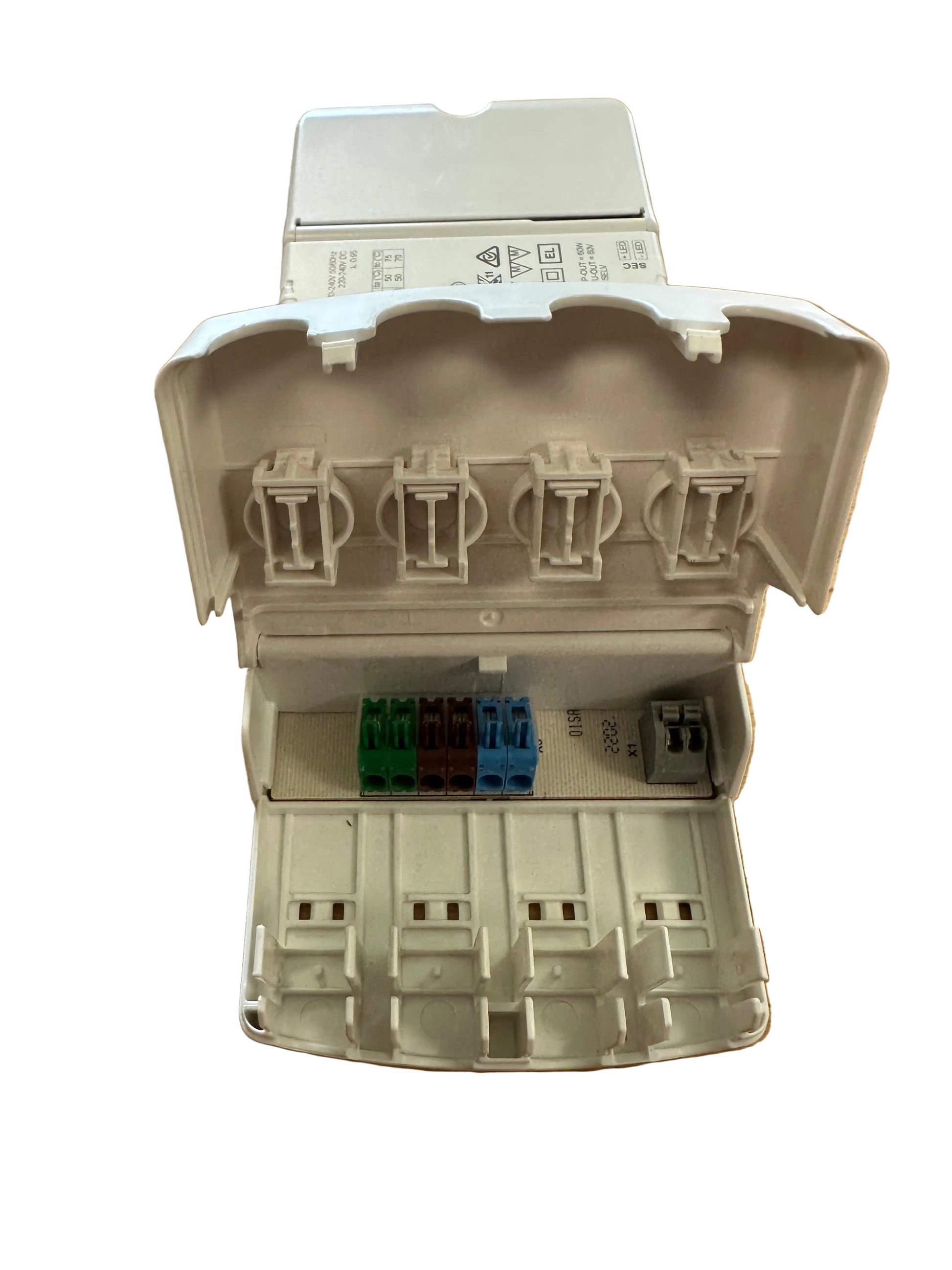

• Terminal blocks: 0° / 45° push terminals (input / output)

Functions

• Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
• Suitable for emergency escape lighting systems acc. to EN 50172
• For cable cross-sections up to 2.5 mm²
