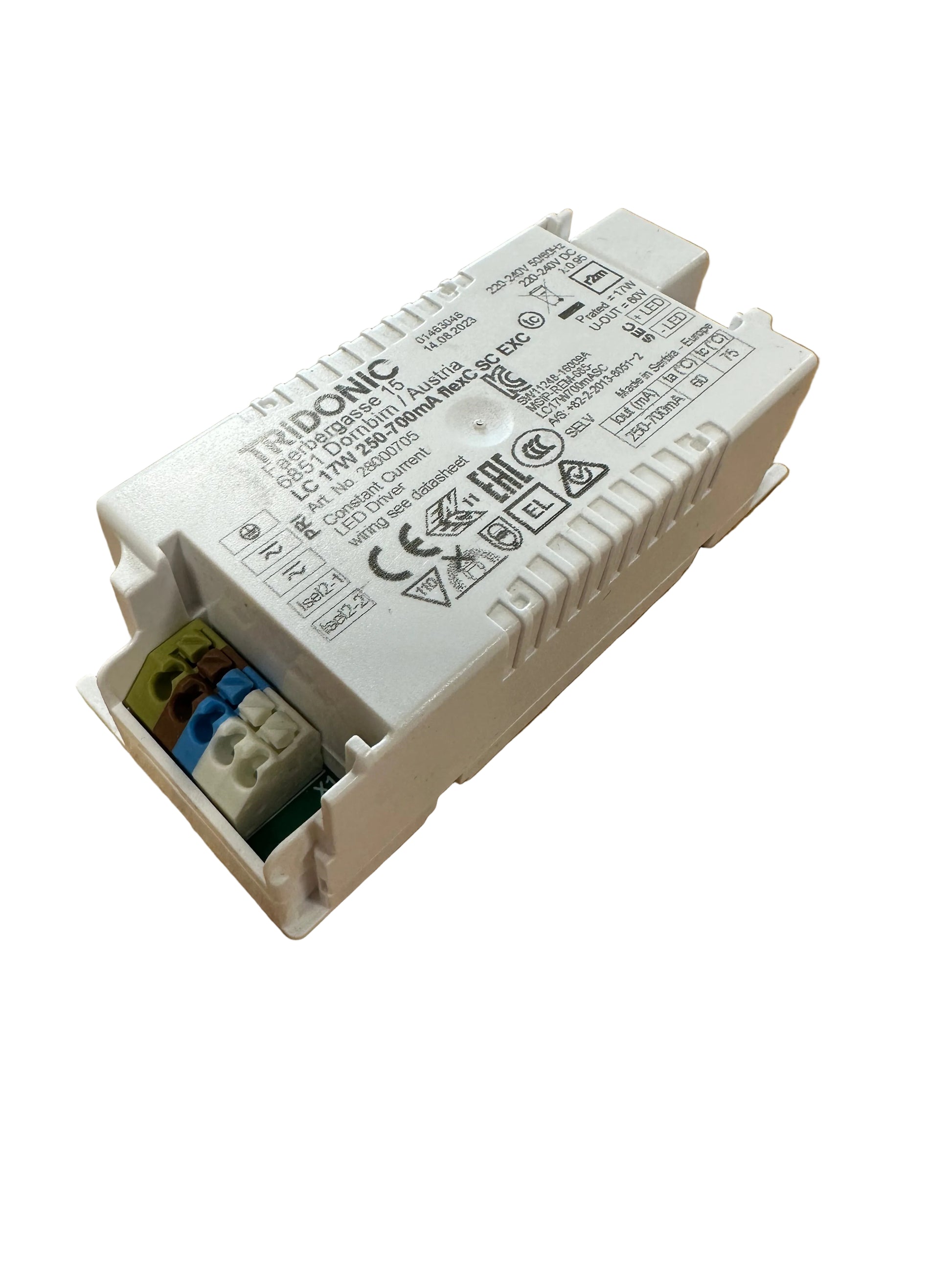

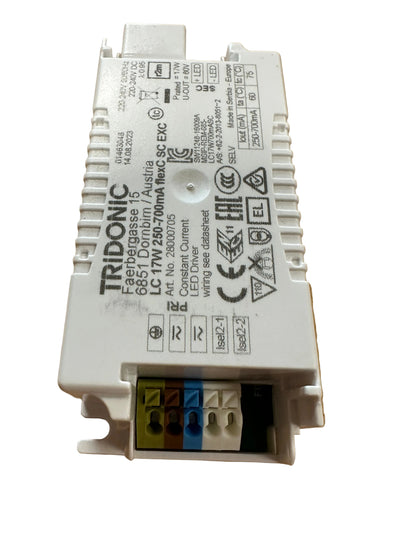

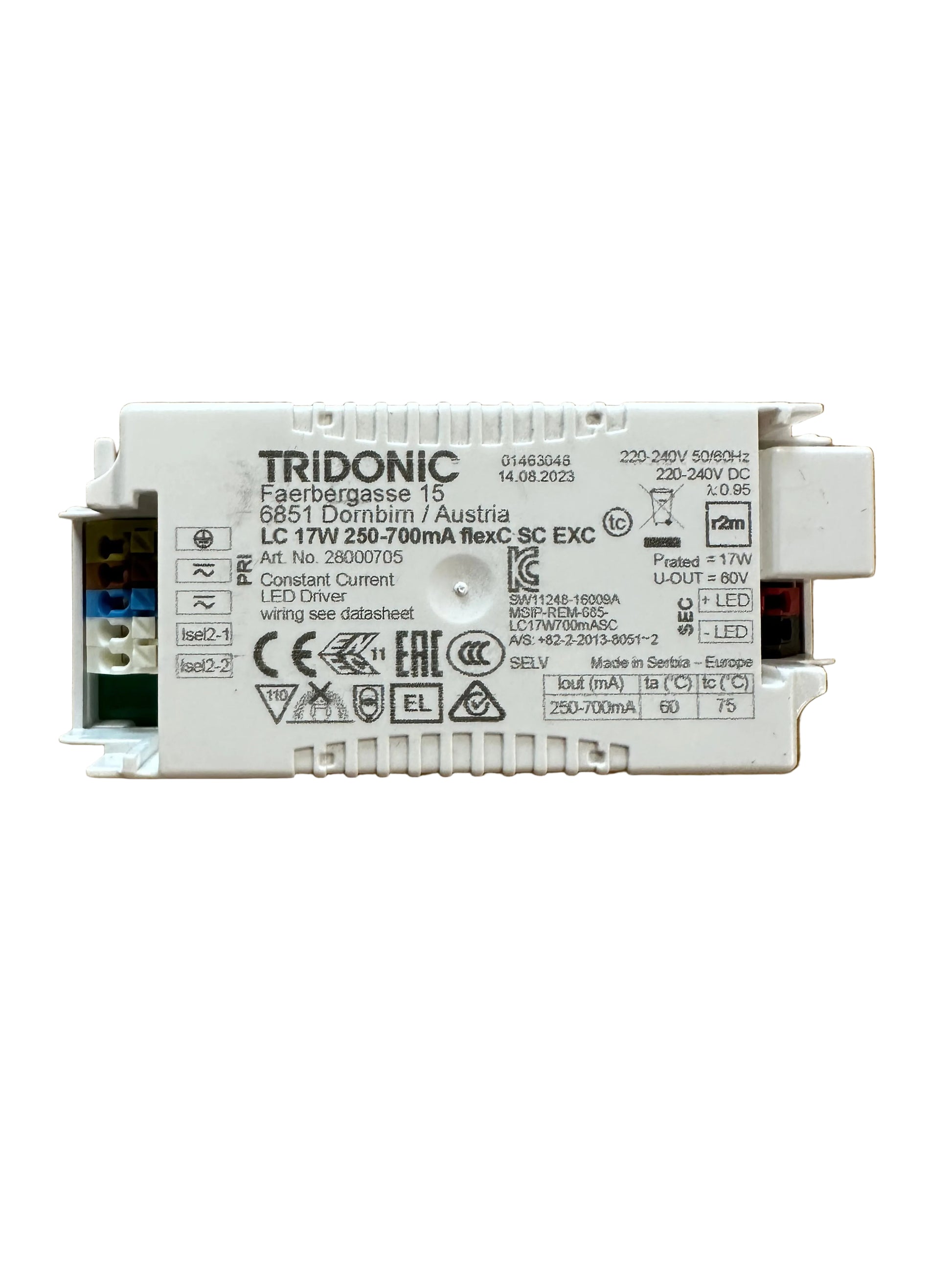

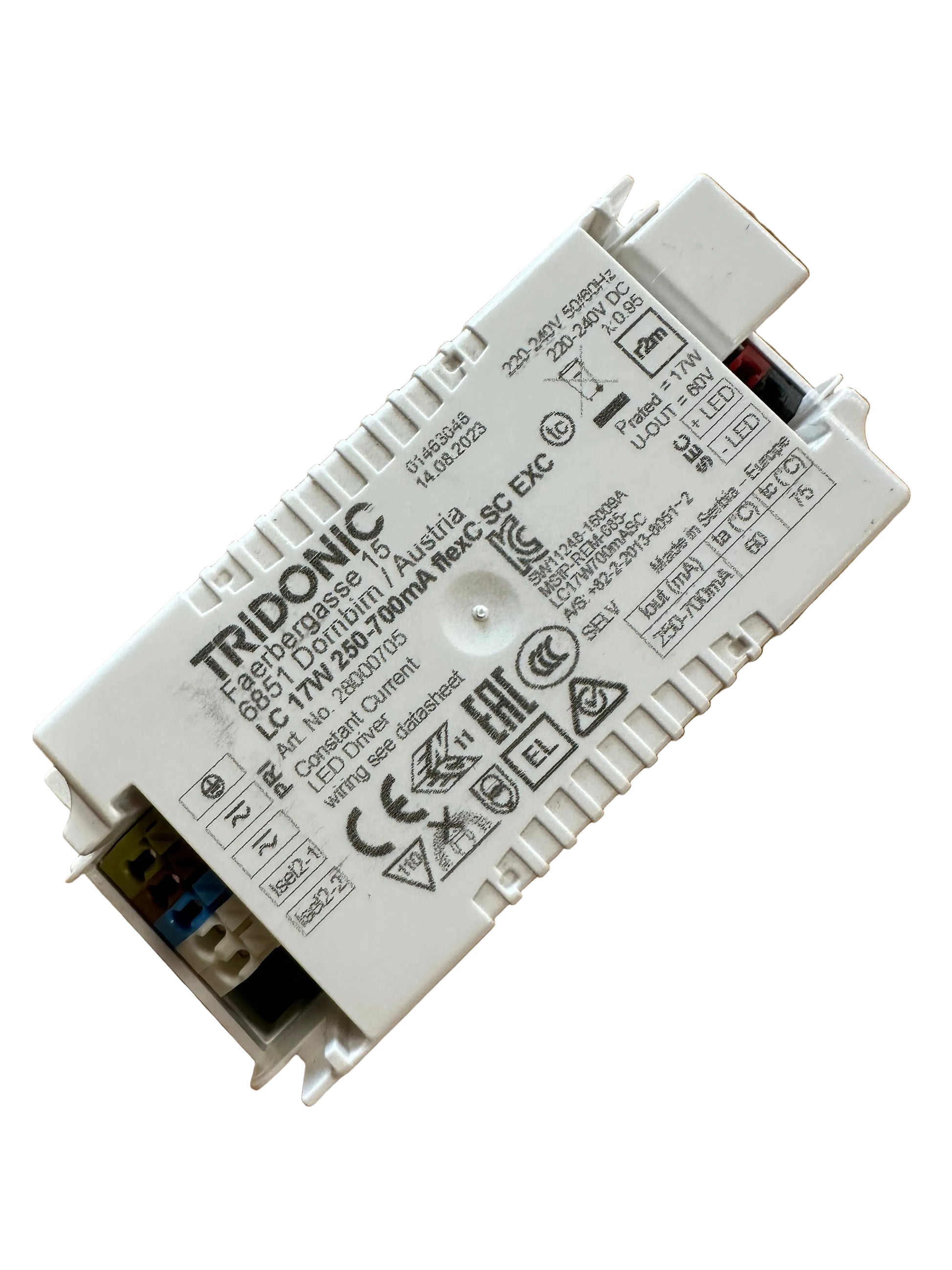

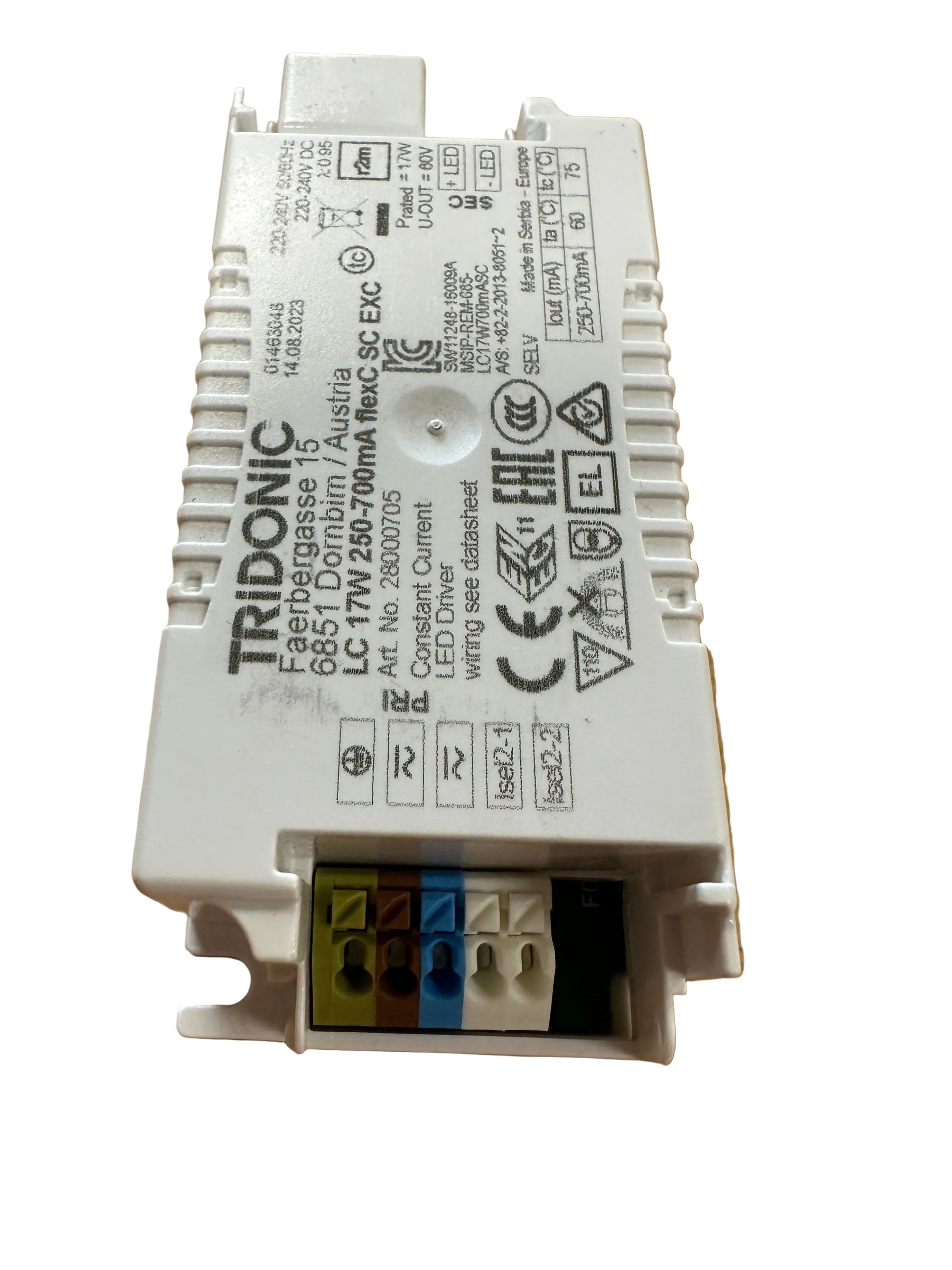

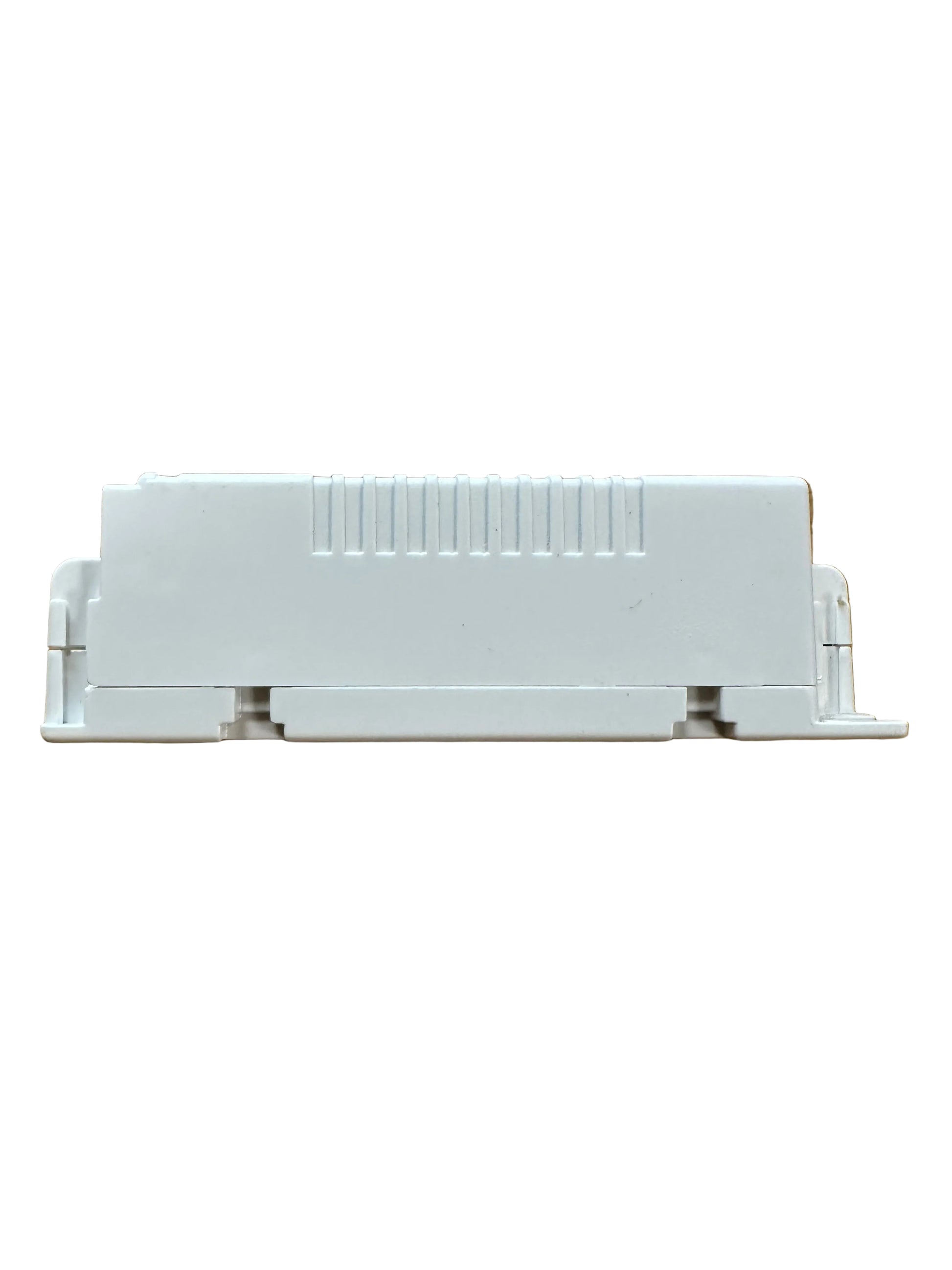

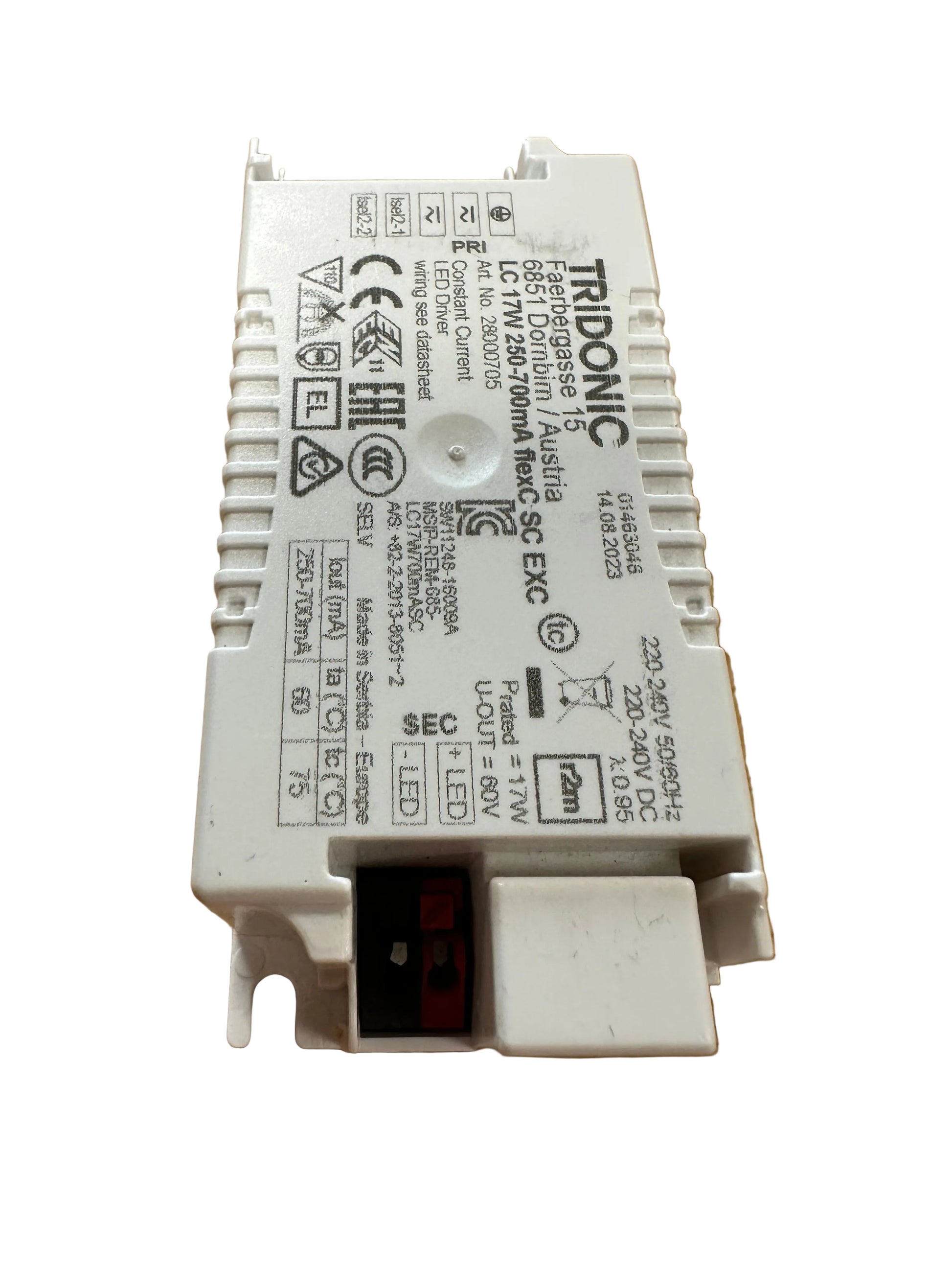

Tridonic 28000705 LC 17W 250–700mA flexC SC EXC

Tridonic 28000705 LC 17W 250–700mA flexC SC EXC

Product description

• Constant current LED driver
• Can be either used built-in or independent with clip-on strain-relief (see accessory)
• Adjustable output current between 250 and 700 mA via ready2mains Programmer or I-SELECT 2 plugs
• Max. output power 17 W
• Up to 86 % efficiency
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20

Interfaces

• ready2mains (configuration via mains)
• Terminal blocks: 45° push terminals

Functions

• Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
• Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
• Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

• Application-oriented operating window for maximum compatibility
• Best energy savings due to high efficiency
• Flexible configuration via ready2mains and I-SELECT 2
