Tridonic 28001253 LCA 100W 24V one4all SC PRE

Tridonic 28001253 LCA 100W 24V one4all SC PRE

Tridonic 28001922

Comes complete with End Caps

Product description

• Dimmable 24 V constant voltage LED Driver for flexible constant voltage strips
• Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• One4all interface and ready2mains enable different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Typical applications

• Cove lighting, facade accent lighting, ceiling integration

Technical details

• 24 V, 100 W

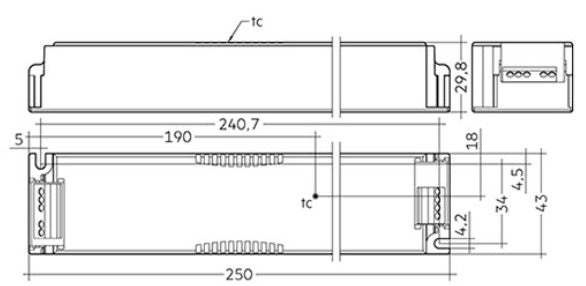

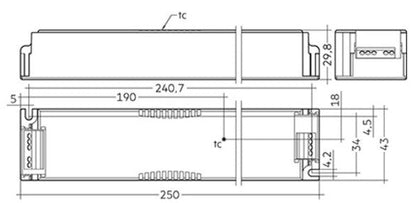

• Small design (295 x 43 x 30 mm) with stretched-compact strain relief
• Small cross section
• Push terminals for simple wiring
• Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

• one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration and dimming via mains)
• Terminal blocks: 45° push terminals

Tridonic 28001253
