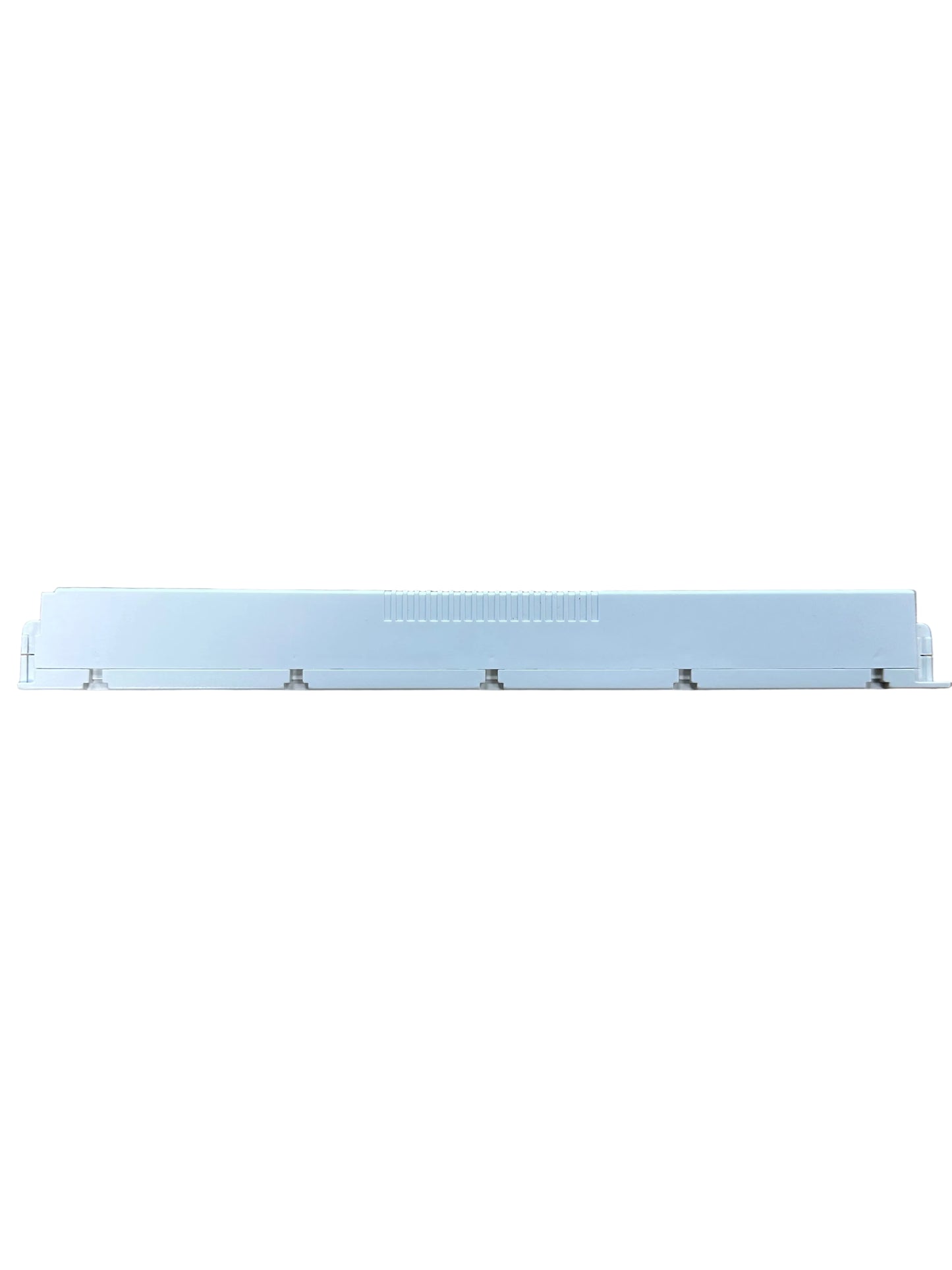

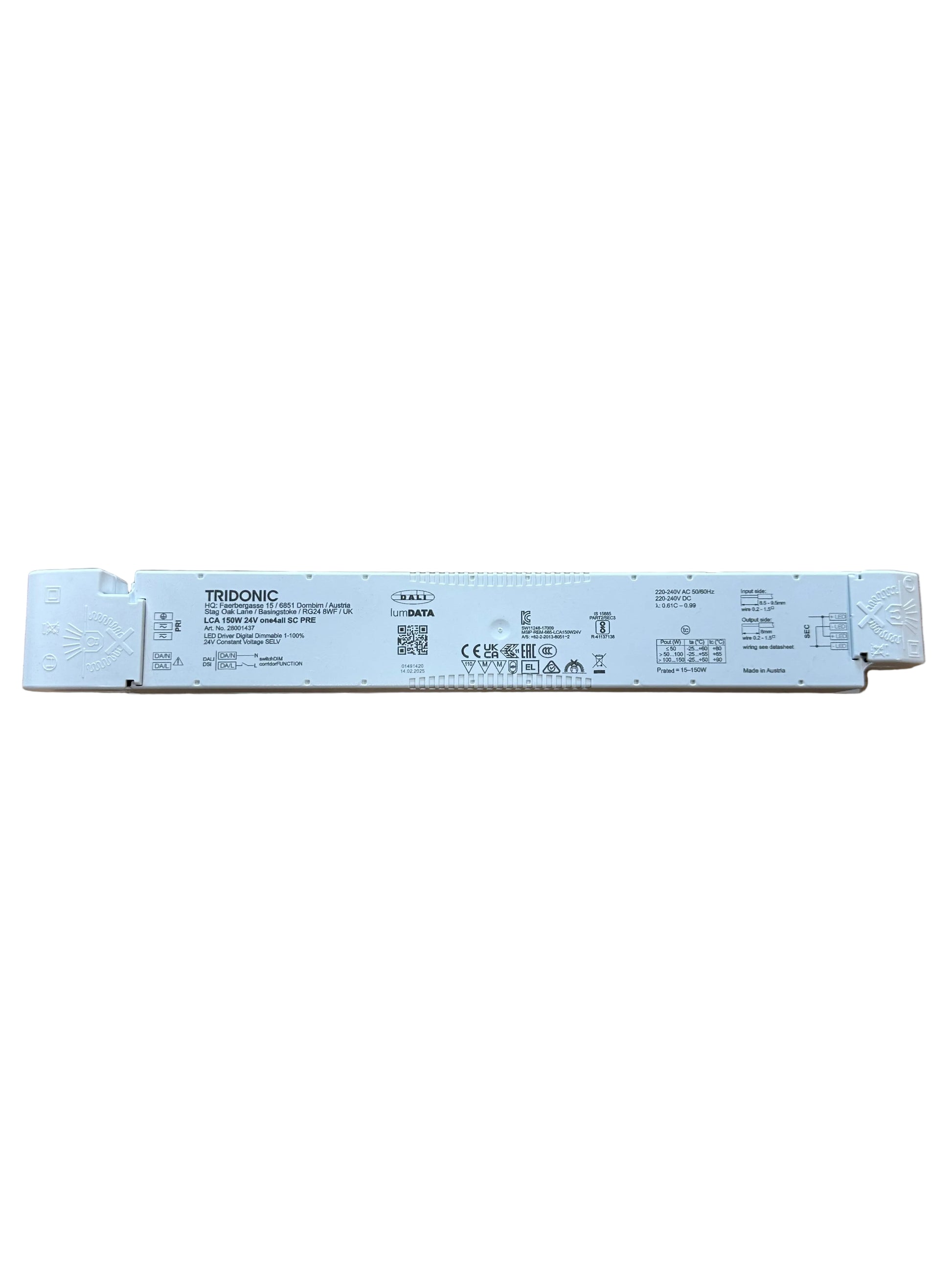

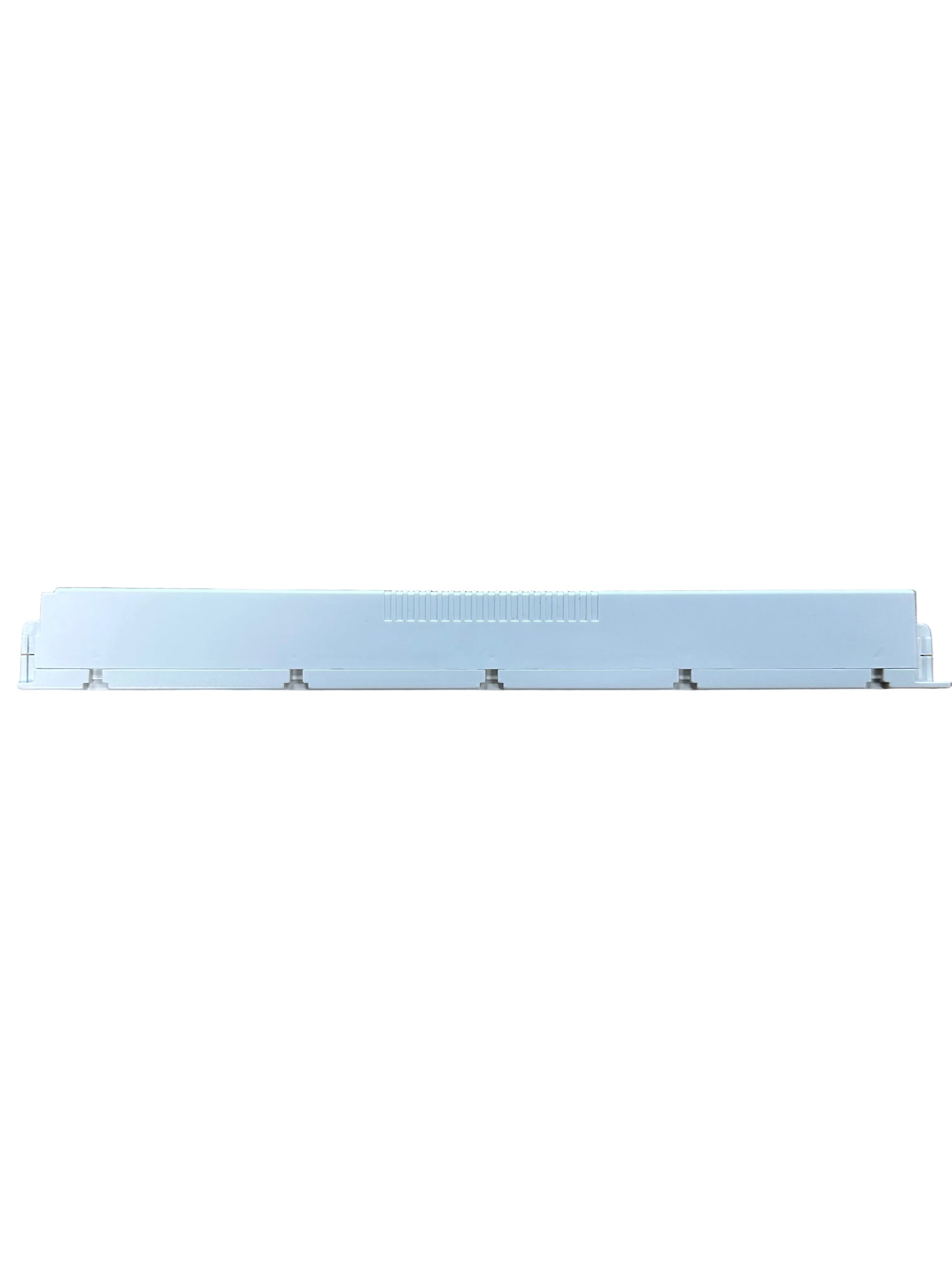

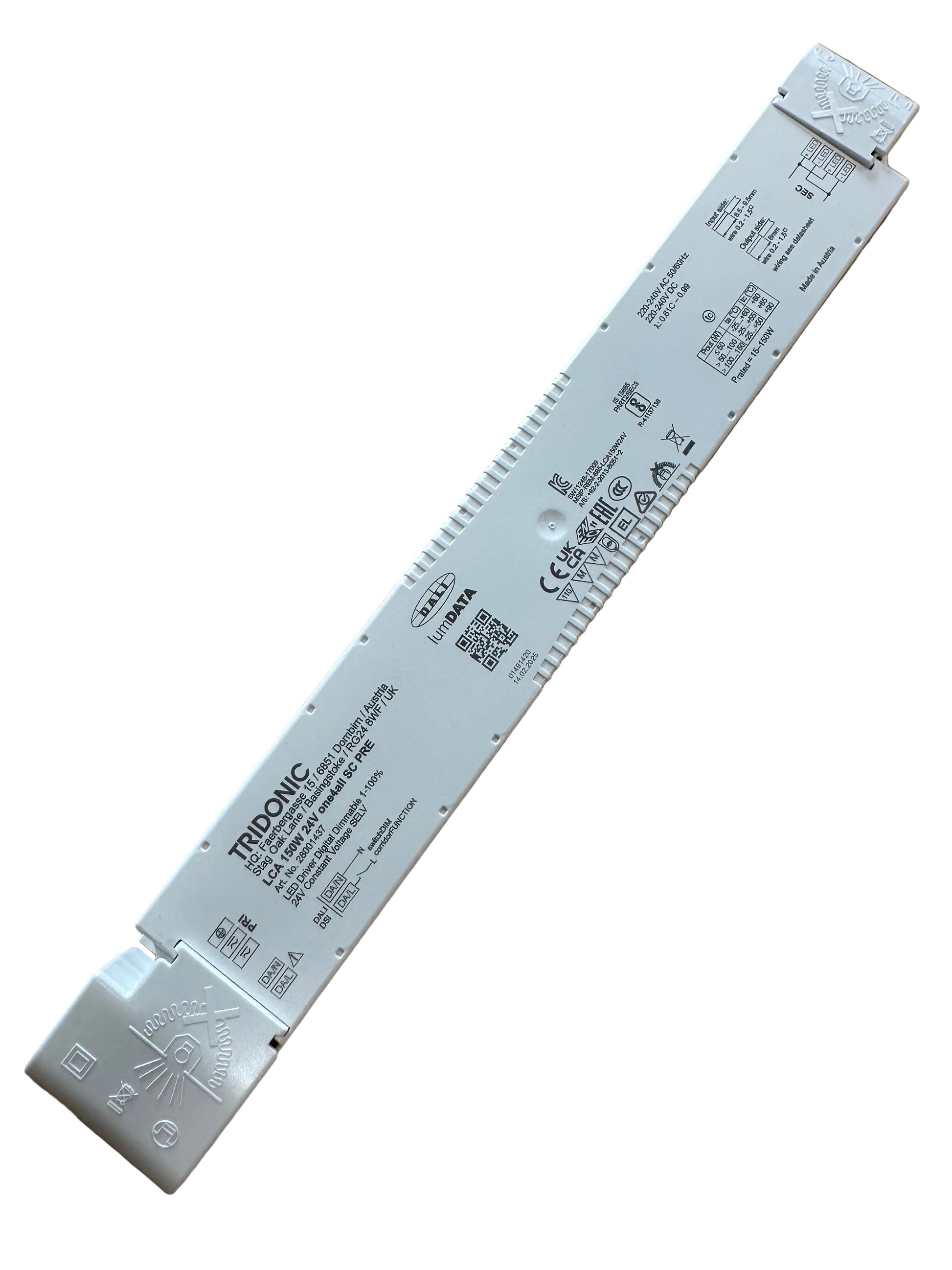

Tridonic 28001437 LCA 150W 24V one4all SC PRE 150W 24V DALI Driver

Tridonic 28001437 LCA 150W 24V one4all SC PRE 150W 24V DALI Driver

Tridonic 28001923

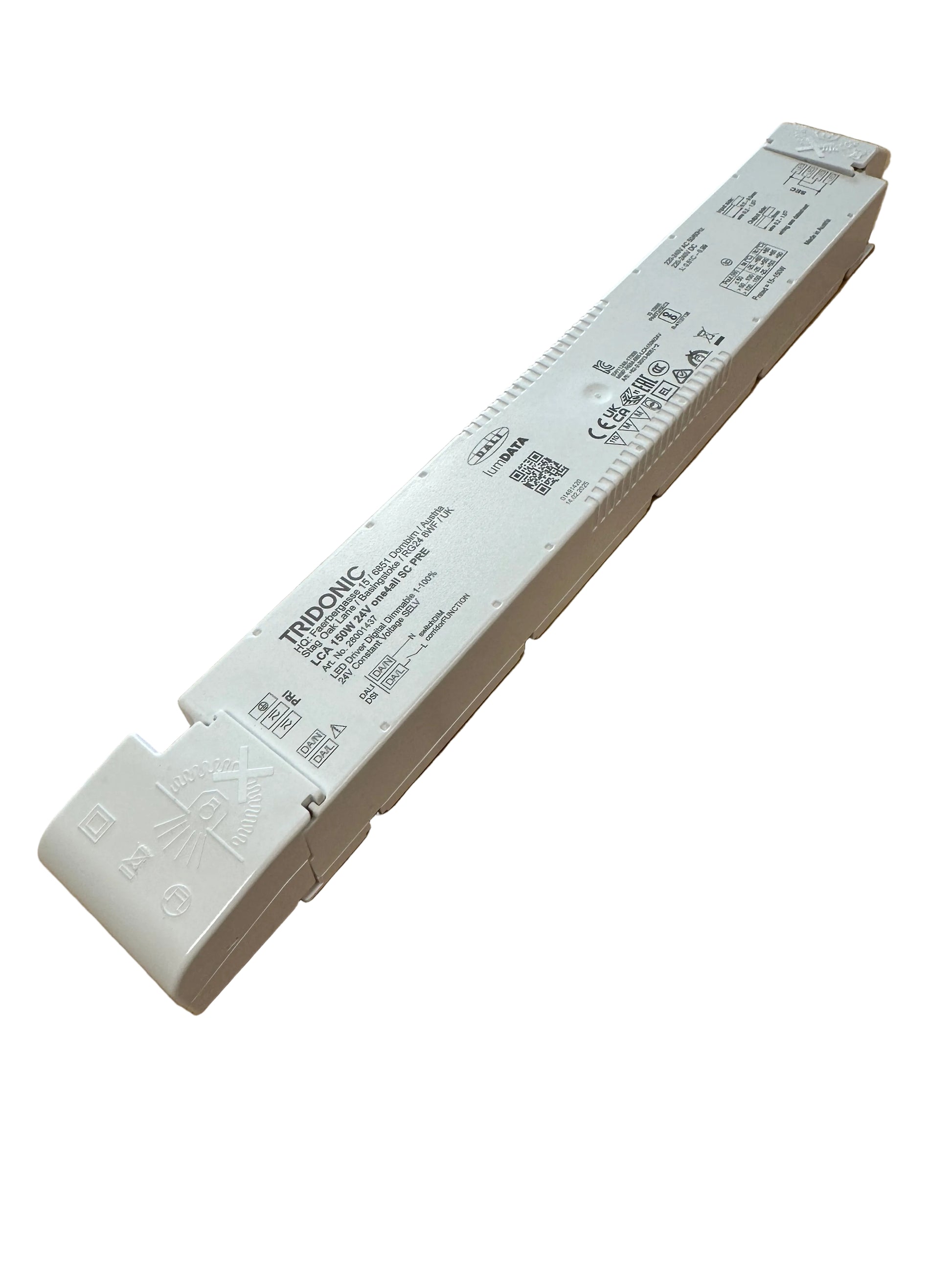

Comes complete with End Caps

Product description

• Dimmable 24 V constant voltage LED Driver for flexible constant voltage strips
• Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• One4all interface and ready2mains enable different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Typical applications

• Cove lighting, facade accent lighting, ceiling integration

Technical details

• 24 V, 150 W

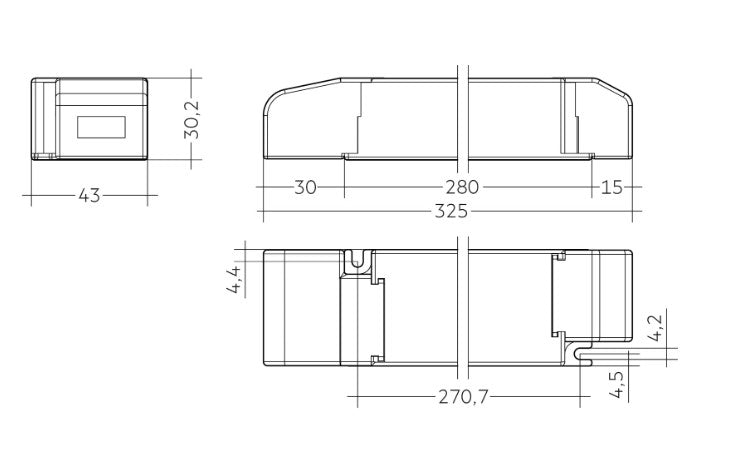

• Small design (325 x 43 x 30.2 mm) with stretched-compact strain relief
• Small cross section
• Push terminals for simple wiring

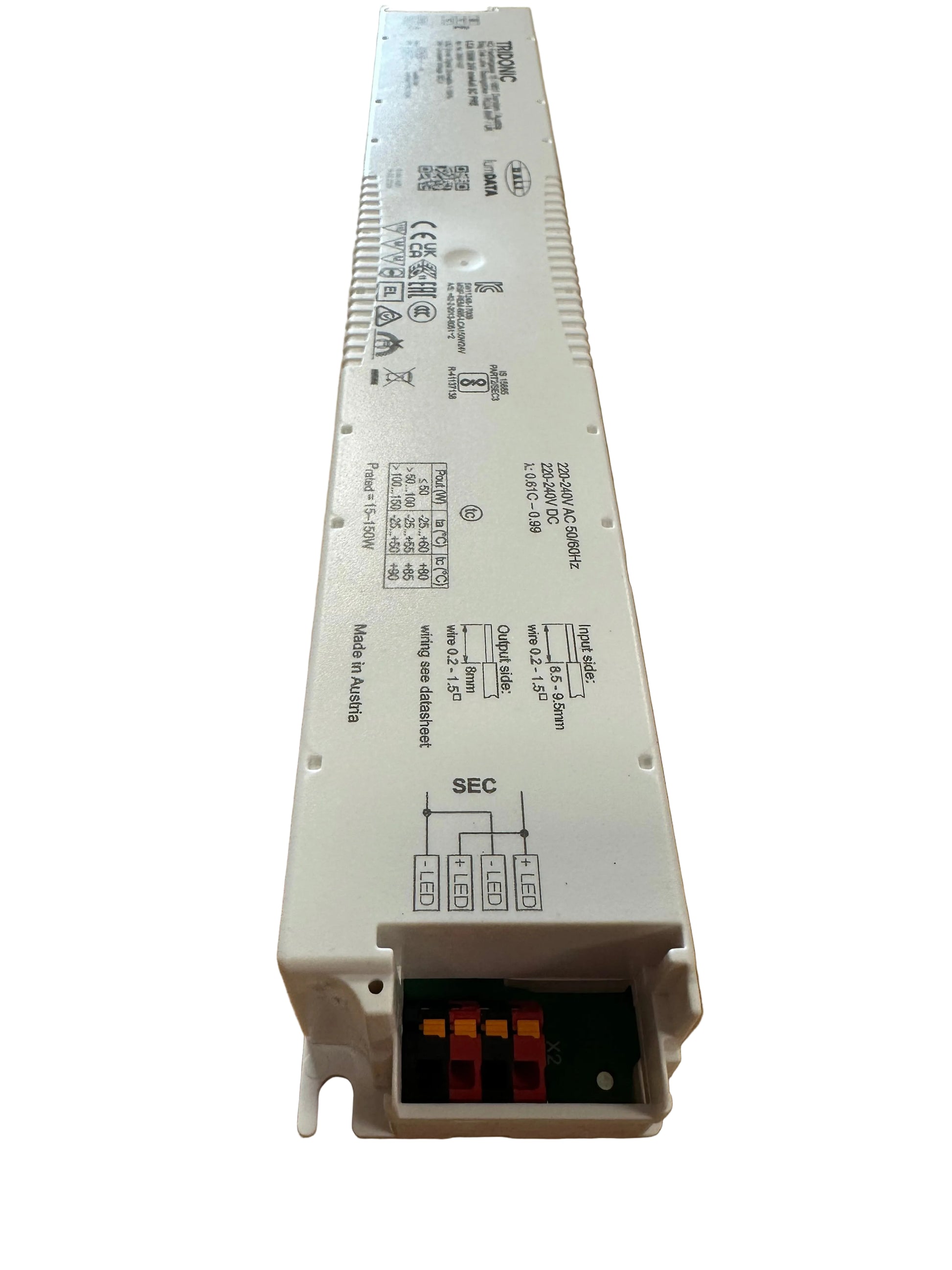

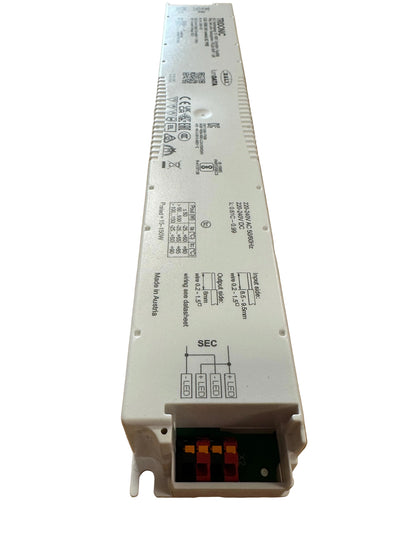

• Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

• one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration and dimming via mains)

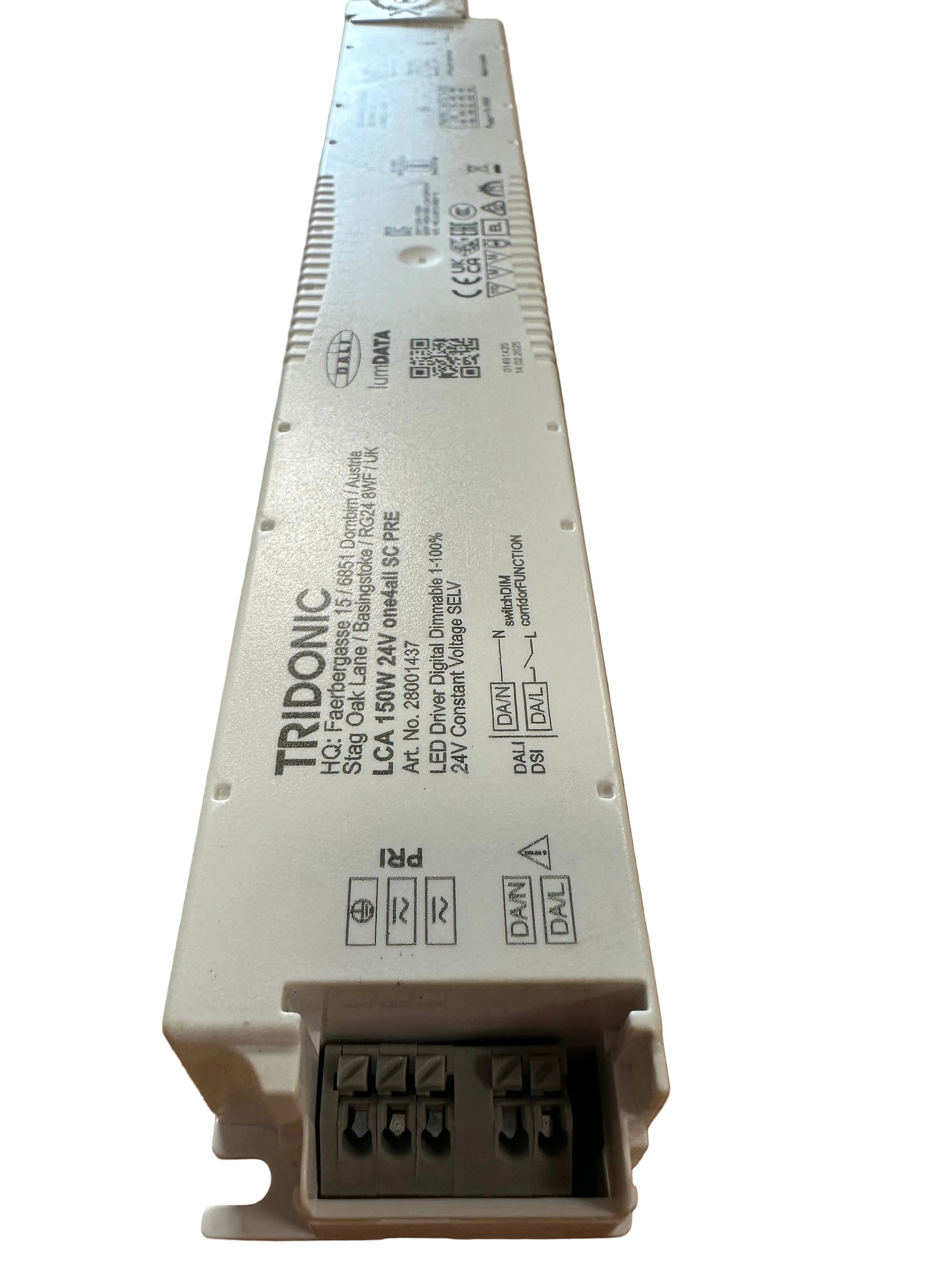

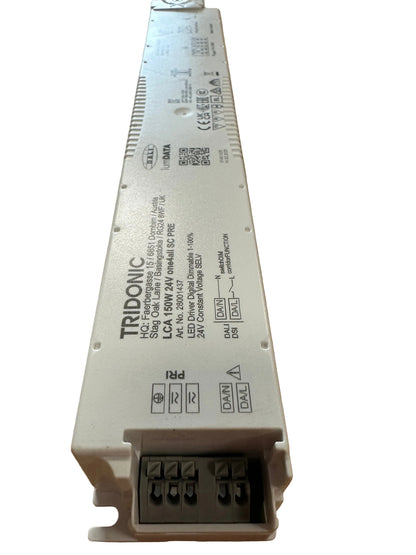

• Terminal blocks: 45° push terminals

Tridonic 28001437
