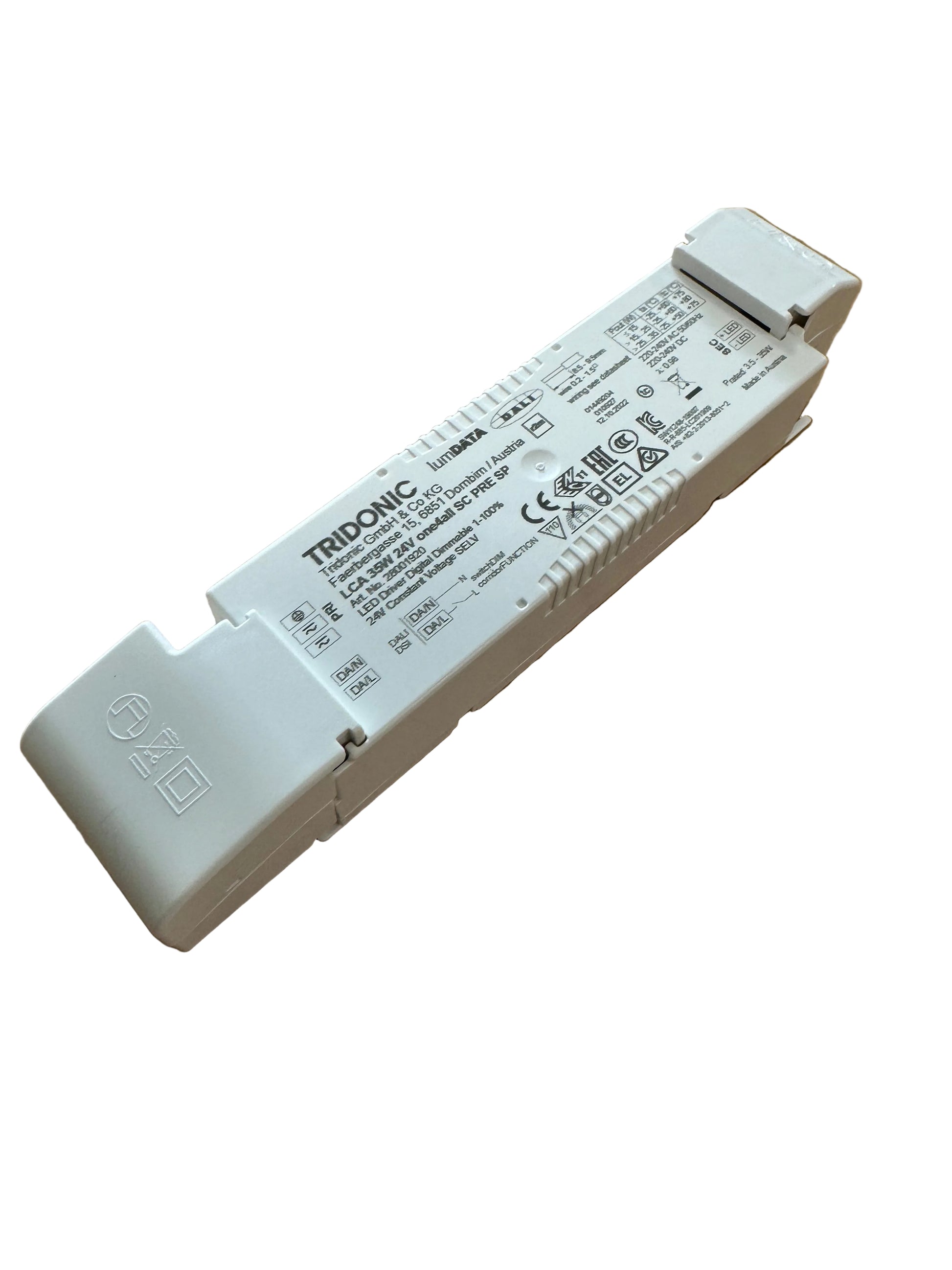

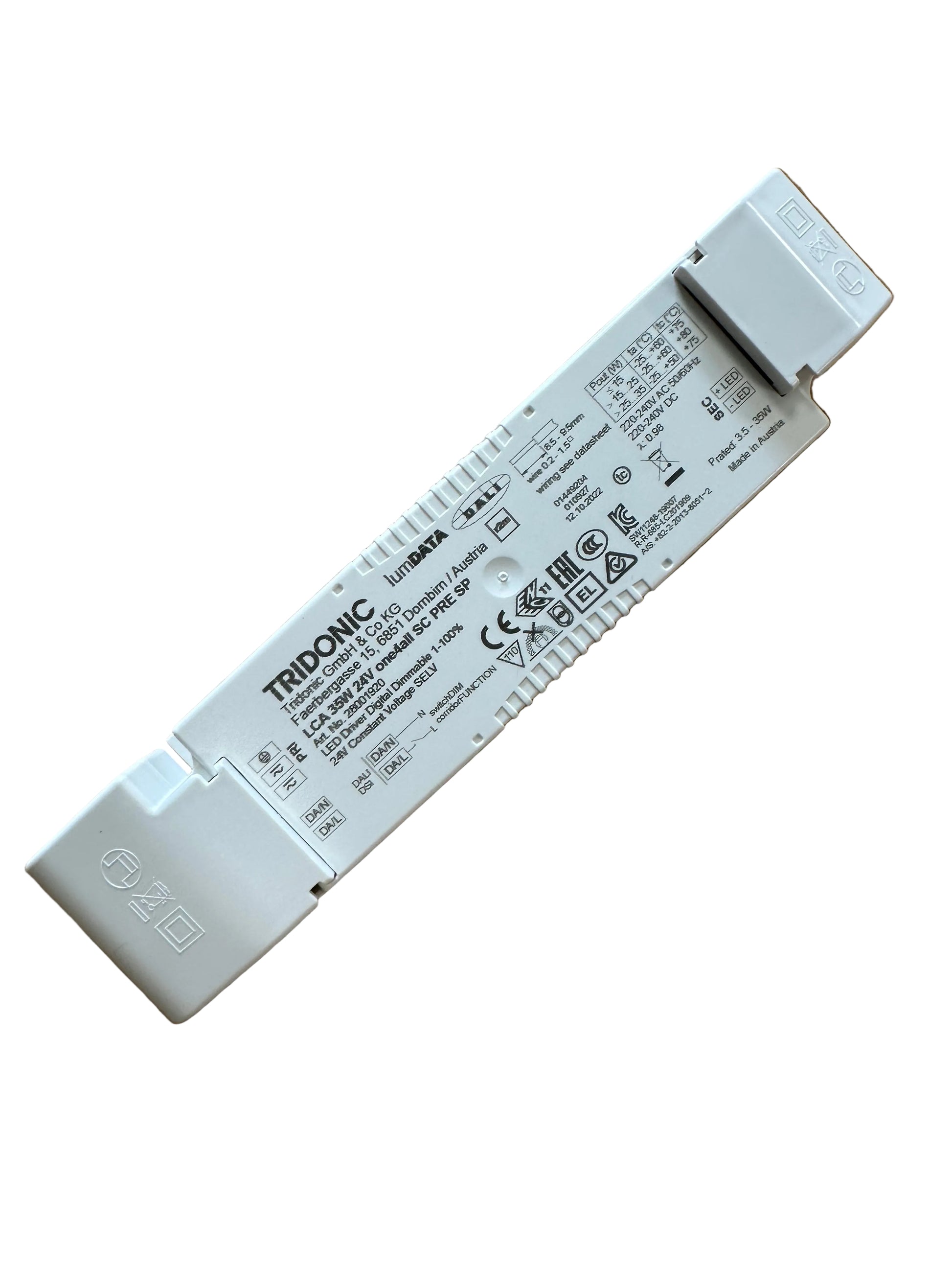

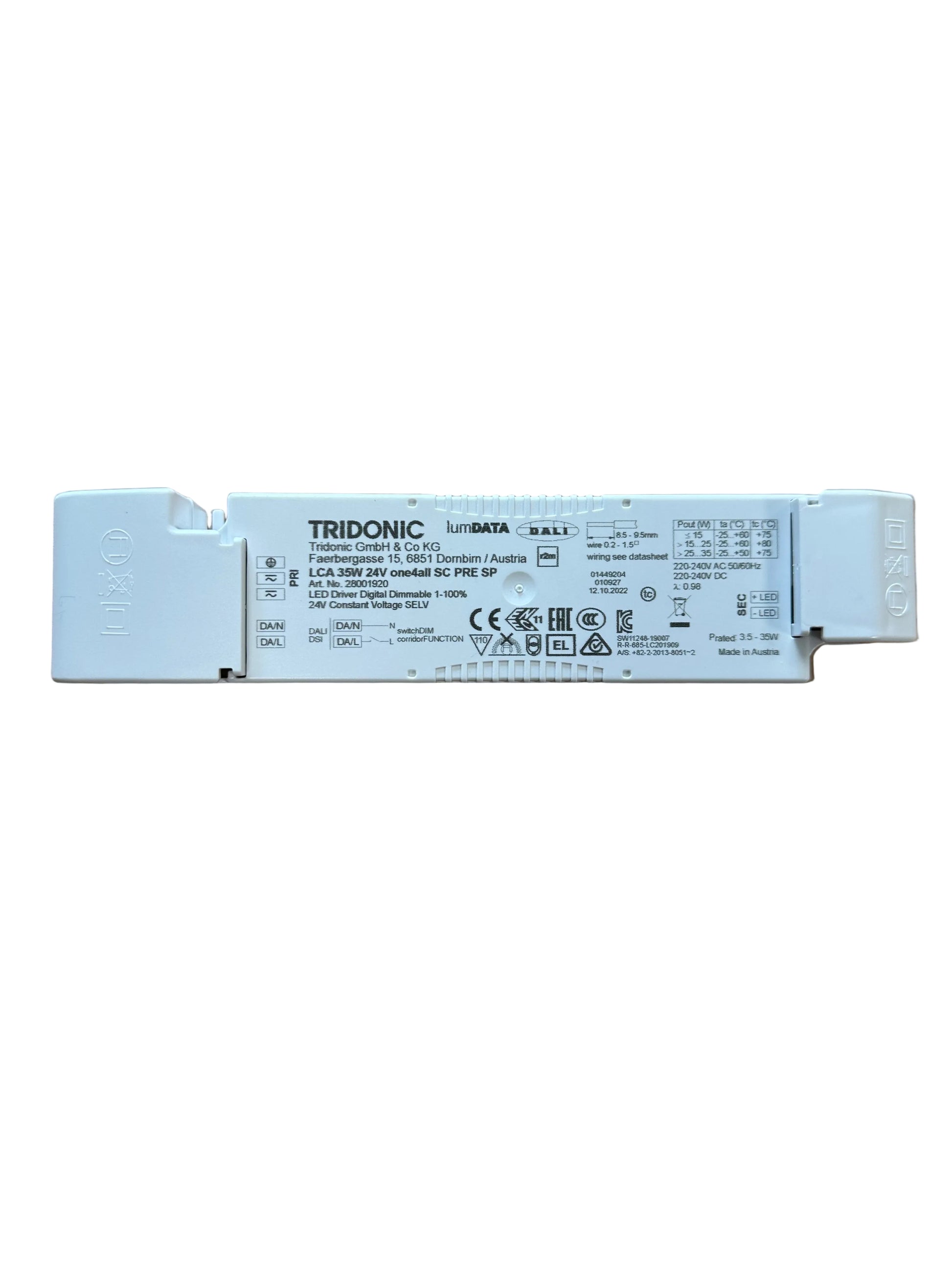

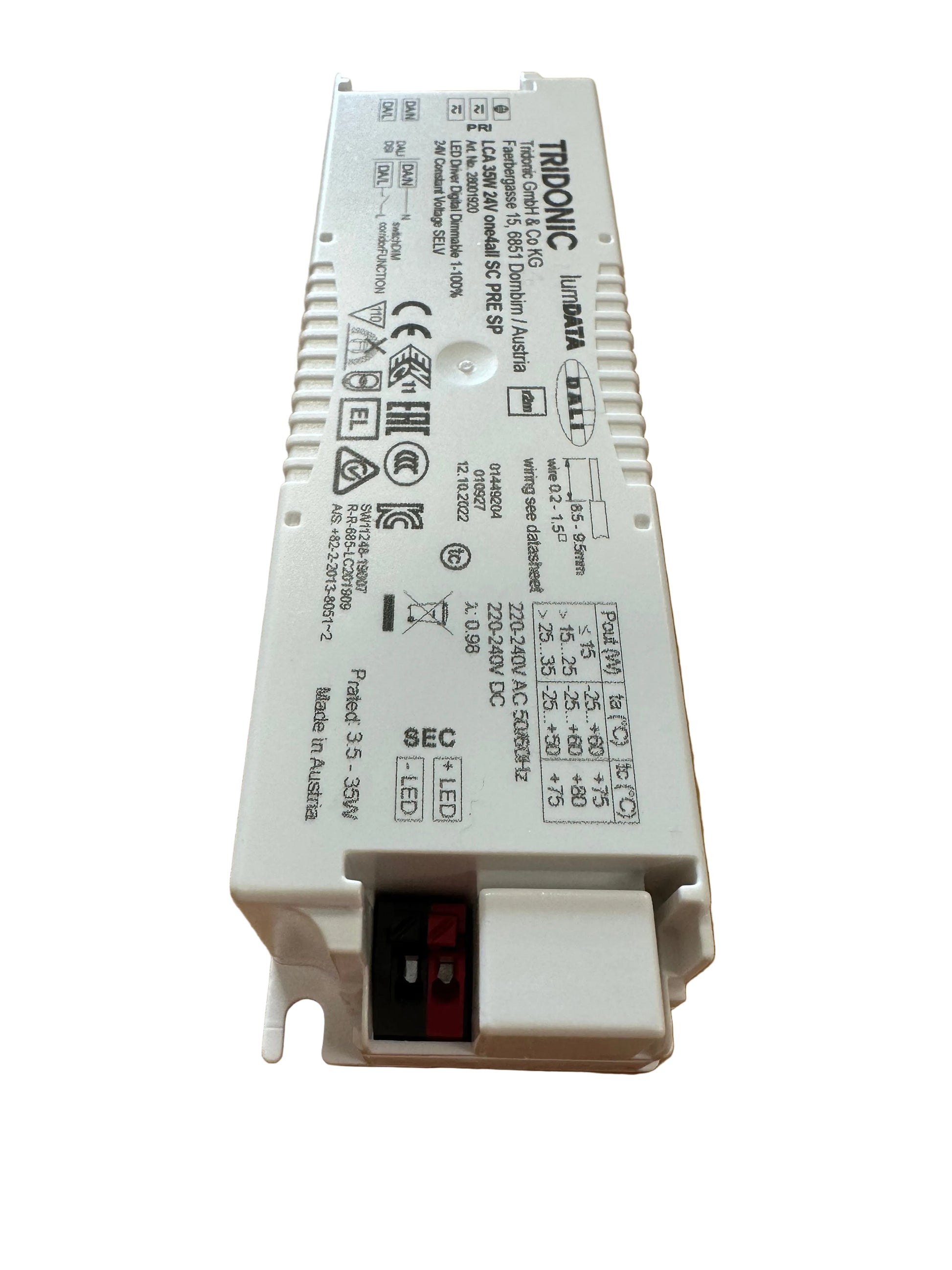

Tridonic 28001662 LCA 35W 24V one4all SC PRE - 35W 24V DALI LED Driver

Tridonic 28001662 LCA 35W 24V one4all SC PRE - 35W 24V DALI LED Driver

Also Code - Tridonic 28001920 LCA 35W 24V one4all SC PRE SP

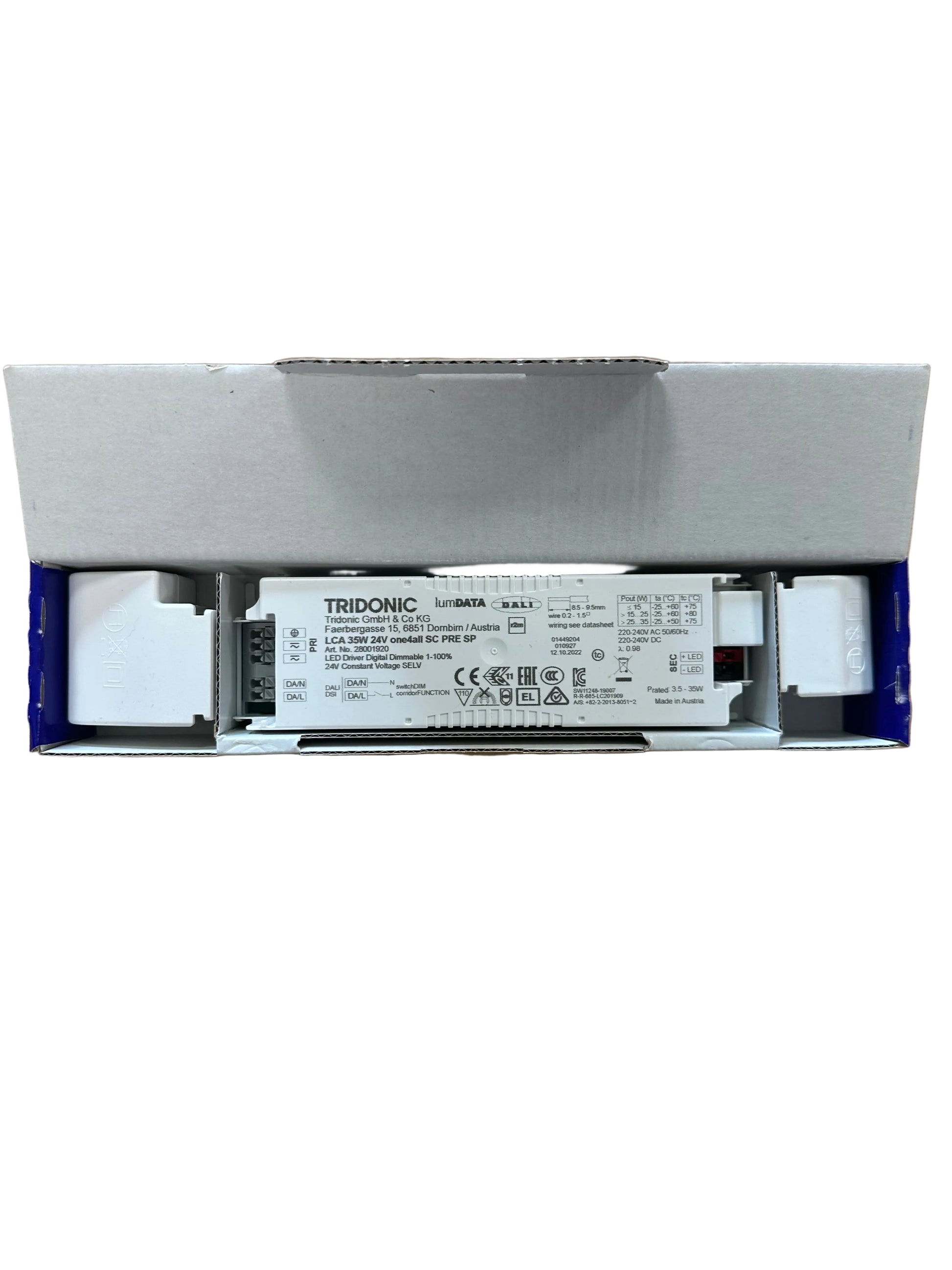

Supplied with End Caps as Pictured

Product description

• NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
• Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
• Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• One4all interface and ready2mains enable different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Typical applications

• Cove lighting, facade accent lighting, ceiling integration

Technical details

• 24 V, 35 W
• Small design (195 x 43 x 30.2 mm) with stretched-compact strain relief
• Small cross section
• Push terminals for simple wiring
• 1 output channel (+/–)

Interfaces

• one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration and dimming via mains)

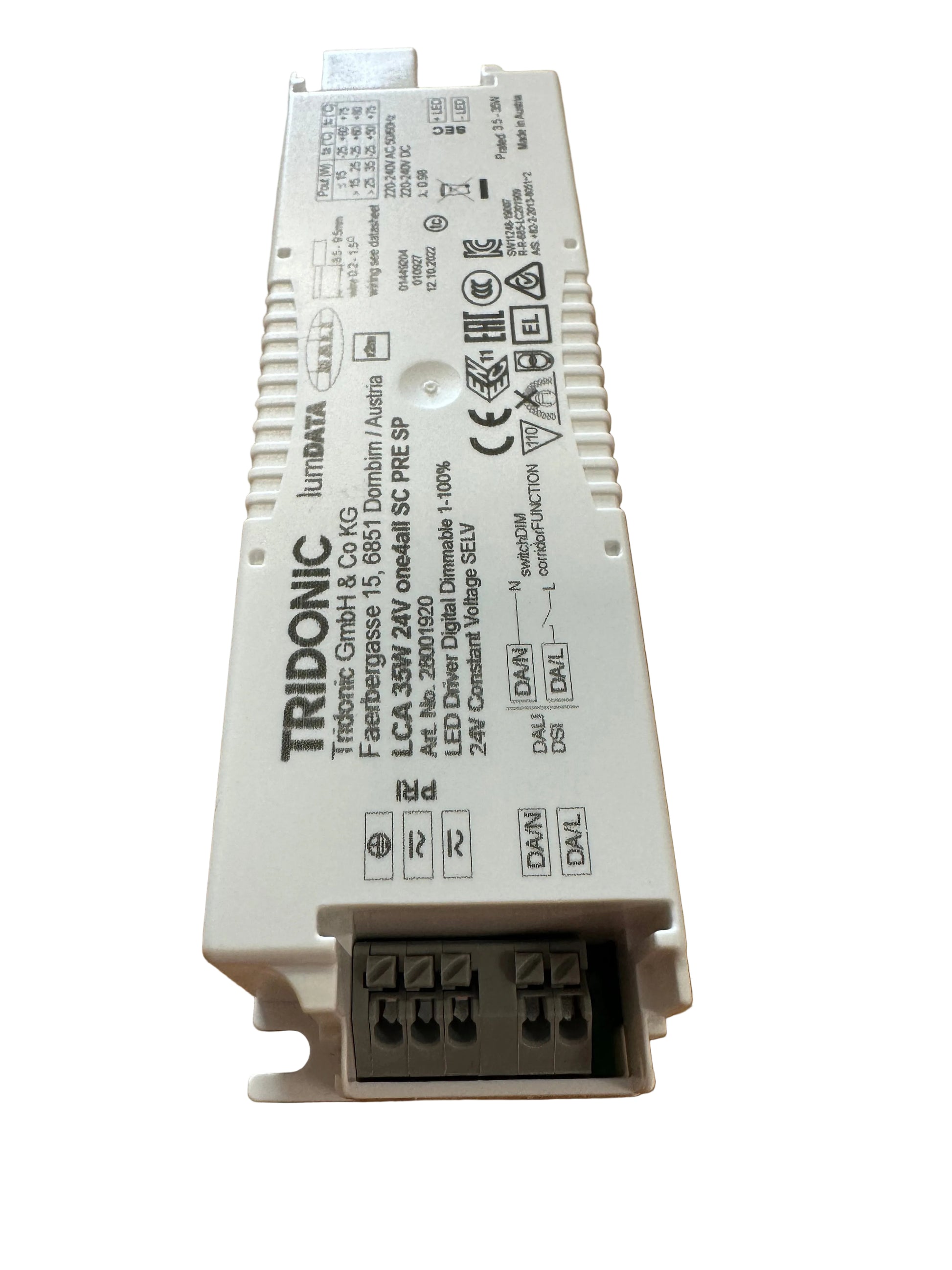

• Terminal blocks: 45° push terminals

Tridonic 28001920
