Tridonic 28002269 (28000441) DALI PCD 1-300 one4all G2

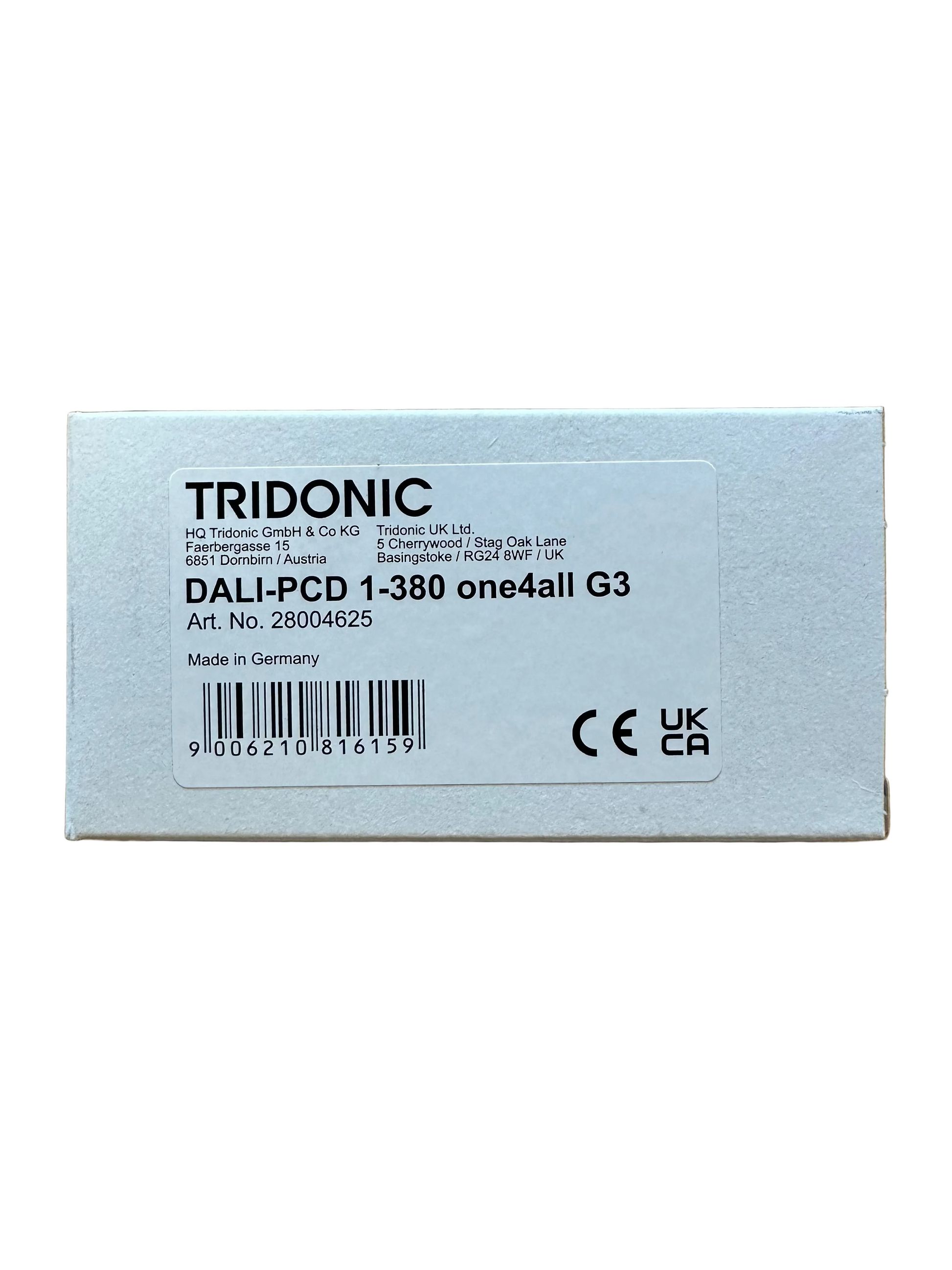

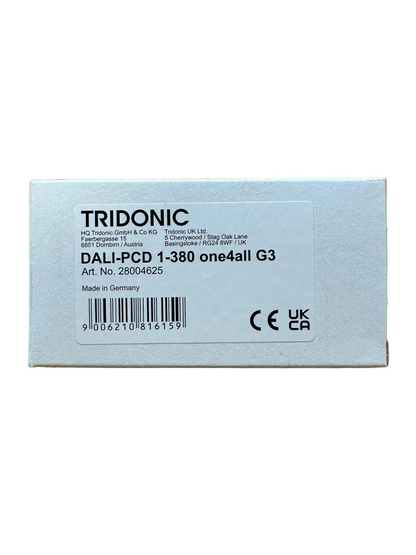

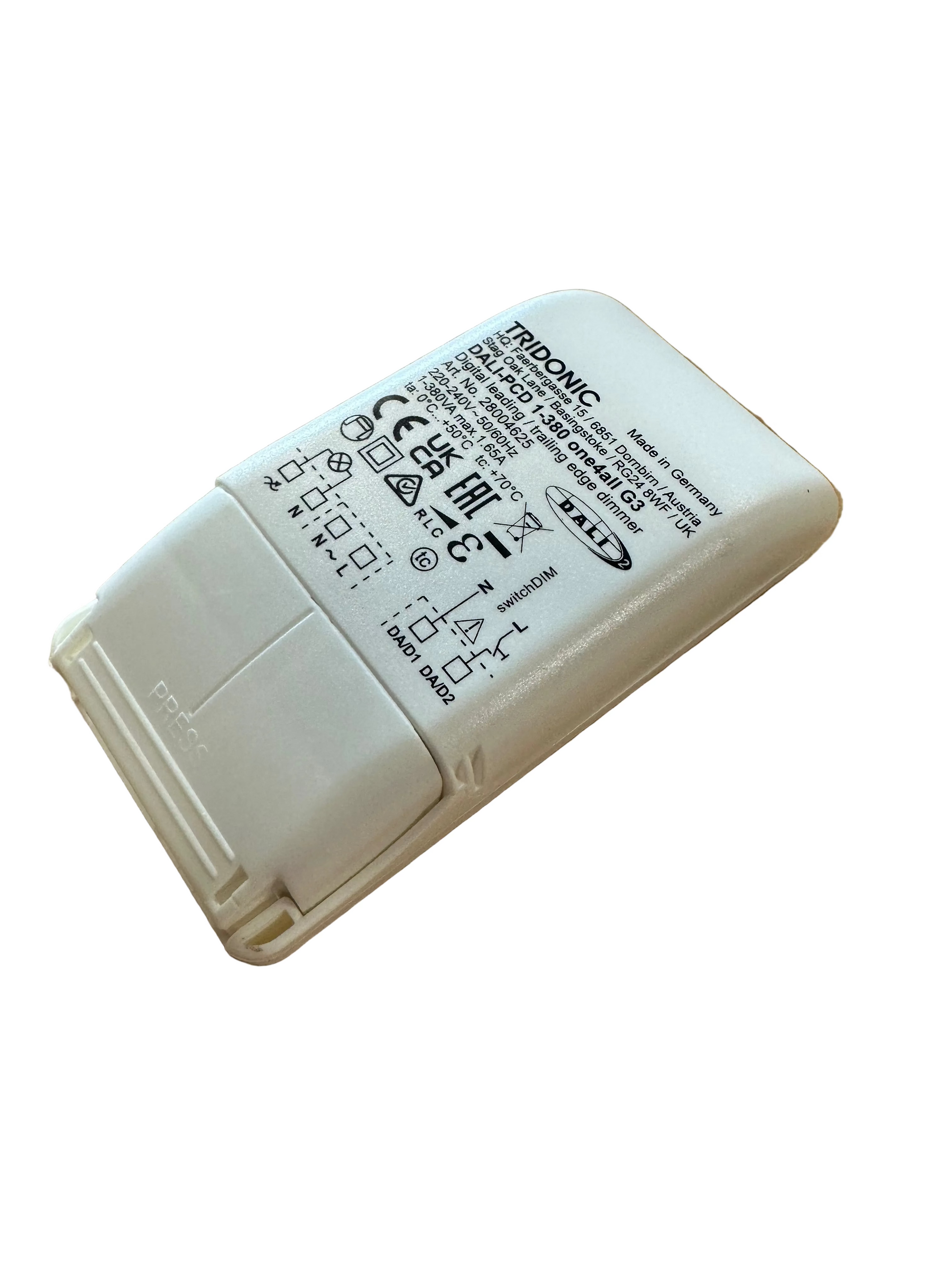

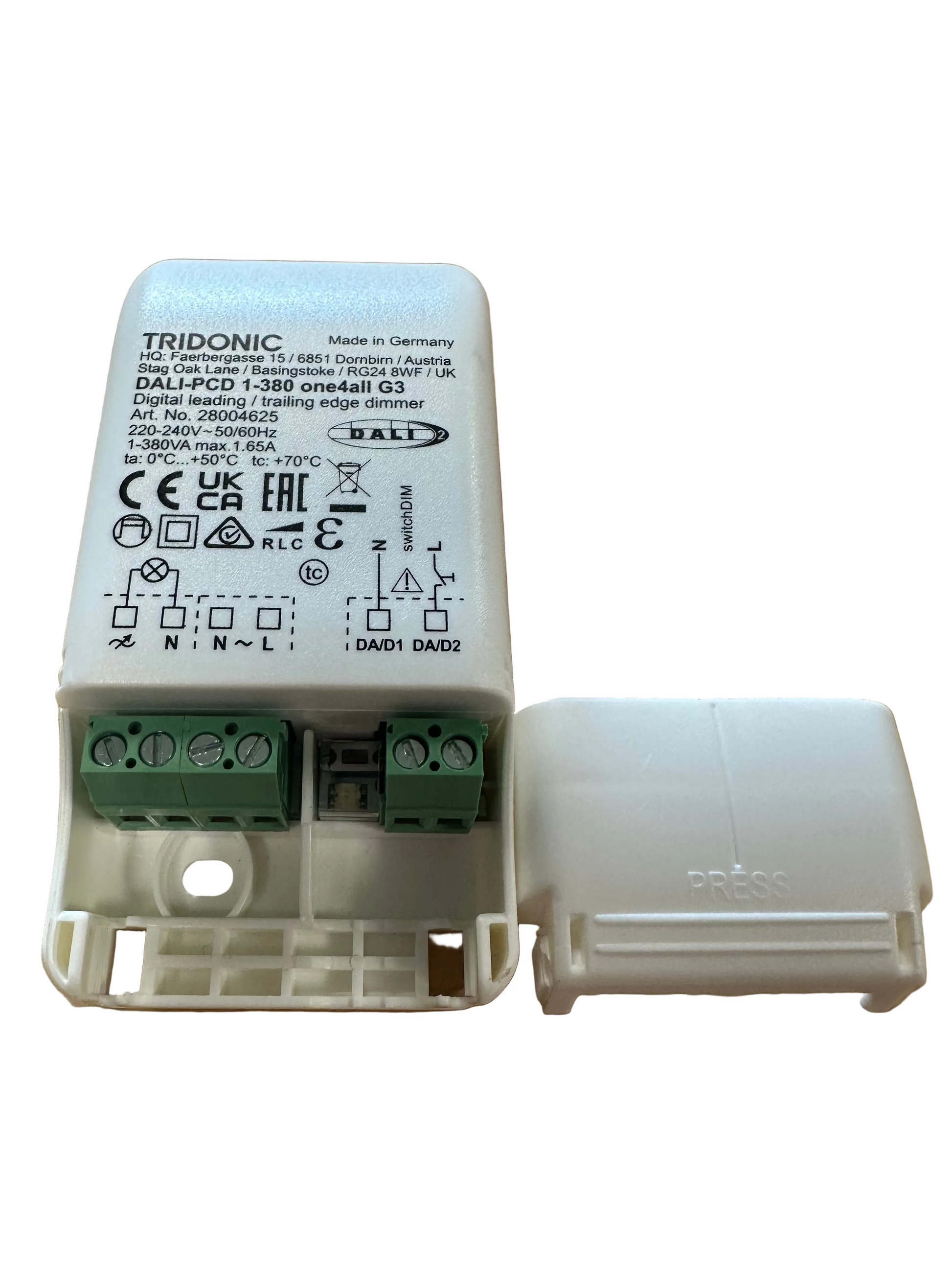

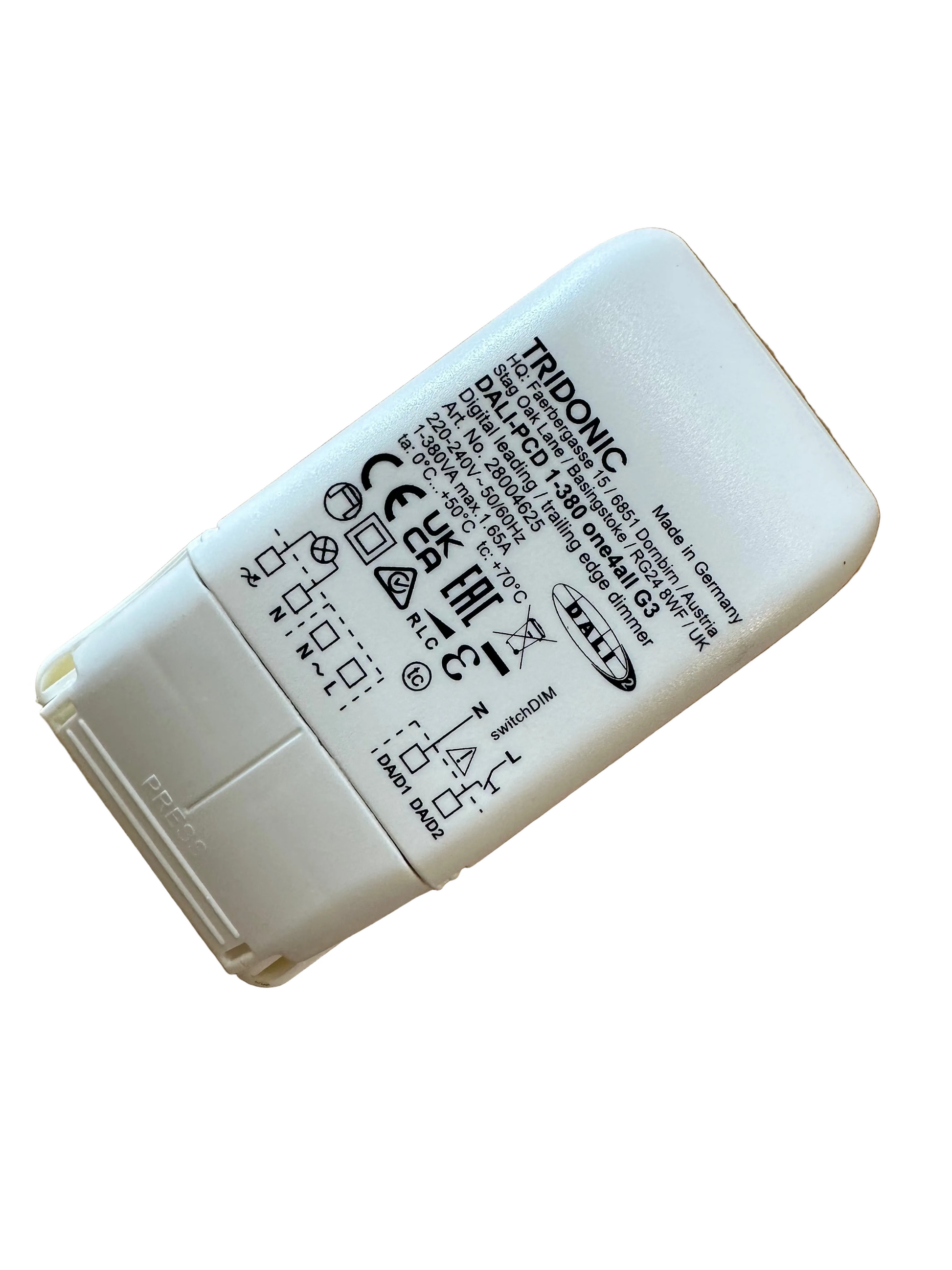

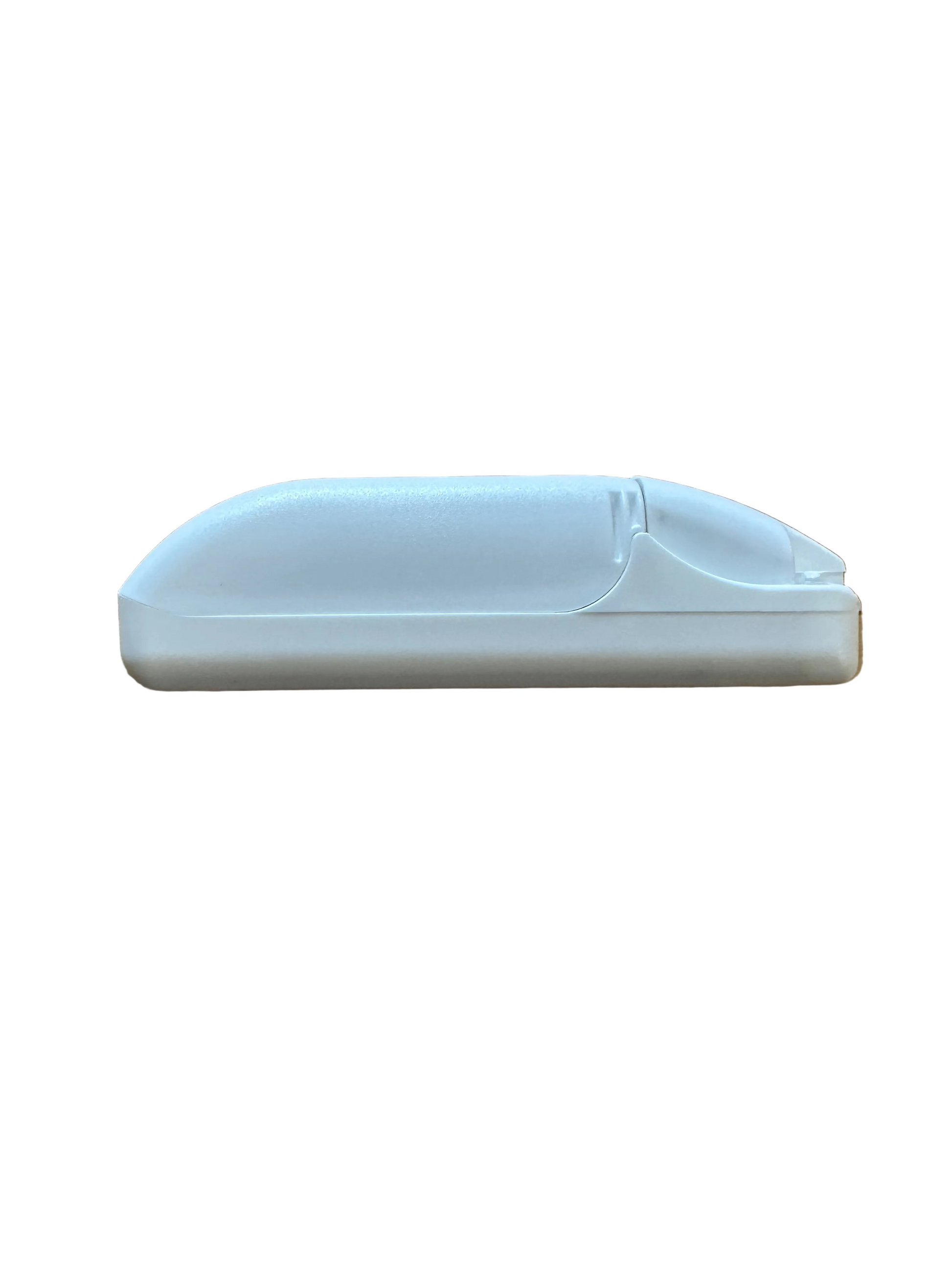

Now code - Tridonic DALI-PCD 1-380 one4all G3 28004625

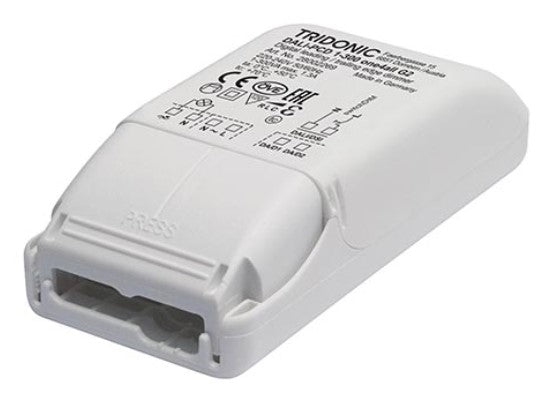

Tridonic 28002269 (28000441) DALI PCD 1-300 one4all G2

Replaces Thorn Zumtobel Tridonic 28000441

Product description

• Digital leading-edge and trailing-edge phase dimmer
• Total connected load: 1 – 300 VA
• one4all input: DALI, DSI, switchDIM and corridorFUNCTION input
• Zero cross switching supported
• 1 dimmed phase (output)
• With automatic load detection
• Surface-mounted casing
• Suitable for operation with LED retrofit bulbs

Technical data

• Rated supply voltage 220 – 240 V
• Mains frequency 50 / 60 Hz
• Connected load 1 – 300 VA
• Power loss 0.4 W (1.5 W at full load)
• Ambient temperature ta 0 ... +50
