28002318 Description

High-temperature LiFePO4 cells only for use with Tridonic emergency lighting units
Up to 8 year design life

28002318 Properties

Environmental friendly technology
High energy density
Low profile cross-section with removable end caps
Constant high-temperature operation
Good charging properties at high temperature
Electronic thermal battery management
High energy maintenance of the charged battery
Long shelf life
Integrated electronics
Safety features incorporated
Certified quality manufacturer
In various configurations
Simple connection with plug-in system
With polycarbonate fixing caps
Suitable for emergency lighting equipment as per IEC 60598-2-22

Battery voltage per cell 3.2 V
Battery capacity per cell 1.5 Ah
Min. battery casing temp. (design life of 4 – 8 years) + 5 °C
Max. battery casing temp. (design life of 4/8 years)

28002318 Mechanical details

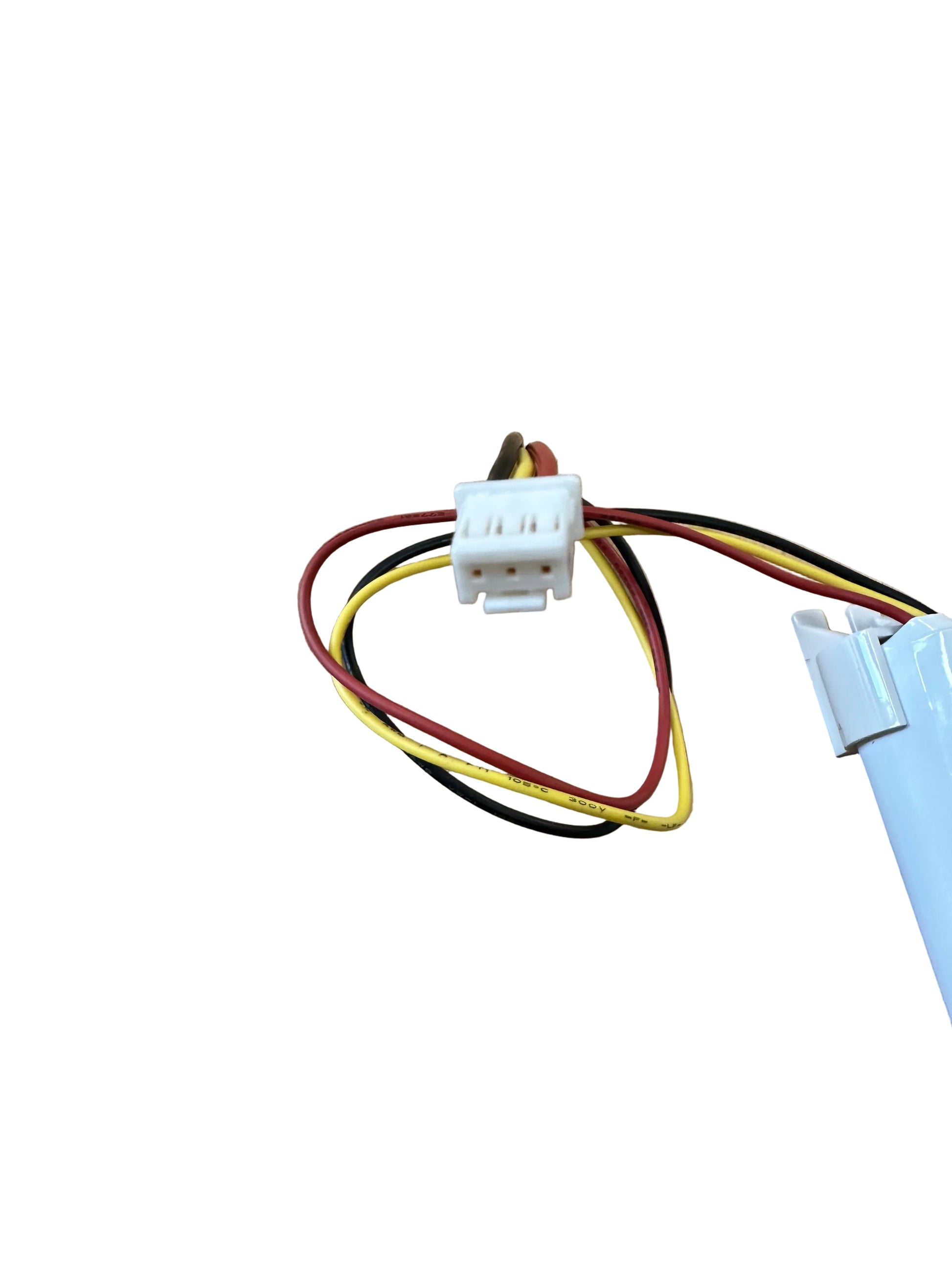

Battery leads and connection
Max. length: 800mm
• 300 mm on battery side with connector to connect into the Emergency lighting unit
• 500 mm with connectors on both sides to extend the battery wiring to max. 800 mm
