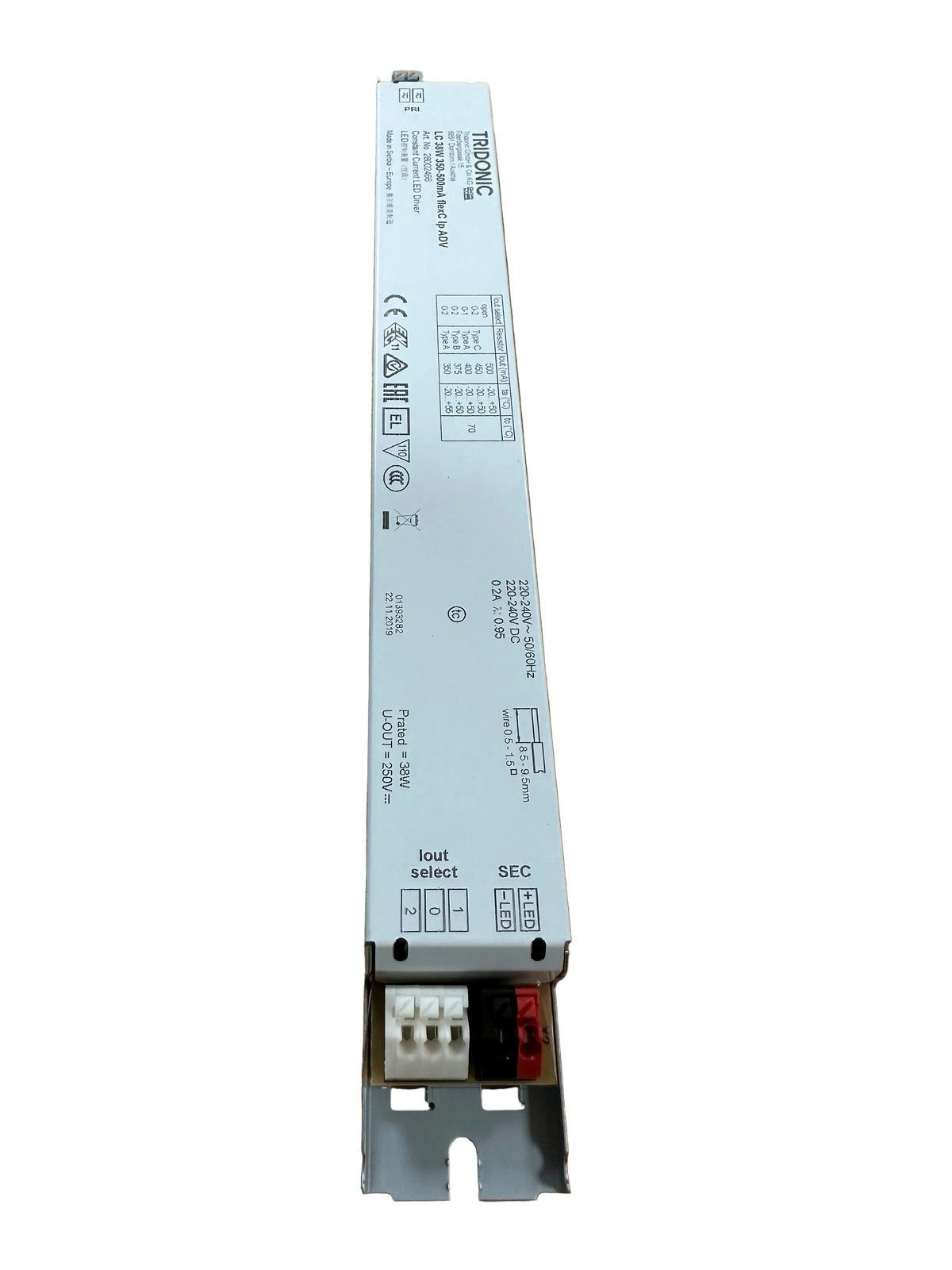

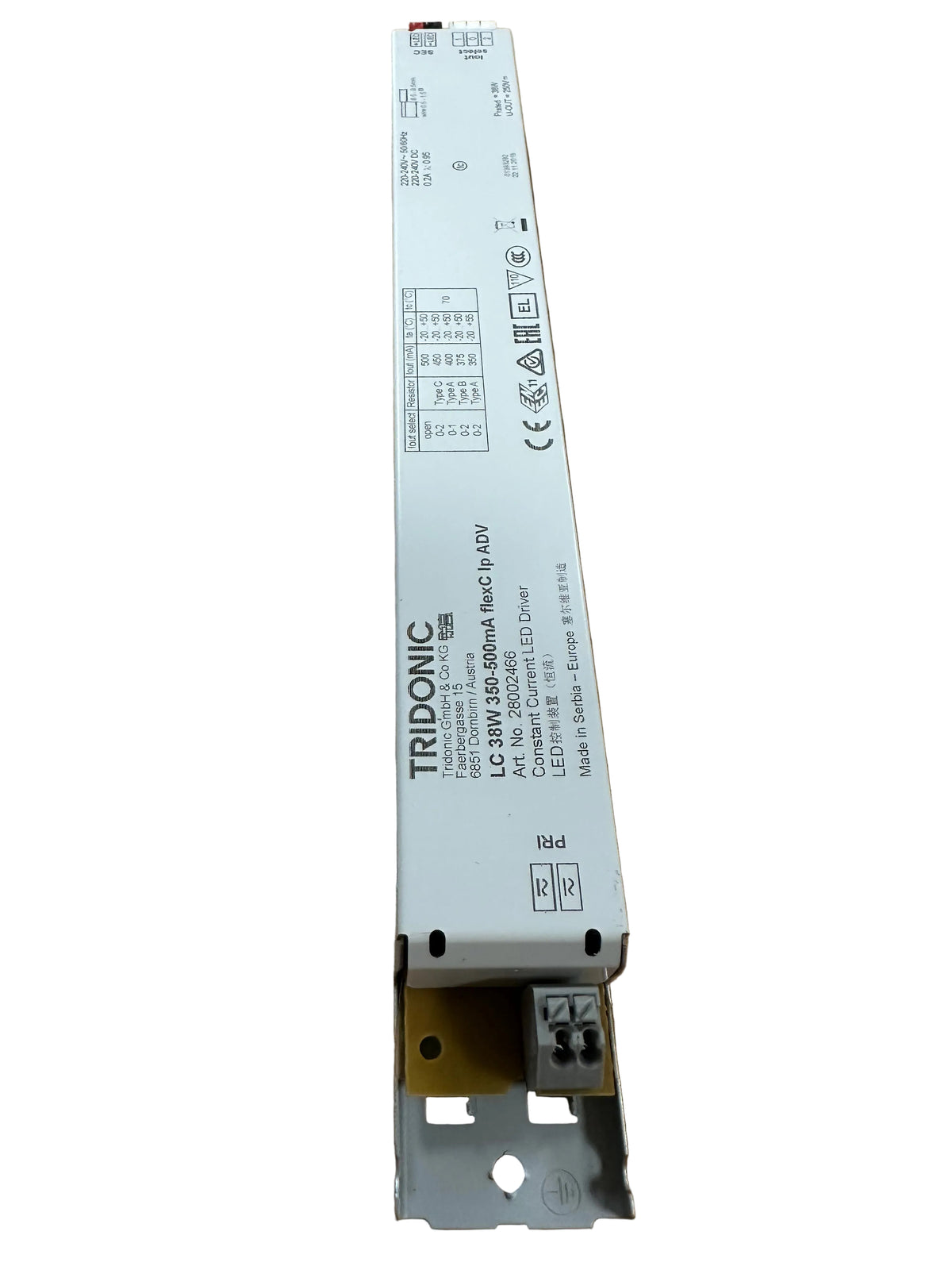

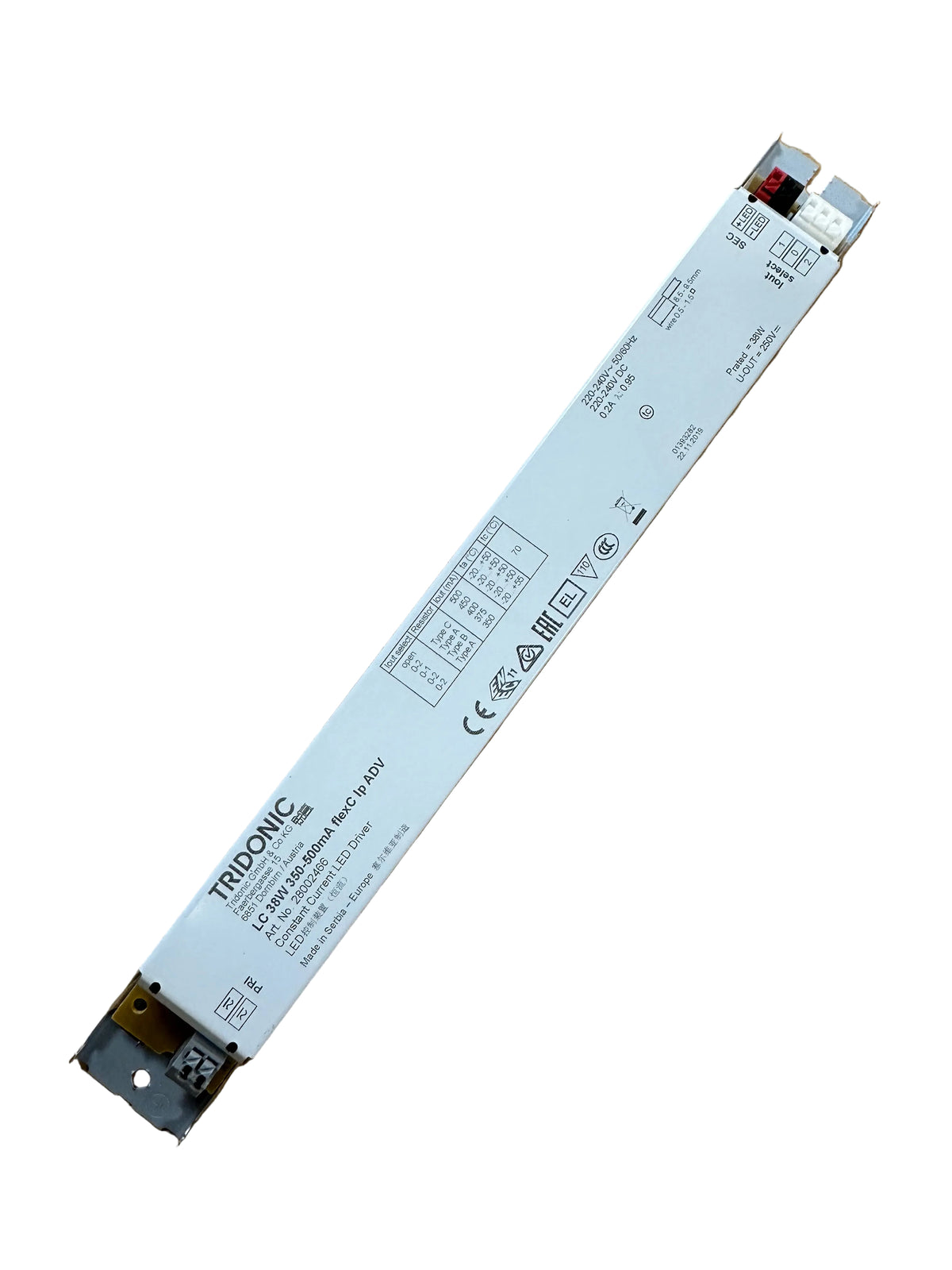

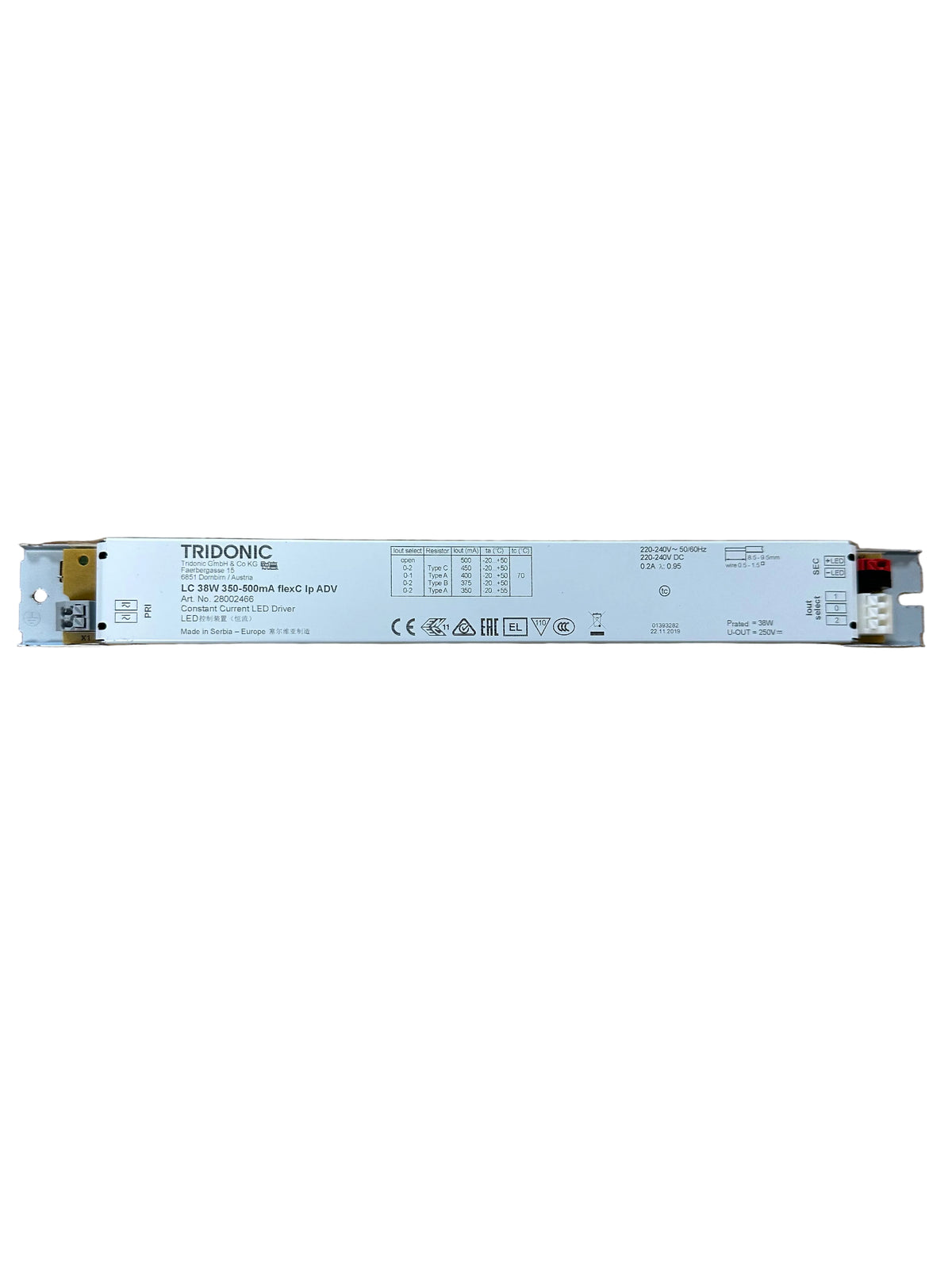

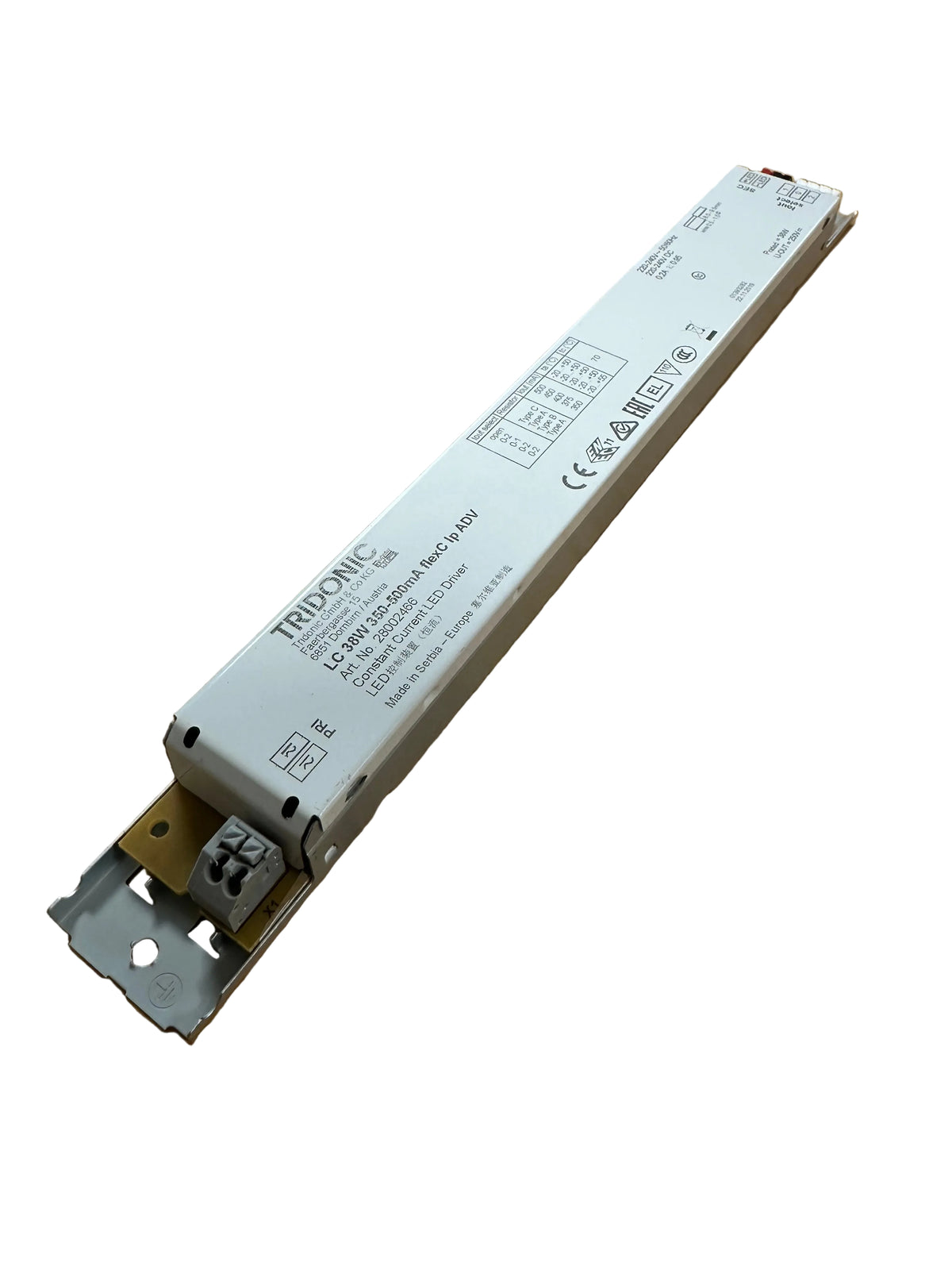

Tridonic 28002466 LC 38W 350-500mA flexC lp ADV

Tridonic 28002466 LC 38W 350-500mA flexC lp ADV

Replaces Tridonic 87500497

• LED Constant current LED driver for luminaire installation
• New version DC operating with EL marking
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• Output current adjustable between 350 – 500 mA (Set by ADV Resistor see Chart)
• Max. output power 38 W
• Forward Voltage 35-75V
• Up to 88 % efficiency
• Nominal lifetime up to 100,000 h

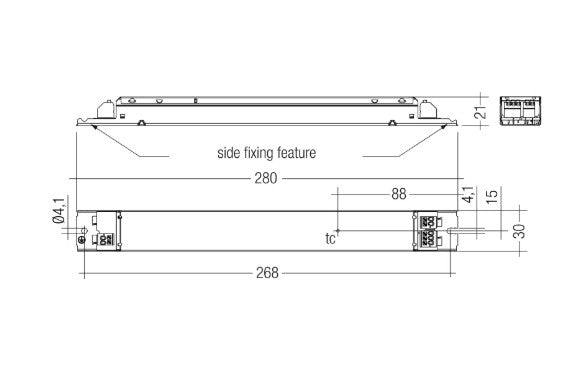

• Dimensions L x W x H 280 x 30 x 21 mm

• Hole spacing D 268 mm

28002466 Housing properties

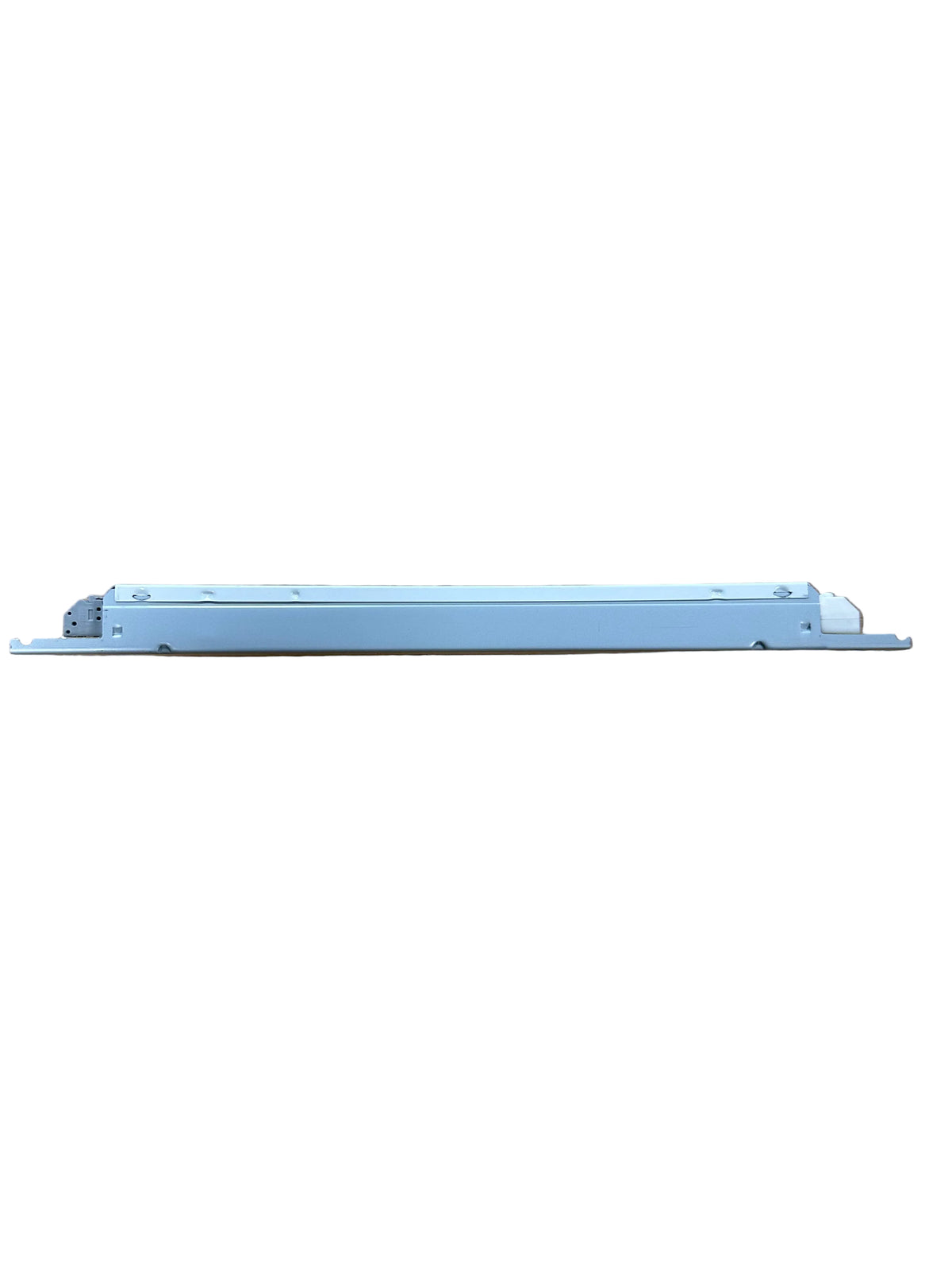

• Low profile metal casing with white cover
• Type of protection IP20

28002466 Interfaces

• Terminal blocks: 45° push terminals

28002466 Functions

• Overload protection
• Short-circuit protection

• No-load protection

• Burst protection voltage 1 kV

• Surge protection voltage 1 kV (L to N)

• Surge protection voltage 2 kV (L/N to earth)

Typical applications for the 28002466

• For linear/area lighting in office applications
