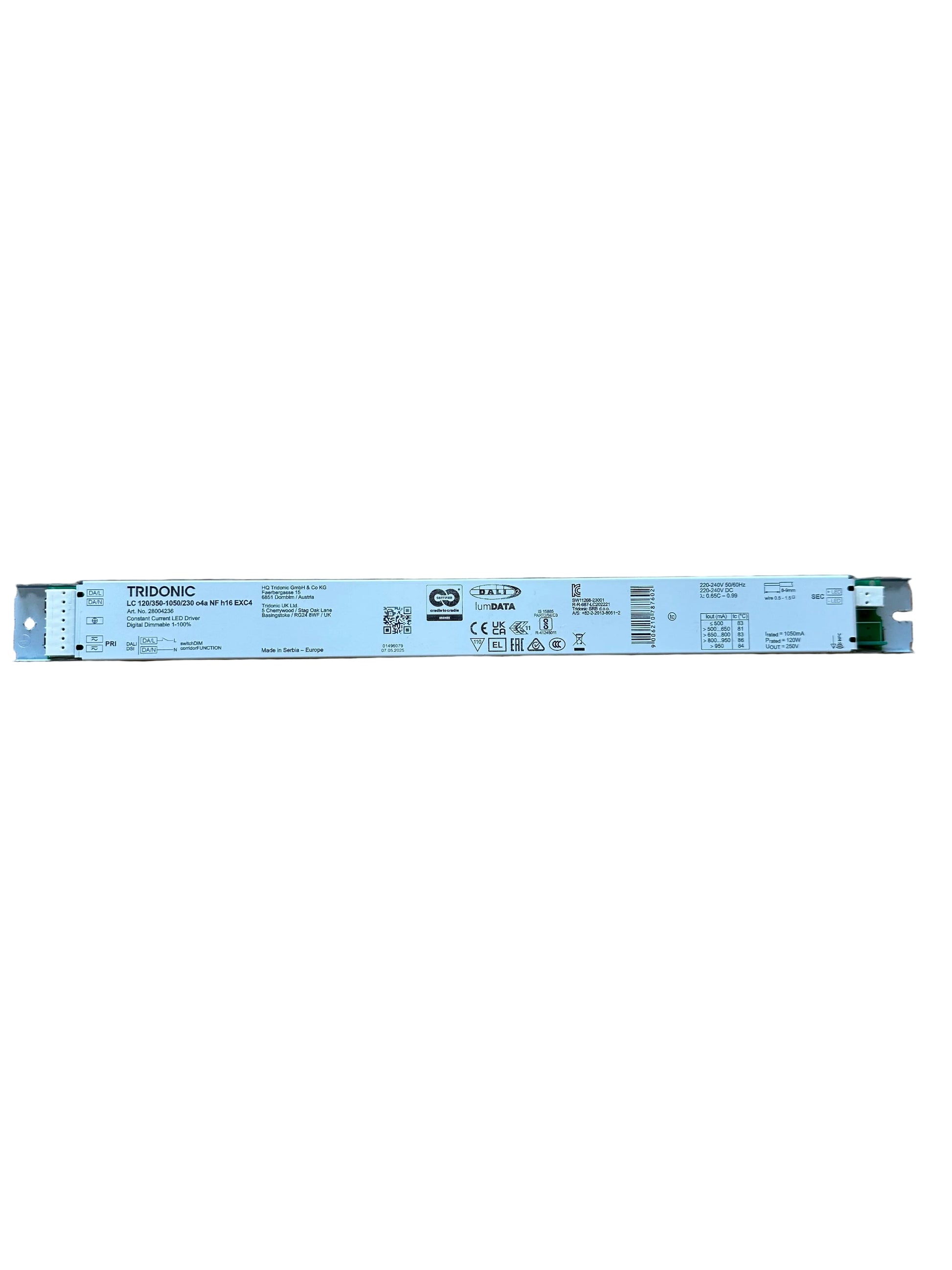

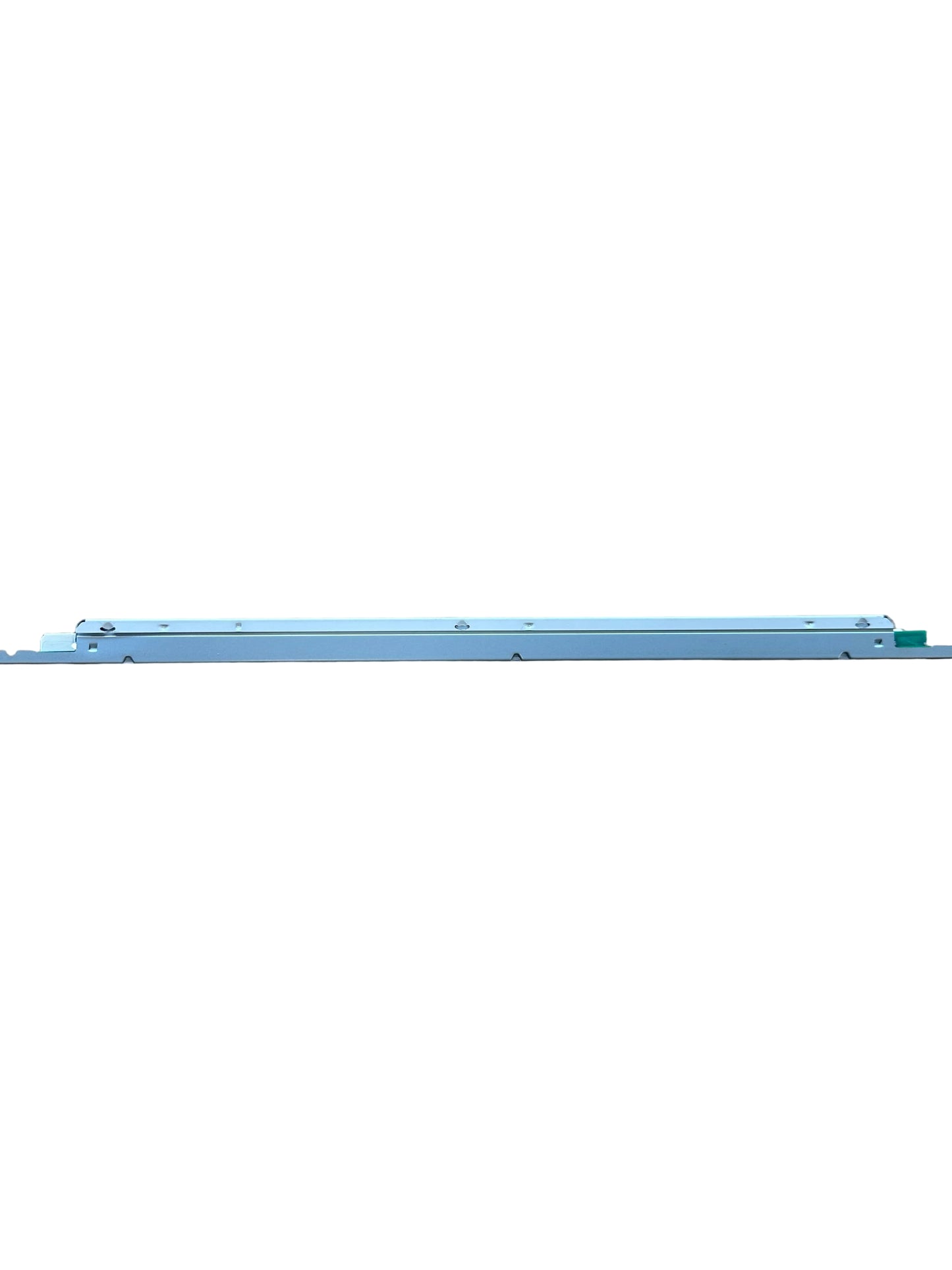

Tridonic 28004236 LC 120/350-1050/230 o4a NF h16 EXC4

Tridonic 28004236 LC 120/350-1050/230 o4a NF h16 EXC4

• NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
• Forward Voltage 45-230V mA dependent
• Dimmable built-in constant current LED driver
• Dimming range 1 to 100 %
• For luminaires of protection class I and protection class II
• Output current adjustable between 350 – 1,050 mA
• Max. output power 120 W
• Up to 94.7 % efficiency
• Power input on stand-by < 0.14 W
• Low profile metal casing with white cover

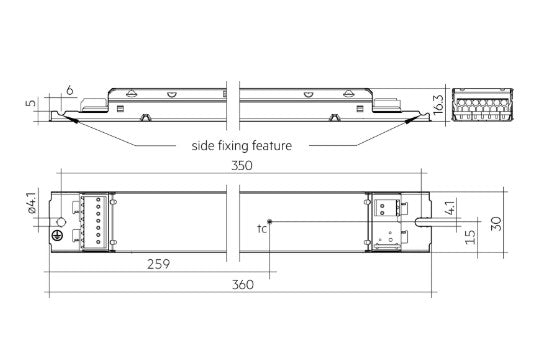

• Only 16 mm housing height
• Type of protection IP20
• Near field communication (NFC)
• one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)

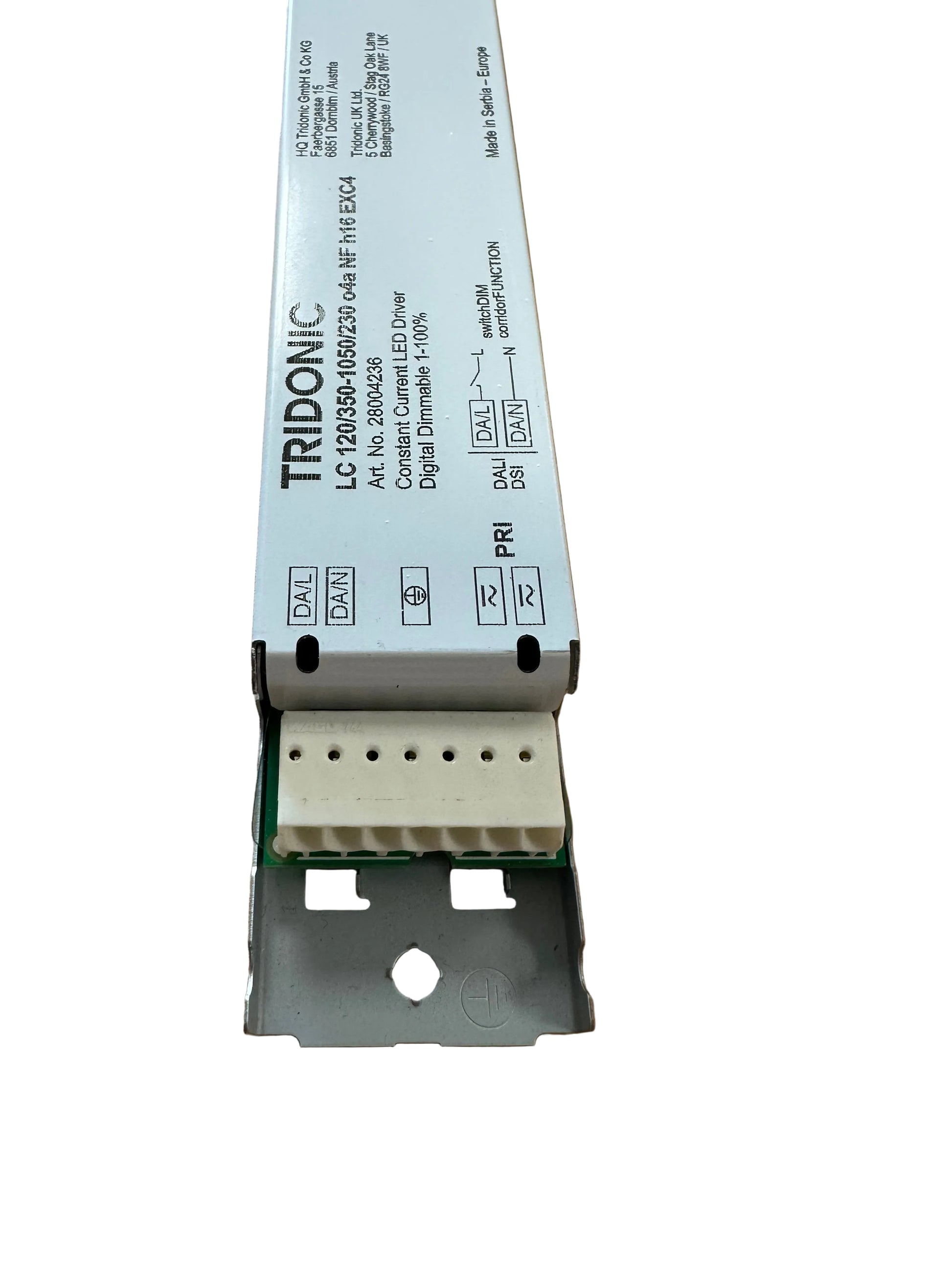

• Terminal blocks: 0° push terminals

Tridonic 28004236
