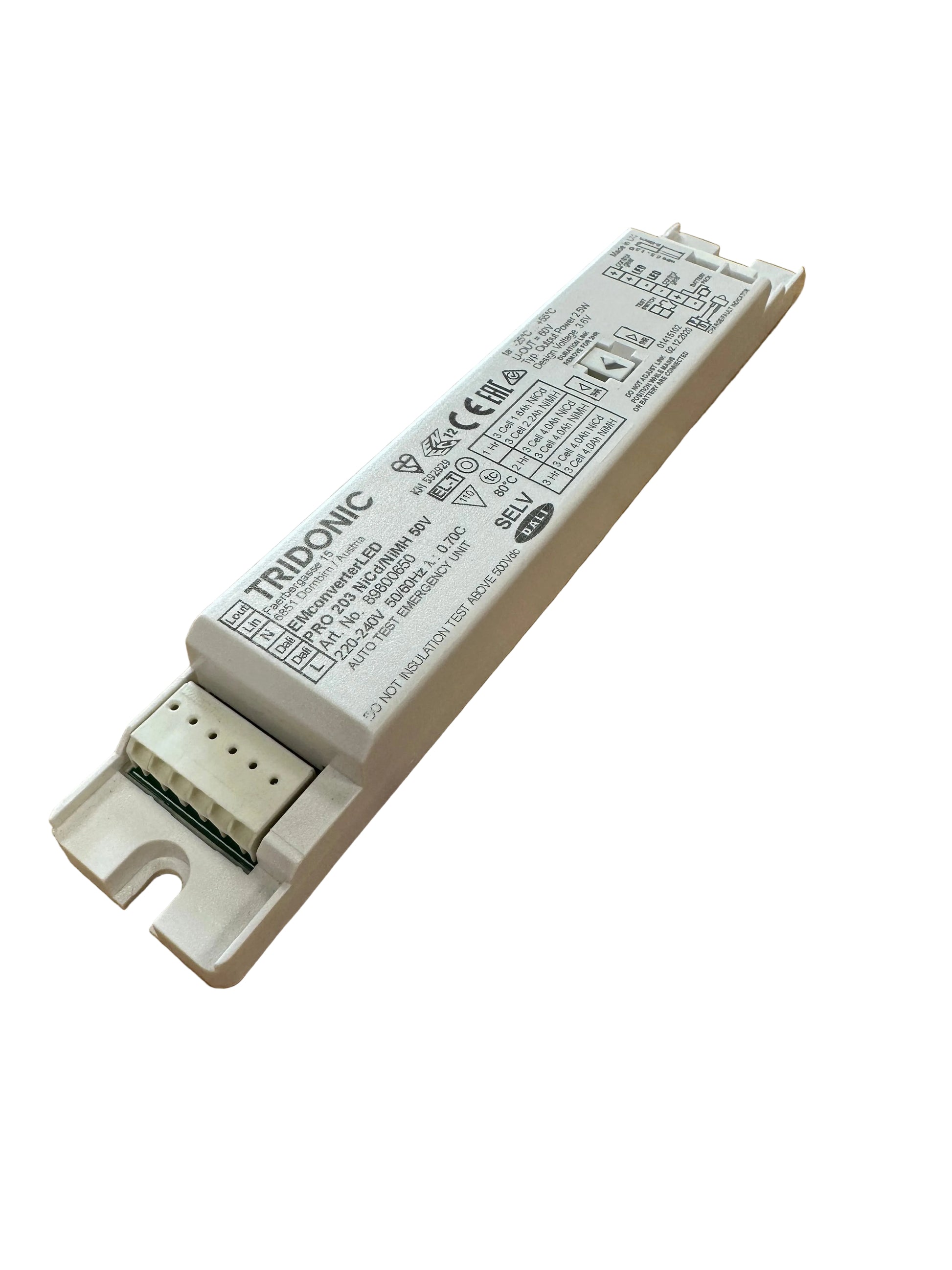

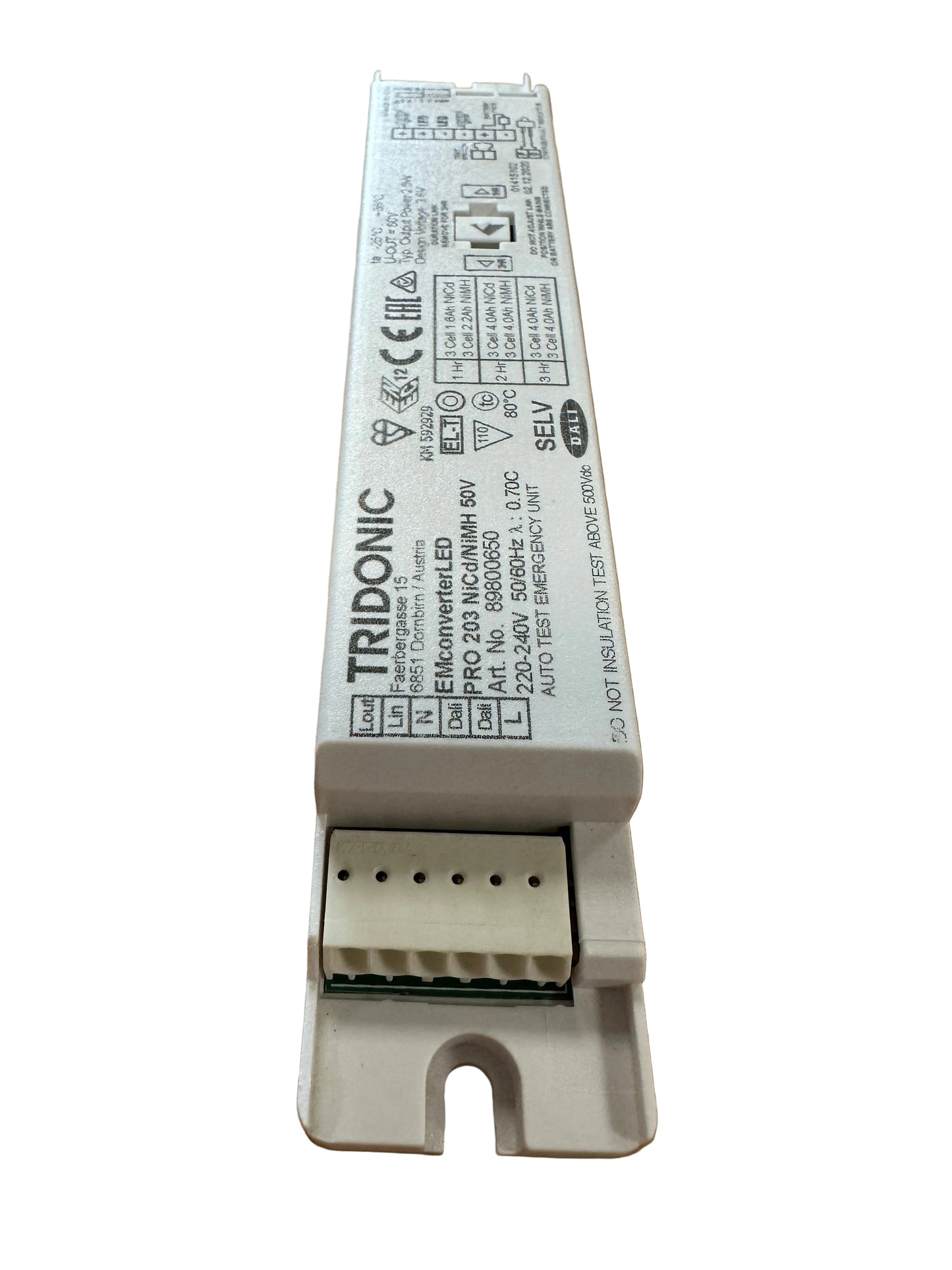

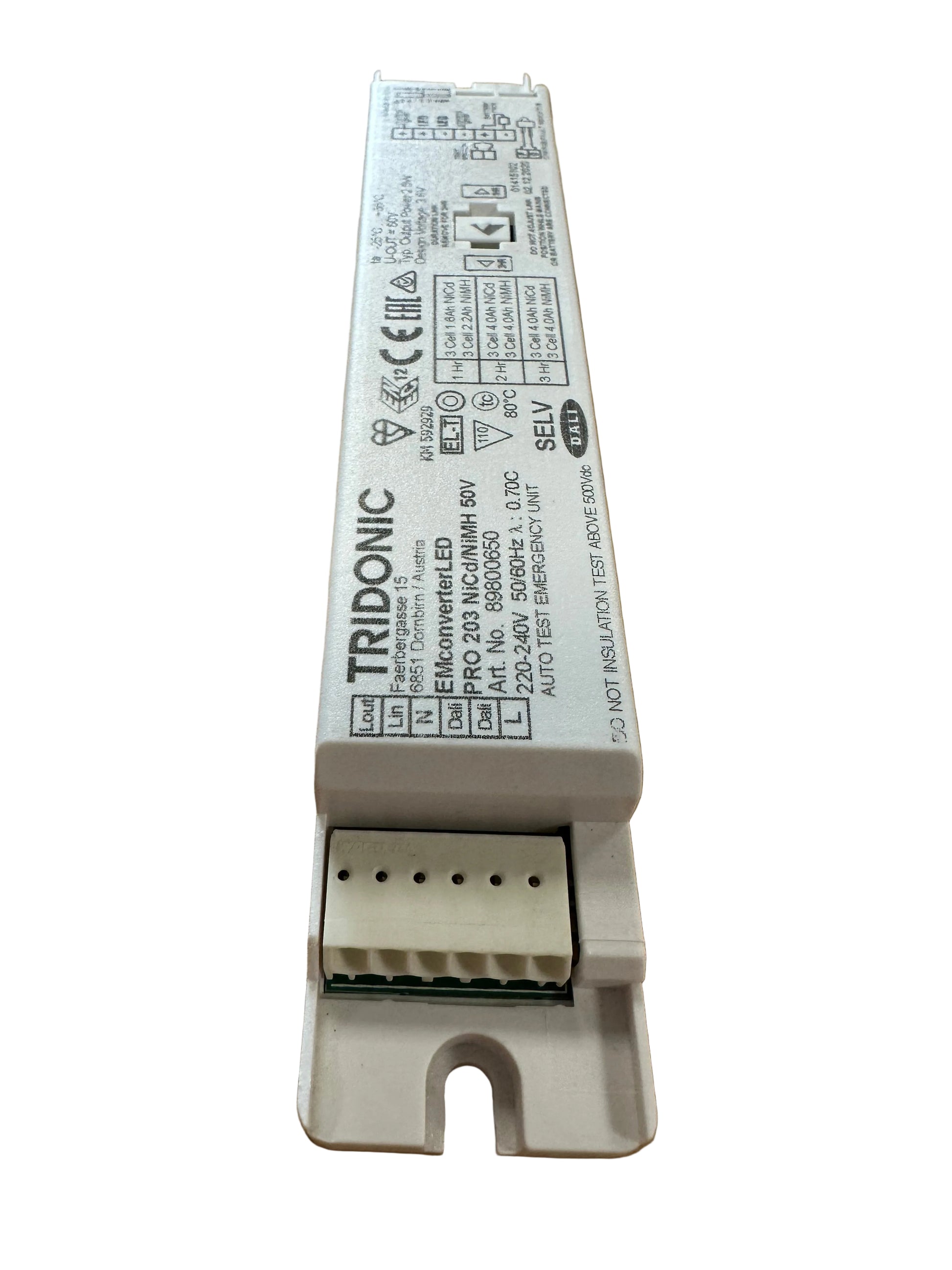

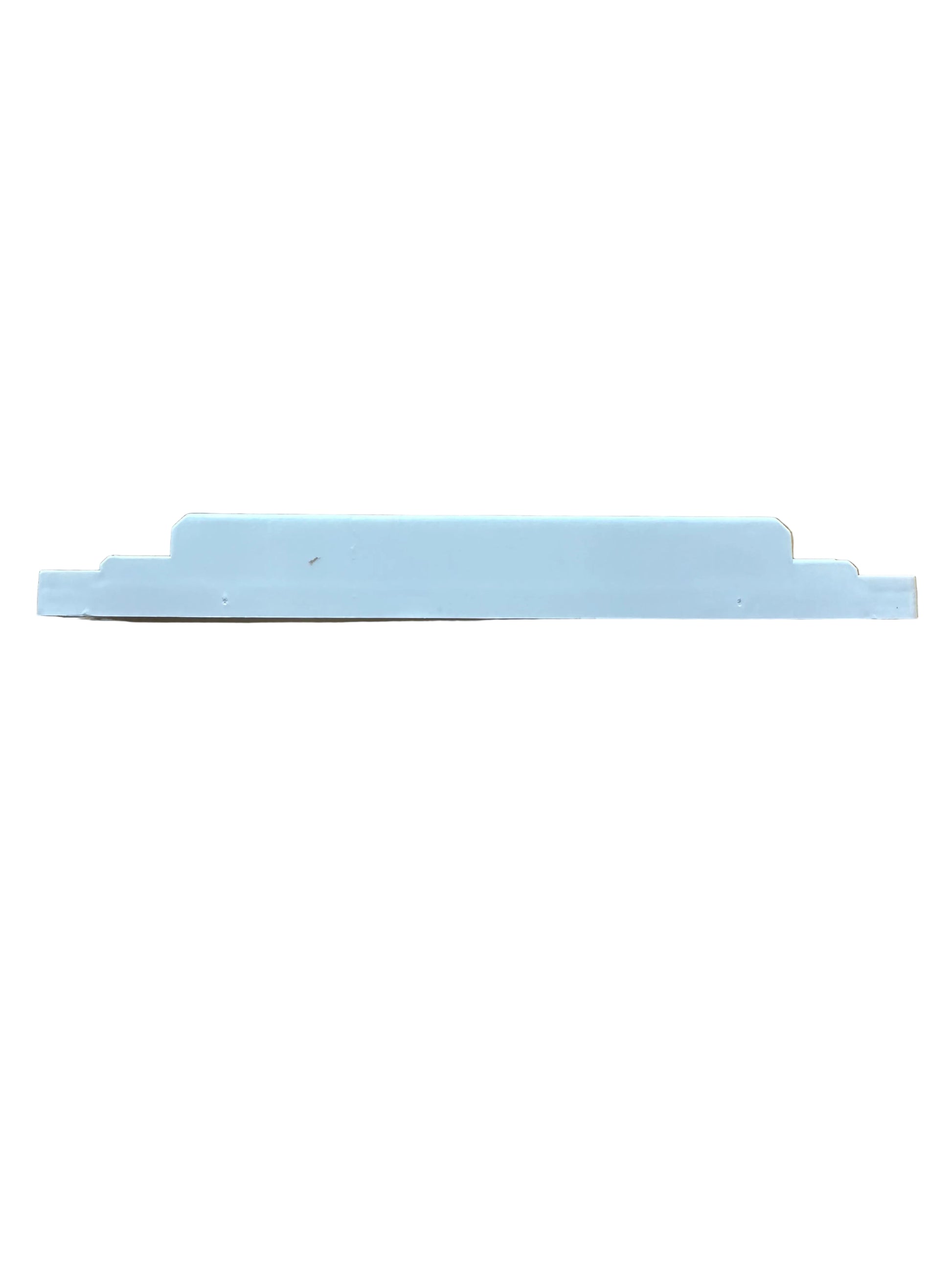

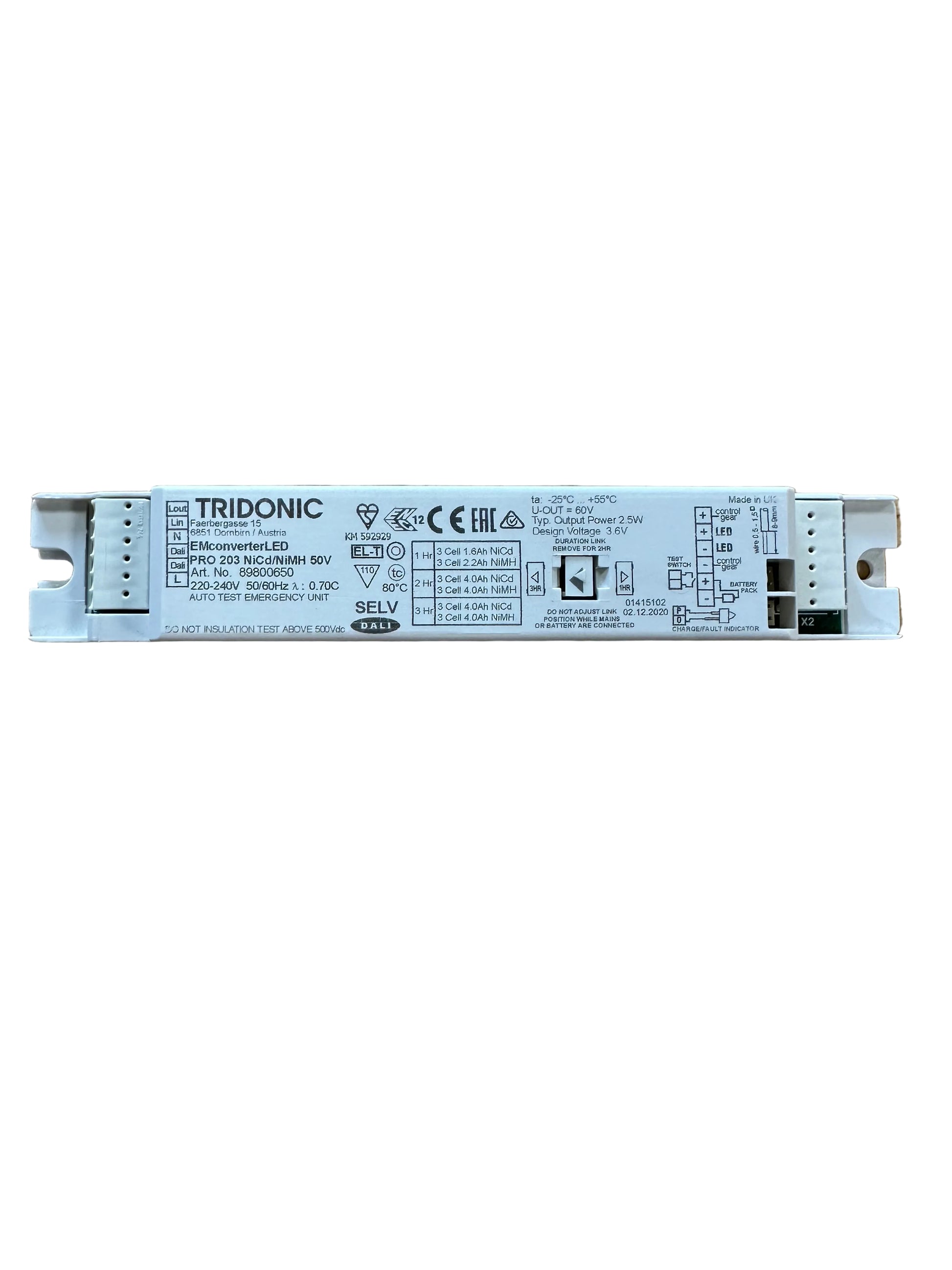

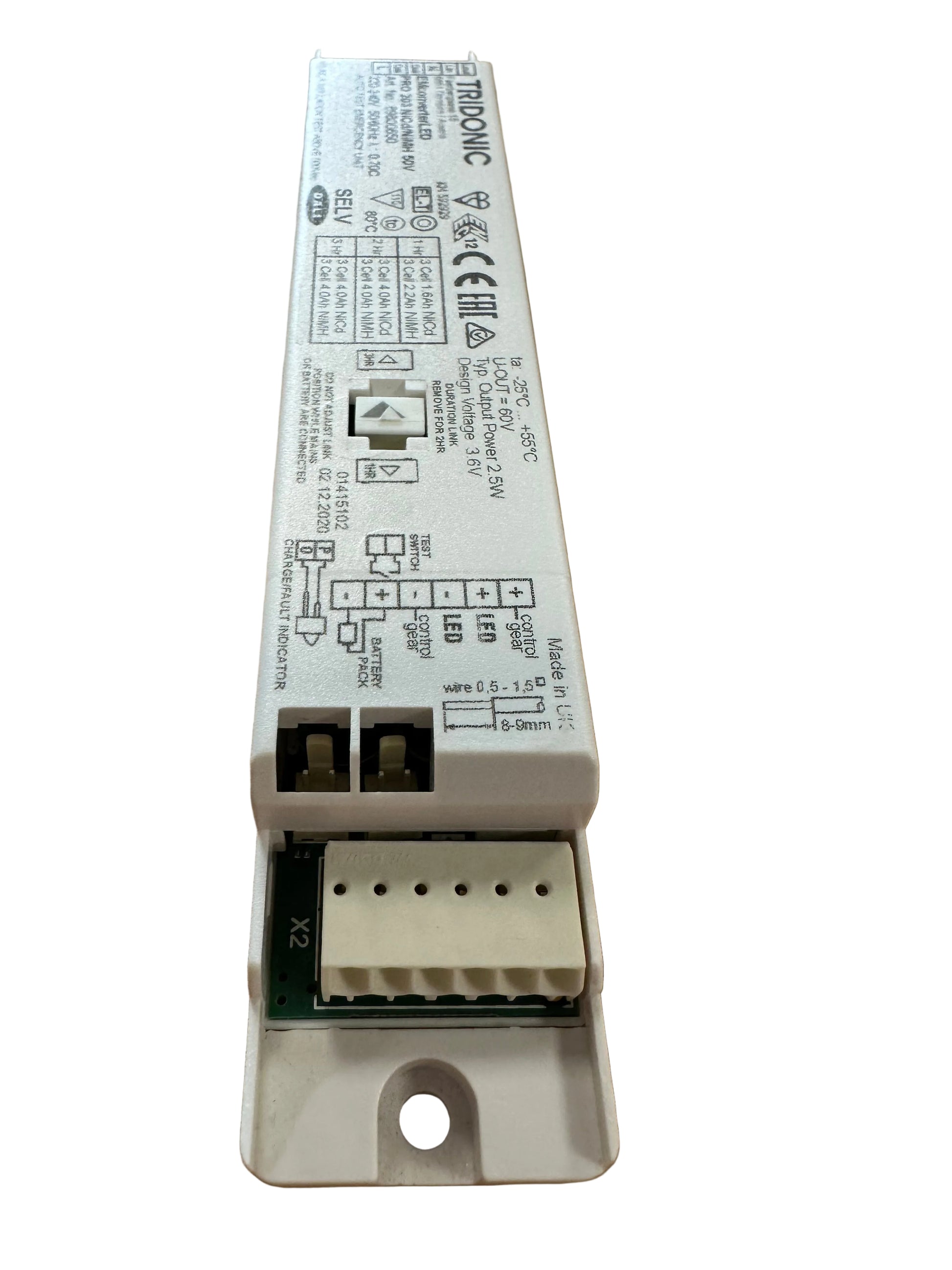

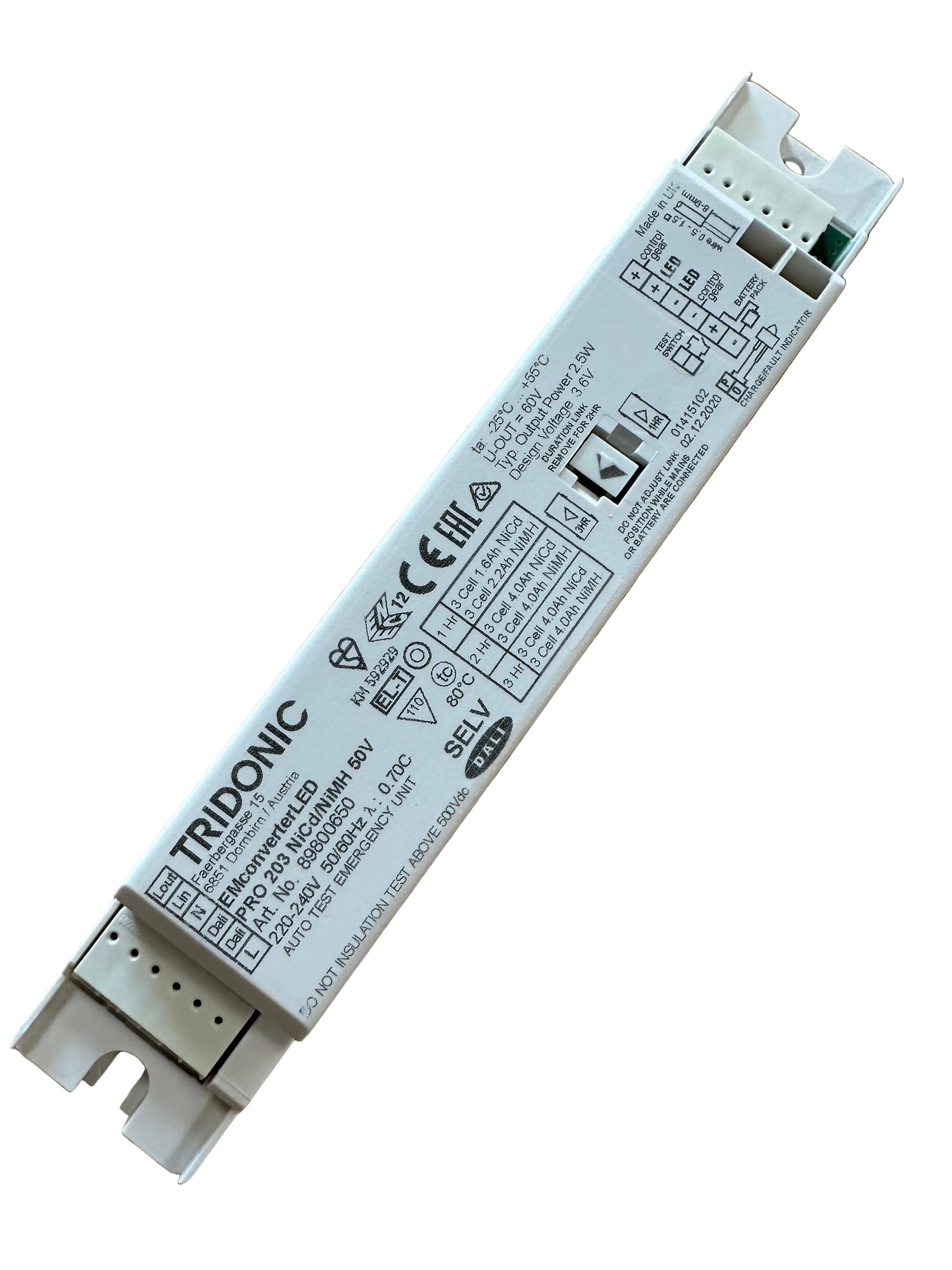

Tridonic 89800564 EM converterLED BASIC 205 NiCd/NiMH 250V

Tridonic 89800564 EM converterLED BASIC 205 NiCd/NiMH 250V

Product description

• Emergency lighting LED Driver for manual testing
• For self-contained emergency lighting
• For LED modules with a forward voltage of 50 – 250 V

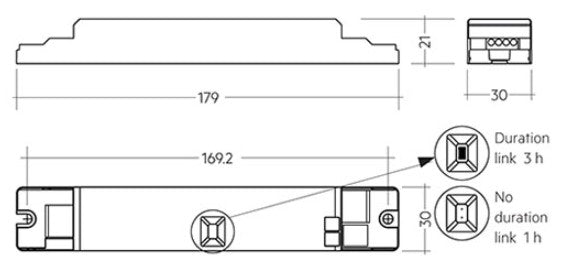

• Low profile cross-section (21 x 30 mm)
• For luminaire installation
• Nominal lifetime up to 100,000 h
• 5 years guarantee

Properties

• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery

Tridonic 89800564
