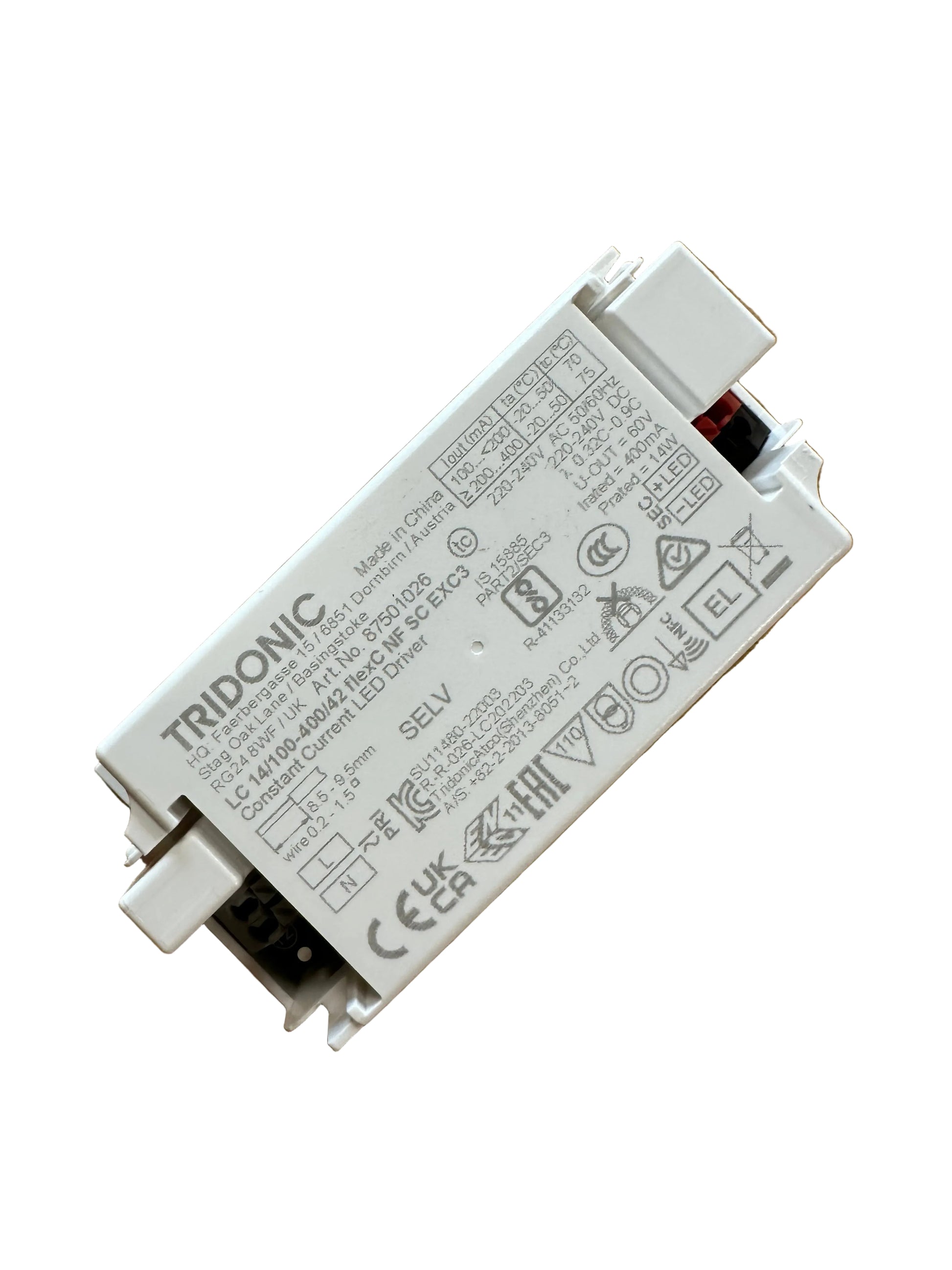

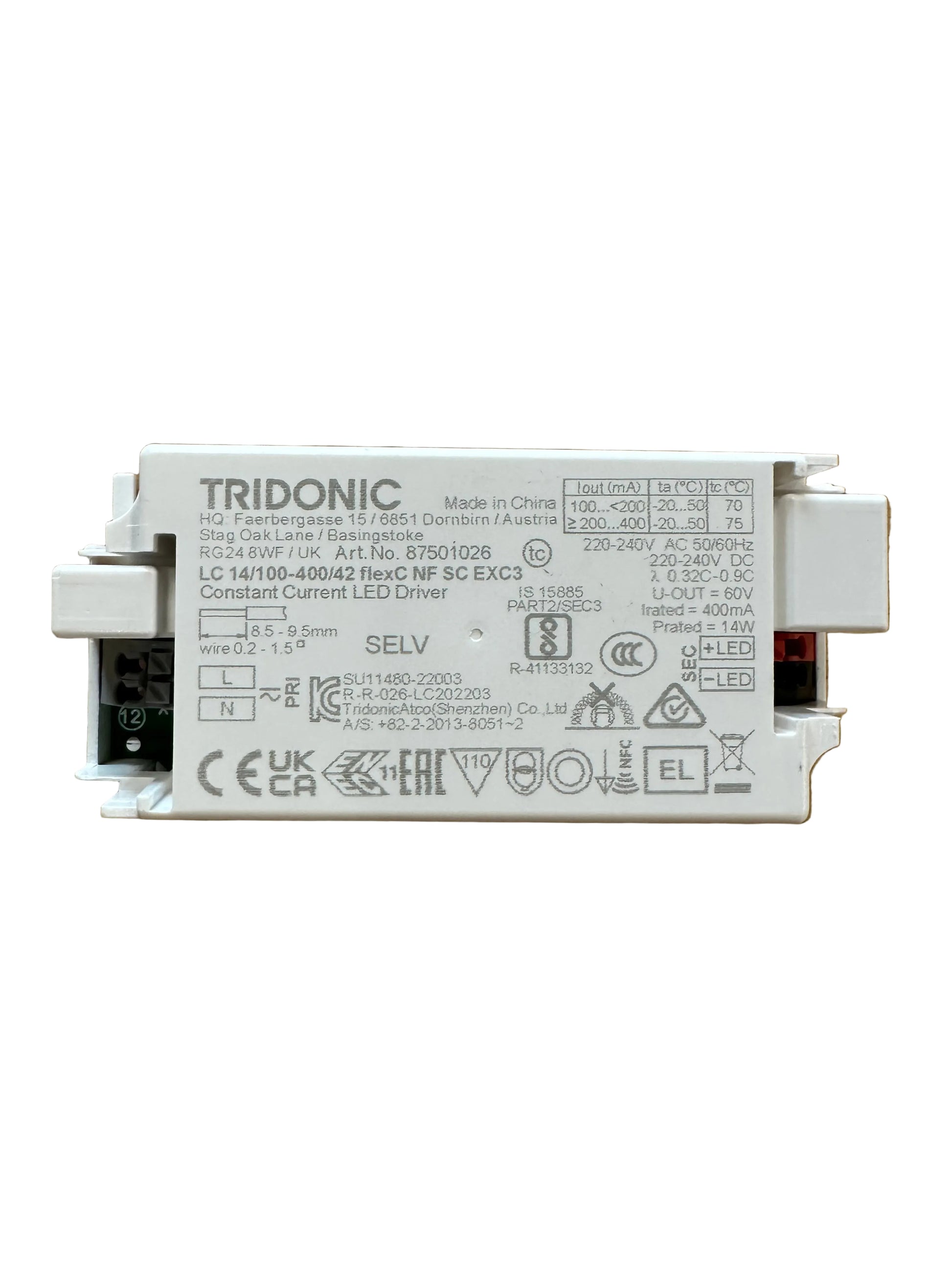

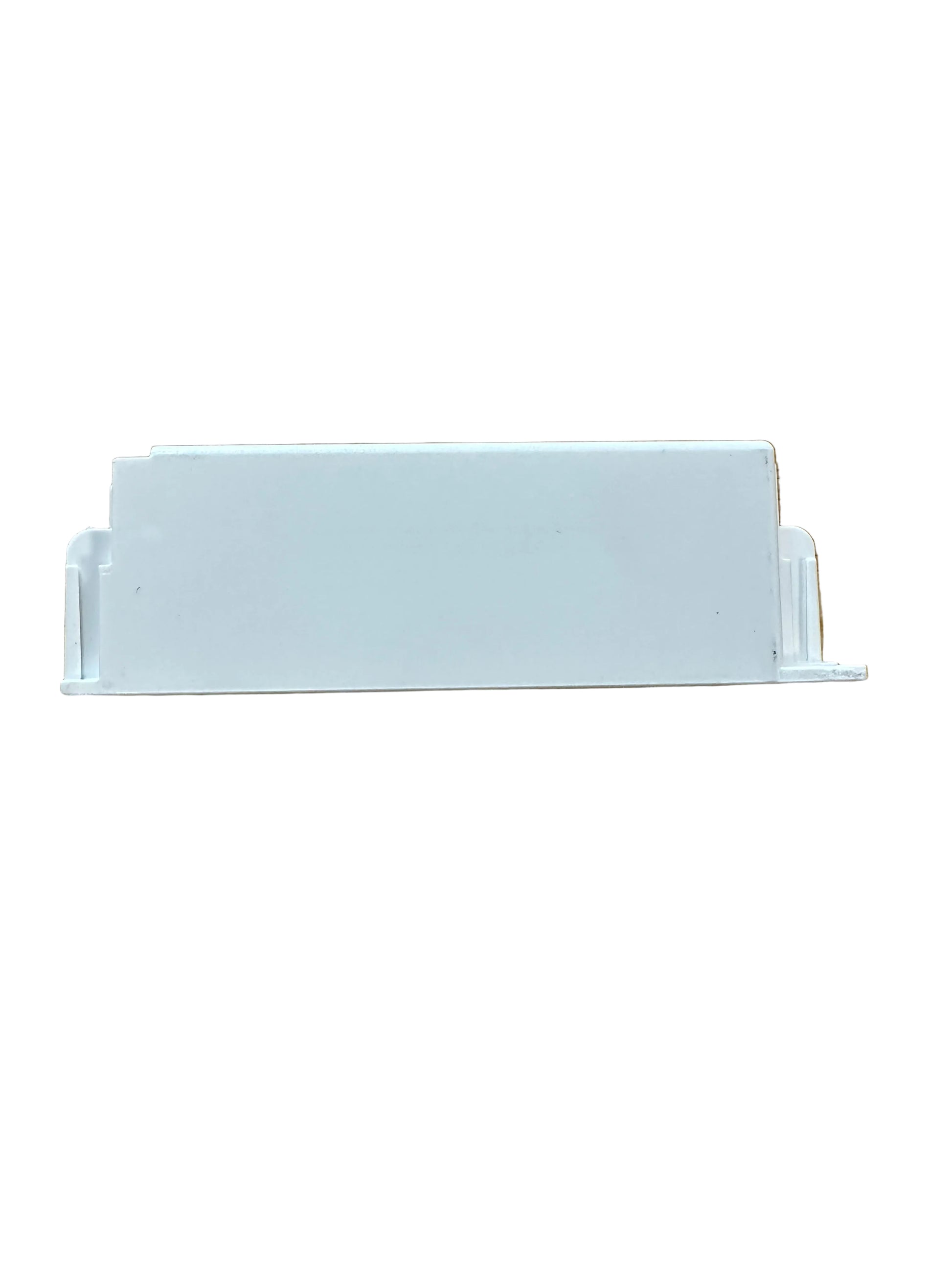

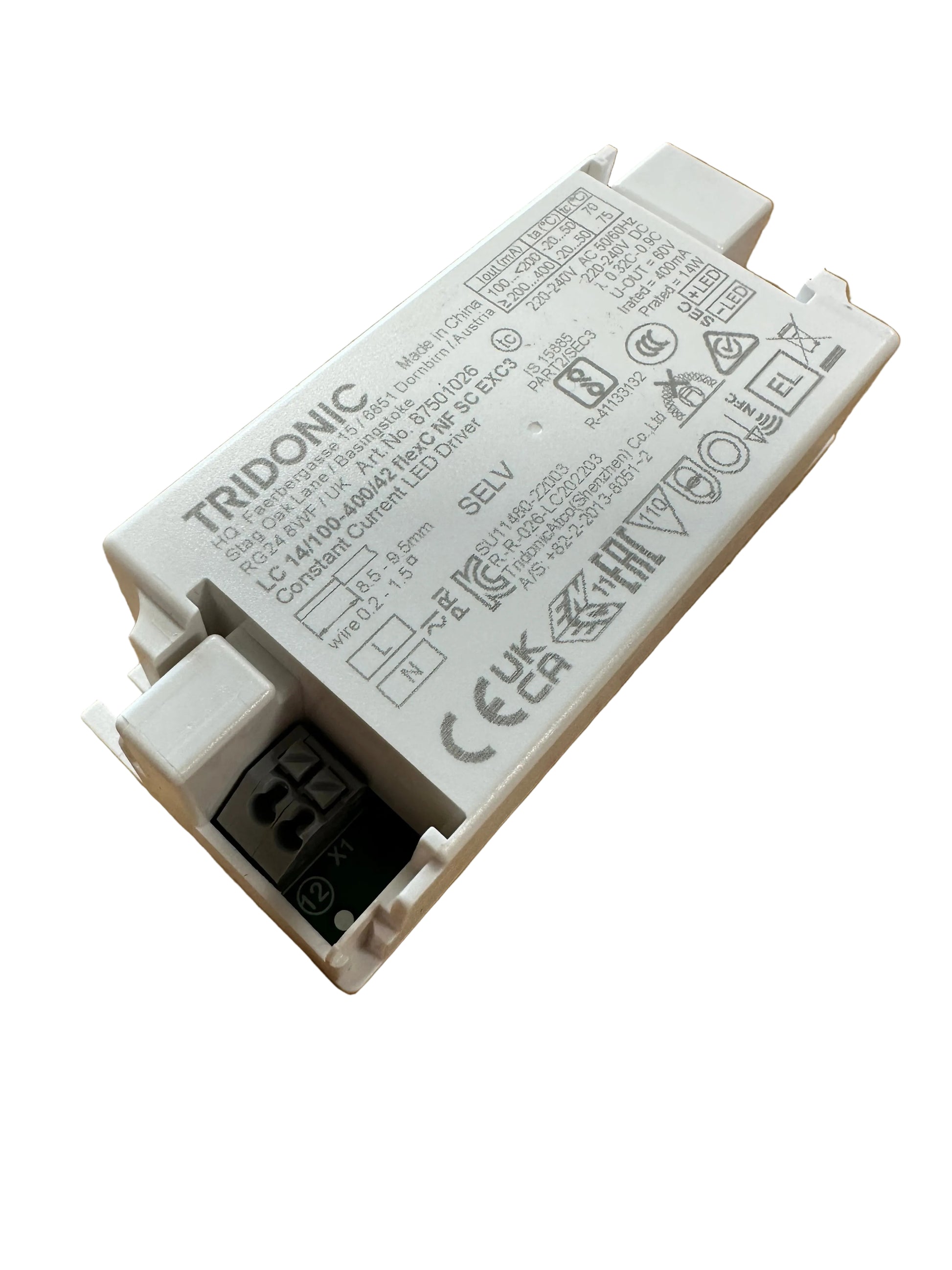

Tridonic 87501026 LC 14/100-400/42 flexC NF SC EXC3

Tridonic 87501026 LC 14/100-400/42 flexC NF SC EXC3

• Can be either used build-in or independent with clip-on strain-relief (see accessory)
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• Adjustable output current between 100 – 400 mA via NFC
• Max. output power 14 W
• Up to 83 % efficiency
• Nominal lifetime up to 100,000 h




  Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20

  Interfaces

  • Near field communication (NFC)
  • Terminal blocks: 45° push terminals

  Functions

  • Adjustable output current in 1-mA-steps (NFC)
  • Constant light output function (CLO)
  • Protective features (overtemperature, short-circuit, overload, no-load)
  • Suitable for emergency escape lighting systems acc. to EN 50172

  Benefits

  • Flexible configuration via companionSUITE (NFC)
  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • In-field programming possible after installation with NFC interface



  Tridonic 87501026
