Tridonic 87501147 LC 30/350-700/50 DA SC SNC4

Tridonic 87501147 LC 30/350-700/50 DA SC SNC4

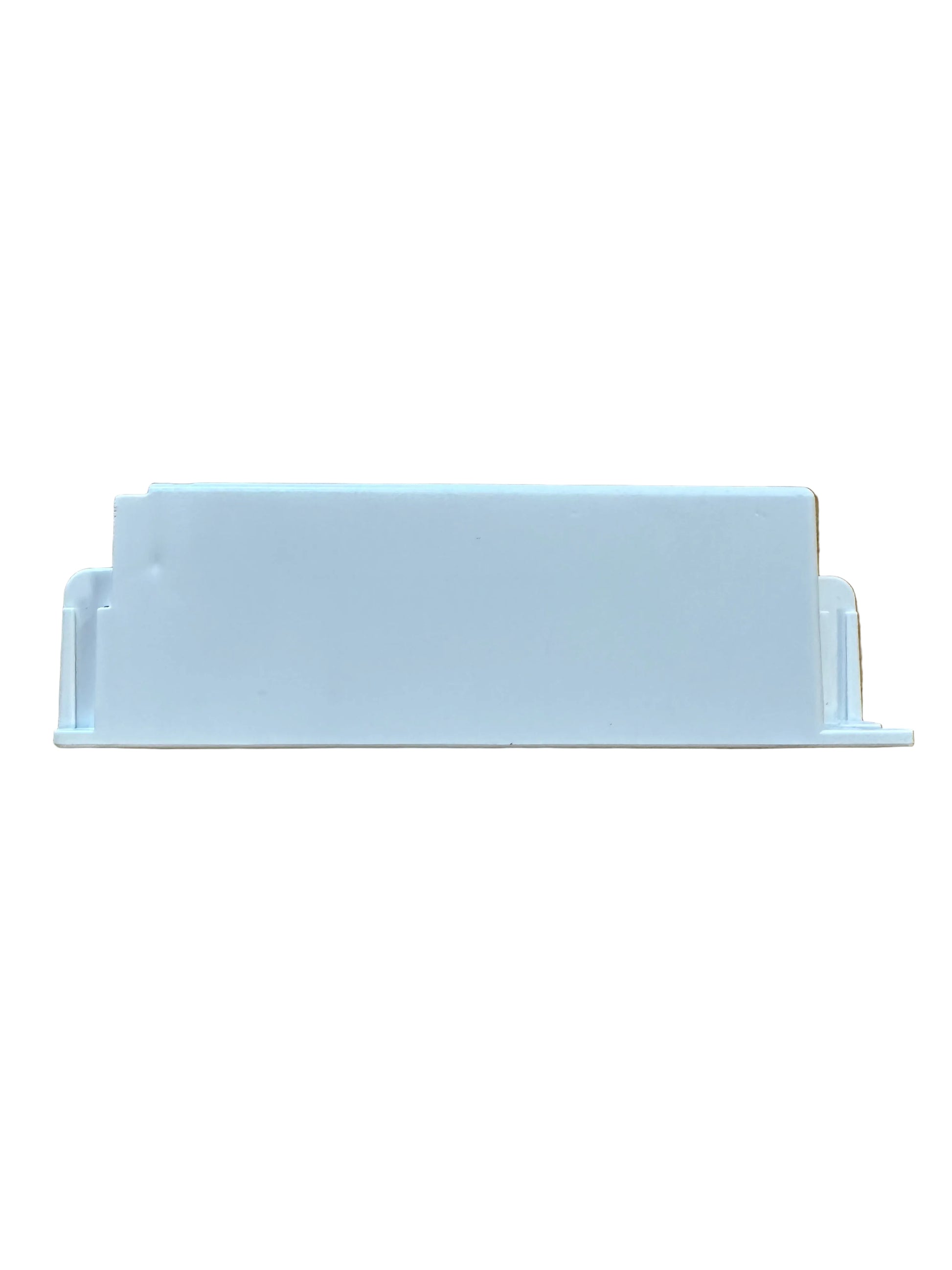

• Can be either used built-in or independent with clip-on strain-relief (Image 2)
• For End Caps Click here 28001168
• For luminaires of protection class I and protection class II
• For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
• Temperature protection as per EN 61347-2-13 C5e
• Adjustable output current via dip switch or DALI
• Selectable fixed output current 350, 400, 450, 500, 550, 600, 650 and 700 mA (pre-selected current 350 mA)
• Max. output power 30 W
• Up to 88 % efficiency
• Nominal lifetime up to 100,000 h
• one4all (DALI-2, switchDIM, corridorFUNCTION)
• Terminal blocks: 45° push terminals

Tridonic 87501147
