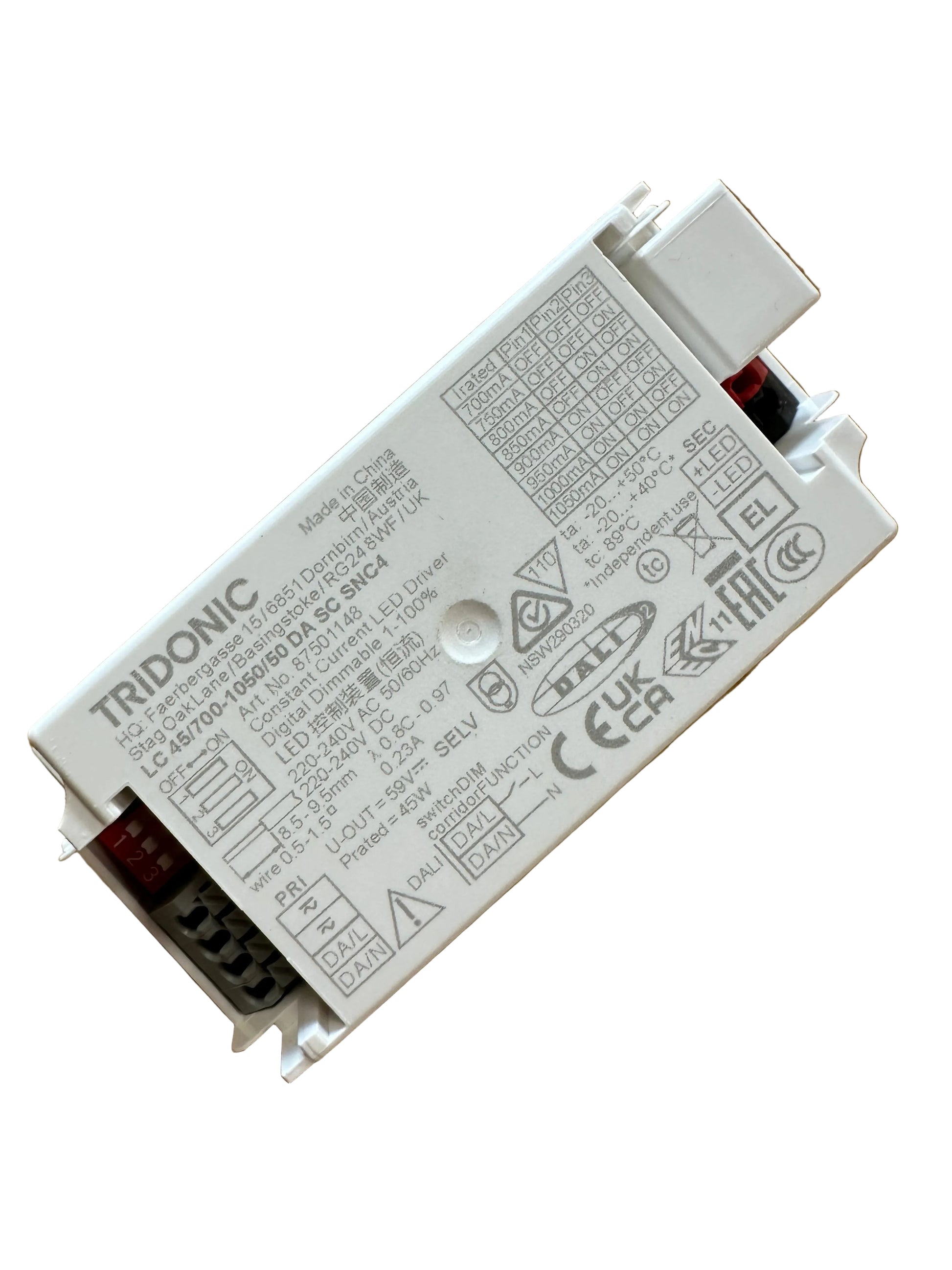

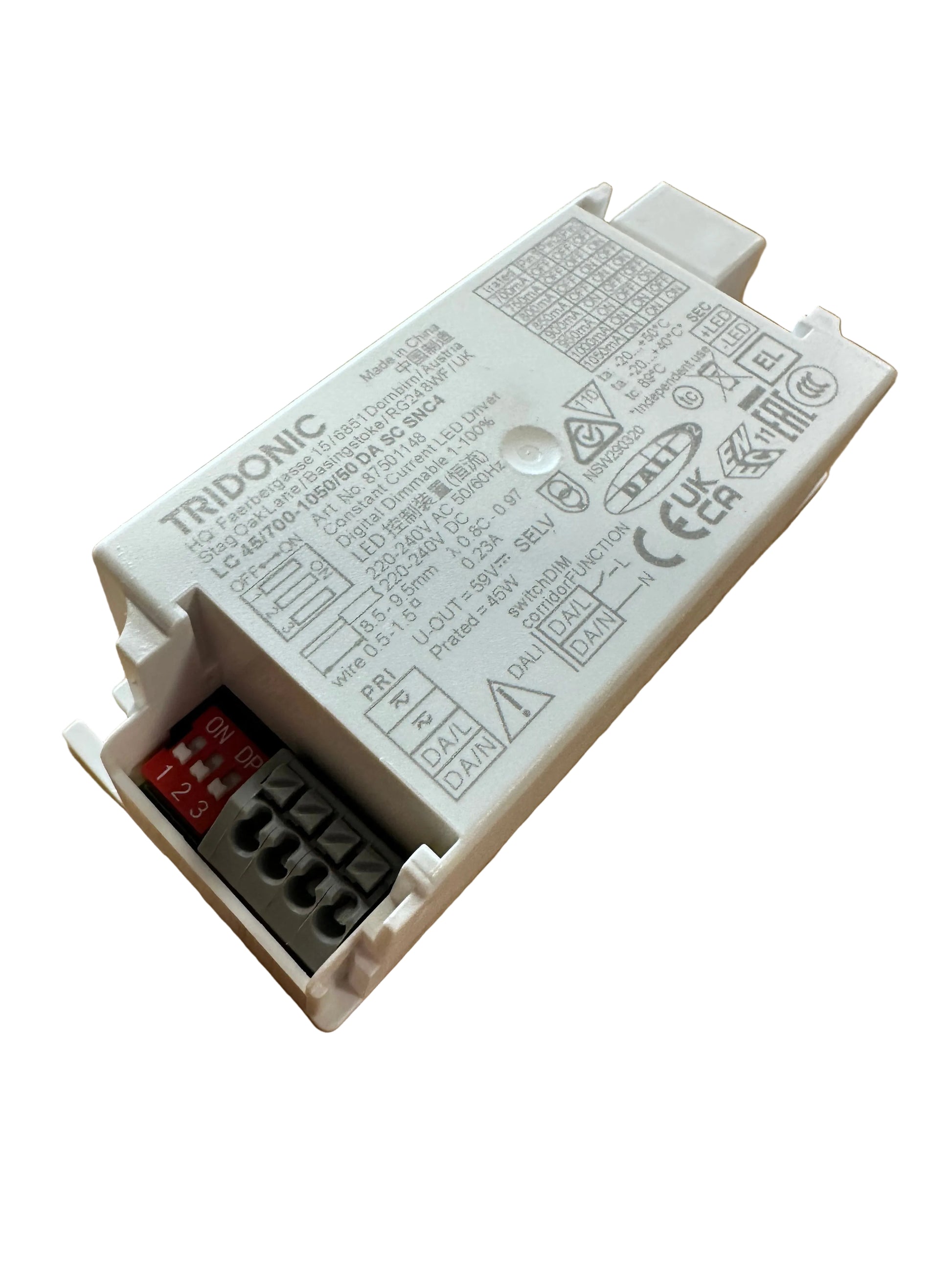

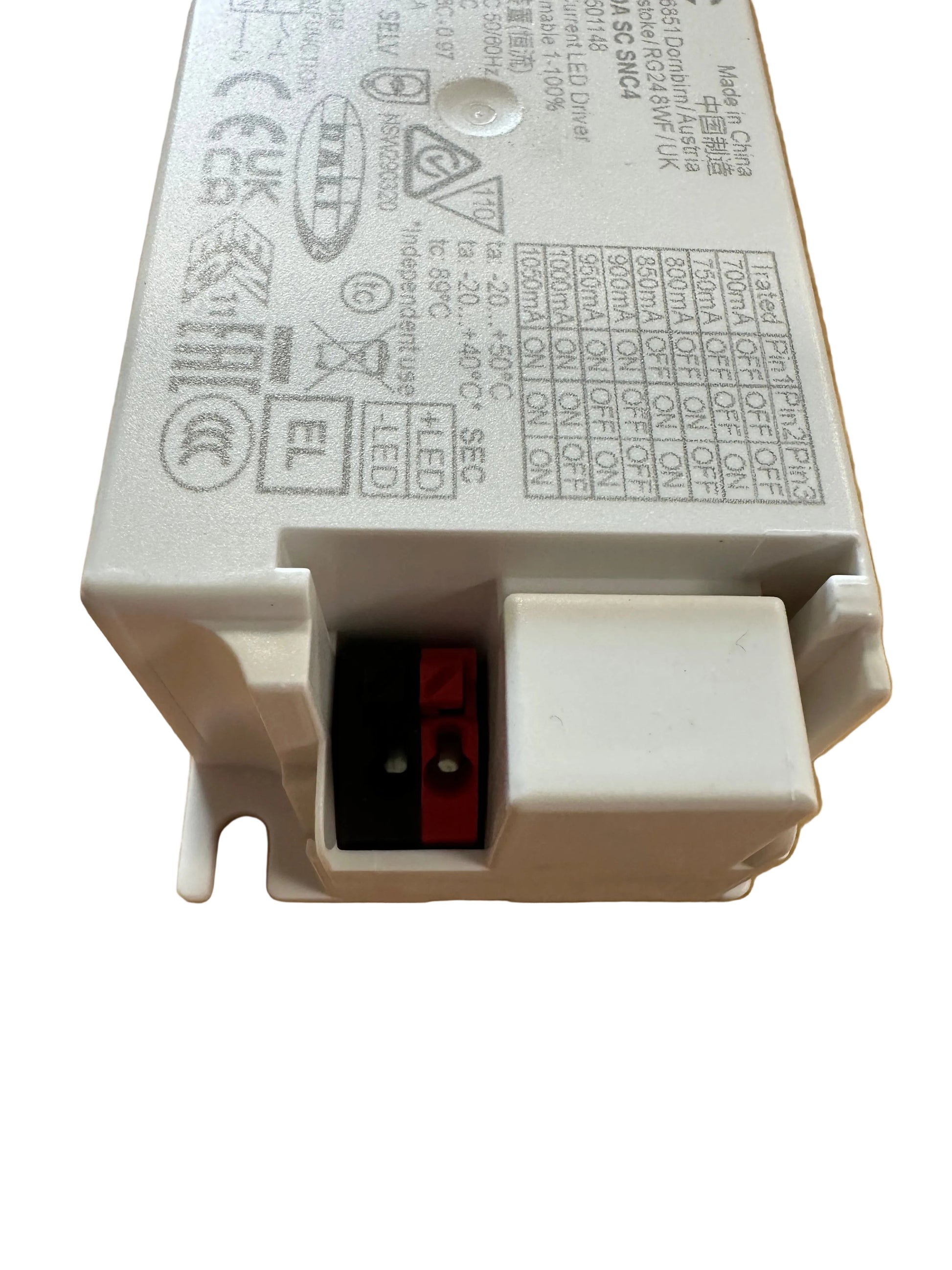

Tridonic 87501148 LC 45/700-1050/50 DA SC SNC 4

Tridonic 87501148 LC 45/700-1050/50 DA SC SNC 4

• Can be either used built-in or independent with clip-on strain-relief (Image 2)
• For End Caps Click here 28001168
• For luminaires of protection class I and protection class II
• For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
• Temperature protection as per EN 61347-2-13 C5e

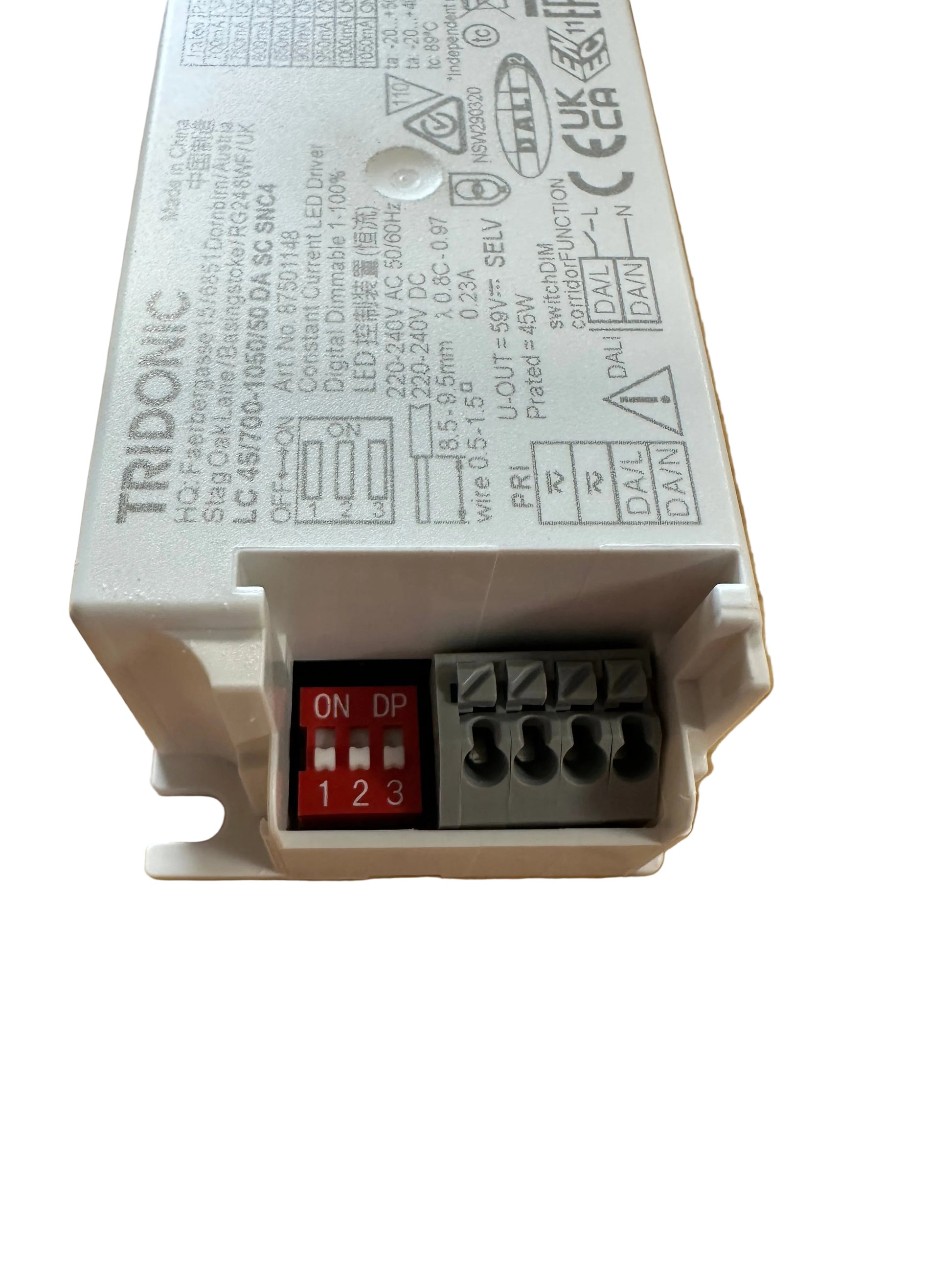

• Adjustable output current via dip switch or DALI

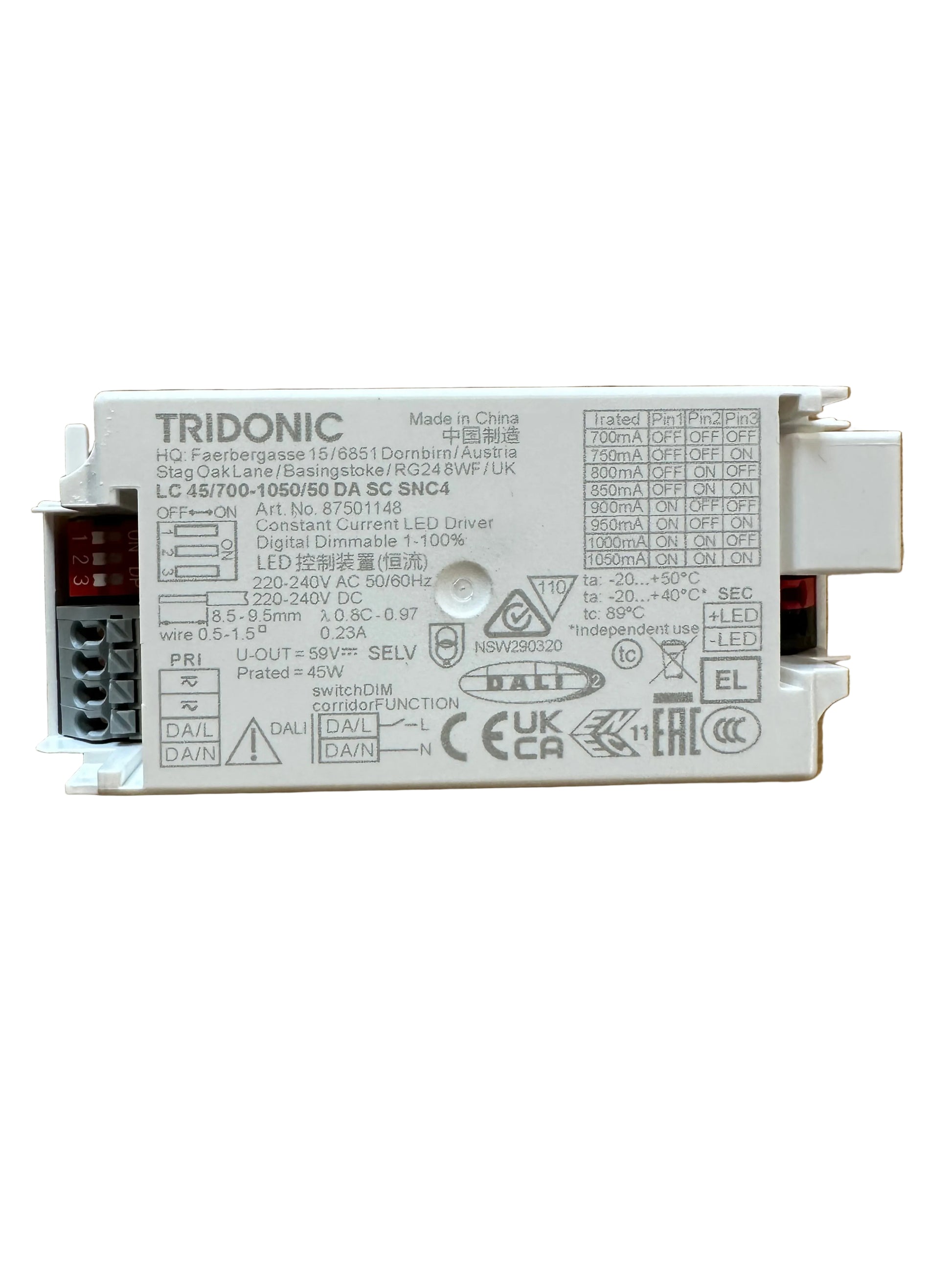

• Selectable fixed output current 700, 750, 800, 850, 900, 950, 1,000 and 1,050 mA (pre-selected current 700 mA)
• Max. output power 45 W
• Up to 89.5 % efficiency
• Nominal lifetime up to 100,000 h
• one4all (DALI-2, switchDIM, corridorFUNCTION)
• Terminal blocks: 45° push terminals

Tridonic 87501148
