Tridonic 87501205 LC 50/150-500/230 DA lp SNC4

Tridonic 87501205 LC 50/150-500/230 DA lp SNC4

87501205 Description

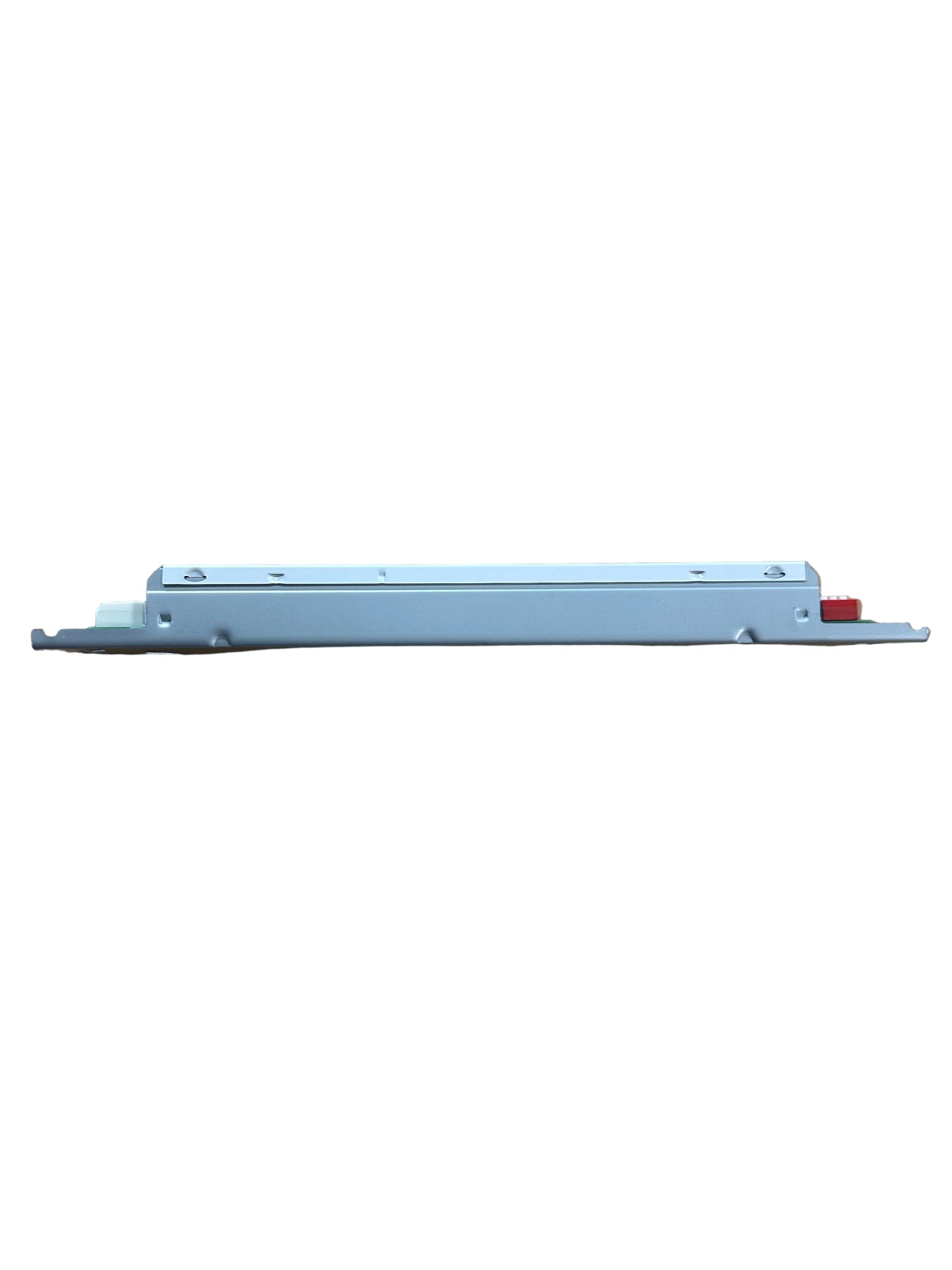

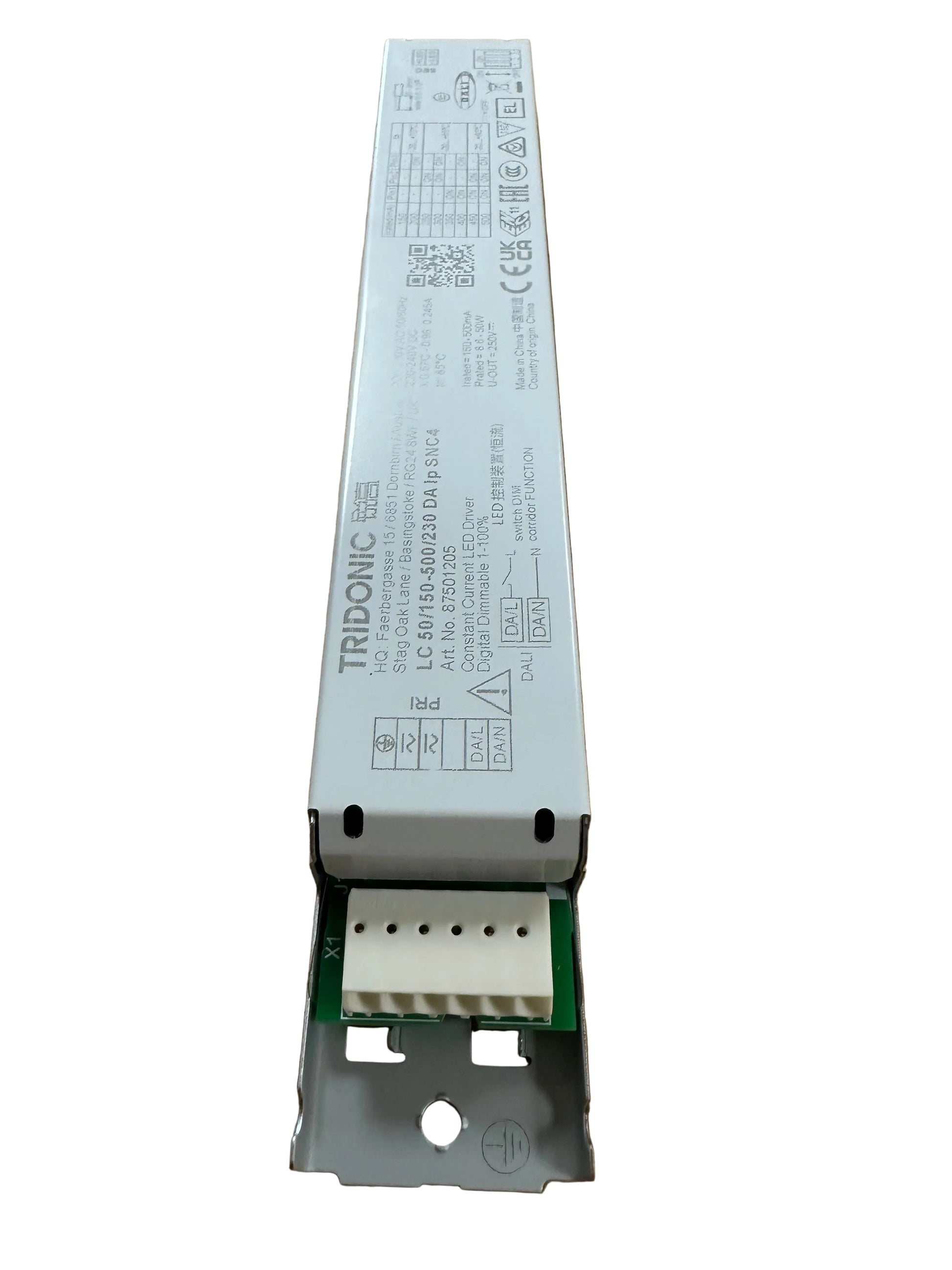

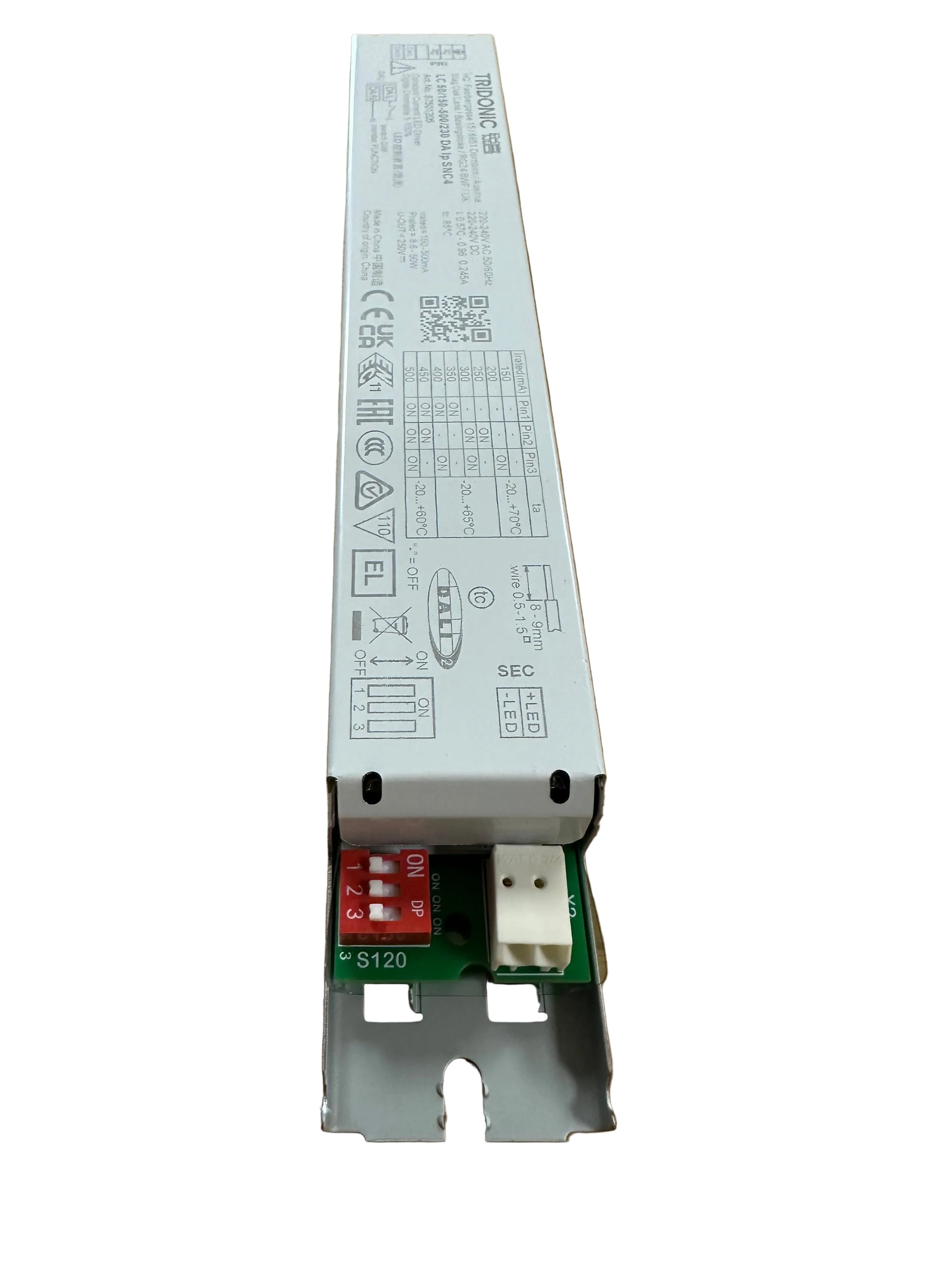

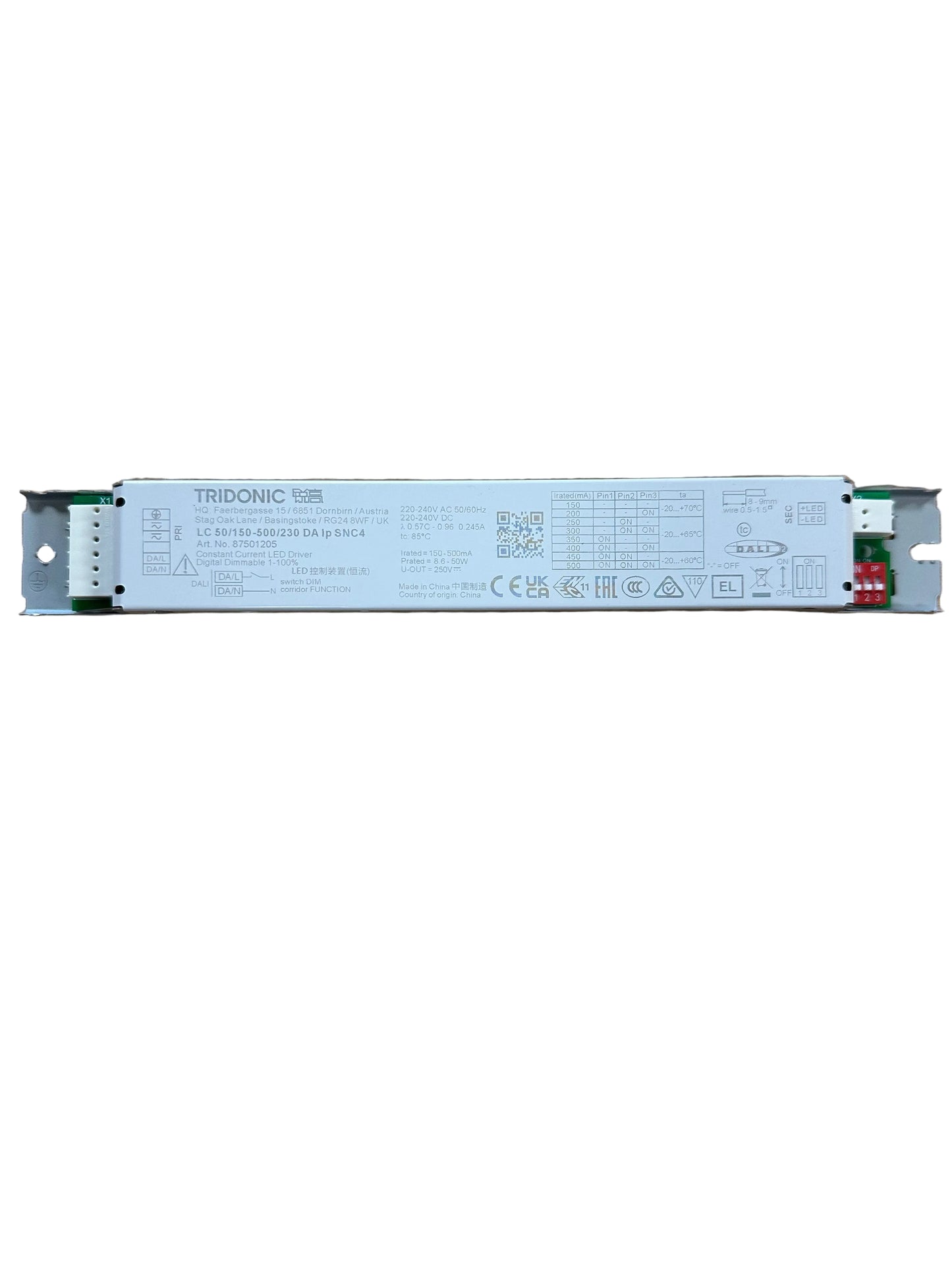

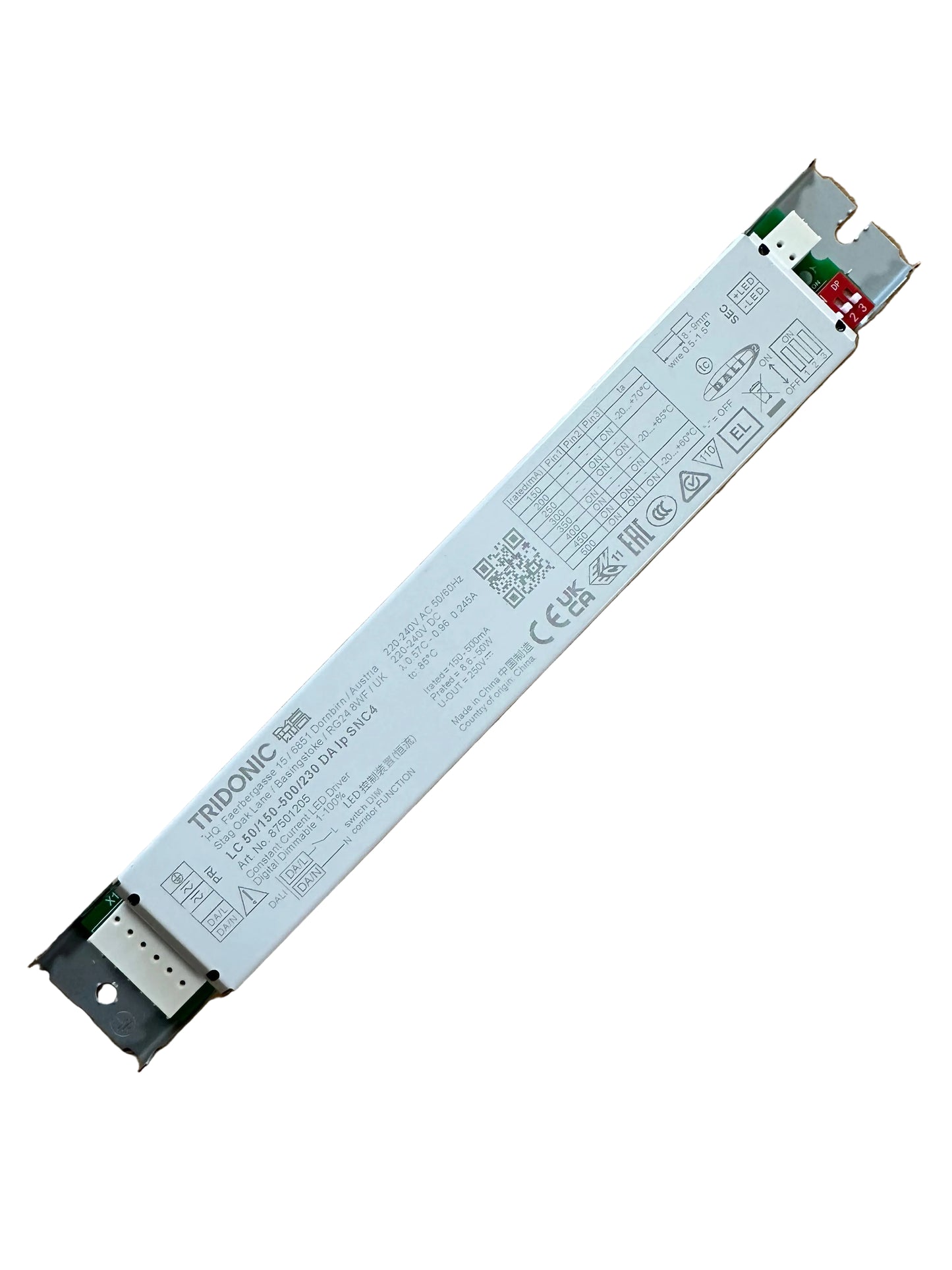

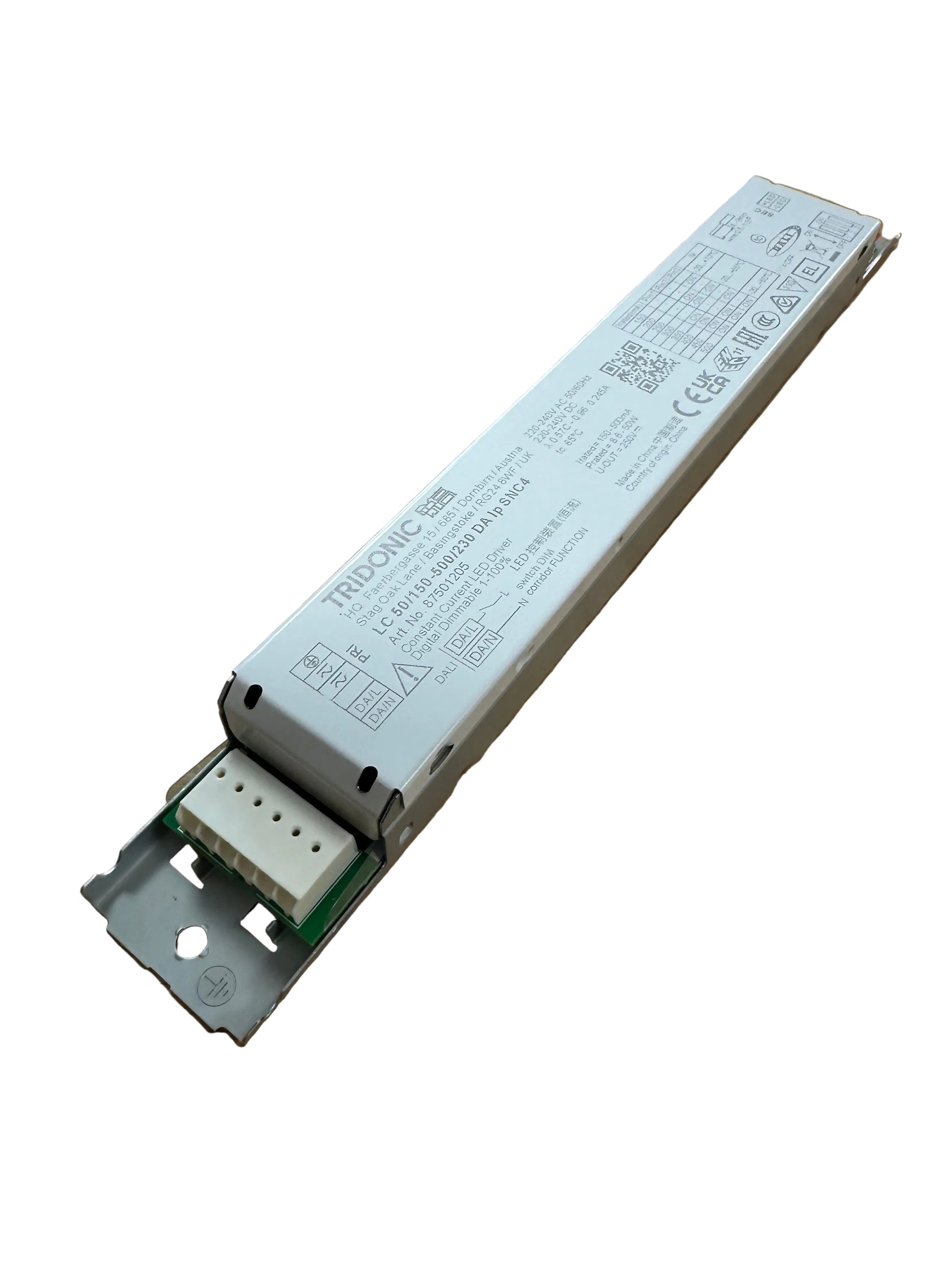

Dimmable built-in constant current LED driver
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
Adjustable output current via dip switch or DALI
Selectable fixed output current 150, 200, 250, 300, 350, 400, 450 and 500 mA (pre-selected current 150 mA)
Max. output power 50 W
Up to 93 % efficiency
Anti-glowing design

87501205 Housing properties

Low profile metal casing with white cover
Type of protection IP20

87501205 Interfaces
one4all (DALI-2, switchDIM, corridorFUNCTION)
Terminal blocks: 0° push terminals

87501205 Functions

Adjustable output current in 1-mA-steps (DALI)
Constant light output function (CLO)
Protective features (overtemperature, short-circuit, overload, no-load)
Suitable for emergency escape lighting systems acc. to EN 50172

87501205 Benefits

Flexible configuration via companionSUITE (DALI)
Application-oriented operating window for maximum compatibility
Best energy savings due to low stand-by losses and high efficiency

Typical applications for the 87501205

For linear/area lighting
