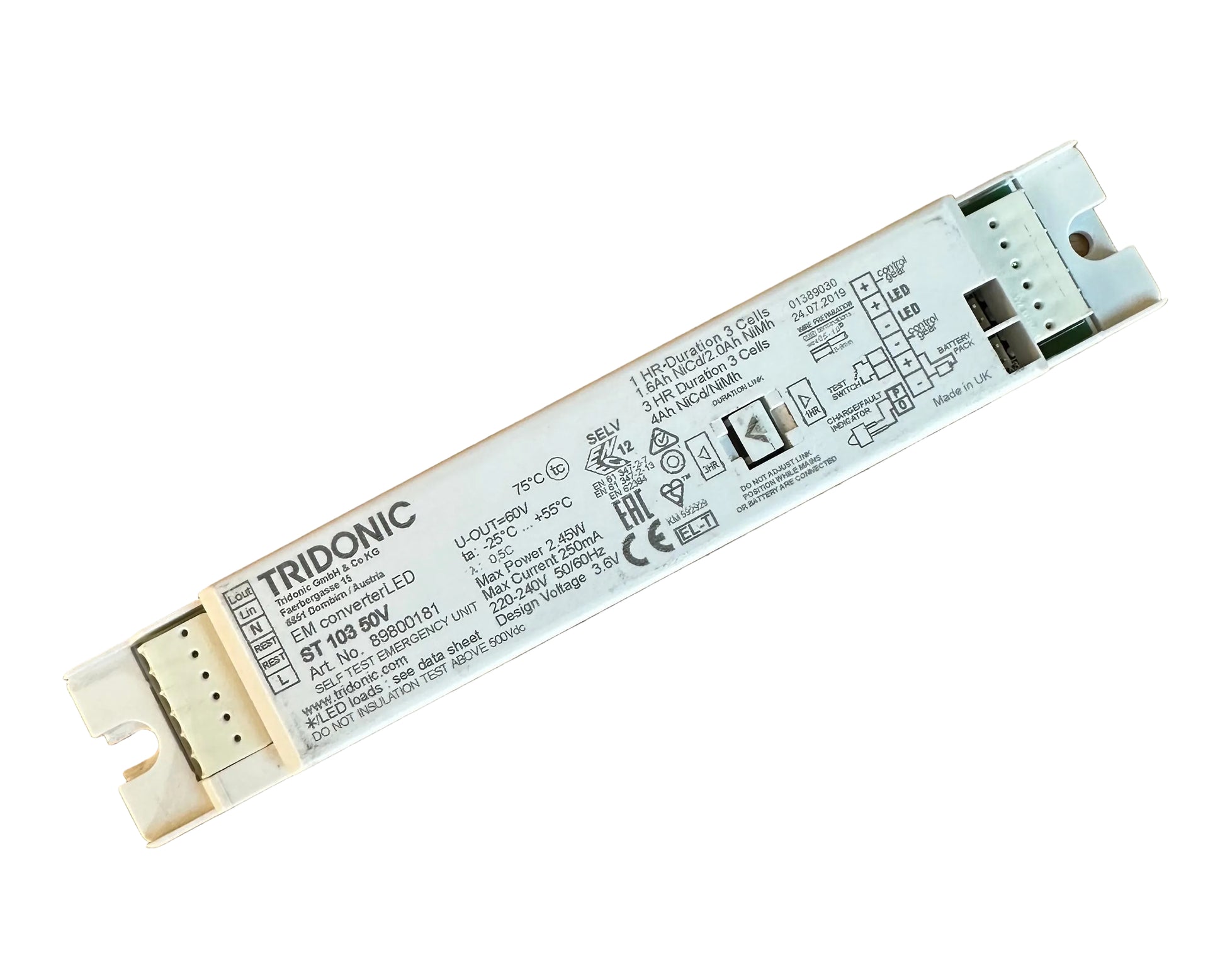

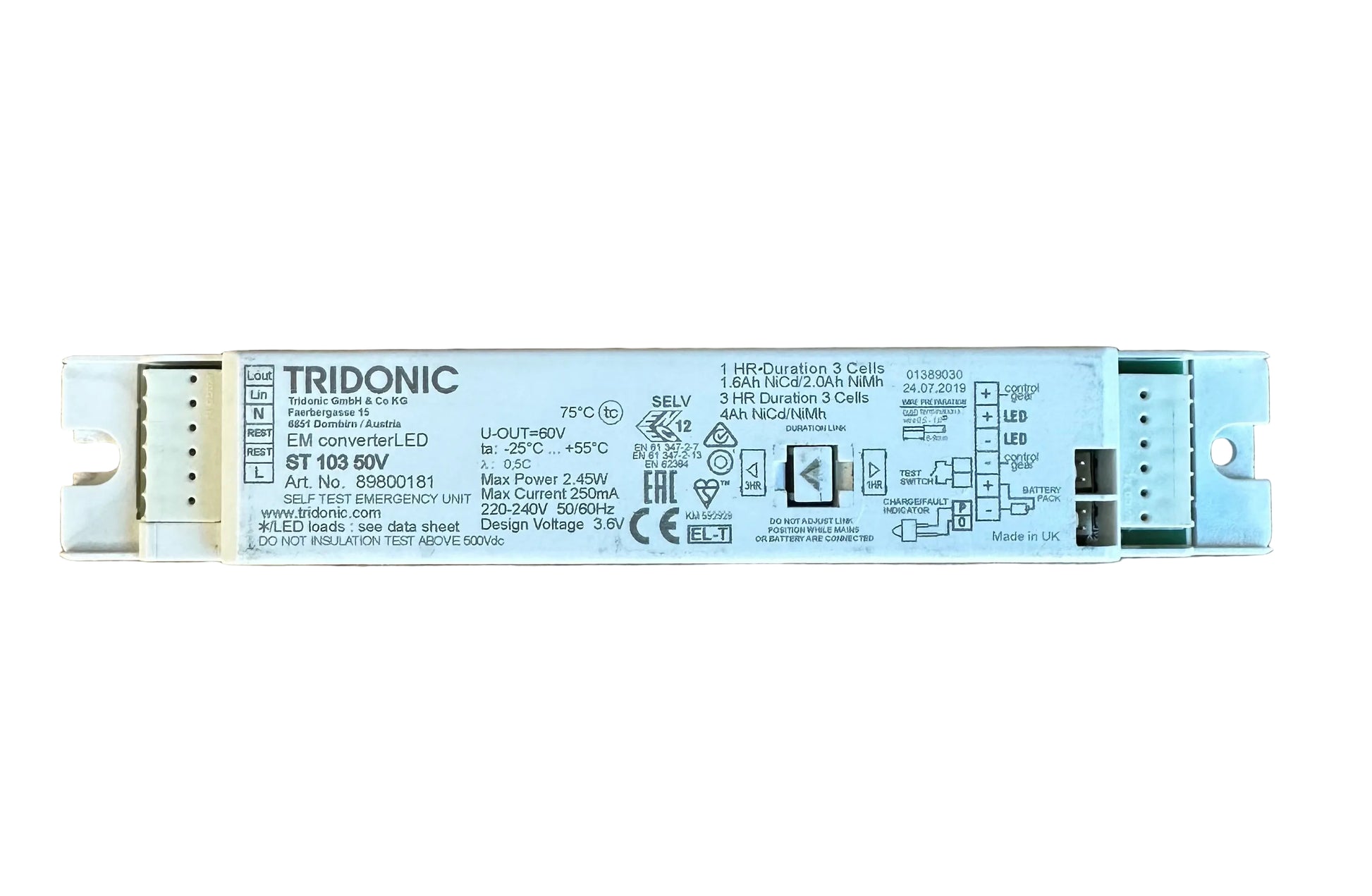

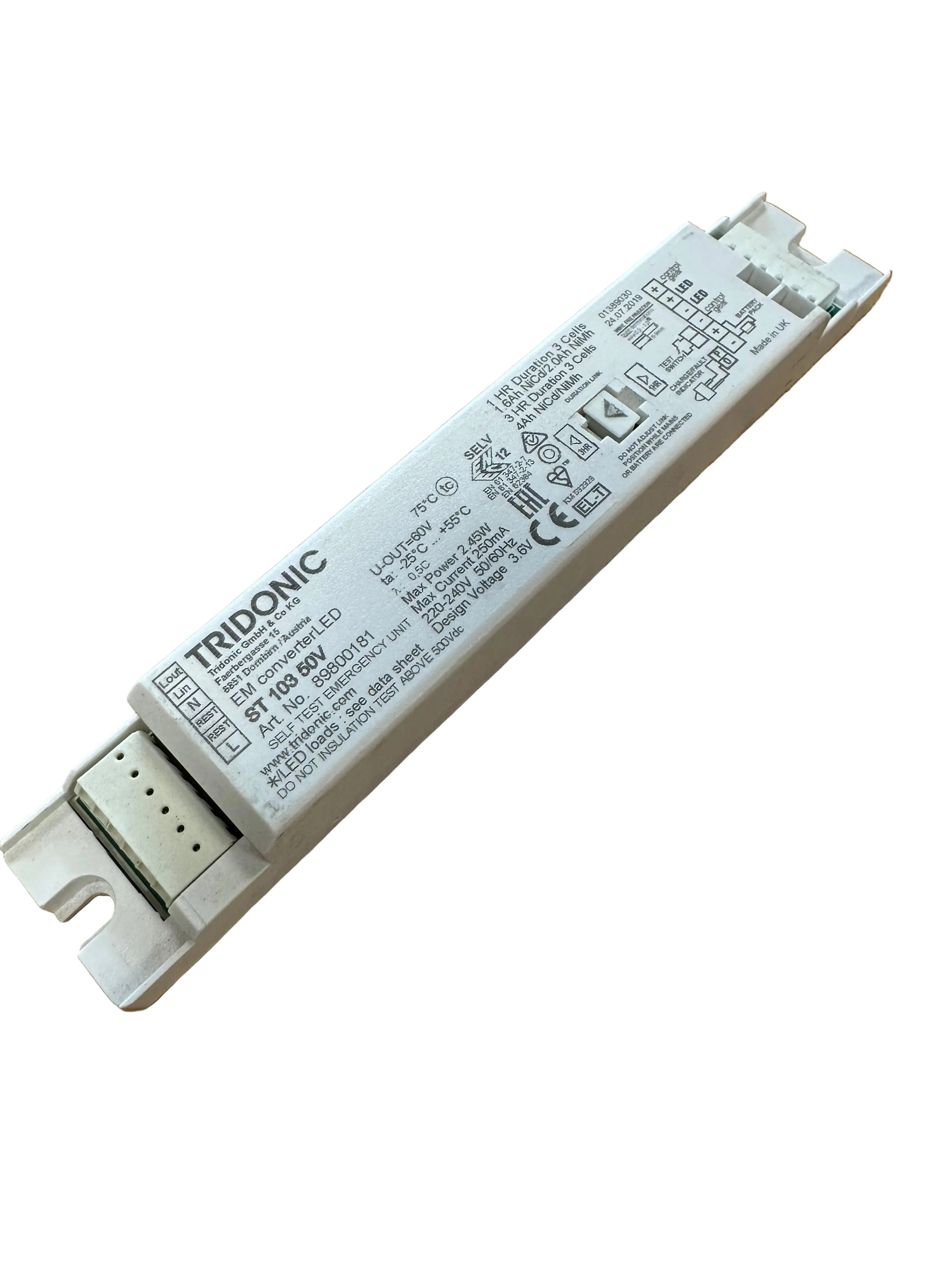

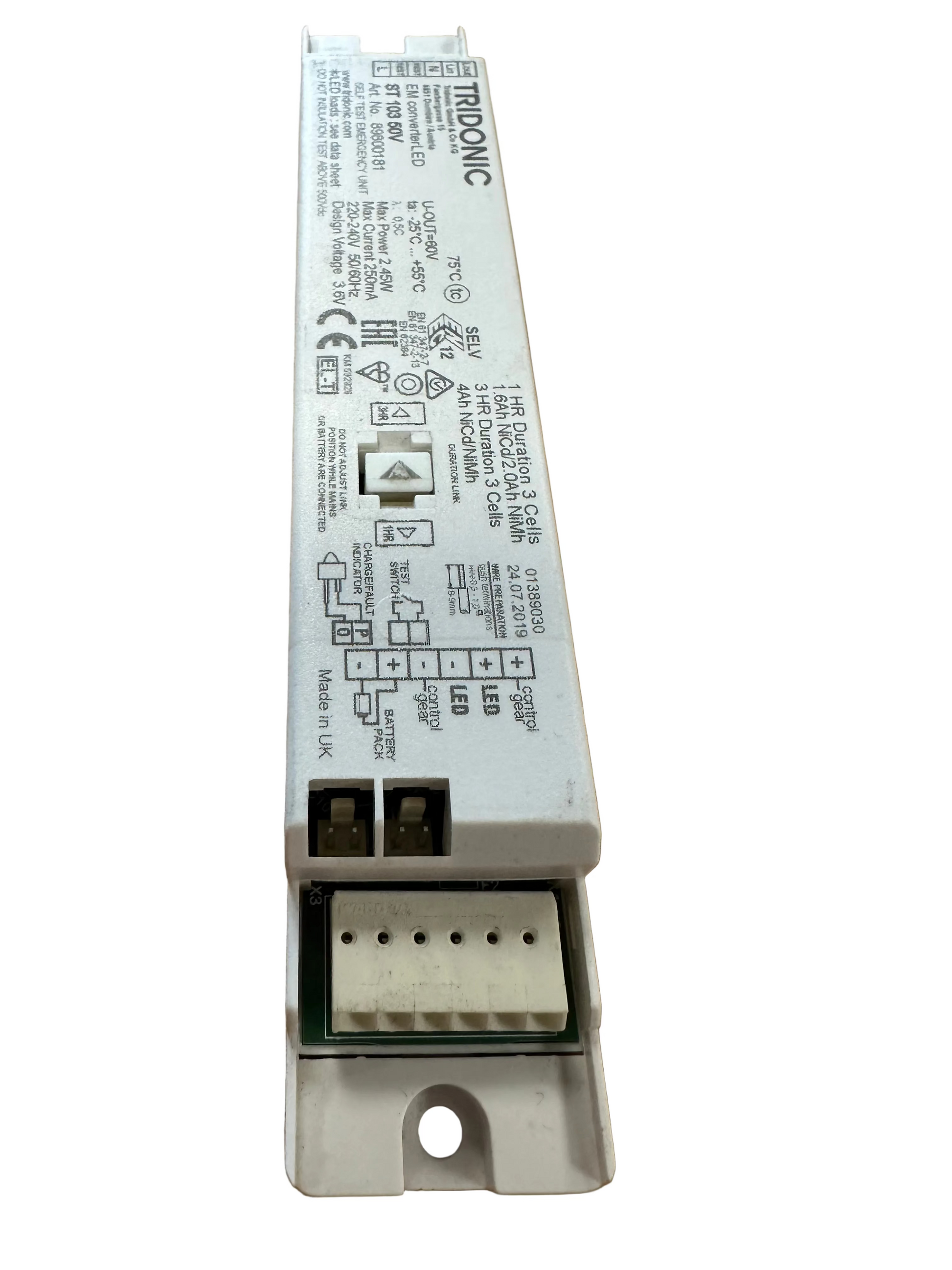

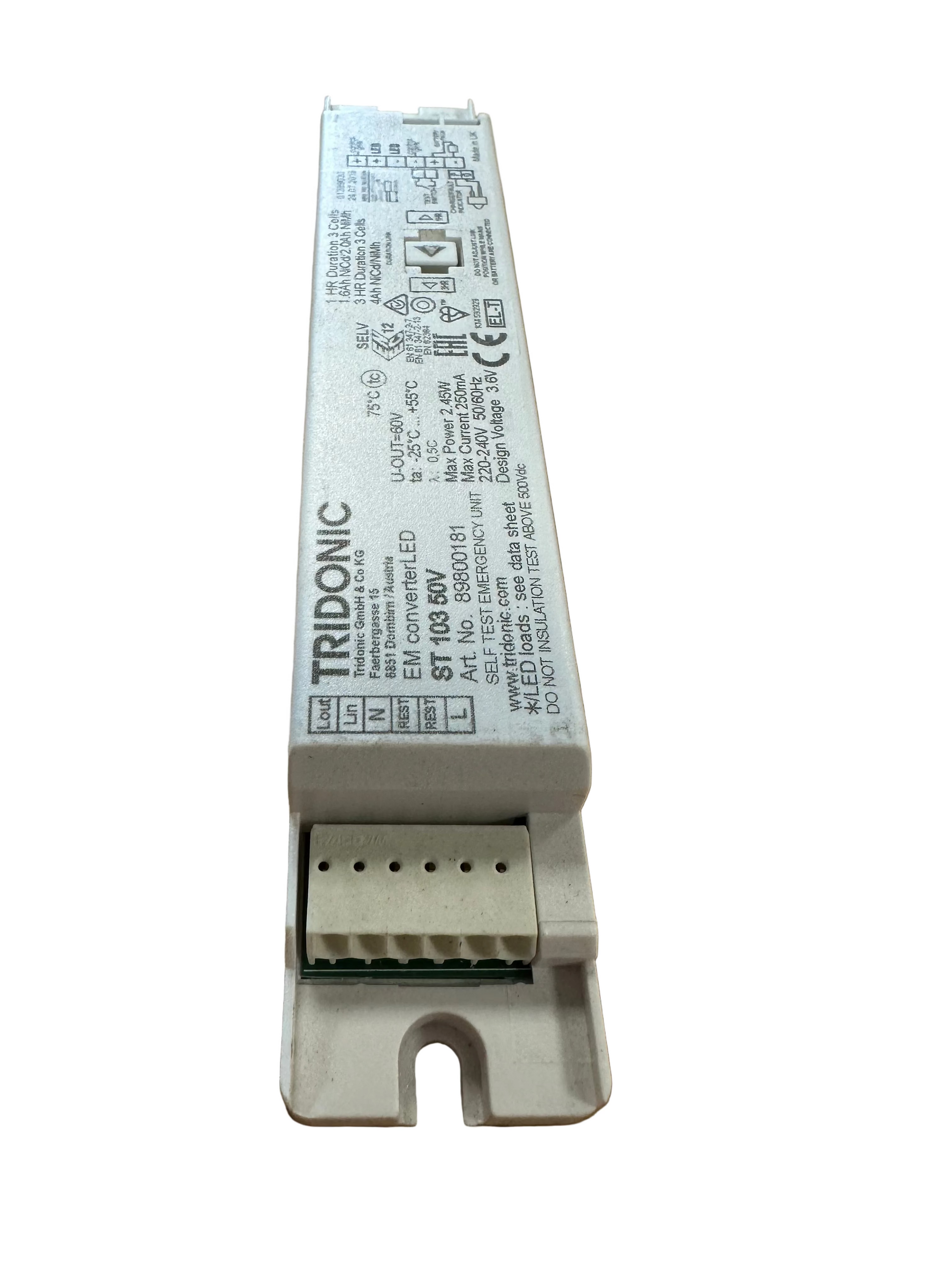

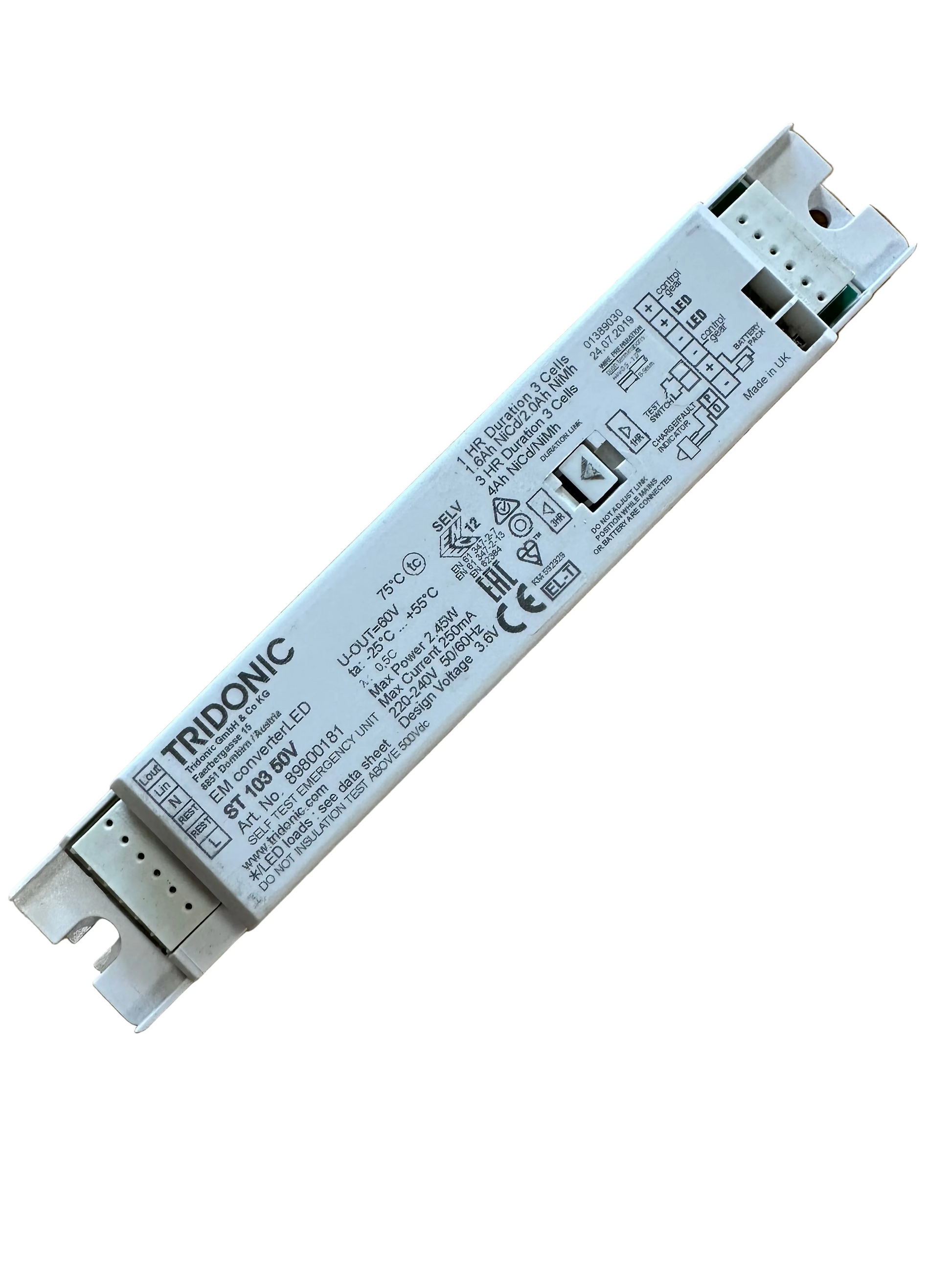

Tridonic 89800181 EM converterLED ST 103 50V

Tridonic 89800181 EM converterLED ST 103 50V

Product description

• Emergency lighting LED Driver with self-test function
• 3.6V 4Ah Battery Required (3 Hours)
• LED Module Forward Voltage 10-52V
• For self-contained emergency lighting
• For LED modules with a forward voltage of 10 – 52 V
• SELV for output voltage < 60 V DC

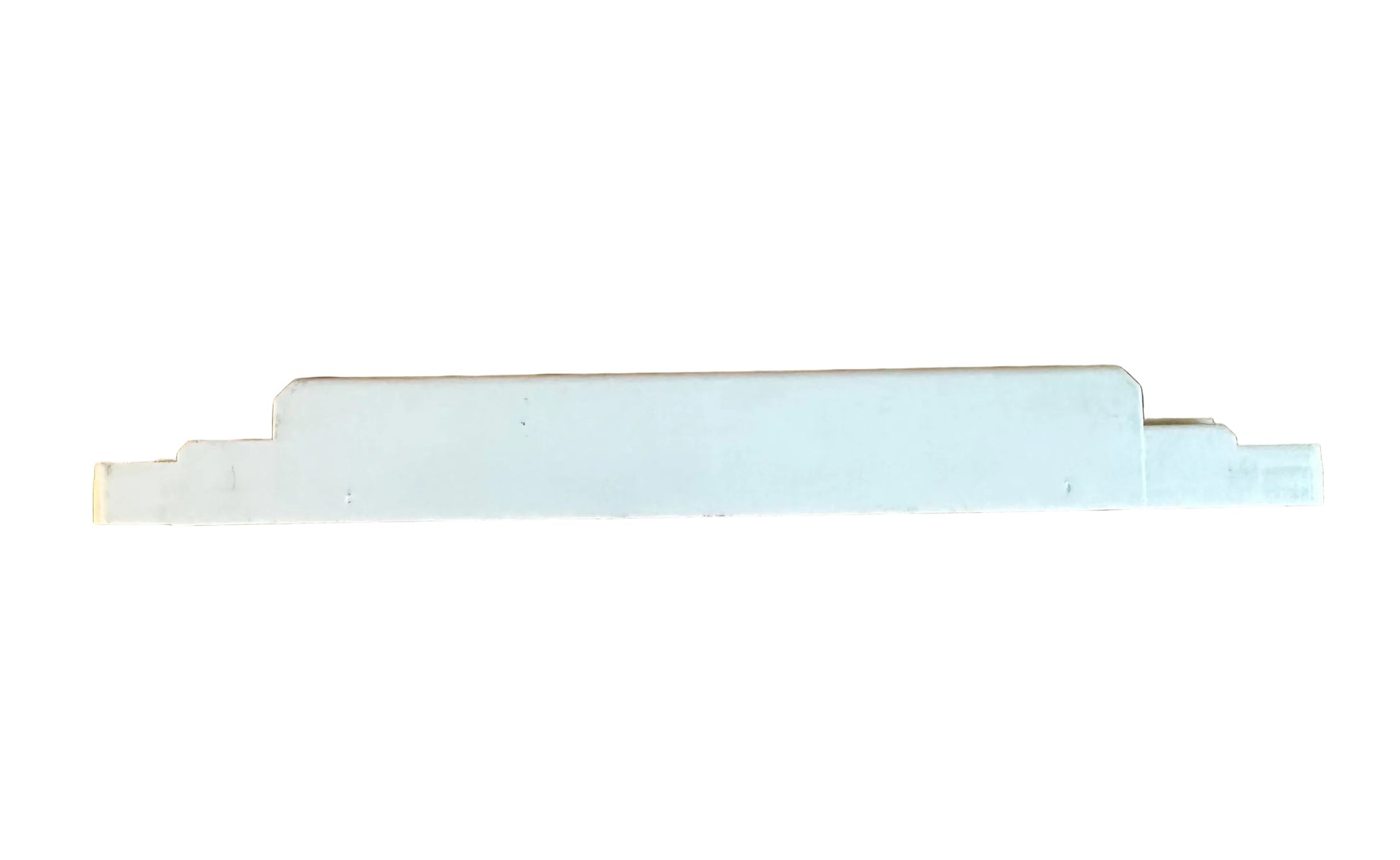

• Low profile casing (21 x 30 mm cross-section)
• Nominal life-time up to 50,000 h
• 5-year guarantee Properties
• Non maintained operation
• Self-test as per IEC 62034
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED Drivers
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output • Maximum light output for all LED modules
• Two-colour status display LED
• Rest mode“ function
• Electronic multi-level charge system
• Intermittent charge for NiMH batteries (pulse charge)
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery
• Self-test: Status of the battery •
• Status of the LED
• Charge condition
• Function test
• Duration test
