Tridonic 89800434 EM powerLED PRO DIM 103 SR NiCd 45W 50V

Tridonic 89800434 EM powerLED PRO DIM 103 SR NiCd 45W 50V

Product description

• Independent dimmable LED Driver
• Emergency lighting LED Driver with DALI interface and automatic test function
• For self-contained emergency lighting
• For LED modules with a forward voltage of 20 – 50 V
• SELV for output voltage < 60 V DC
• Compact plastic casing with strain relief

Properties

• Output power 6 – 45 W
• Constant current LED operation
• 300 – 1,400 mA output current in mains operation, adjustable with I-SELECT 2 PLUG in steps of 25 mA or via DALI in steps of 1 mA
• Integrated emergency lighting unit
• 1, 2 or 3 h rated duration

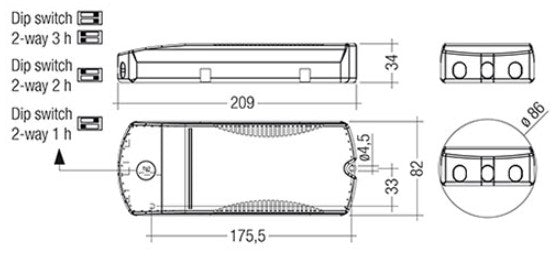

• Operating time selectable with dip switch (2-way)
• Automatic shutdown of output if the forward voltage of the LED is out of range
• Two-colour status display LED
• Electronic multi-level charge system
• Operates with NiCD batteries 3.6V 4Ah
• Polarity reversal protection for battery
• Power-up fading at AC
• Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
• Deep discharge protection
• Short-circuit-proof battery connection
• 5 years guarantee

Tridonic 89800434
