Tridonic 89800576 EMconverterLED BASIC 203 MH/LiFePO4 50V

Tridonic 89800576 EMconverterLED BASIC 203 MH/LiFePO4 50V

• Self contained emergency lighting LED driver for manual testing
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Compatible with Tridonic's LLE FLEX modules (ADV, EXC)
• Nominal lifetime up to 100,000 h
• EM = Emergency
• Non maintained operation
• 1 or 3 h rated duration

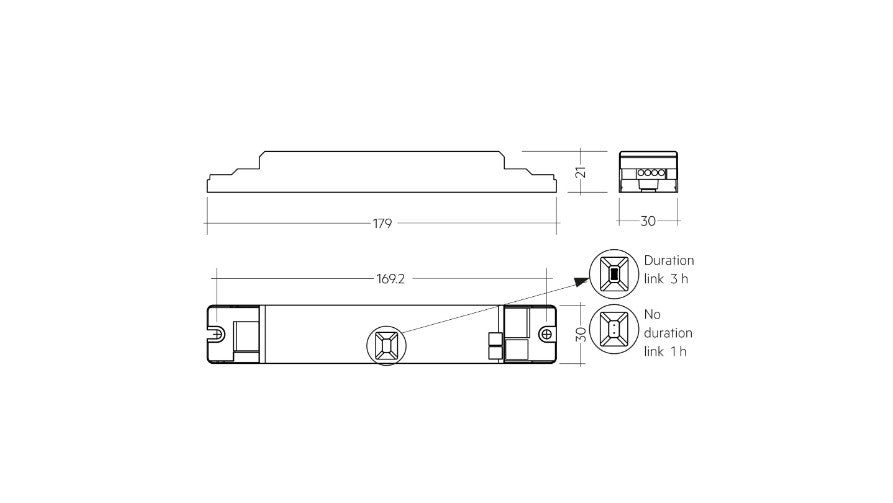

• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility)
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole connector
• Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)
