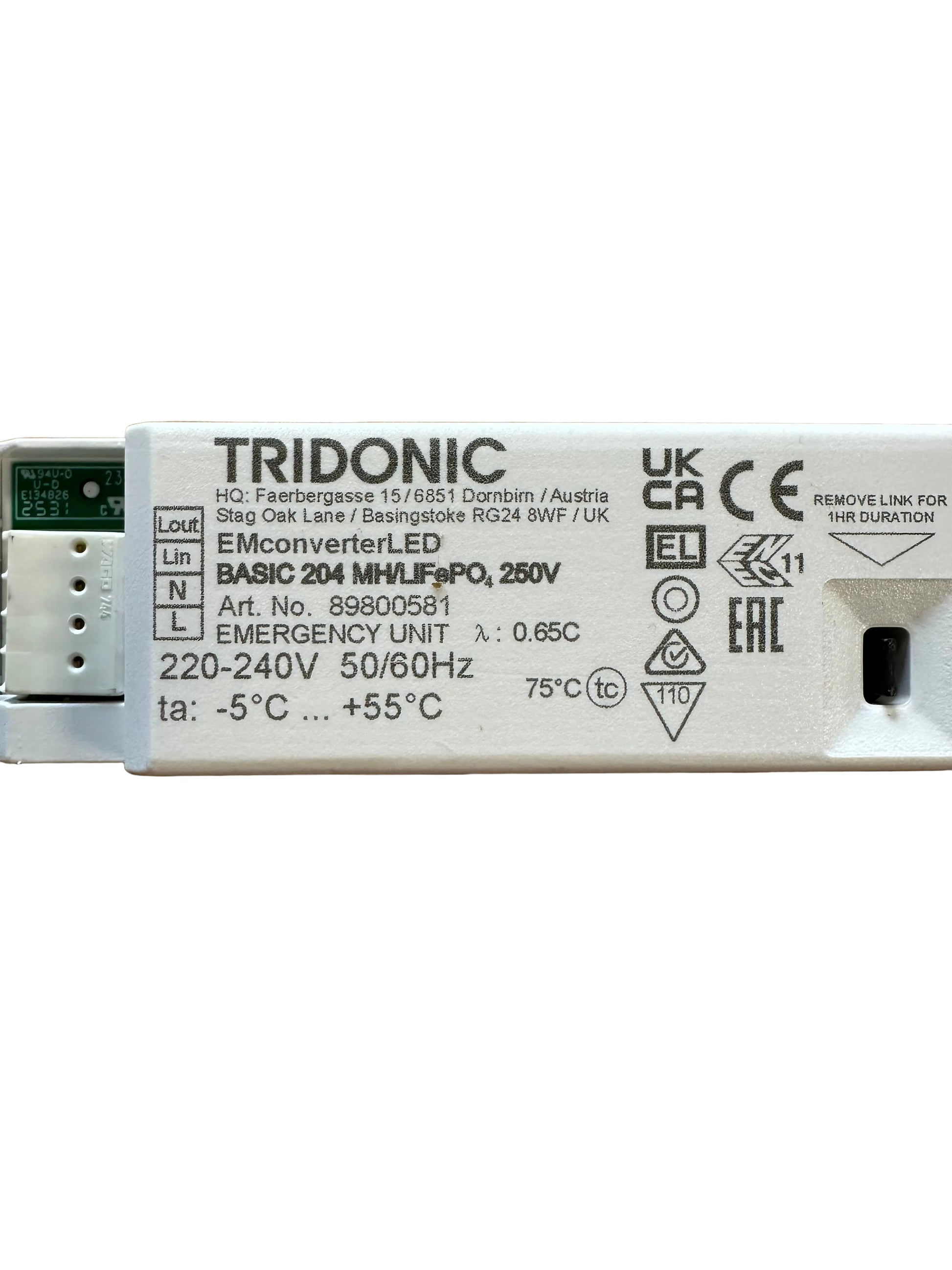

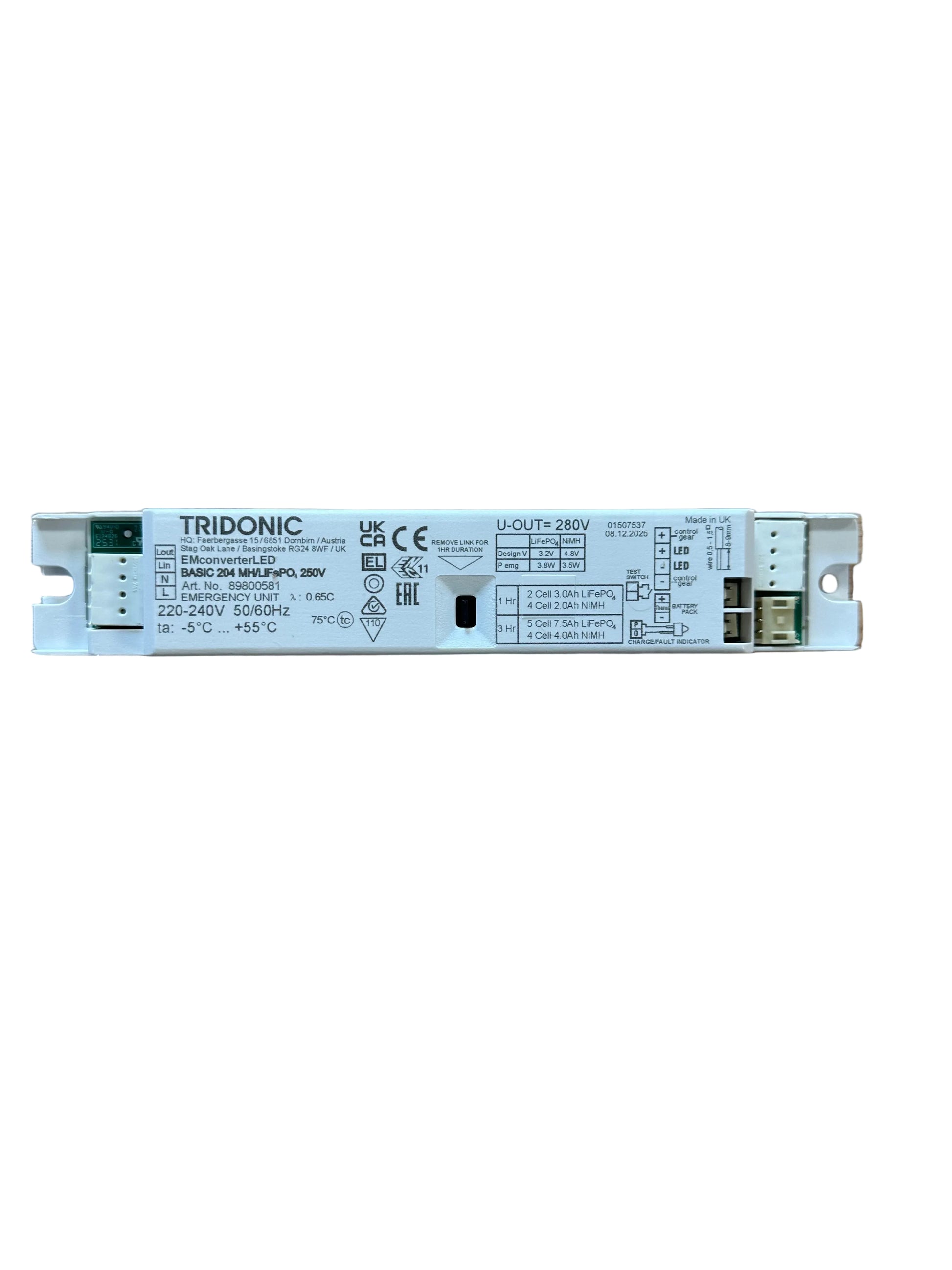

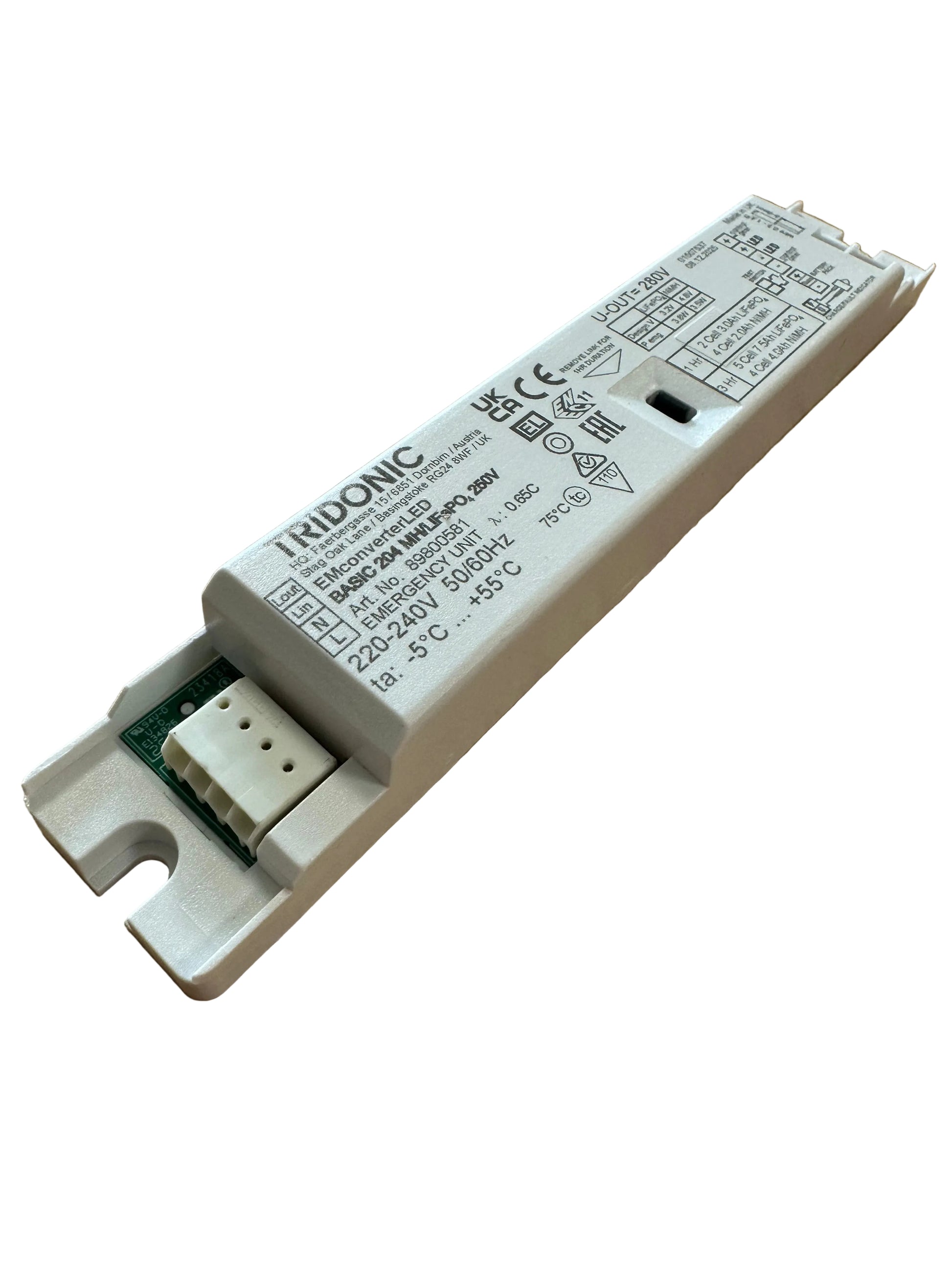

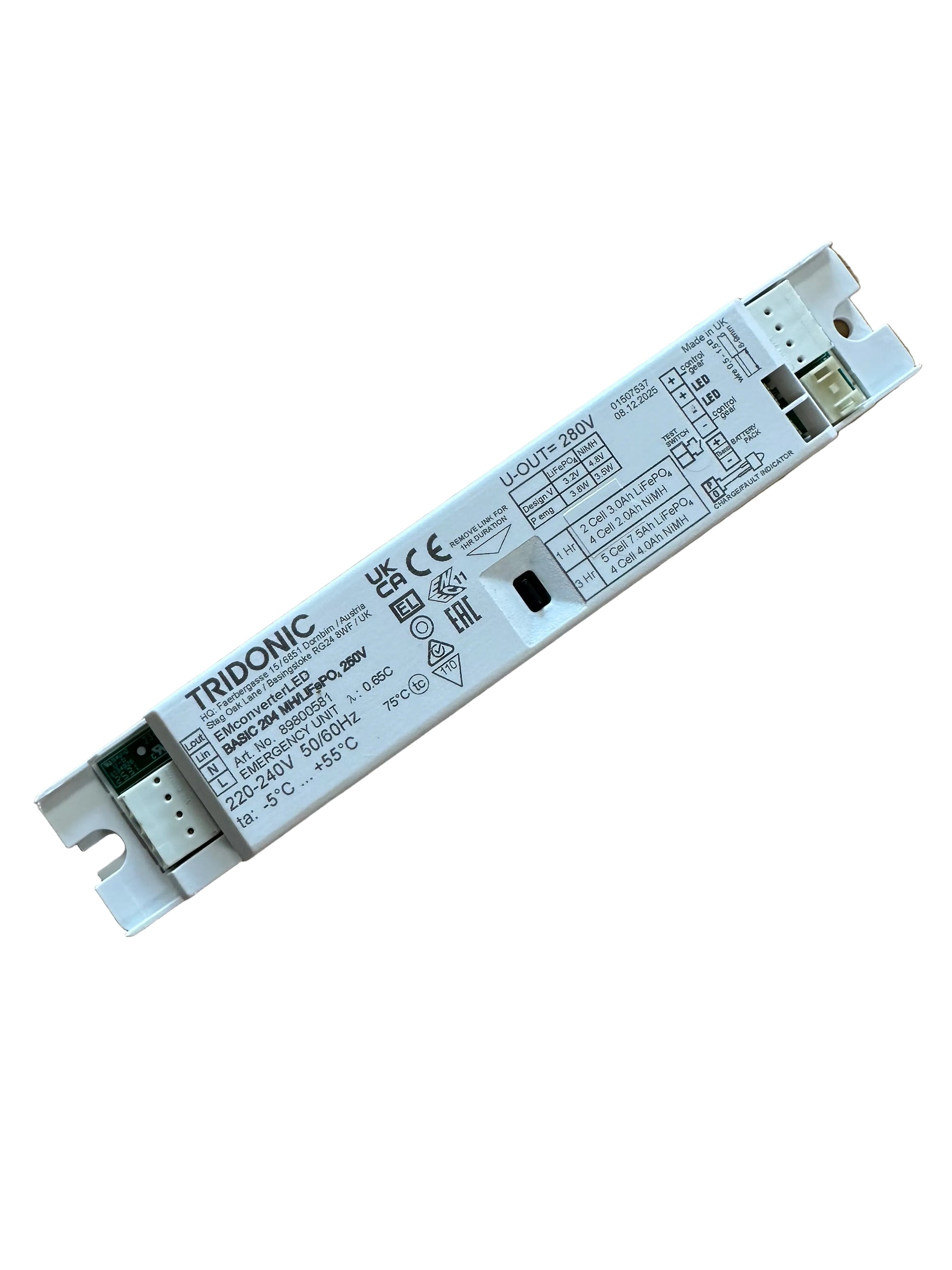

Tridonic 89800581 EMconverterLED BASIC 204 MH/LiFePO4 250V

Tridonic 89800581 EMconverterLED BASIC 204 MH/LiFePO4 250V

• Self contained emergency lighting LED driver for manual testing
• For LED modules with a forward voltage of 50 – 250 V

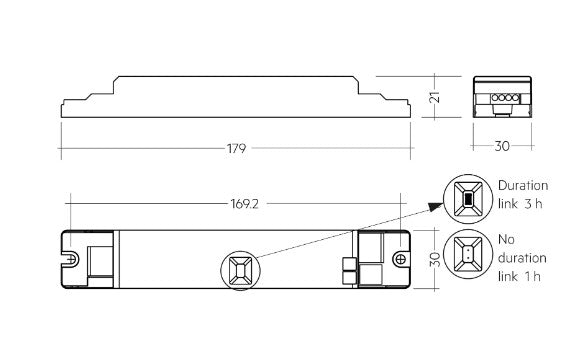

• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• EM = Emergency
• Nominal lifetime up to 100,000 h
• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility)
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole connector

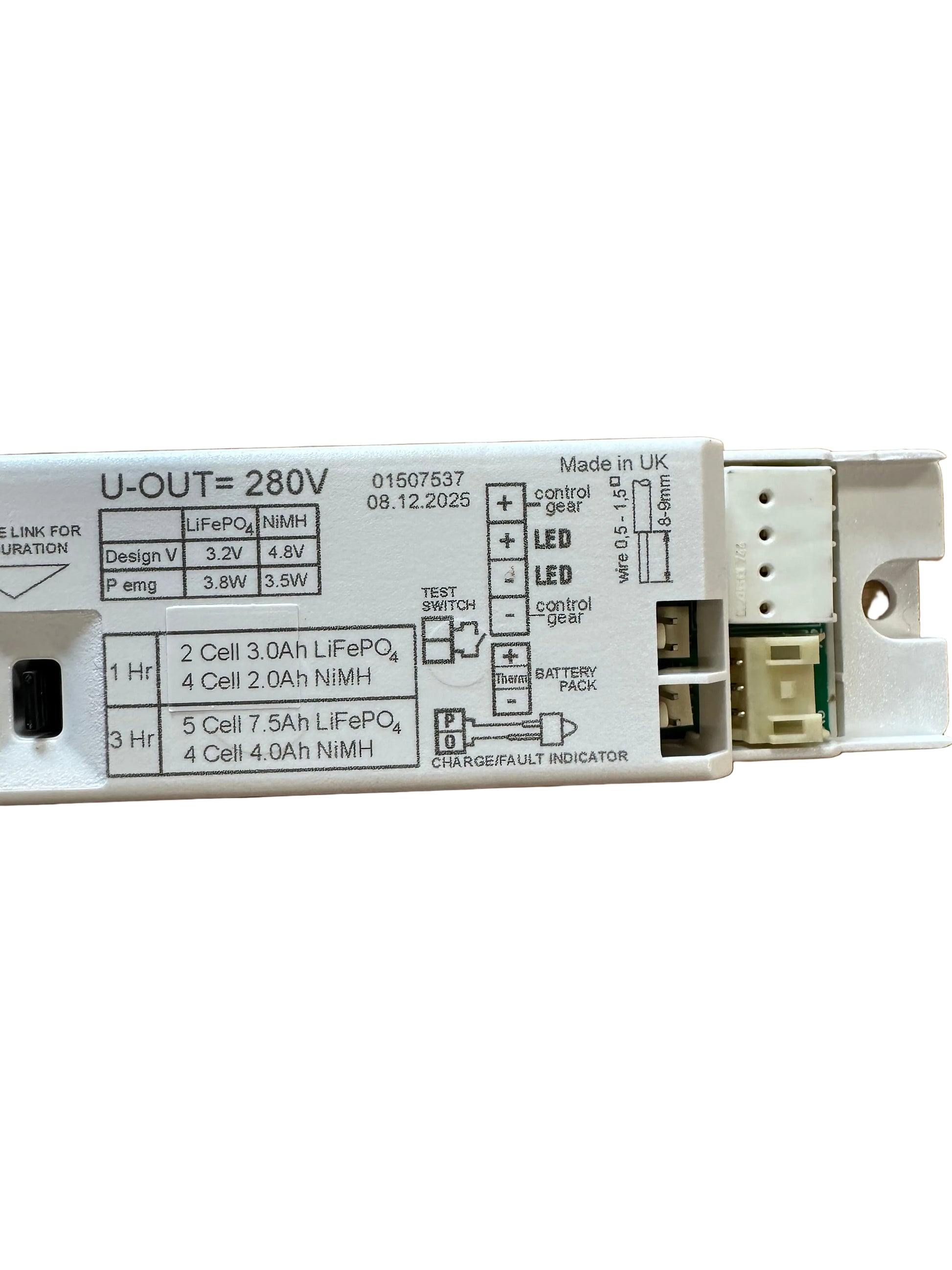

• Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)
