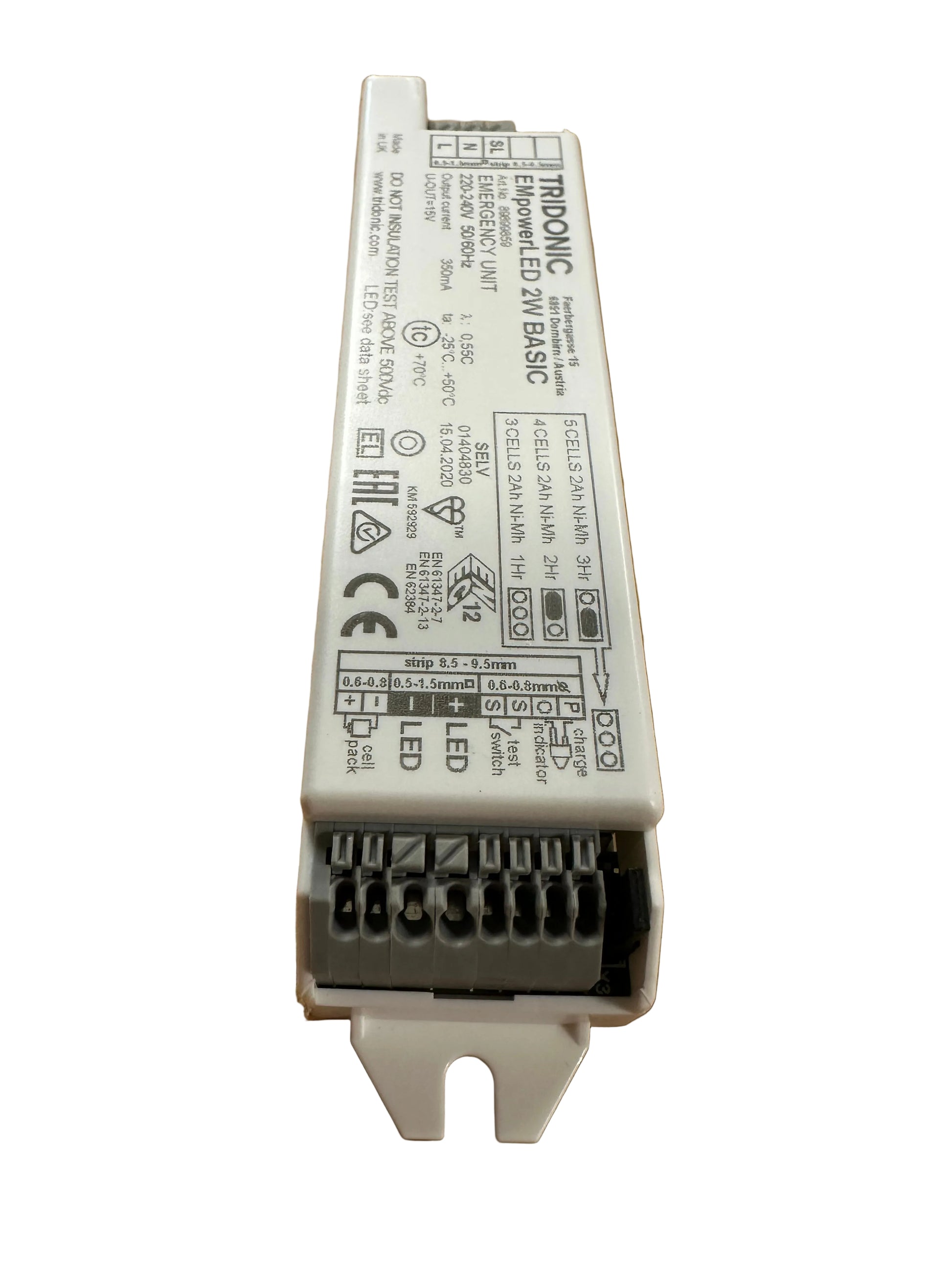

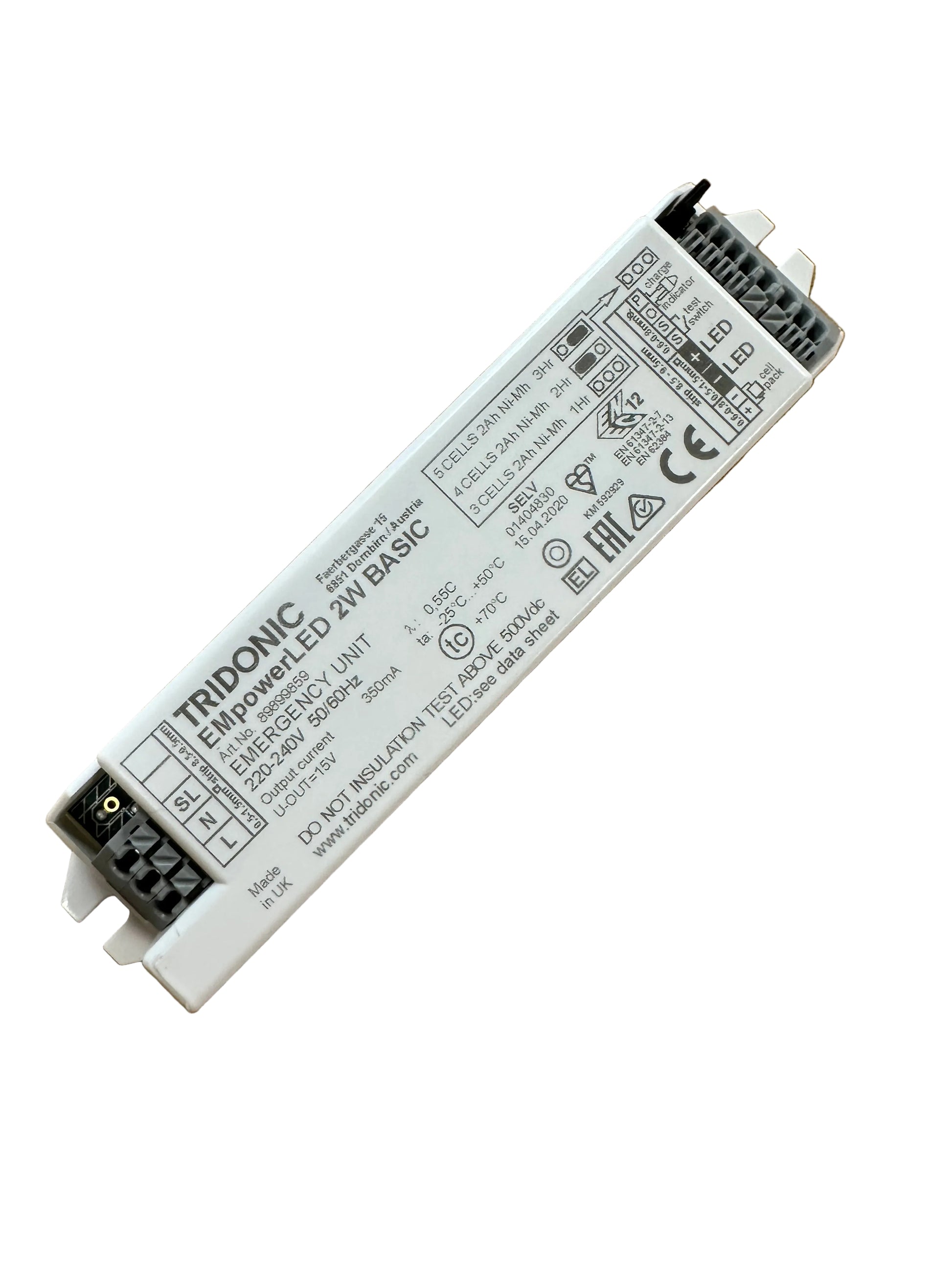

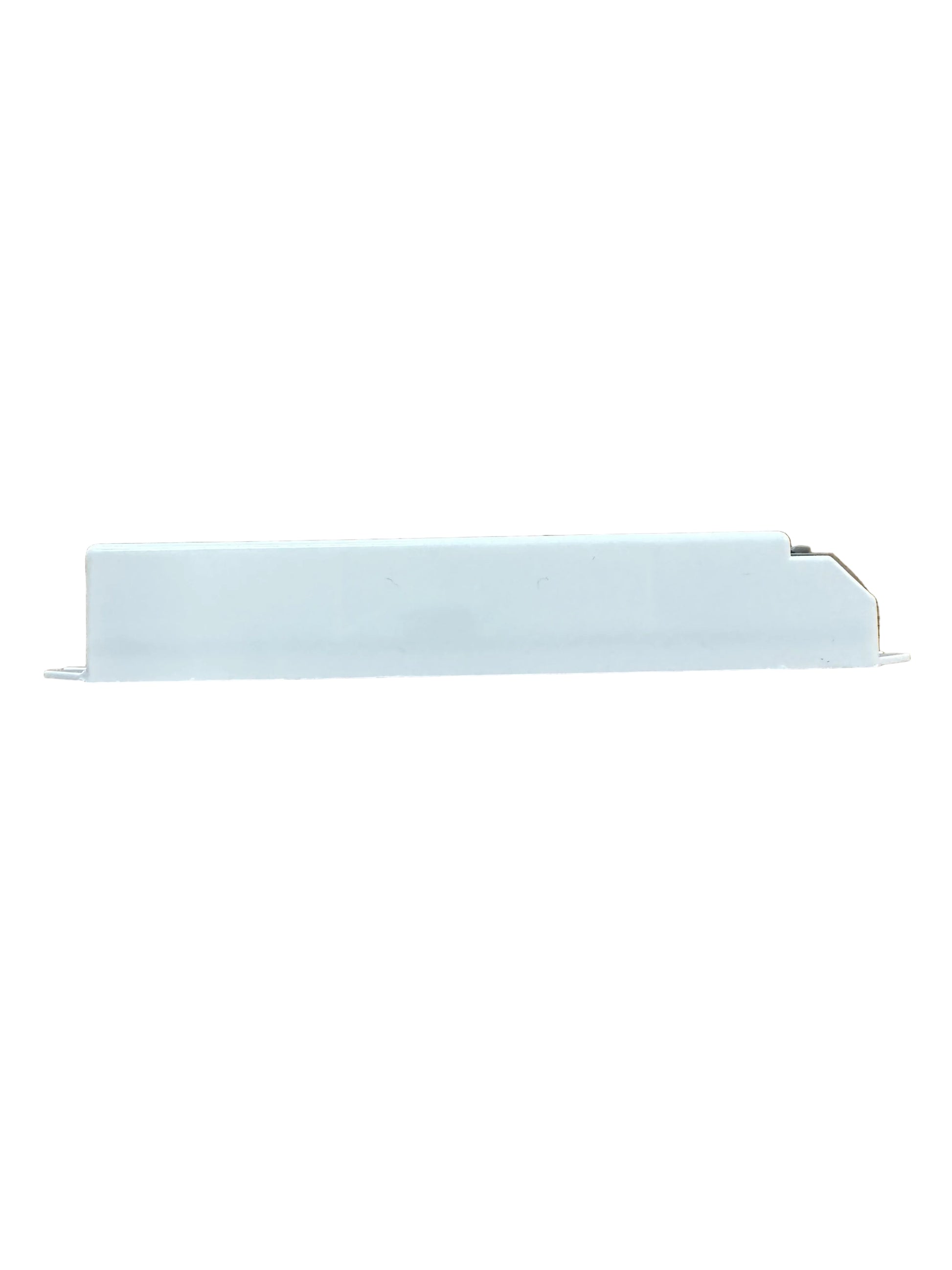

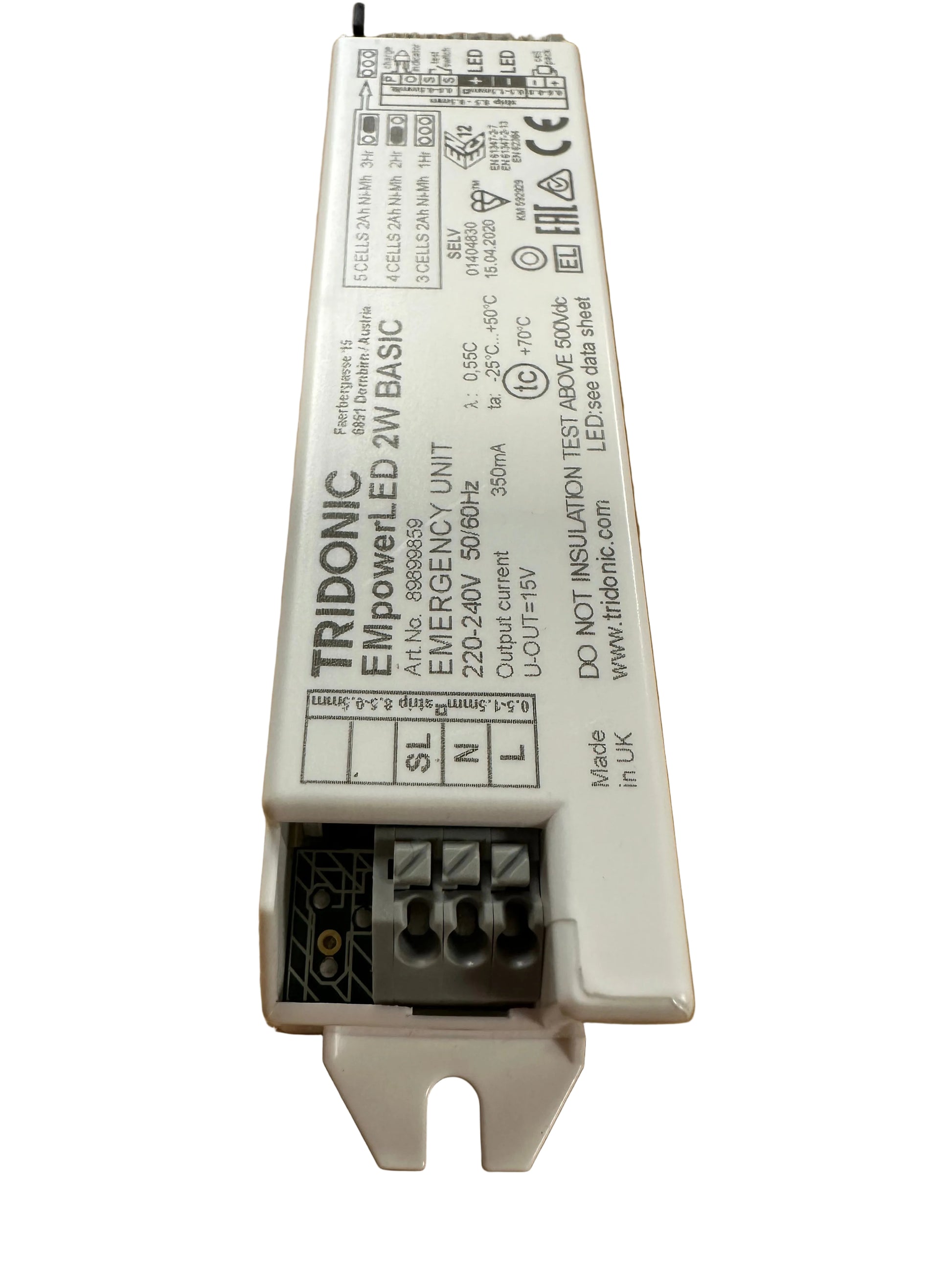

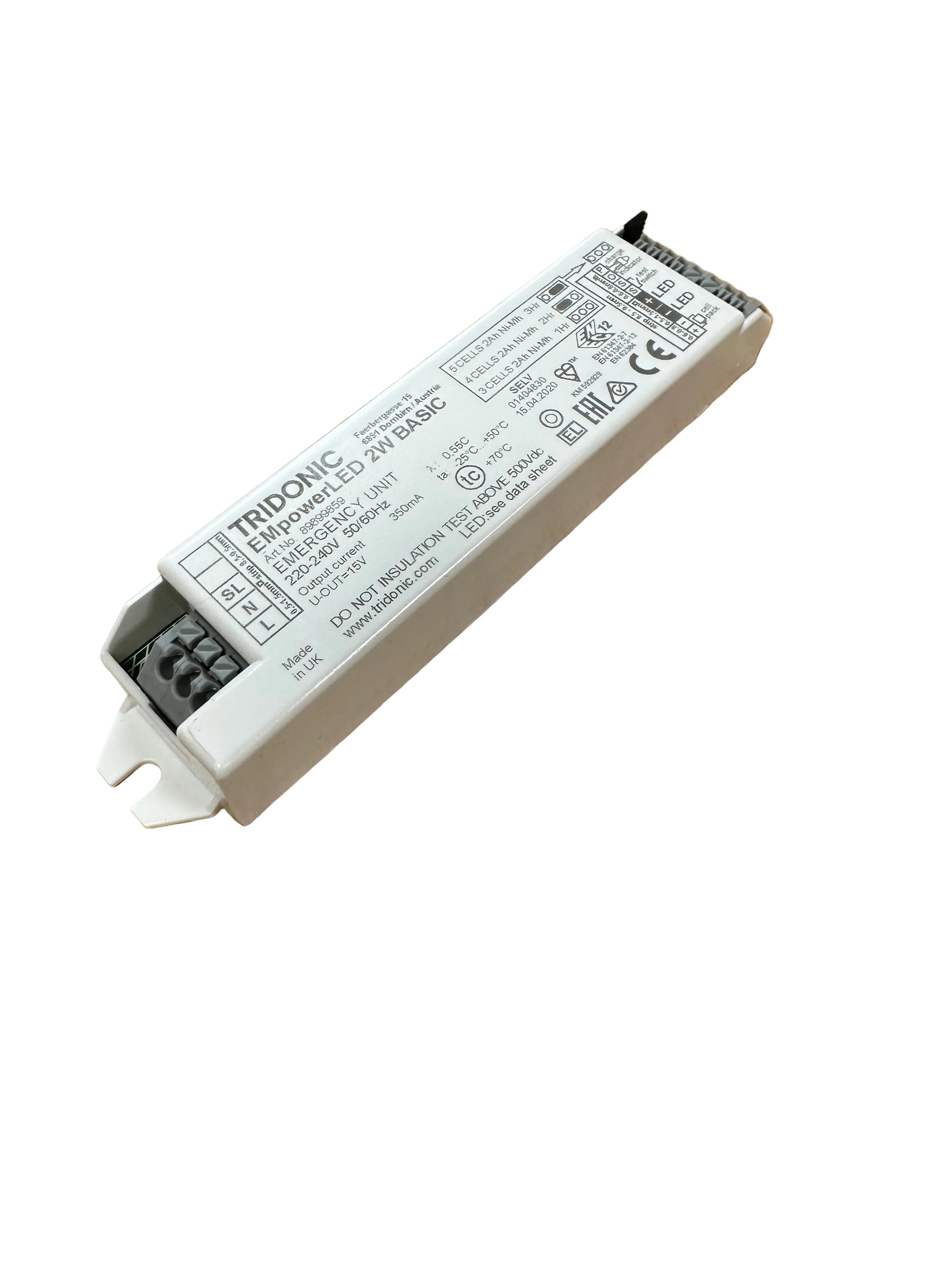

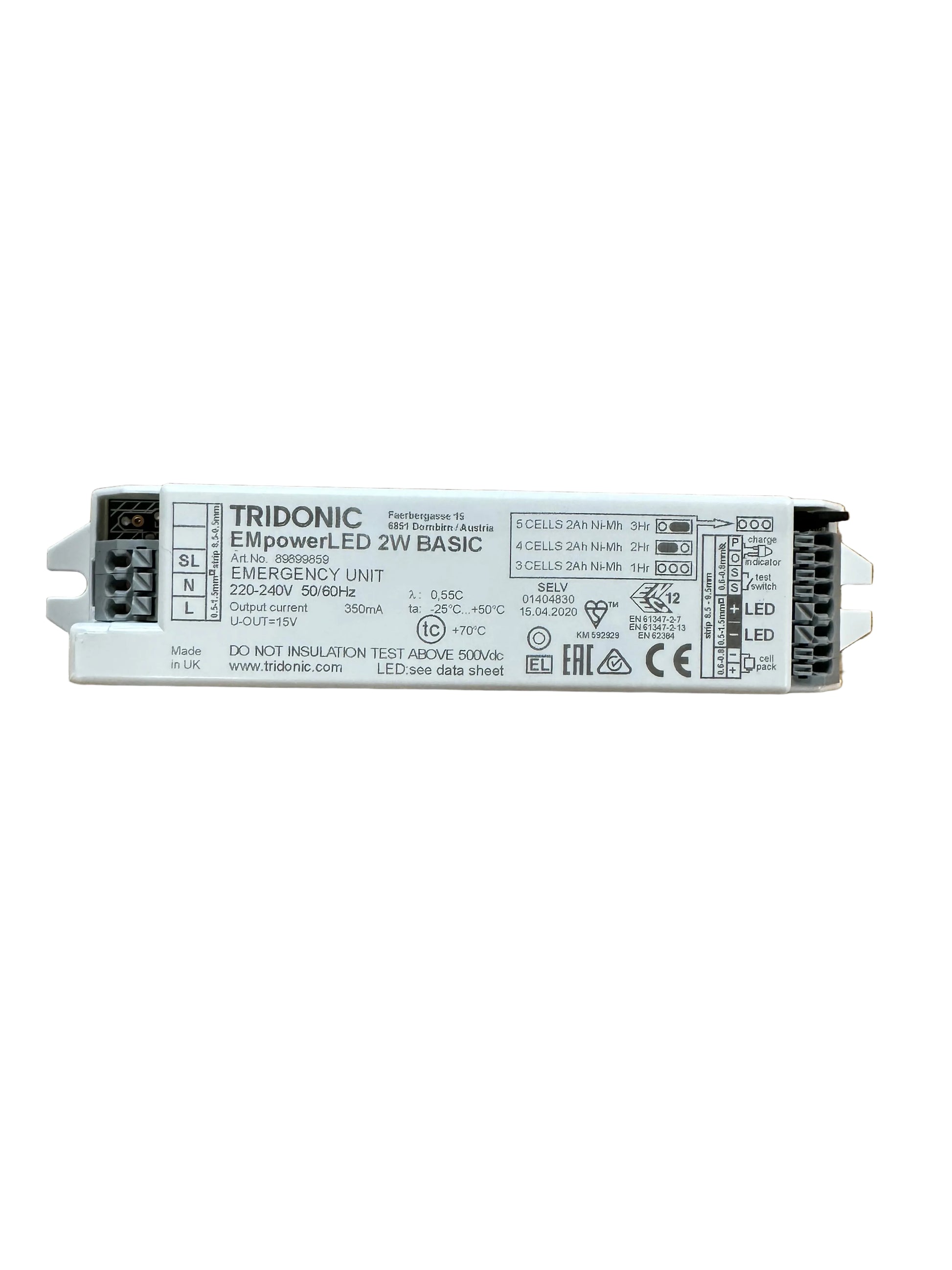

Tridonic 89899859 EM powerLED 2 W BASIC SCREW-FIX

Tridonic 89899859 EM powerLED 2 W BASIC SCREW-FIX

Combined emergency lighting LED driver 2W

Product description

• 2W Emergency lighting LED driver for manual testing
• For self-contained emergency lighting
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• 5 years guarantee

Properties

• Mains and emergency operation
• Constant current mode
• With either screw or clip fastening (clip-fix)
• 1, 2 or 3 h rated duration
• Selectable operating time (jumper)
• Green charge status display LED
• Output power limitation
• Automatic restart after LED replacement
• Electronic multi-level charge system
• SELV classified (outputs powerLED, battery, status LED, test switch)
• Polarity reversal protection for battery
• Deep discharge protection
• Very low energy consumption from the battery after activation of the deep discharge protection
• Short-circuit-proof battery connection
• Emergency lighting LEDs available

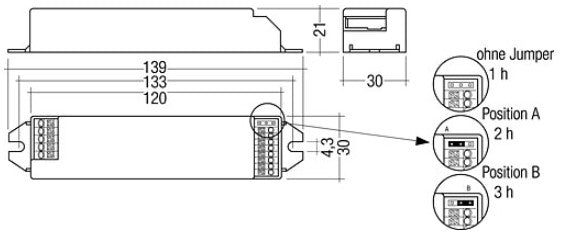

• Dimensions 139mm L 30mm W 21mm H

Batteries

• High-temperature 5 cells 2.2 Ah for 3 hour duration
• NiMH batteries
• Cs cells
