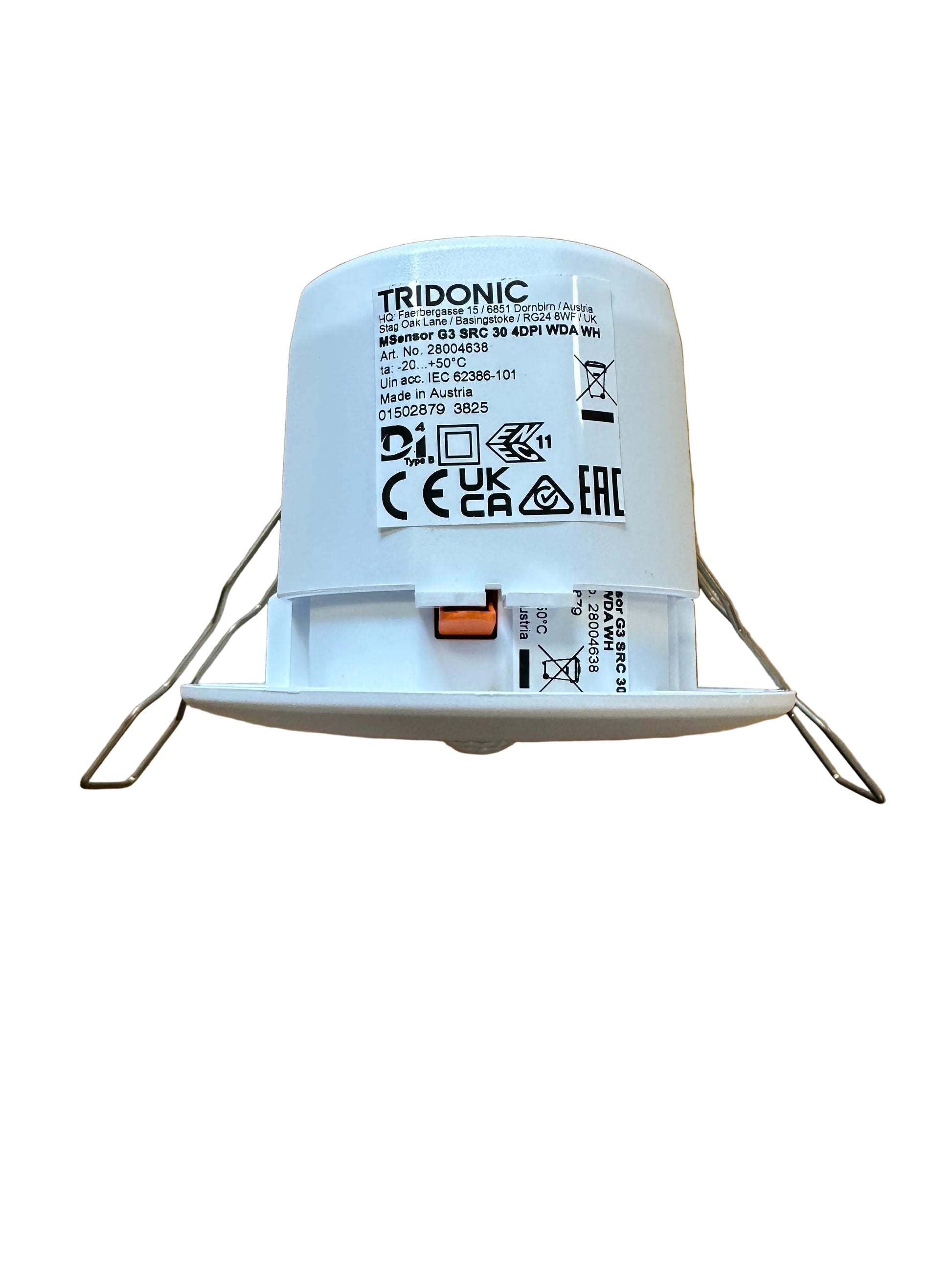

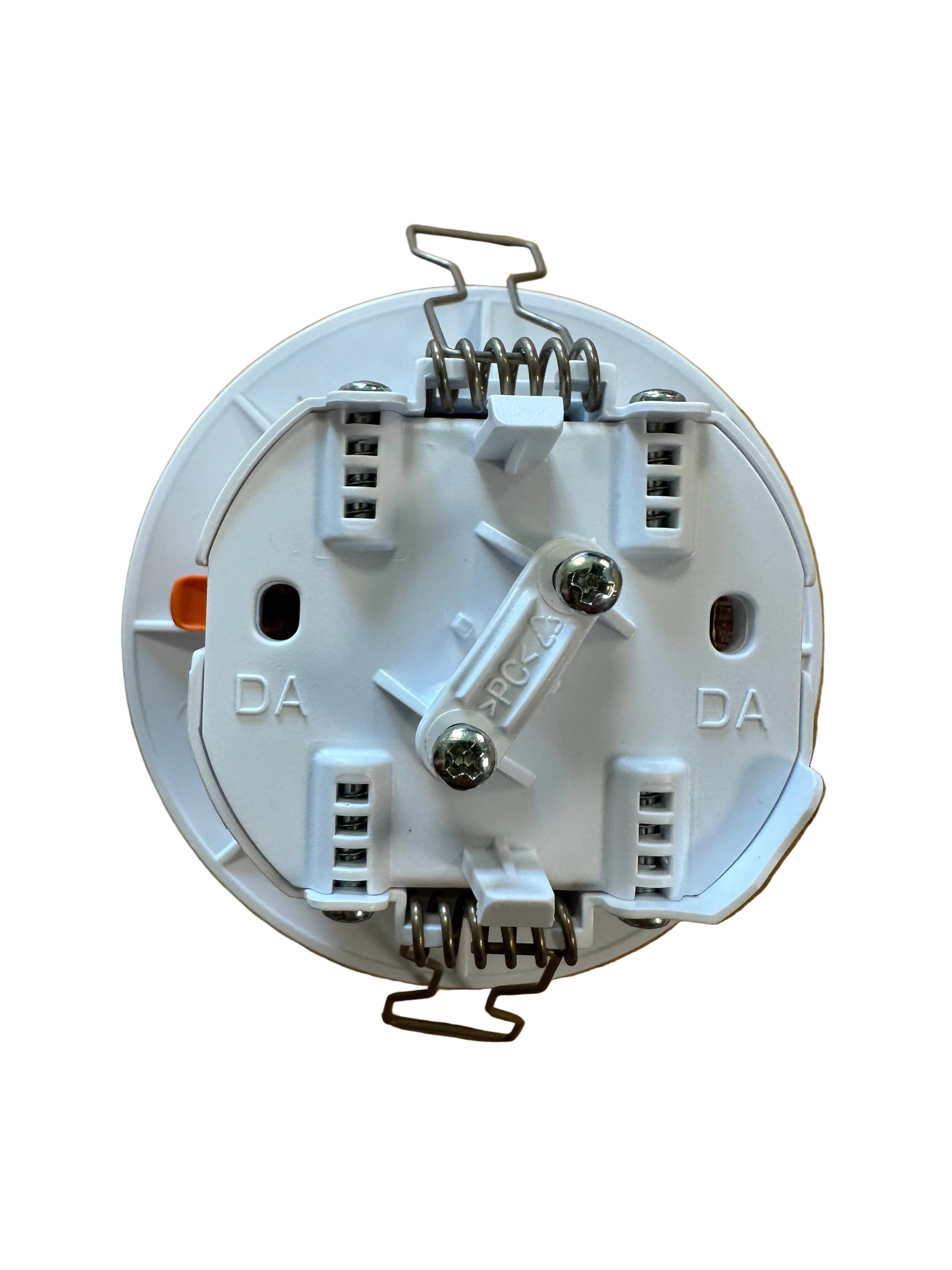

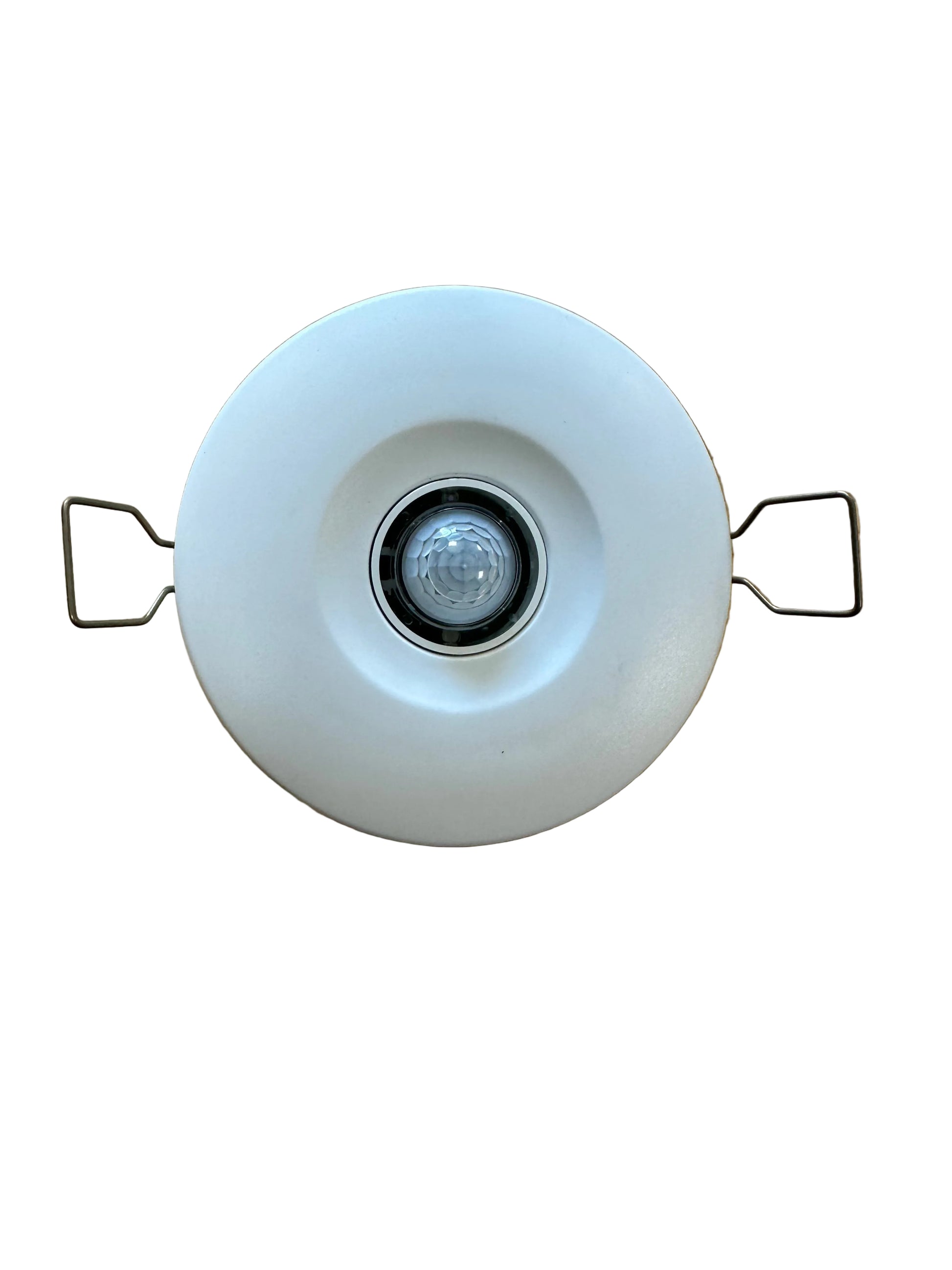

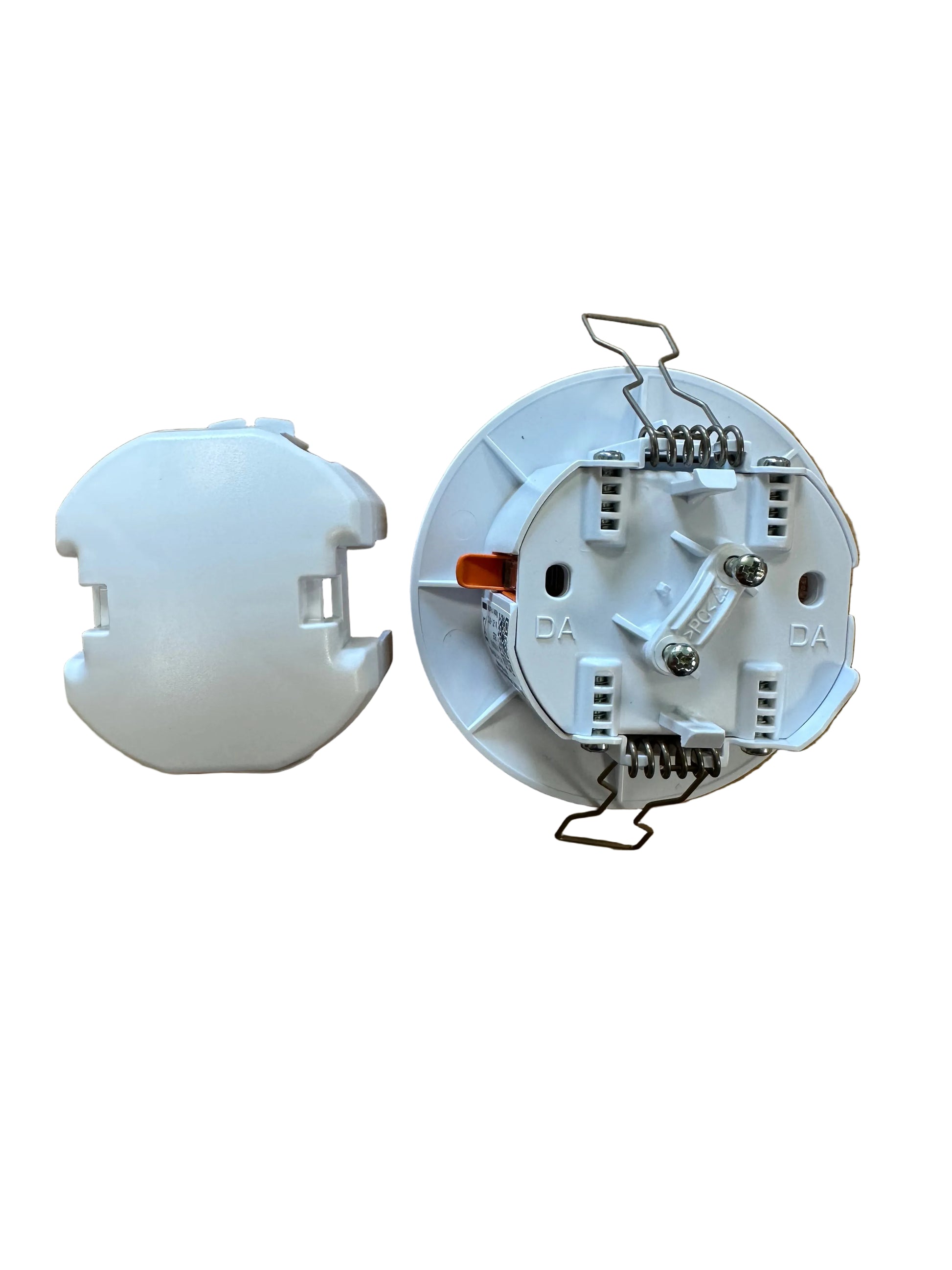

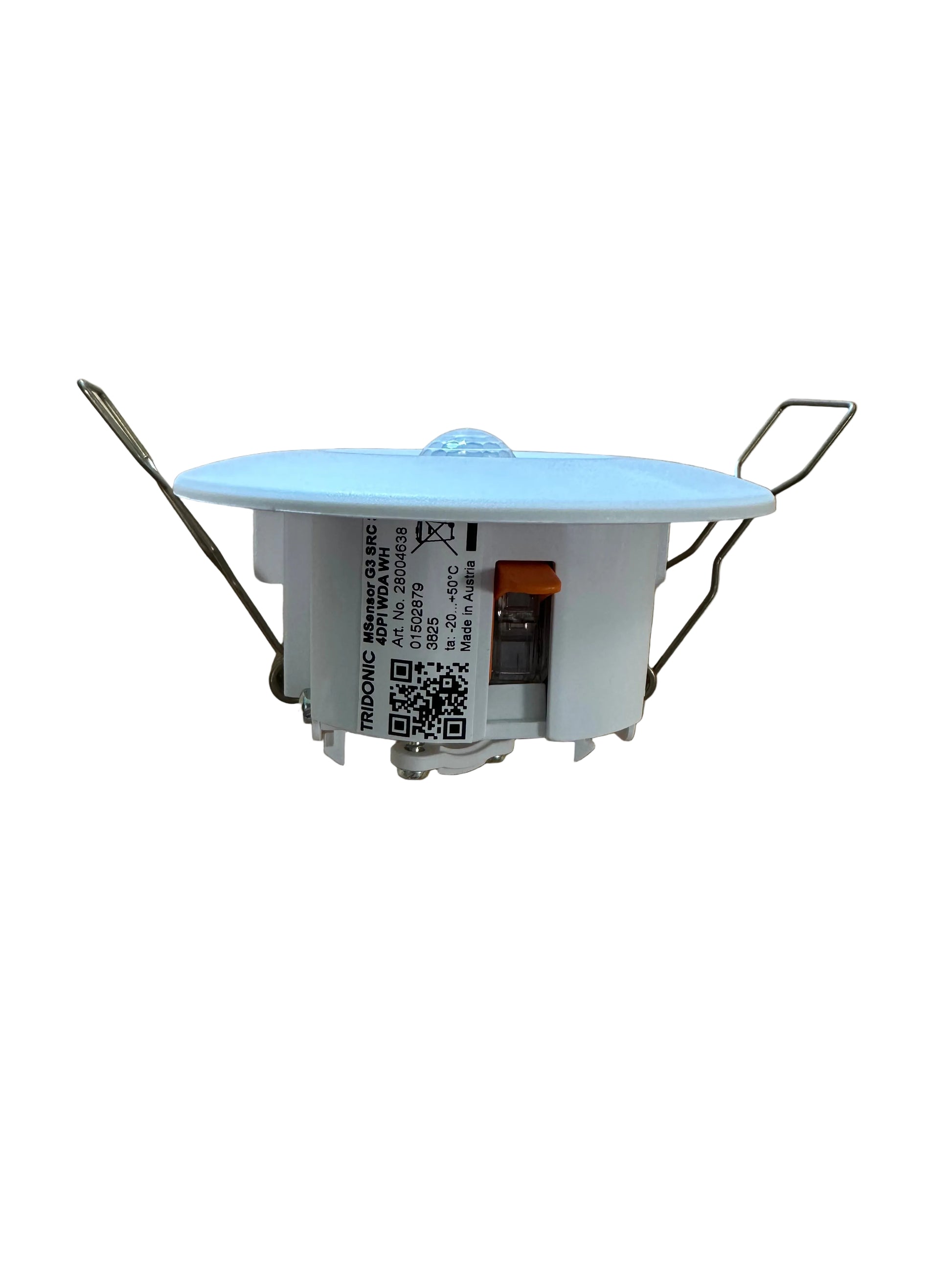

Tridonic DALIMSensor G3 SRC 30 PIR 4DPI WDA WH - 28004638

Tridonic DALIMSensor G3 SRC 30 PIR 4DPI WDA WH - 28004638

• Dimensions 52.3 x 54.7 x 51.5 mm
• Suitable for Ceiling installation

28004638 Product description
_ Sensor developed to work with the latest DALI specification
_ Wide detection angle of up to 125° covering an area of up to 141 m²
_ Monitoring of ambient light and occupancy detection
_ Remote control interface allowing infrared remote control interaction
_ Individual adjustment of the parameters with configuration software
_ Power supply via DALI line

28004638 Technical data
Sensor type - PIR sensor
Supply via - DALI cable
Supply voltage - 1 9.5 – 22.5 V
Current draw - 6 mA from DALI
Current consumption (no LED) - max. 8 mA
Current consumption (with LED) - max. 9 mA
Housing colour lens -  White
Type of protection - Up to IP54
Lifetime - up to 50,000 h

Tridonic DALI MSensor G3 family sensors are developed according to DALI Standard EN 62386-101 Ed.2, also known as DALI-2. To be able to use the sensor in such installation, an application controller is necessary.

Tridonic 28004638
