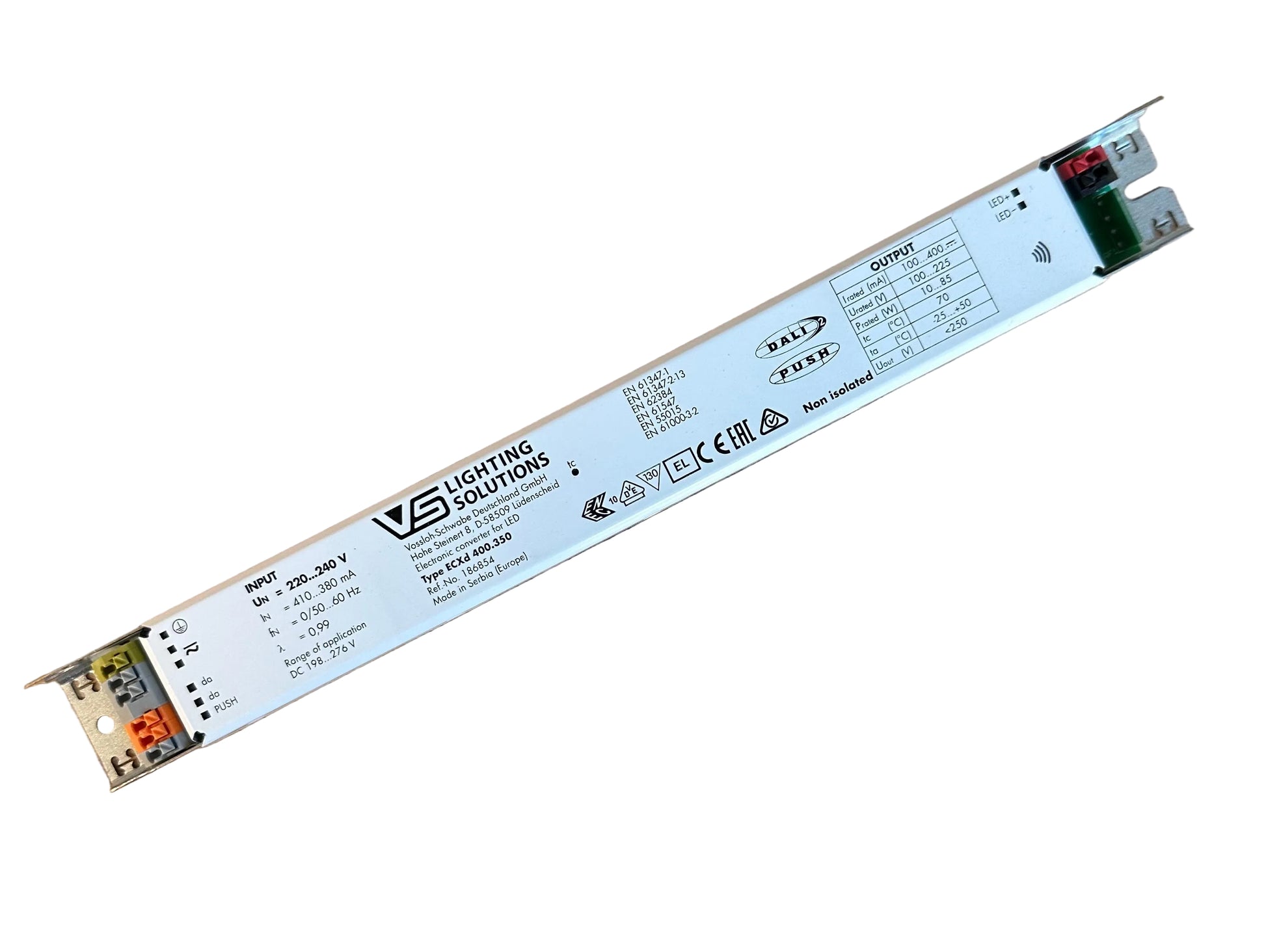

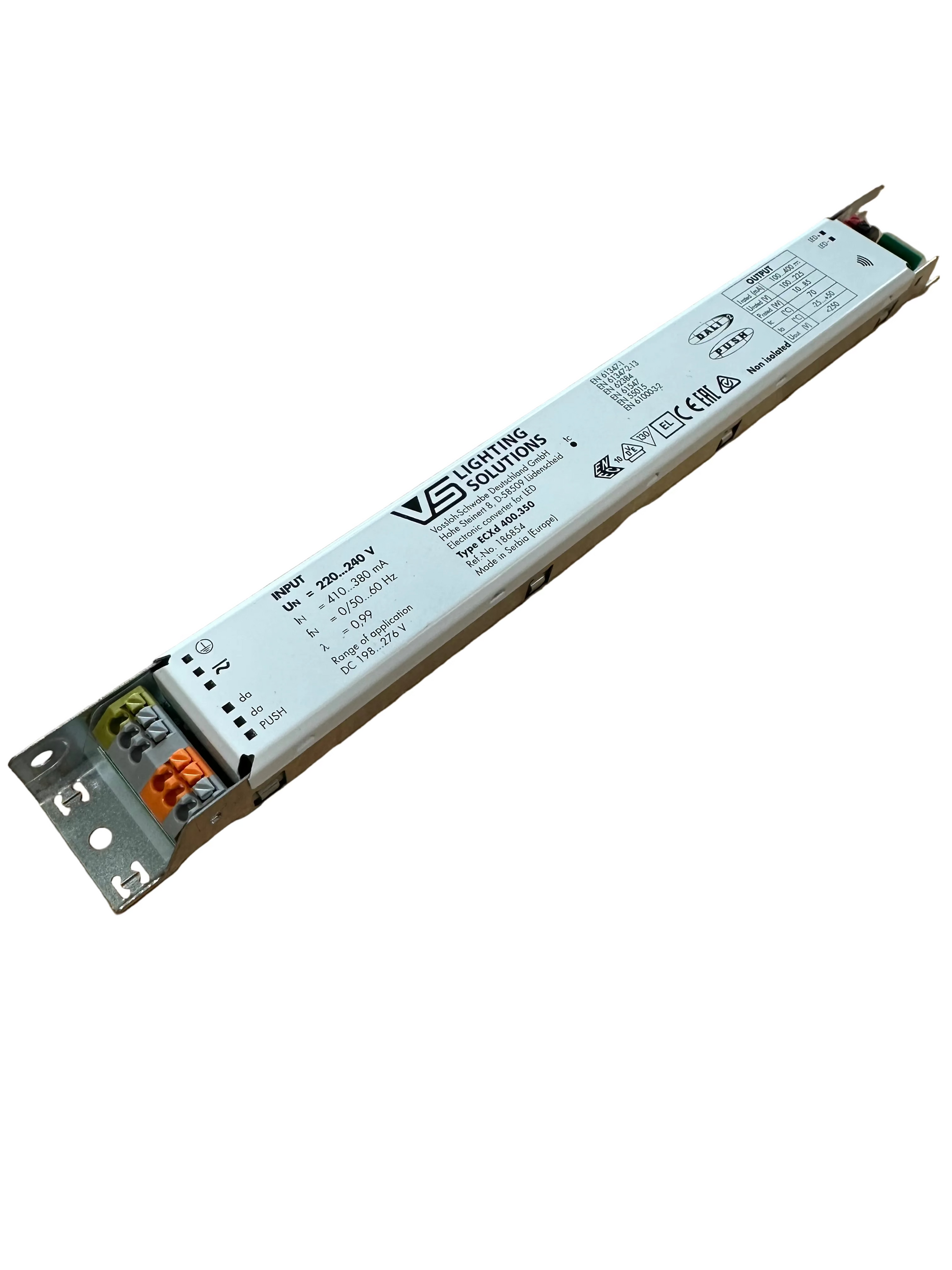

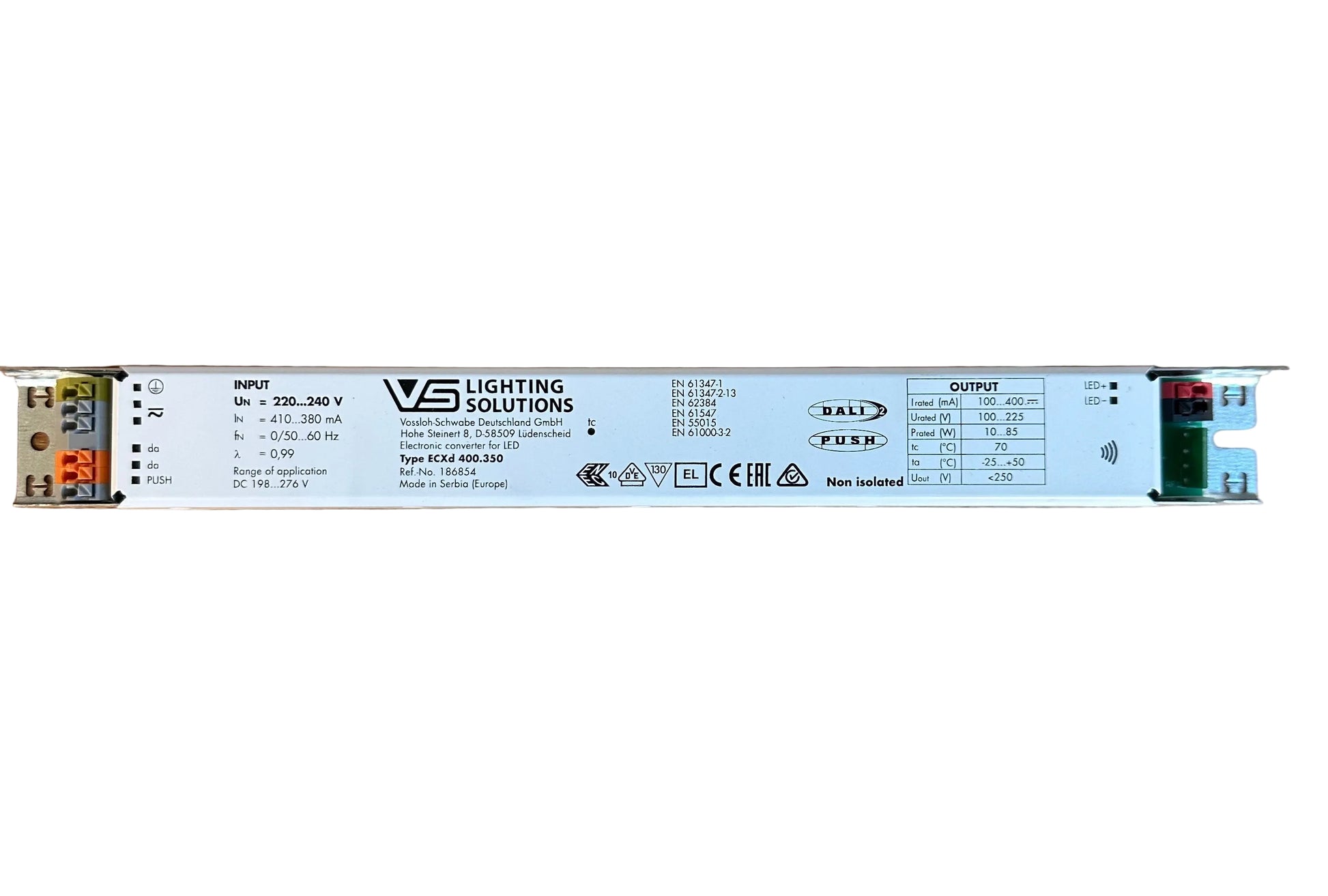

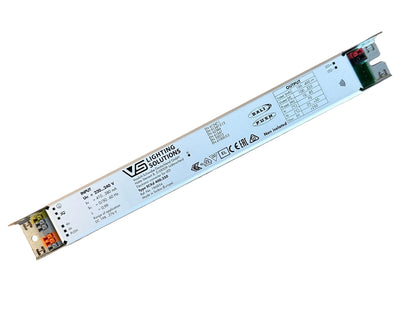

Vossloh-Schwabe ECXd 400.350 186854 10-85W 100-400mA DALI LED Driver

Vossloh-Schwabe ECXd 400.350 186854 10-85W 100-400mA DALI LED Driver

Product features

• Wattage; 10-85W mA
• Forward Voltage: 100-225V (mA dependent)
• Linear casing shape
• Programmable via NFC interface (contactless)
• Selectable current output
• Programmable CLO function
• Adjustable DC level
• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• DC operation: 198–264 V, 0 Hz
• Push-in terminals: 0.2–1.5 mm²
• Power factor at full load: > 0.97
• Max. working voltage (UOUT): 250 V
• Secondary side switching of LED modules is not allowed.
• Dimming range: 1 to 100%
• Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L/N and PE)
• Electronic short-circuit protection
• Overload protection
• Overtemperature protection
• Protection against "no load" operation
• Degree of protection: IP00
• Protection class I

ECXd 400.350 186854
